Cooper&Hunter

Cooper&Hunter Hyper Olivia 5-Zone Ductless Mini Split AC & Heat Pump 48000 BTU (6K+9K+12K+18K+24K), Wall Mount Units, 230V

SKU: CH-RVHP48M-230VO + CH-R06MOLVWM-230VI + CH-R09MOLVWM-230VI + CH-R12MOLVWM-230VI + CH-R18MOLVWM-230VI + CH-R24MOLVWM-230VI

System highlights
AC Type
Wall Mount
Refrigerant Type
R454B
Brand
Cooper&Hunter
Outdoor Unit
48000 BTU VO (4.0 TON)
Indoor Unit
6000 BTU (0.5 TON), 9000 BTU (0.75 TON), 12000 BTU (1.0 TON), 18000 BTU (1.5 TON), 24000 BTU (2.0 TON)
Voltage
208-230V
Looking For
Wall Mount, Pre-Made Kits
Cooling Area (sq.ft.)
150-250, 250-400, 400-550, 550-1000, 1000-1500
Series
Olivia, Hyper
SEER2 Rating
23.0
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$7,559.00
Shipping calculated at checkout.
View full details
COOPER & HUNTER — Olivia Series

Cooper&Hunter Hyper Olivia 5-Zone Ductless Mini Split AC & Heat Pump 48000 BTU (6K+9K+12K+18K+24K), Wall Mount Units, 230V

The Cooper & Hunter Olivia Series system features a 48000 BTU outdoor unit paired with CH-RVHP48M-230VO + CH-R06MOLVWM-230VI + CH-R09MOLVWM-230VI + CH-R12MOLVWM-230VI + CH-R18MOLVWM-230VI + CH-R24MOLVWM-230VI wall-mounted indoor units. This high-efficiency model with auto-swing louvers will heat & cool down to -22 F. The DC inverter heat pump provides independent control in 5 zones.

5 Zone(s) 48000 BTU Outdoor SEER2 23 Heats to -22 F Outdoor SKU CH-RVHP48M-230VO Outdoor noise: 65 dB(A) Indoor noise: 20 dB(A) Smart Kit Included 46°F Freeze Protection
Contact for custom quotes Call 800-543-8933

Key features

Comfort & airflow

  • 5-zone independent temperature control
  • Auto-swing louvers (horizontal + vertical)
  • Follow Me mode (remote-based temperature sensing)
  • Turbo mode for rapid cooling/heating
  • Sleep mode + Timer On/Off scheduling
  • New user-friendly remote controller design

Efficiency & protection

  • High efficiency operation (23 SEER2)
  • Low-ambient performance down to -22 F
  • 46°F Freeze Protection
  • Self-Clean function (single-zone only, if equipped)
  • Eco mode (single-zone only, if equipped)

Build & materials

  • TU1 copper tubes
  • Quiet operation (Outdoor as low as 65 dB(A); Indoor as low as 20 dB(A))

At-a-glance

Zoning
5 zones
Outdoor BTU
48000
SEER2
23
Low ambient
-22 F
Outdoor noise
65 dB(A)
Indoor noise
20 dB(A)
Outdoor SKU
CH-RVHP48M-230VO
Smart control
Smart Kit Included

Warranty requires licensed HVAC installation and registration within 60 days (if required).

Control options

  • Smart Kit included with downloadable C&H app
  • Remote control included
  • Wall thermostat compatible (purchased separately, if supported by the model)

Outdoor technology

  • High-Frequency Racer Technology: helps the compressor reach maximum speed within ~6 seconds on startup
  • Electronic expansion valve: manages refrigerant flow for stable performance
  • Intelligent dusting switch: reverses the fan to help clear dust/sand/debris from the coil
  • Genius Core ultra-low compressor speed of 12Hz

Installation & electrical

  • Indoor line sizes (varies by head): 1/4"/3/8" | 1/4"/1/2" | 3/8"/5/8"
  • Refrigerant precharge: 150
  • Additional refrigerant charge (1/4 liquid line): 0.16
  • Additional refrigerant charge (3/8 liquid line): 0.16
  • Minimum circuit ampacity: 37
  • Max fuse / breaker: 40

Use the installation manual to confirm charge units and when additional charge is required (based on line length and piping configuration).

Product video

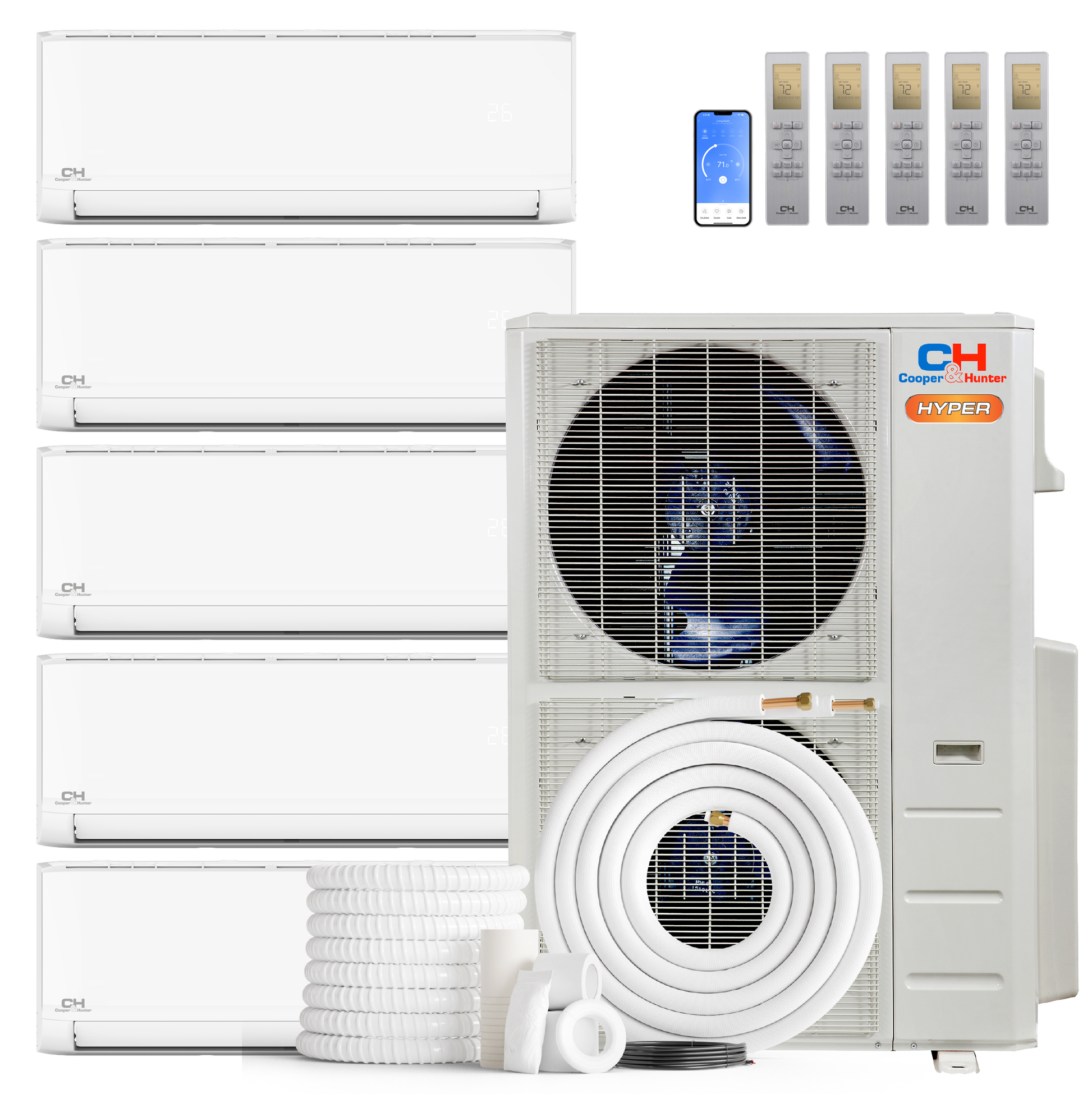

What’s included

Cooper & Hunter Olivia Series Ductless Mini Split System

Outdoor Unit: 48000 BTU (1 pc) — Model: CH-RVHP48M-230VO

Indoor Units:

- 6,000 BTU (x1) — Model: CH-R06MOLVWM-230VI

- 9,000 BTU (x1) — Model: CH-R09MOLVWM-230VI

- 12,000 BTU (x1) — Model: CH-R12MOLVWM-230VI

- 18,000 BTU (x1) — Model: CH-R18MOLVWM-230VI

- 24,000 BTU (x1) — Model: CH-R24MOLVWM-230VI

  • Installation Kits options (No Installation / 16 ft / 25 ft / 50 ft)
  • (INSTALLATION KIT SIZE MUST BE SELECTED, TO INCLUDE)
  • Wireless Remote Controls (5 remotes)
  • Wi-Fi Adapter (17310900A05963)
  • Installation Manual
  • User's Manual
  • Manufacturer Warranty

Complete technical specifications — Indoor

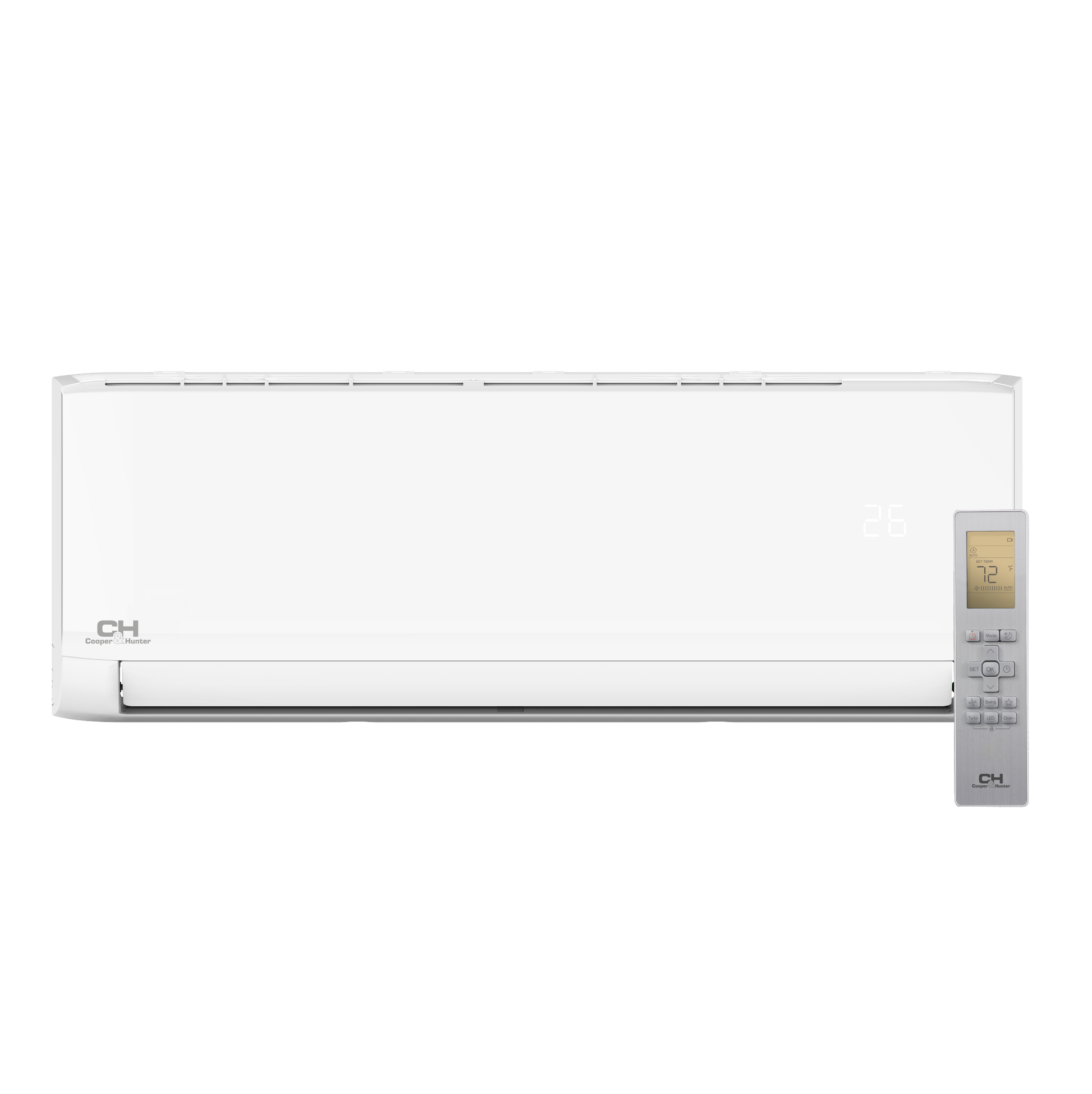

Indoor Unit Specifications — CH-R06MOLVWM-230VI

Indoor Model CH-R06MOLVWM-230VI
Power Supply (Rated) 208/230 V, 1 Ø, 60 Hz
Rated Capacity Btu/h 6,000
Minimum Circuit Ampacity (MCA) 3
Max. fuse (A) 15
Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) 294.3/235.4/176.6/141.3/N/A
Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) 42/37/32/24/20.5
Dimension (WxDxH) (in) 28.70×7.8×11.50
Packing (WxDxH) (in) 31.10×10.63×14.76
Net/Gross Weight (lb) 17.64/23.15
Room Temperature (Cooling) (°F) 60–90
Room Temperature (Heating) (°F) 32–86
Refrigerant piping Liquid/Gas side (inch) 1/4"/3/8"
EER2 16
SEER2 25.3
Unit Net/Gross weight 17.64/23.15
Unit dimensions (W*H*D) 28.70 x 7.87 x 11.50
Operation Range - Heating 32~86
Operation Range - Cooling 60~90
Minimum circuit ampacity 3
Max.fuse 15
Indoor Noise Level H/M/L 37/32/24
Indoor Air Flow 294.3 / 235.4 / 176.6 / 141.3

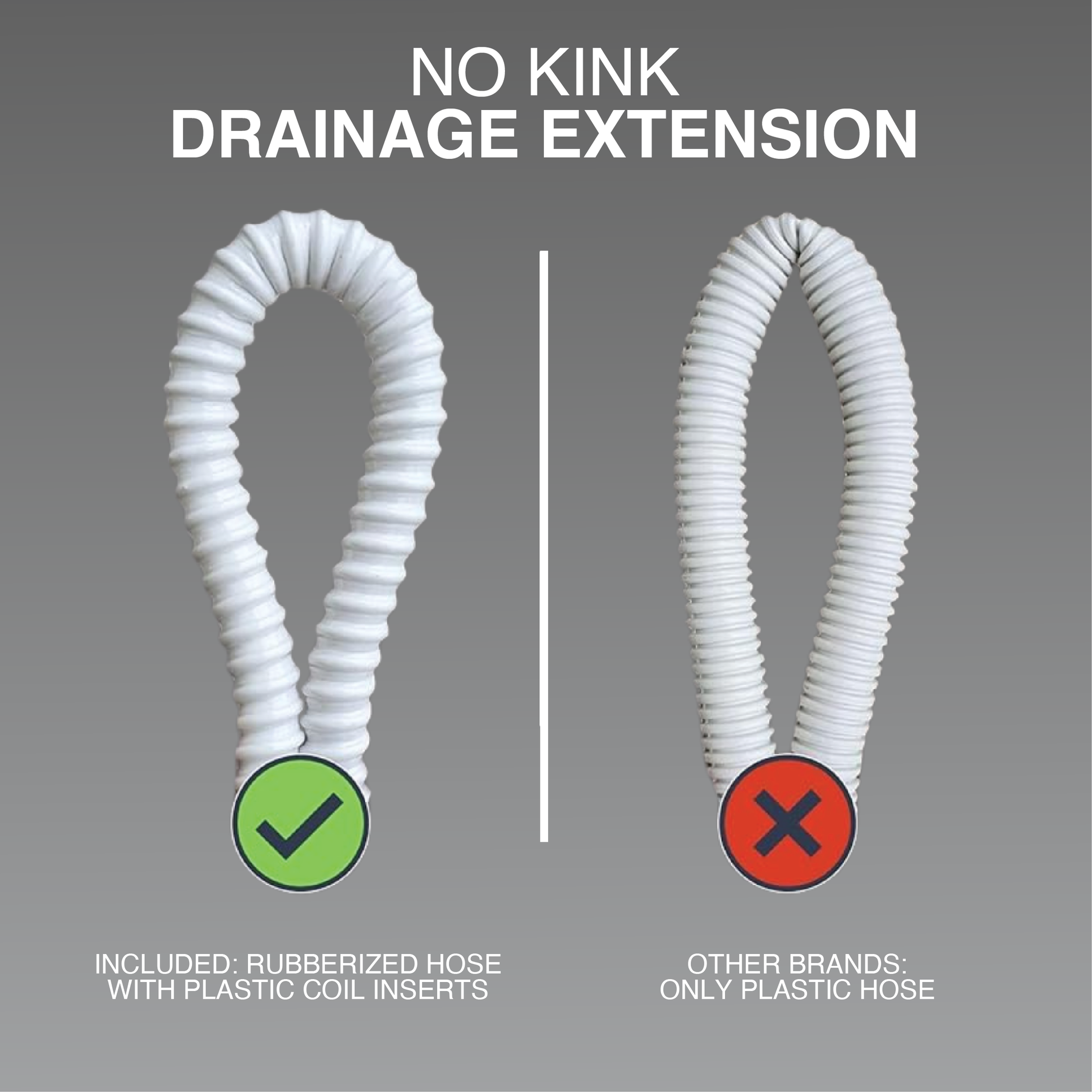

Drainage water pipe diameter 5/8"

Indoor Unit Specifications — CH-R09MOLVWM-230VI

Indoor Model CH-R09MOLVWM-230VI
Power Supply (Rated) 208/230 V, 1 Ø, 60 Hz
Rated Capacity Btu/h 9,000
Minimum Circuit Ampacity (MCA) 3
Max. fuse (A) 15
Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) 382.6/294.3/194.2/ 153.0/ N/A
Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) N/A/39.5/33/24/20.5
Dimension (WxDxH) (in) 31.57x7.87x11.61
Packing (WxDxH) (in) 31.57x7.87x11.61
Net/Gross Weight (lb) 18.96/24.25
Room Temperature (Cooling) (°F) 60–90
Room Temperature (Heating) (°F) 32–86
Refrigerant piping Liquid/Gas side (inch) 1/4"/3/8"
EER2 15
SEER2 26
Unit Net/Gross weight 18.96/24.25
Unit dimensions (W*H*D) 31.57x7.87x11.61
Operation Range - Heating 32~86
Operation Range - Cooling 60~90
Minimum circuit ampacity 3
Max.fuse 15
Indoor Noise Level H/M/L 39.5/33/24
Indoor Air Flow 382.6 / 294.3 / 194.2 / 153
Drainage water pipe diameter 5/8"

Indoor Unit Specifications — CH-R12MOLVWM-230VI

Indoor Model CH-R12MOLVWM-230VI
Power Supply (Rated) 208/230 V, 1 Ø, 60 Hz
Rated Capacity Btu/h 12,000
Minimum Circuit Ampacity (MCA) 3
Max. fuse (A) 15
Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) 382.6/294.3/194.2/ 153.0 / /
Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) N/A/42/35.5/22.5/20
Dimension (WxDxH) (in) 31.57x7.87x11.61
Packing (WxDxH) (in) 31.57x7.87x11.61
Net/Gross Weight (lb) 18.96/24.25
Room Temperature (Cooling) (°F) 60–90
Room Temperature (Heating) (°F) 32–86
Refrigerant piping Liquid/Gas side (inch) 1/4"/3/8"
EER2 13.2
SEER2 24
Unit Net/Gross weight 18.96/24.25
Unit dimensions (W*H*D) 31.57 x 7.87 x 11.61
Operation Range - Heating 32~86
Operation Range - Cooling 60~90
Minimum circuit ampacity 3
Max.fuse 15
Indoor Noise Level H/M/L 42/35.5/22.5
Indoor Air Flow 382.6 / 294.3 / 194.2 / 15
Drainage water pipe diameter 5/8"

Indoor Unit Specifications — CH-R18MOLVWM-230VI

Indoor Model CH-R18MOLVWM-230VI
Power Supply (Rated) 208/230 V, 1 Ø, 60 Hz
Rated Capacity Btu/h 18,000
Minimum Circuit Ampacity (MCA) 3
Max. fuse (A) 15
Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) 759.3/500.3/441.4/ 370.8 / /
Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) 54.5/45/40/24.5/20
Dimension (WxDxH) (in) 42.60x9.21x13.27
Packing (WxDxH) (in) 45.47x12.40x16.34
Net/Gross Weight (lb) 30.42/39.68
Room Temperature (Cooling) (°F) 60–90
Room Temperature (Heating) (°F) 32–86
Refrigerant piping Liquid/Gas side (inch) 1/4"/1/2"
EER2 13
SEER2 21.7
Unit Net/Gross weight 30.42/39.68
Unit dimensions (W*H*D) 42.60 x 9.21 x 13.27
Operation Range - Heating 32~86
Operation Range - Cooling 60~90
Minimum circuit ampacity 3
Max.fuse 15
Indoor Noise Level H/M/L 45/40/24.5
Indoor Air Flow 759.3 / 500.3 / 441.4 / 370.8
Drainage water pipe diameter 5/8"

Indoor Unit Specifications — CH-R24MOLVWM-230VI

Indoor Model CH-R24MOLVWM-230VI
Power Supply (Rated) 208/230 V, 1 Ø, 60 Hz
Rated Capacity Btu/h 23,000
Minimum Circuit Ampacity (MCA) 3
Max. fuse (A) 15
Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) 759.3/588.6/459.1/ 382.6 / /
Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) 54.5/49.5/43.5/34.5/20.5
Dimension (WxDxH) (in) 42.60x9.21x13.27
Packing (WxDxH) (in) 45.47x12.40x16.34
Net/Gross Weight (lb) 30.86/40.56
Room Temperature (Cooling) (°F) 60–90
Room Temperature (Heating) (°F) 32–86
Refrigerant piping Liquid/Gas side (inch) 3/8"/5/8"
EER2 12.5
SEER2 22.3
Unit Net/Gross weight 30.86/40.56
Unit dimensions (W*H*D) 42.60 x 9.21 x 13.27
Operation Range - Heating 32~86
Operation Range - Cooling 60~90
Minimum circuit ampacity 3
Max.fuse 15
Indoor Noise Level H/M/L 49.5/43.5/34.5
Indoor Air Flow 759.3 / 588.6 / 459.1 / 382.6
Drainage water pipe diameter 5/8"

Submittals

Complete technical specifications — Outdoor

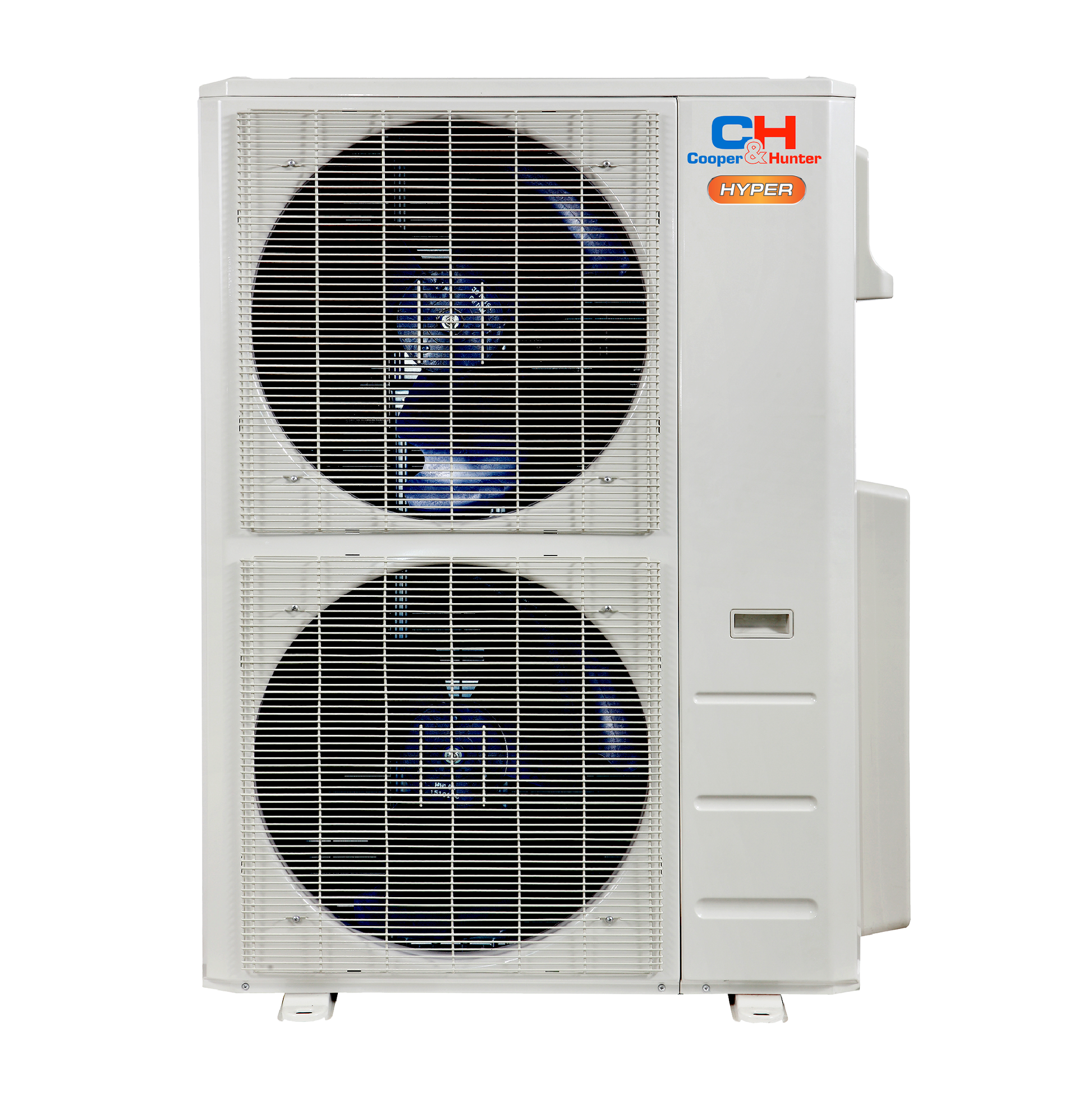

Outdoor Unit Specifications — CH-RVHP48M-230VO

Rated V-Ph-Hz 208/230, 1, 60
Voltage Range (V) 187-253
Cooling Rated Capacity (range) Btu/h 12,000~57,000
Cooling Rated Current A 17.3
Cooling EER2 Btu/h/W 12
Cooling SEER2 23
Heating at 47°F Rated Capacity (range) Btu/h 13,000~57,000
Heating at 47°F Rated Current A 17.3
Heating at 47°F COP W/W 3.7
Heating at 47°F HSPF4 11
Heating at 47°F HSPF5 9
Heating at 5°F Rated Capacity Btu/h 47,000
Minimum Circuit Ampacity (Outdoor unit) A 37
Max. Fuse (Outdoor unit) A 40
Outdoor Air Flow (Max) CFM 4,502.8
Outdoor Noise Level (Sound Pressure) dB(A) 65
Dimension (W×D×H) inch 37.48×16.34×52.48
Packing (W×D×H) inch 43.11×19.49×58.27
Net/Gross Weight lbs 246.47/276.68
Refrigerant Type/Charged oz R454B/151.68
Refrigerant Precharge ft 150
Additional Charge for Each oz/ft 0.16
Design Pressure PSIG 550/340
Refrigerant Piping Liquid Side inch 6×1/4"
Refrigerant Piping Gas Side inch 4×3/8"+2×1/2"
Max. Pipe Length ft 262.4
Max. Length for One Indoor Unit ft 114.8
Max. Height Difference in Level ft 49.2
Max. Height Difference Between Indoor Units ft 33
Ambient Temperature Cooling °F -22~122
Ambient Temperature Heating °F -22~75

Manuals

Submittals

Warranty information

  • 7-Year Compressor Warranty
  • 5-Year Parts Warranty
  • 1-Year Remote Control Warranty

Note: Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.
