COOPER & HUNTER — Olivia Series
Cooper&Hunter Hyper Olivia 3-Zone Ductless Mini Split AC & Heat Pump 55000 BTU (12K+18K+18K), Wall Mount Units, 230V
The Cooper & Hunter Olivia Series system features a 55000 BTU outdoor unit paired with CH-RVHP55M-230VO + CH-R12MOLVWM-230VI + 2X CH-R18MOLVWM-230VI wall-mounted indoor units. This high-efficiency model with auto-swing louvers will heat & cool down to -22 F. The DC inverter heat pump provides independent control in 3 zones.
3 Zone(s)
55000 BTU Outdoor
SEER2 22.2
Heats to -22 F
Outdoor SKU CH-RVHP55M-230VO
Outdoor noise: 65 dB(A)
Indoor noise: 20 dB(A)
Smart Kit Included
46°F Freeze Protection
Key features
Comfort & airflow
- 3-zone independent temperature control
- Auto-swing louvers (horizontal + vertical)
- Follow Me mode (remote-based temperature sensing)
- Turbo mode for rapid cooling/heating
- Sleep mode + Timer On/Off scheduling
- New user-friendly remote controller design
Efficiency & protection
- High efficiency operation (22.2 SEER2)
- Low-ambient performance down to -22 F
- 46°F Freeze Protection
- Self-Clean function (single-zone only, if equipped)
- Eco mode (single-zone only, if equipped)
Build & materials
- TU1 copper tubes
- Quiet operation (Outdoor as low as 65 dB(A); Indoor as low as 20 dB(A))
At-a-glance
Zoning
3 zones
3 zones
Outdoor BTU
55000
55000
SEER2
22.2
22.2
Low ambient
-22 F
-22 F
Outdoor noise
65 dB(A)
65 dB(A)
Indoor noise
20 dB(A)
20 dB(A)
Outdoor SKU
CH-RVHP55M-230VO
CH-RVHP55M-230VO
Smart control
Smart Kit Included
Smart Kit Included
Warranty requires licensed HVAC installation and registration within 60 days (if required).
Control options
- Smart Kit included with downloadable C&H app
- Remote control included
- Wall thermostat compatible (purchased separately, if supported by the model)
Outdoor technology
- High-Frequency Racer Technology: helps the compressor reach maximum speed within ~6 seconds on startup
- Electronic expansion valve: manages refrigerant flow for stable performance
- Intelligent dusting switch: reverses the fan to help clear dust/sand/debris from the coil
- Genius Core ultra-low compressor speed of 12Hz
Installation & electrical
- Indoor line sizes (varies by head): 1/4"/3/8" | 1/4"/1/2"
- Refrigerant precharge: 150
- Additional refrigerant charge (1/4 liquid line): 0.16
- Additional refrigerant charge (3/8 liquid line): 0.32
- Minimum circuit ampacity: 39.5
- Max fuse / breaker: 40
Use the installation manual to confirm charge units and when additional charge is required (based on line length and piping configuration).
Product video
What’s included

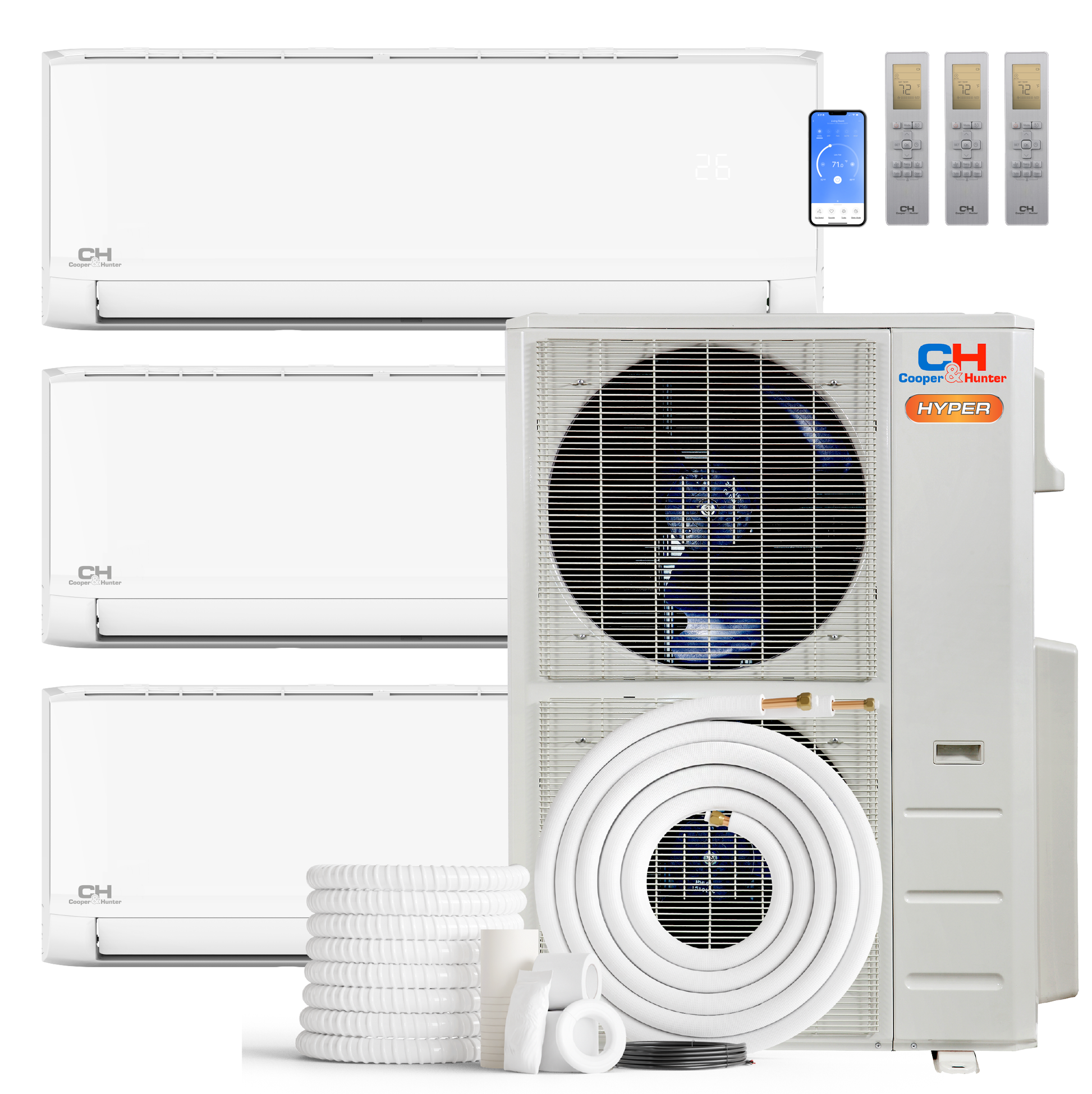

Cooper & Hunter Olivia Series Ductless Mini Split System
Outdoor Unit: 55000 BTU (1 pc) — Model: CH-RVHP55M-230VO
Indoor Units:
- 12,000 BTU (x1) — Model: CH-R12MOLVWM-230VI
- 18,000 BTU (x2) — Model: CH-R18MOLVWM-230VI
- Installation Kits options (No Installation / 16 ft / 25 ft / 50 ft)
- (INSTALLATION KIT SIZE MUST BE SELECTED, TO INCLUDE)
- Wireless Remote Controls (3 remotes)
- Wi-Fi Adapter (17310900A05963)
- Installation Manual
- User's Manual
- Manufacturer Warranty
Complete technical specifications — Indoor

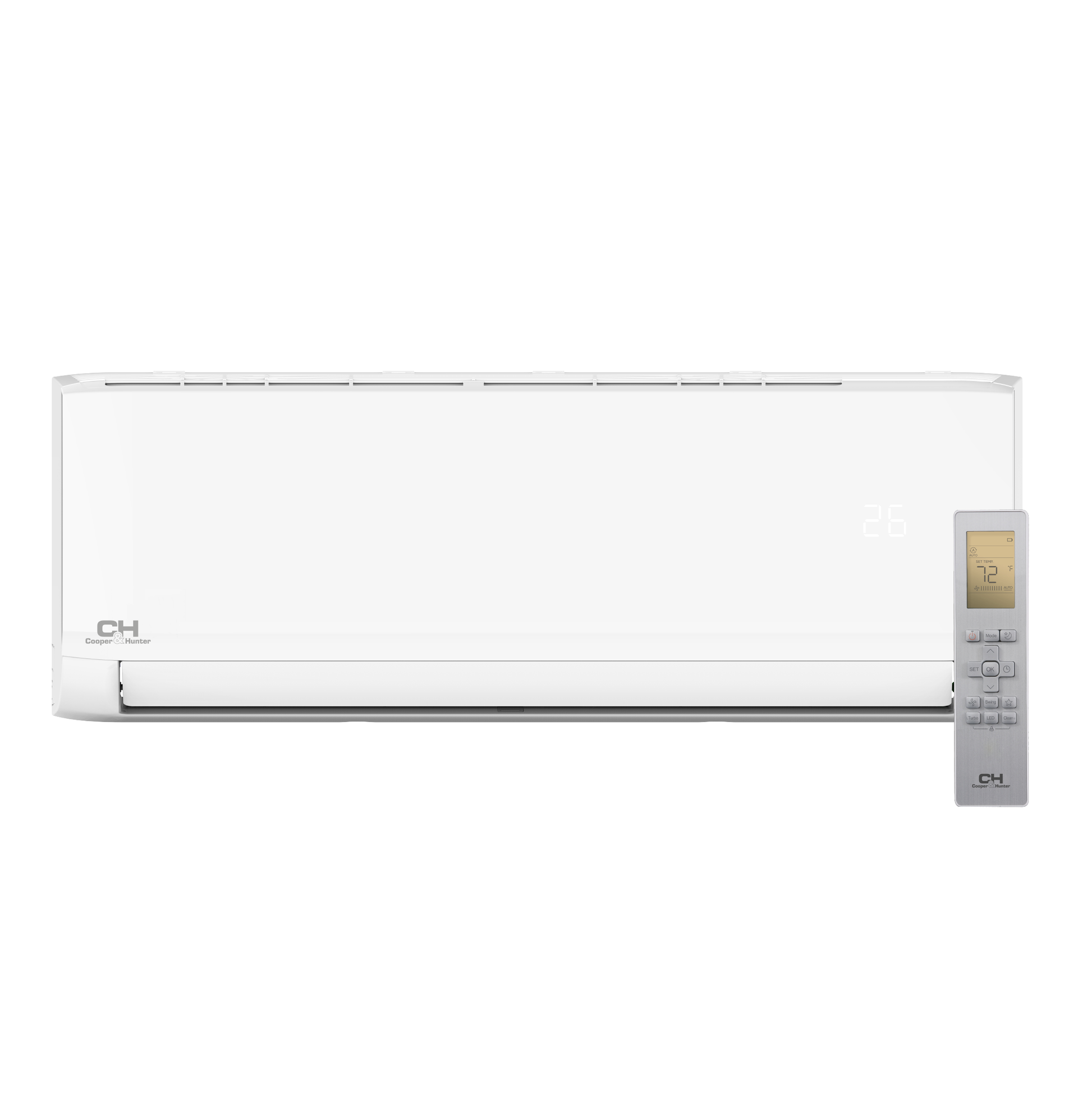

Indoor Unit Specifications — CH-R12MOLVWM-230VI
| Indoor Model | CH-R12MOLVWM-230VI |
|---|---|
| Power Supply (Rated) | 208/230 V, 1 Ø, 60 Hz |
| Rated Capacity Btu/h | 12,000 |
| Minimum Circuit Ampacity (MCA) | 3 |
| Max. fuse (A) | 15 |
| Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) | 382.6/294.3/194.2/ 153.0 / / |
| Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) | N/A/42/35.5/22.5/20 |
| Dimension (WxDxH) (in) | 31.57x7.87x11.61 |
| Packing (WxDxH) (in) | 31.57x7.87x11.61 |
| Net/Gross Weight (lb) | 18.96/24.25 |
| Room Temperature (Cooling) (°F) | 60–90 |
| Room Temperature (Heating) (°F) | 32–86 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| EER2 | 13.2 |
| SEER2 | 24 |
| Unit Net/Gross weight | 18.96/24.25 |
| Unit dimensions (W*H*D) | 31.57 x 7.87 x 11.61 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 42/35.5/22.5 |
| Indoor Air Flow | 382.6 / 294.3 / 194.2 / 15 |
| Drainage water pipe diameter | 5/8" |
Indoor Unit Specifications — CH-R18MOLVWM-230VI
| Indoor Model | CH-R18MOLVWM-230VI |
|---|---|
| Power Supply (Rated) | 208/230 V, 1 Ø, 60 Hz |
| Rated Capacity Btu/h | 18,000 |
| Minimum Circuit Ampacity (MCA) | 3 |
| Max. fuse (A) | 15 |
| Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) | 759.3/500.3/441.4/ 370.8 / / |
| Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) | 54.5/45/40/24.5/20 |
| Dimension (WxDxH) (in) | 42.60x9.21x13.27 |
| Packing (WxDxH) (in) | 45.47x12.40x16.34 |
| Net/Gross Weight (lb) | 30.42/39.68 |
| Room Temperature (Cooling) (°F) | 60–90 |
| Room Temperature (Heating) (°F) | 32–86 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/1/2" |
| EER2 | 13 |
| SEER2 | 21.7 |
| Unit Net/Gross weight | 30.42/39.68 |
| Unit dimensions (W*H*D) | 42.60 x 9.21 x 13.27 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 45/40/24.5 |
| Indoor Air Flow | 759.3 / 500.3 / 441.4 / 370.8 |
| Drainage water pipe diameter | 5/8" |
Submittals
Complete technical specifications — Outdoor

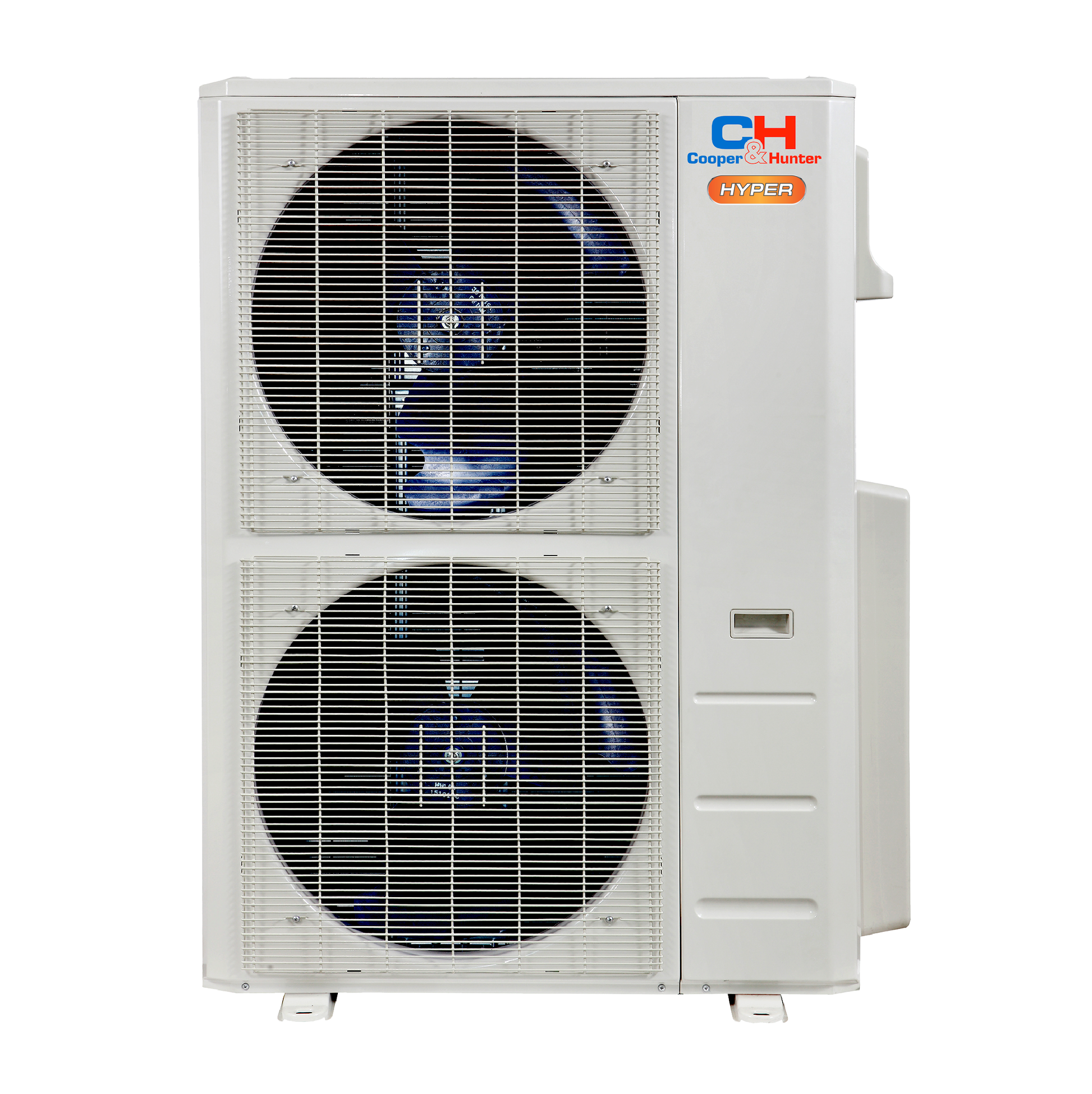

Outdoor Unit Specifications — CH-RVHP55M-230VO
| Performance level | Hyper Heat |
|---|---|
| Refrigerant type | R454B |
| System type | Multi-zone unit |
| BTU Rated | / |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 5.29 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 43.11 x 19.49 x 58.27 |
| Refrigerant piping Liquid/Gas side (inch) | 6x1/4" - 4x3/8"+2x1/2" |
| HSPF2-5 | 8.5 |
| HSPF2-4 | 10.5 |
| EER2 | 12 |
| Cooling capacity (Min/Max) (BTU/h) | 51,000(19,000~59,000) |
| SEER2 | 22.2 |
| Unit Net/Gross weight | 246.47/276.68 |
| Unit dimensions (W*H*D) | 37.48 x 16.34 x 52.48 |
| Refrigerant precharge | 150 |
| Outdoor Noise Level | 65 |
| Outdoor Air Flow | 4502.8 |
| Minimum circuit ampacity | 39.5 |
| Max fuse | 40 |
| Max height difference between Indoor and Outdoor unit | 49.2 |
| Heating capacity (Min/Max) (BTU/h) | 55,000(20,000~59,000) |
| COP | 3.5 |
| Ambient temperature - Heating (F) | -22~75 |
| Ambient temperature - Cooling (F) | -22~122 |
| Additional Refrigerant Charge 3/8 liquid line | 0.32 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Manuals
Submittals
Warranty information
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
- 1-Year Remote Control Warranty
Note: Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.
Summary
Expand
The Cooper & Hunter Olivia Series system features a 55000 BTU outdoor unit paired with CH-RVHP55M-230VO + CH-R12MOLVWM-230VI + 2X CH-R18MOLVWM-230VI wall-mounted indoor units. This high-efficiency model with auto-swing louvers will heat & cool down to -22 F. The DC inverter heat pump provides independent control in 3 zones.
