Cooper&Hunter Hyper Heat Multi-Zone Outdoor • R454B • Up to 6 Zones

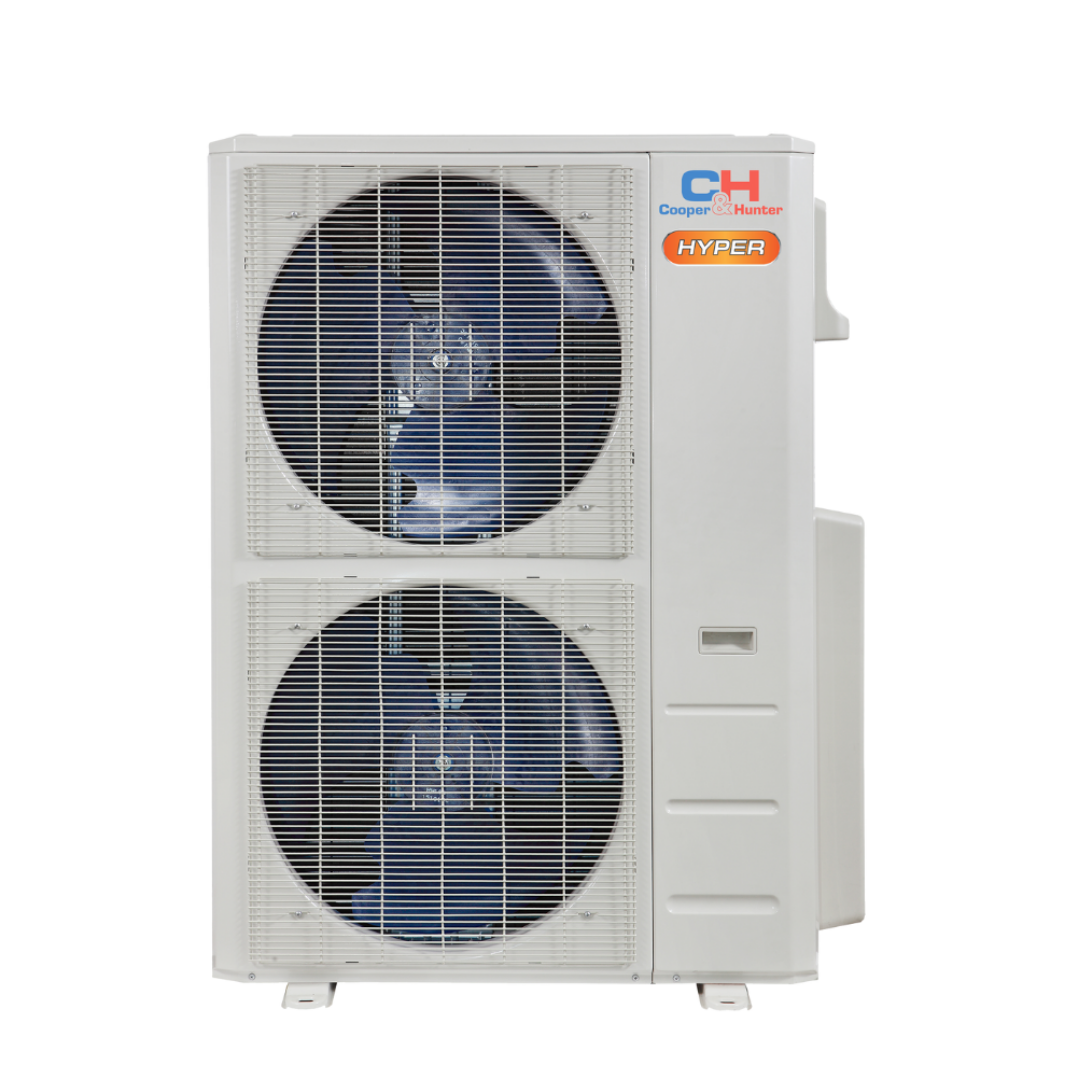

Cooper&Hunter Hyper Heat Multi-Zone Outdoor — 55,000 BTU, R454B — CH-RVHP55M-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Overview
Cooper&Hunter’s 55K BTU Hyper Heat Multi-Zone outdoor unit is engineered for expansive residential spaces that need precise, room-by-room comfort. It supports up to six zones with independent temperature control and features Hyper Heating technology for strong cold-weather operation, with heating rated down to −22 °F. Advanced inverter technology dynamically adjusts compressor activity to align with real-time demand for efficient, consistent performance. With up to 22.2 SEER2 efficiency and R454B refrigerant (lower GWP vs. many conventional options), it’s a modern solution focused on comfort, efficiency, and sustainability.
Highlights
Up to 6 zones SEER2 22.2 · EER2 12 HSPF2 10.5 (Region IV) · 8.5 (Region V) COP 3.5 Hyper Heat to −22 °F R454B 208–230V 1Ph 187–253 V range
- Six-zone control: supports up to six independent zones with compatible indoor units.
- Extreme cold heating: Hyper Heat operation rated down to −22 °F.
- Energy efficient: up to 22.2 SEER2 with inverter-driven performance.
- Eco-forward refrigerant: R454B helps reduce environmental impact.
- High capacity: built for large, multi-room layouts requiring steady comfort.
ModelCH-RVHP55M-230VO
ZonesUp to 6
Outdoor Sound65 dB(A)
Lines6× 1/4″ liquid · (4× 3/8″ + 2× 1/2″) gas
What's Included
- Outdoor unit CH-RVHP55M-230VO
- Owner / installation documentation
Pair only with compatible Cooper&Hunter multi-zone indoor units. Confirm indoor mixes, electrical, and piping requirements before installation.
Indoor Specs
| Spec | Details |
|---|---|
| System type | Hyper Heat multi-zone outdoor unit |
| Zones supported | Up to 6 independent zones (depends on indoor unit selection) |
| Refrigerant piping | 6 circuits: 6× 1/4″ liquid · gas connections are 4× 3/8″ + 2× 1/2″ |
| Height difference (IDU↔ODU) | Up to 49.2 ft |
| Combination guidance | Confirm indoor unit mixes per the applicable submittal documentation |
Indoor-unit capacities, controls, and features depend on the specific indoor models selected for each zone.
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-RVHP55M-230VO |
| Performance level | Hyper Heat |
| Power | 208–230 V, 1-Phase, 60 Hz |
| Voltage range | 187–253 V |
| Cooling capacity (min/max) | 51,000 (19,000–59,000) BTU/h |
| SEER2 / EER2 | 22.2 / 12 |
| Heating capacity (min/max) | 55,000 (20,000–59,000) BTU/h |
| COP | 3.5 W/W |
| HSPF2 (Region IV / V) | 10.5 / 8.5 |
| MCA / Max fuse | 39.5 A / 40 A |
| Outdoor airflow | 4,502.8 CFM |
| Outdoor sound | 65 dB(A) |

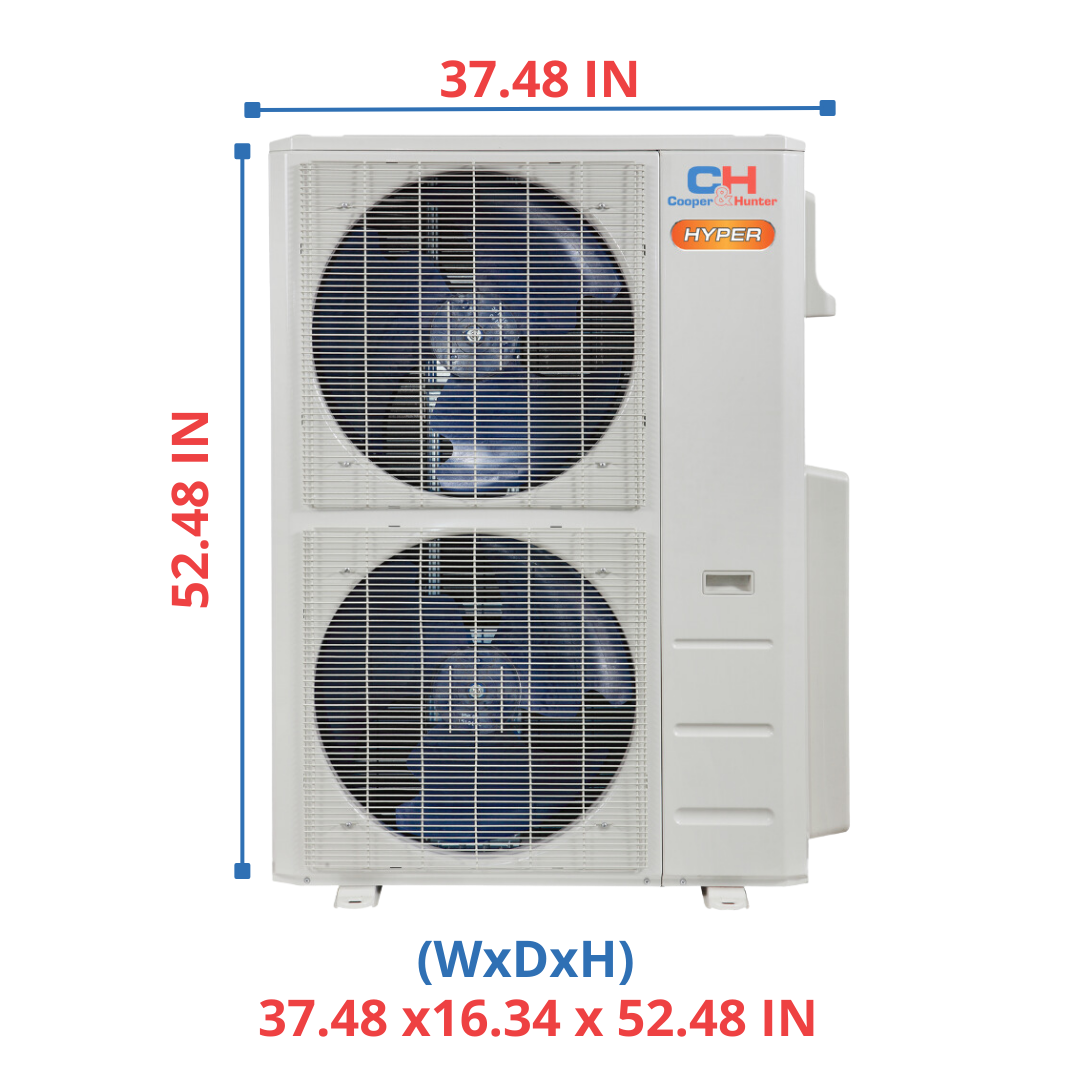

| Unit size (W×H×D) | 37.48 × 52.48 × 16.34 in |
| Packing size (W×D×H) | 43.11 × 19.49 × 58.27 in |
| Net / Gross weight | 246.47 / 276.68 lb |
| Refrigerant | R454B |
| Factory precharge | 150 ft |
| Ambient range (cool / heat) | −22–122 °F / −22–75 °F |
| Line sizes | Liquid: 6× 1/4″ · Gas: 4× 3/8″ + 2× 1/2″ |
AHRI certification numbers (reference): Ducted 215864281 · Non-Ducted 215864282 · Mixed 215864283.
Documents & Downloads
Important
Install by a licensed HVAC professional. Confirm indoor unit combinations, electrical requirements (187–253 V), MCA/max-fuse, line sizes, refrigerant precharge/field charging requirements, and ambient operating ranges (down to −22 °F) before commissioning.
FAQs
How many zones can this support?
Up to six independent zones with compatible Cooper&Hunter multi-zone indoor units.
How cold can it heat in Hyper Heat mode?
Heating operation is rated down to −22 °F.
What are the power requirements?
208–230 V, single-phase, 60 Hz. Voltage range 187–253 V. MCA 39.5 A. Max fuse 40 A.
What line sizes are required?
Six circuits total: 6× 1/4″ liquid and gas connections of 4× 3/8″ plus 2× 1/2″.
What refrigerant does it use?
R454B (factory precharge: 150 ft).
