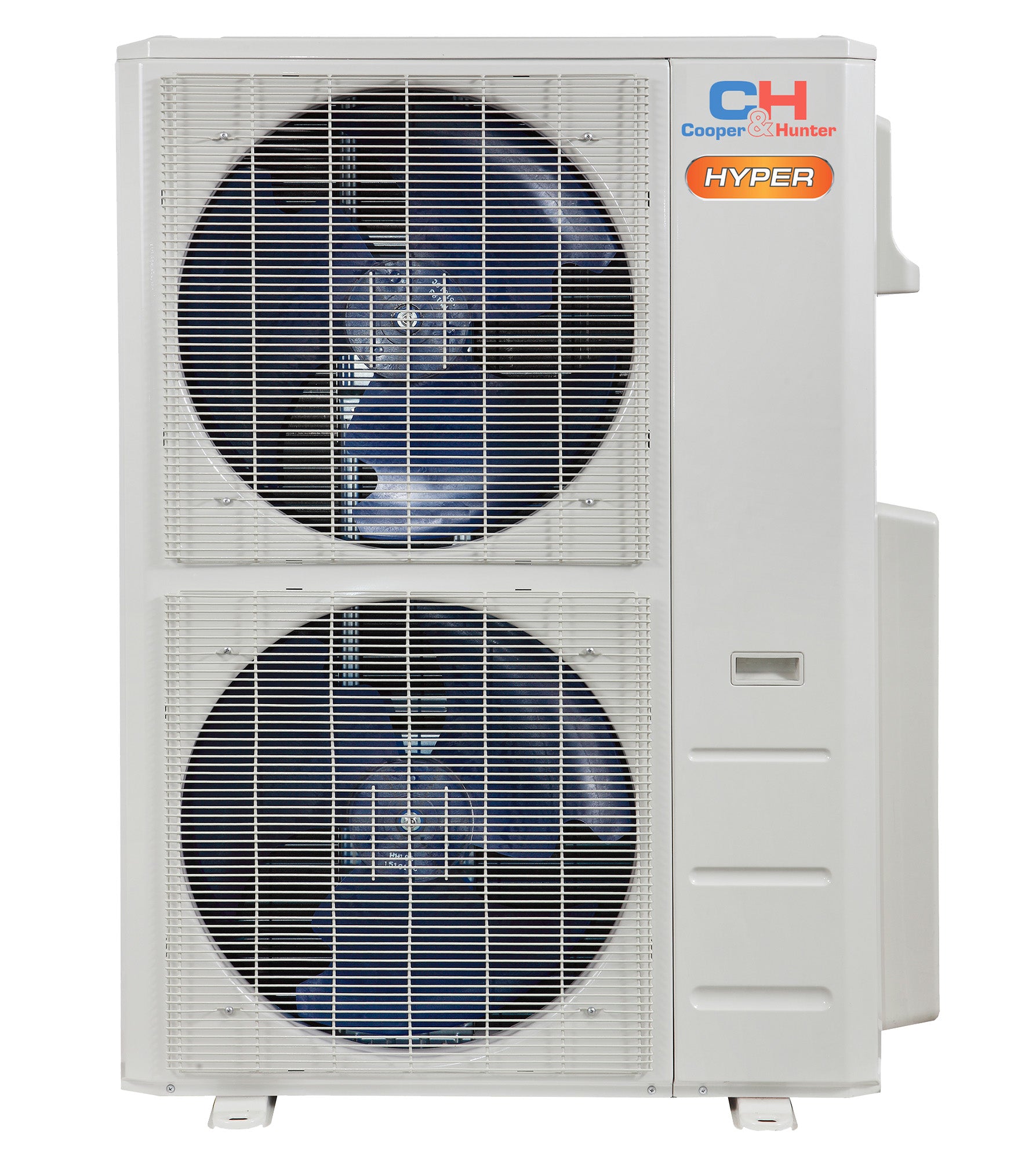

Cooper&Hunter Hyper Multi-Zone Outdoor Condenser — 55,000 BTU (4.5 Ton) • CH-HPR55M-230VO
Hyper Heat multi-zone condenser for dependable comfort down to -22°F (ambient), supporting up to 5 zones (system design dependent).
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Overview
The CH-HPR55M-230VO is a Hyper Heat multi-zone outdoor condenser rated at 55,000 BTU (4.5 ton) for R410A systems on 208–230V power. It is built to deliver dependable heating and cooling in demanding conditions, with heating operation supported in ambient temperatures as low as -22°F and cooling operation from 5–122°F. The unit supports up to 262 ft of total piping, factory precharge up to 125 ft, and is designed to accommodate up to 5 independent zones with a mix-and-match of compatible indoor unit types.
Highlights
55,000 BTU (rated) Up to 5 Zones Hyper Heat R410A SEER2 22 EER2 10.5 HSPF2-4 9.3 HSPF2-5 7.3 -22°F Heating Max Pipe 262 ft Precharge up to 125 ft Outdoor Sound 63 dB(A)
- Cold-climate performance: Heating ambient range down to -22°F.
- Multi-zone flexibility: Designed to support up to 5 independent zones (system design dependent).
- Capacity modulation: Cooling range 19,000–58,000 BTU/h; heating range 12,500–57,500 BTU/h.
- Installation parameters: Max total piping 262 ft and height difference up to 49.21 ft.
- Branch connections: Listed as 5× 1/4" liquid and 3× 3/8" + 2× 1/2" gas ports.
ModelCH-HPR55M-230VO
System TypeMulti-Zone
Max Pipe262 ft
Power208–230V, 1Ph
What's Included
- Outdoor condenser unit: CH-HPR55M-230VO
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-HPR55M-230VO |
| Refrigerant Type | R410A |
| System Type | Multi-zone unit |
| BTU Rated | 55,000 |
| Cooling Capacity (Min/Max) | 55,000 (19,000–58,000) BTU/h |
| Heating Capacity (Min/Max) | 55,000 (12,500–57,500) BTU/h |
| SEER2 / EER2 | 22 / 10.5 |
| HSPF2-4 / HSPF2-5 | 9.3 / 7.3 |
| COP | 3.5 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |
| Minimum Circuit Ampacity (MCA) | 40 A |
| Max Fuse | 60 A |
| Max Pipe Length | 262 ft |
| Max Height Difference (Indoor↔Outdoor) | 49.21 ft |
| Refrigerant Piping (Liquid / Gas) | 5× 1/4" (liq) / 3× 3/8" + 2× 1/2" (gas) |
| Refrigerant Precharge | Up to 125 ft |
| Outdoor Noise | 63 dB(A) |
| Outdoor Air Flow | 4,500 |
| Ambient Range (Cooling) | 5–122 °F |
| Ambient Range (Heating) | -22–75 °F |
| Additional Charge (3/8" liquid) | 0.32 |
| Additional Charge (1/4" liquid) | 0.16 |
| Unit Dimensions (W×H×D) | 37.48 × 16.34 × 52.48 in |
| Unit Net / Gross Weight | 233.03 / 265.87 lb |
| Packing Dimensions (W×D×H) | 43.11 × 19.49 × 58.27 |
| Dehumidification | 11.37 pints/day |
Videos
Mini-split installation videos
How To & Instructional Videos
Documents & Downloads
Certifications
- AHRI Ducted — 210799645 (AHRI Directory)
- AHRI Non-Ducted — 210799644 (AHRI Directory)
- AHRI Mixed — 210799646 (AHRI Directory)
Important
Install with a licensed HVAC professional. This is a multi-zone Hyper Heat outdoor condenser intended to be matched with compatible indoor units. Confirm match-ups, total connected indoor capacity, and piping design before ordering. Observe maximum total piping (262 ft), height limits (49.21 ft), and required electrical protection (MCA 40A, max fuse 60A). Refrigerant is R410A with factory precharge up to 125 ft; additional charge may be required beyond that length.
FAQs
Is this a single-zone or multi-zone outdoor unit?
This model is a multi-zone outdoor condenser.
How many zones can it support?
It is designed to accommodate up to 5 independent zones when matched and configured correctly.
How cold can it heat in?
Heating ambient range is -22–75°F.
How much piping is supported?
Maximum total piping length is 262 ft, with a maximum indoor/outdoor height difference up to 49.21 ft.
Does it come precharged with refrigerant?
Yes. The factory refrigerant precharge covers up to 125 ft of piping. Additional refrigerant may be required beyond that length.
