Cooper&Hunter Hyper 4-Zone Ductless Mini Split AC & Heat Pump 28000 BTU (9K+12K+12K+12K), Floor Console Units, 230V
Enjoy targeted, freestanding comfort with the Cooper & Hunter Mini Floor Console system. A 28000 BTU outdoor condenser powers compact floor consoles designed to tuck neatly under windows or along walls—ideal for rooms where a traditional wall mount isn’t the best fit. This inverter heat pump provides independent control in 4 zone(s) and delivers low-ambient heating performance down to -22 F.
Mini Floor Consoles feature twin-discharge airflow with a 65% larger upper outlet and a 94% wider lower outlet for more even distribution, plus a built-in Smart Kit for app control. This 2025 platform uses R454B refrigerant (low-GWP) and supports efficiency up to 23 SEER2. Equipped models include a refrigerant sensor and humidity sensor to help maintain comfortable indoor conditions.
Key features
Compact design for flexible placement
- Under-window / low-wall console format blends into a room without sacrificing comfort
- Great option for spaces where wall-mount placement is limited (glass, cabinetry, layout constraints)
- Designed for smaller spaces while still providing strong, even air delivery
Enhanced airflow distribution
- Twin-discharge airflow for balanced coverage
- 65% larger upper outlet for improved throw and mixing
- 94% wider lower outlet to reduce cold/hot spots near the floor
- Multiple fan speeds + Turbo mode for fast pull-down / warm-up
Comfort & control
- 4-zone independent temperature control
- Smart Kit built in with downloadable C&H app
- Remote control included
- Wall thermostat supported (purchased separately)
Sensors & durability
- Refrigerant sensor + humidity sensor (model dependent) for comfort optimization
- TU1 copper heat exchangers for long service life
- 2025 model platform designed for Regular or Hyper operation (model dependent)
At-a-glance
4
28000
23
-22 F
61 dB(A)
25.5 dB(A)
CH-RVHP28M-230VO
Smart Kit + Remote
Warranty requires licensed HVAC installation and registration within 60 days (if required).
Control options
- Smart Kit built in with downloadable C&H app
- Remote control included
- Wall thermostat (purchased separately)
Product video

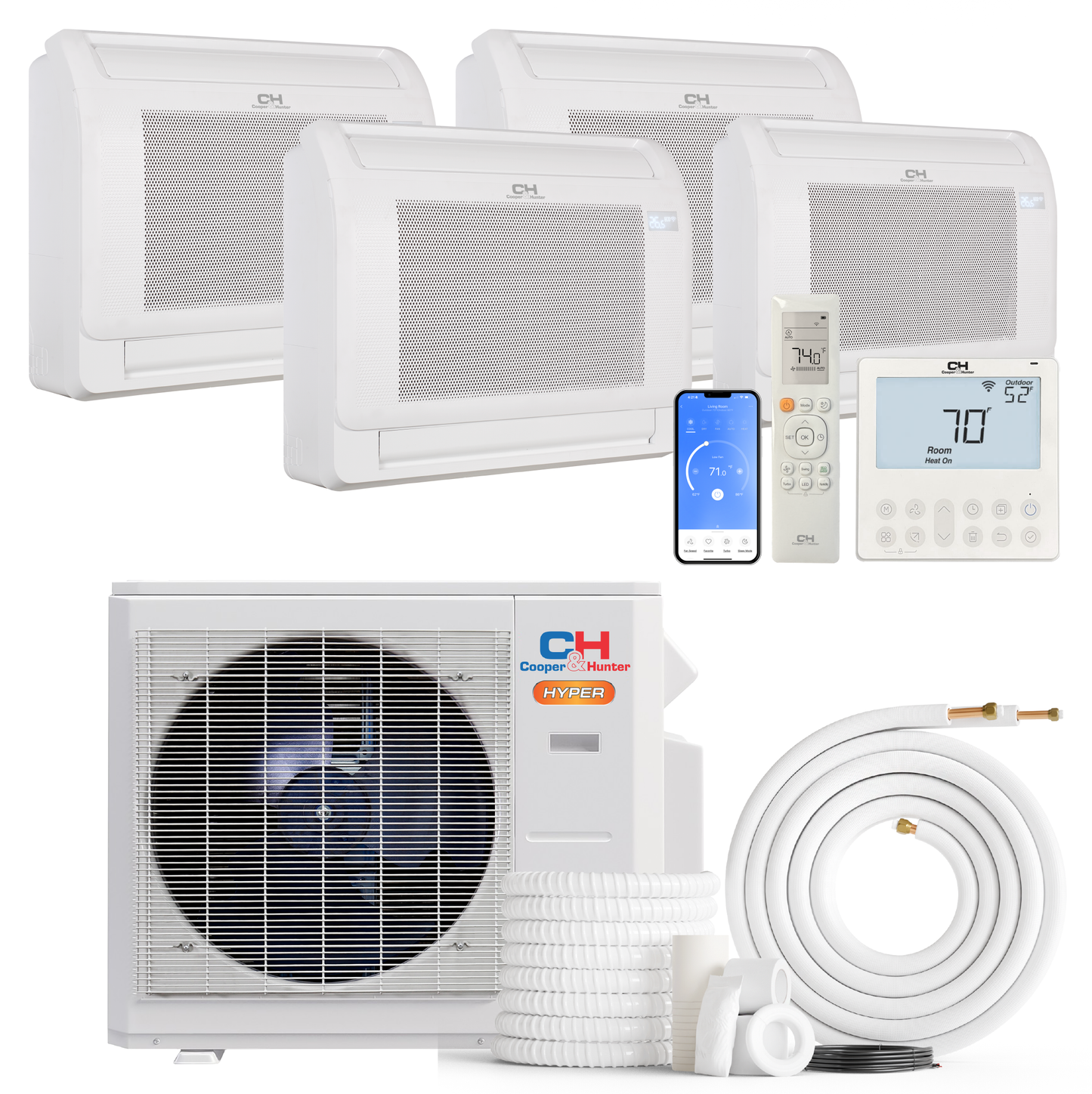

What’s included
Cooper & Hunter Mini Floor Console Mini Split System

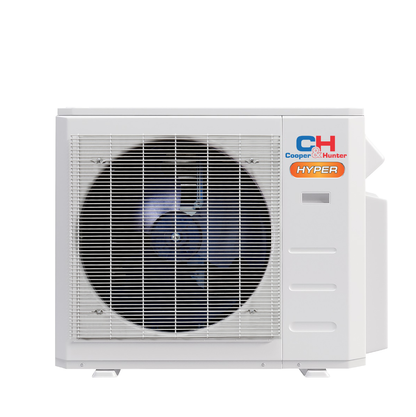

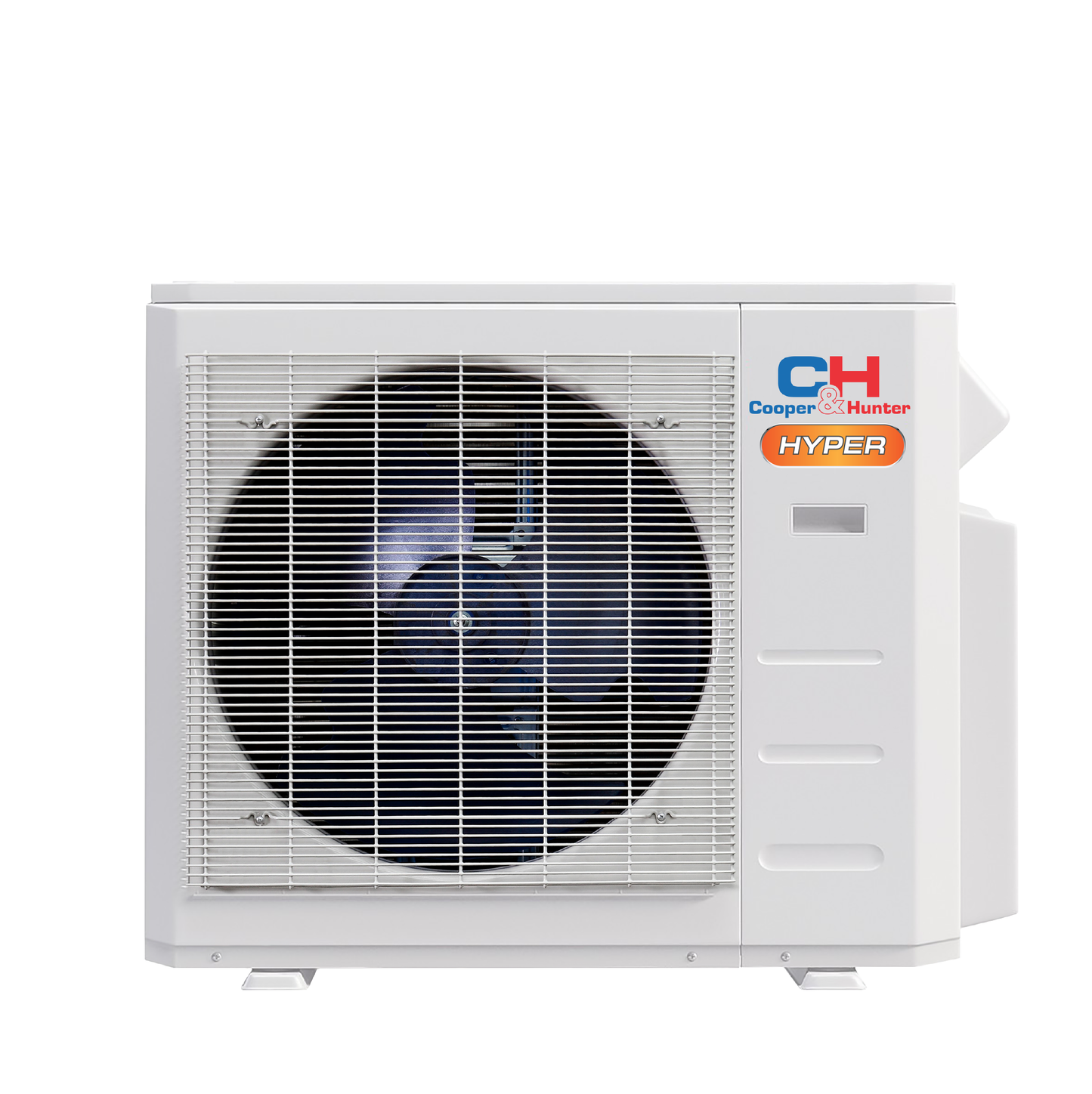

Outdoor Unit: 28000 BTU (1 pc) — Model: CH-RVHP28M-230VO

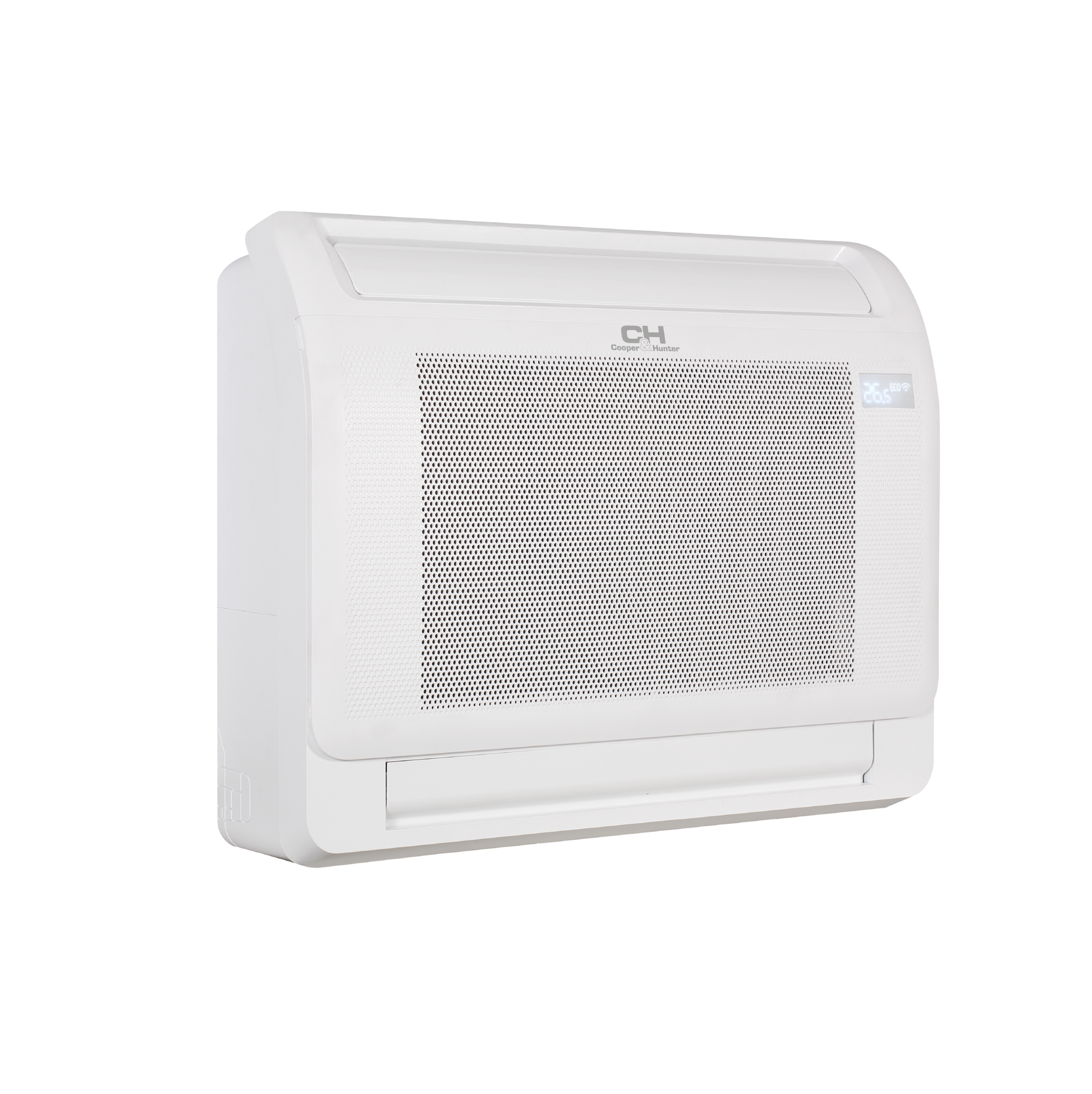

Indoor Units (Mini Floor Console):
- 9,000 BTU (x1) — Model: CH-RSH09MMC
- 12,000 BTU (x3) — Model: CH-RSH12MMC
- Installation-Kit options (No Kit / 16 ft / 25 ft / 50 ft)
- (INSTALLATION KIT SIZE MUST BE SELECTED, to be included)
- Wireless Remote Controls (4 remotes)
- Built-in Smart-Kit & C&H App control
- Wall Thermostat (purchased separately)
- Installation & User Manuals
- Manufacturer Warranty
Complete technical specifications — Indoor (Mini Floor Console)
Indoor Unit Specifications — CH-RSH09MMC
| Refrigerant type | R454B |
|---|---|
| System type | Single Zone |
| BTU Rated | 9 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 1.71 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 34.06 x 11.02 x 28.31 |
| Controller | remote controller |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| EER2 | 15.1 |
| SEER2 | 27.2 |
| Unit Net/Gross weight | 32.85/41.89 |
| Unit dimensions (W*H*D) | 31.26 x 7.87 x 24.45 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 41/37.5/25.5 |
| Indoor Air Flow | 441.4 / 376.7 / 323.7 / 188.4 |
| ESP Range | / |
| Drainage water pipe diameter | 5/8" |
Indoor Unit Specifications — CH-RSH12MMC
| Refrigerant type | R454B |
|---|---|
| System type | Single Zone |
| BTU Rated | 12 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 3.13 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 34.06 x 11.02 x 28.31 |
| Controller | remote controller |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| EER2 | 12.5 |
| SEER2 | 25 |
| Unit Net/Gross weight | 32.85/41.89 |
| Unit dimensions (W*H*D) | 31.26 x 7.87 x 24.45 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 40.5/37/26.5 |
| Indoor Air Flow | 441.4 / 376.7 / 323.7 / 188.4 |
| ESP Range | / |
| Drainage water pipe diameter | 5/8" |
Manuals
- https://media.cooperandhunter.us/4460/Owners-manual-CH-RSH09-16MMC-%28R454B%29-.pdf
- https://media.cooperandhunter.us/4461/Installation-manual-CH-RSH09-16MMC-%28R454B%29-.pdf
Submittals
Complete technical specifications — Outdoor
Outdoor Unit Specifications — CH-RVHP28M-230VO
| Rated V-Ph-Hz | 208/230, 1, 60 |
|---|---|
| Voltage Range (V) | 187-253 |
| Cooling Rated Capacity (range) Btu/h | 7,200~37,000 |
| Cooling Rated Current A | 9.5 |
| Cooling EER2 Btu/h/W | 12.5 |
| Cooling SEER2 | 23 |
| Heating at 47°F Rated Capacity (range) Btu/h | 8,400~36,000 |
| Heating at 47°F Rated Current A | 9.1 |
| Heating at 47°F COP W/W | 3.8 |
| Heating at 47°F HSPF4 | 10.5 |
| Heating at 47°F HSPF5 | 8.5 |
| Heating at 5°F Rated Capacity Btu/h | 27,000 |
| Minimum Circuit Ampacity (Outdoor unit) A | 30 |
| Max. Fuse (Outdoor unit) A | 35 |
| Outdoor Air Flow (Max) CFM | 2,148.4 |
| Outdoor Noise Level (Sound Pressure) dB(A) | 61 |
| Dimension (W×D×H) inch | 37.24x16.14x31.89 |
| Packing (W×D×H) inch | 42.91x19.68x34.84 |
| Net/Gross Weight lbs | 168.43/179.67 |
| Refrigerant Type/Charged oz | R454B/120.63 |
| Refrigerant Precharge ft | 100 |
| Additional Charge for Each oz/ft | 0.16 |
| Design Pressure PSIG | 550/340 |
| Refrigerant Piping Liquid Side inch | 4 x 1/4” |
| Refrigerant Piping Gas Side inch | 3 x 3/8” + 1 x 1/2” |
| Max. Pipe Length ft | 262.4 |
| Max. Length for One Indoor Unit ft | 114.8 |
| Max. Height Difference in Level ft | 49.2 |
| Max. Height Difference Between Indoor Units ft | 33 |
| Ambient Temperature Cooling °F | -22~122 |
| Ambient Temperature Heating °F | -22~75 |
Manuals
- https://media.cooperandhunter.us/4433/Installation-manual.pdf
- https://media.cooperandhunter.us/4811/RVHP-Installation-manual-Multi-Zone-Units_compressed.pdf
Submittals
Documents
Warranty information
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
- 1-Year Remote Control Warranty
Note: Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.
Summary
Expand
This Cooper & Hunter Mini Floor Console system uses a 28000 BTU outdoor condenser with CH-RVHP28M-230VO + CH-RSH09MMC + 3X CH-RSH12MMC compact floor console head(s) for even, comfortable distribution. Twin-discharge airflow improves coverage, Smart Kit app control adds convenience, and low-ambient heating supports operation down to -22 F.
