Cooper&Hunter 2-Zone Hyper Ductless Mini Split AC & Heat Pump 55000 BTU (18K+18K), Universal/Floor Ceiling Units, 230V - R410A
Cooper & Hunter Universal Floor/Ceiling indoor units offer installation flexibility for multi-zone systems, with the ability to mount horizontally on a ceiling or vertically on a wall. This configuration pairs a 55000 BTU outdoor unit with CH-HPR55M-230VO + 2X CH-18MSPHFC-230VI Universal Floor/Ceiling indoor units for comfort across 2 zones.
Universal Floor/Ceiling indoor units are available in 18K, 24K, 36K, 48K, and 60K BTU/h models and can be controlled by remote control, an optional C&H thermostat, or via smart device using the C&H Remote app when paired with a Smart Kit.
Key features

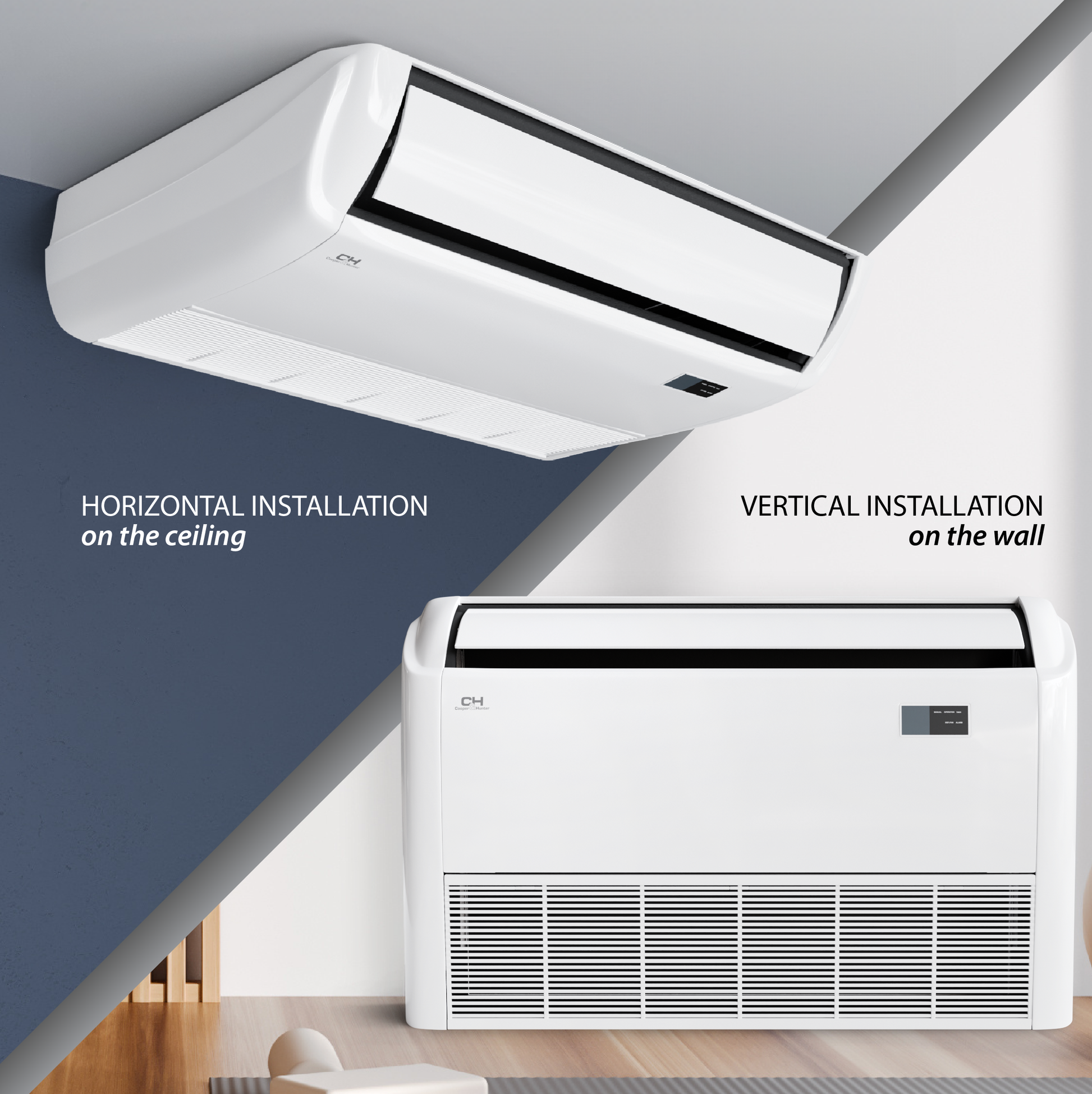

Installation flexibility
- Installs horizontally on a ceiling or vertically on a wall
- Ideal for spaces where a traditional wall mount isn’t preferred
- Compatible with multi-zone applications
Controls
- Remote control included
- Smart Kit ready with downloadable C&H Remote app
- Optional C&H thermostat (sold separately)
Control options and included accessories vary by model/configuration.
At-a-glance
2 zones
Floor/Ceiling
18K–60K BTU/h
22
R410A
55000
CH-HPR55M-230VO
Remote / App / Thermostat
Use the spec tables below for exact performance and electrical details for your selected combination.
Control options
- Remote control included
- Smart Kit ready with downloadable C&H Remote app
- Optional C&H Thermostat (sold separately)
Refrigerant information
- Refrigerant type: R410A
- R410A note: R410A is a high-pressure refrigerant used in many ductless systems. Service tools, gauges, and recovery equipment must be rated for R410A pressures.
- Charging: Follow the installation manual for the required charge method and any additional charge per foot beyond the factory pre-charge.
- Installation best practice: Keep the refrigeration circuit sealed and dry to reduce moisture exposure during installation/service.
Installation & electrical
- Indoor line sizes (varies by head): 1/4"/1/2"
- Refrigerant: R410A
- Factory pre-charge: up to 125
- Additional refrigerant charge (1/4 liquid line): 0.16
- Additional refrigerant charge (3/8 liquid line): 0.32
- Minimum circuit ampacity: 40
- Max fuse / breaker: 60
Use the installation manual to confirm charge units and when additional charge is required (based on line length and piping configuration).

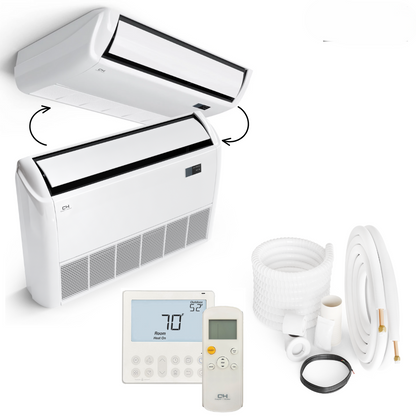

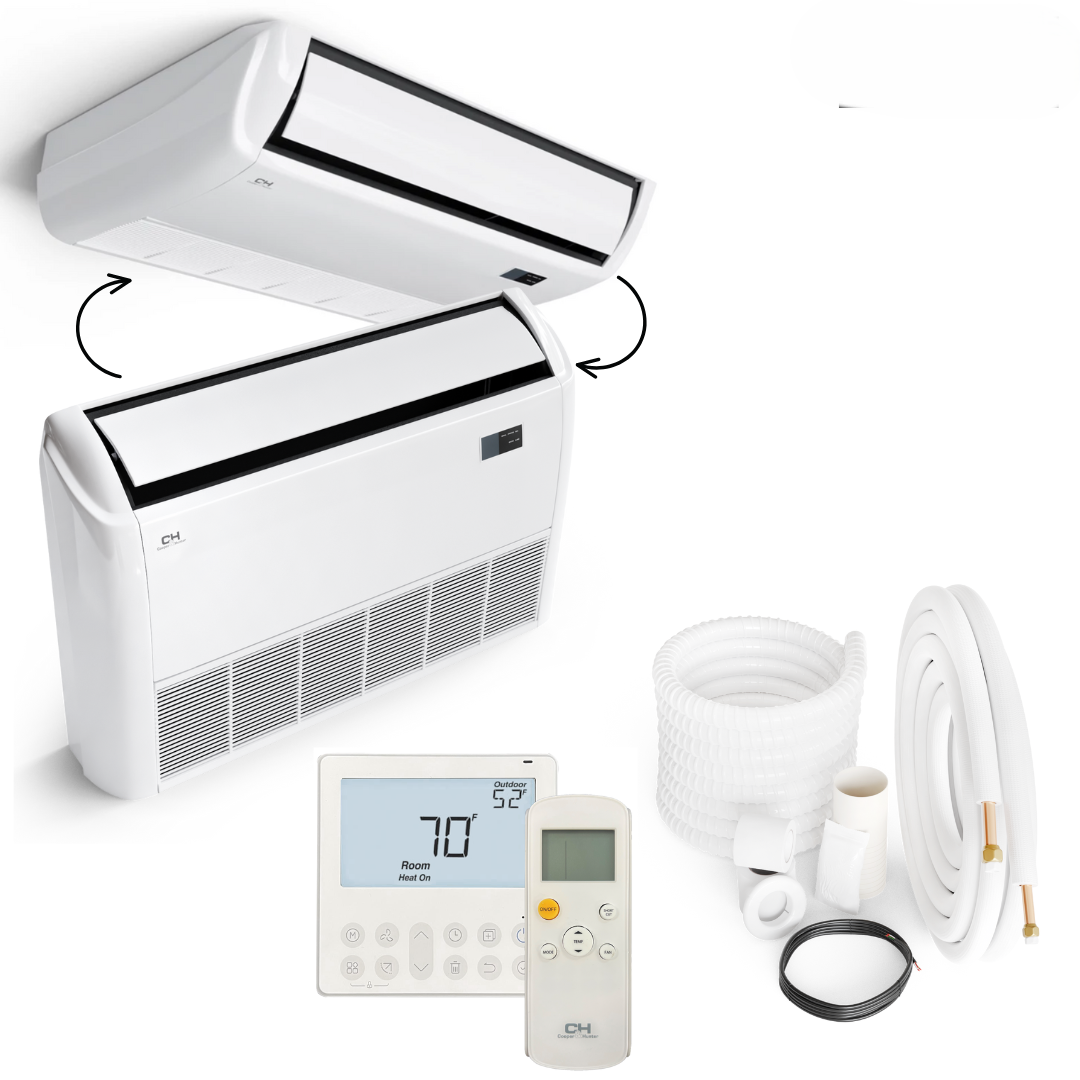

What’s included

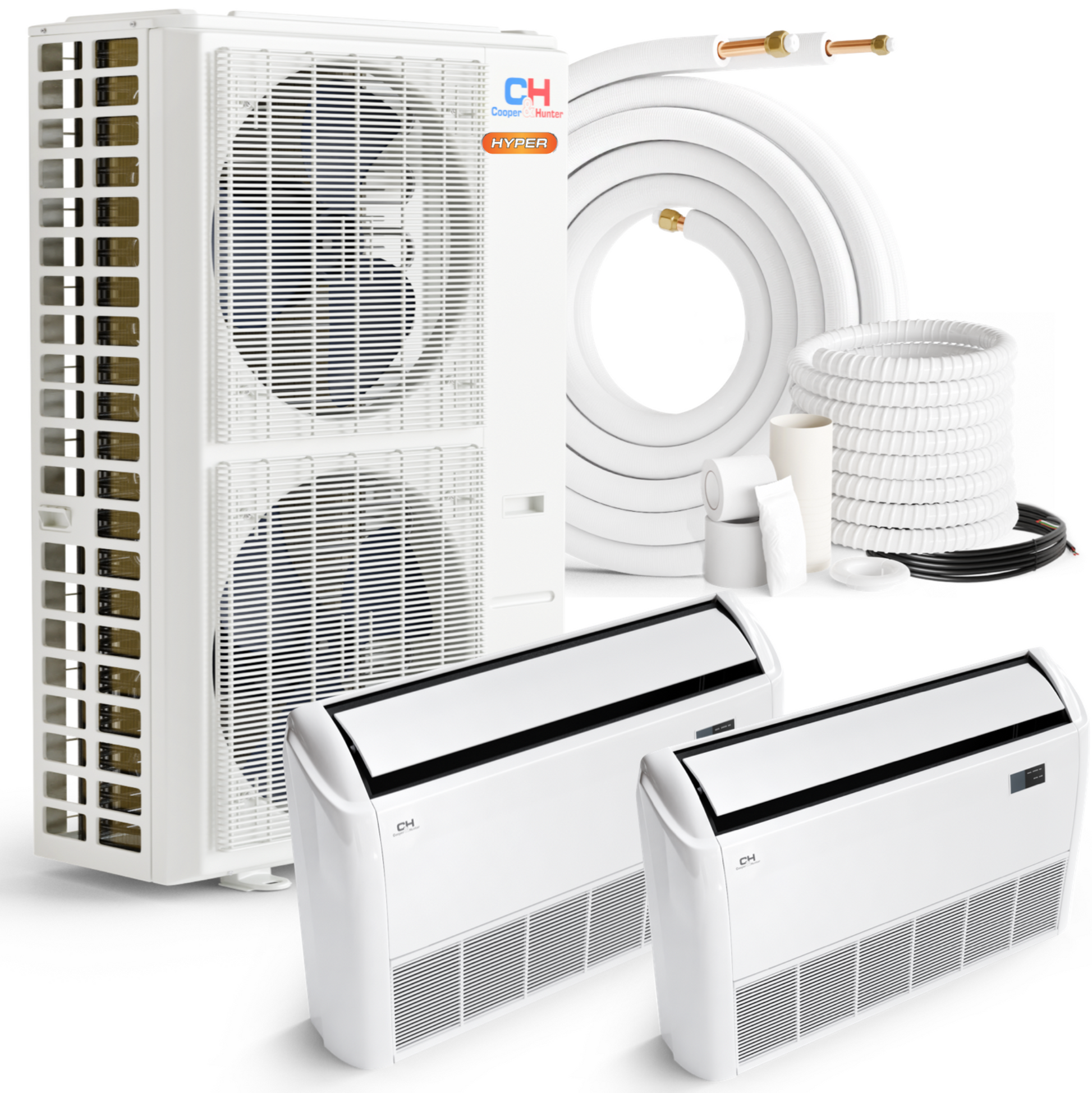

Cooper & Hunter Universal Floor/Ceiling Multi-Zone System
Outdoor Unit: 55000 BTU (1 pc) — Model: CH-HPR55M-230VO
Indoor Units (Universal Floor/Ceiling):
- 18,000 BTU (x2) — Model: CH-18MSPHFC-230VI
- Installation Kits options (No Installation / 16 ft / 25 ft / 50 ft)
- (INSTALLATION KIT SIZE MUST BE SELECTED, TO INCLUDE)
- Wireless Remote Controls (2 remotes)
- Optional C&H Thermostat (sold separately)
- Installation Manual
- User's Manual
- Manufacturer Warranty
Complete technical specifications — Indoor
Indoor Unit Specifications — CH-18MSPHFC-230VI
| Refrigerant type | R410A |
|---|---|
| System type | Single/Multi-zone unit |
| BTU Rated | 18,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 4.63 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 45.08x29.72x12.52 |
| Controller | RG10K-exclusive remote&120X or 120N wire controller |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/1/2" |
| EER2 | 12.5 |
| SEER2 | 23 |
| Unit Net/Gross weight | 57.10/68.34 |
| Unit dimensions (W*H*D) | 42.05x26.57x9.25 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 62～90 |
| Minimum circuit ampacity | 1.9 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 45.5/43/39 |
| Indoor Air Flow | 582.7/548.24/485.29/420.59 |
| Drainage water pipe diameter | 1" |
Manuals
- https://media.cooperandhunter.us/3759/Accessories-Leaflet-2023.pdf
- https://media.cooperandhunter.us/3762/Floor-Ceiling-Leaflet-2024.pdf
Submittals
- https://media.cooperandhunter.us/3854/CH-ES18-230VO-%2B-CH-18MSPHFC-230VI.pdf
- https://media.cooperandhunter.us/3856/CH-HPR18-230VO-%2B-CH-18MSPHFC-230VI.pdf
Documents
Complete technical specifications — Outdoor

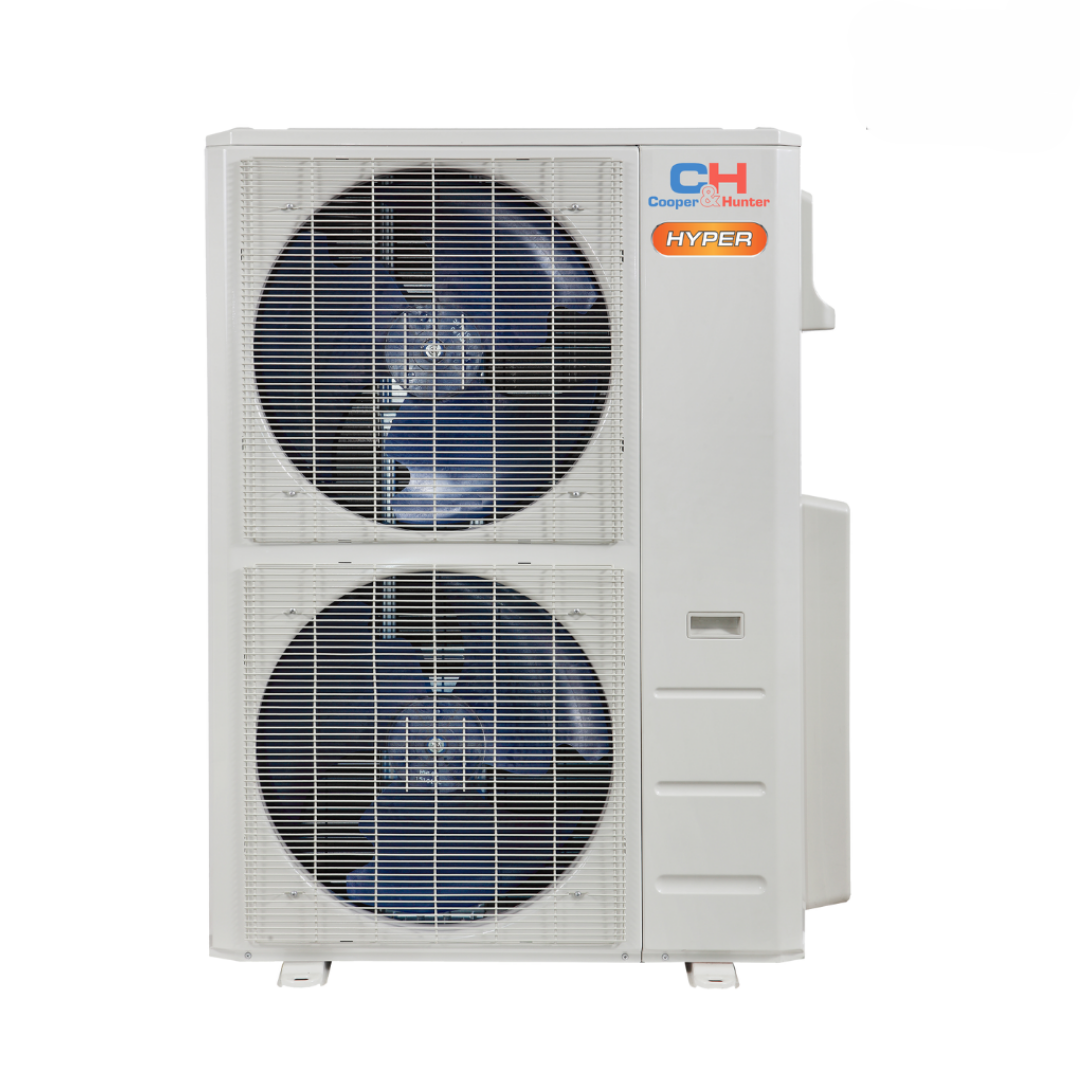

Outdoor Unit Specifications — CH-HPR55M-230VO
| Refrigerant type | R410A |
|---|---|
| System type | Multi-zone unit |
| BTU Rated | 55,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 11.37 |
| Max. pipe length (ft) | 262 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 43.11x19.49x58.27 |
| Refrigerant piping Liquid/Gas side (inch) | 5x1/4" - 3x3/8"+2x1/2" |
| HSPF2-5 | 7.3 |
| HSPF2-4 | 9.3 |
| EER2 | 10.5 |
| Cooling capacity (Min/Max) (BTU/h) | 55,000(19,000~58,000) |
| SEER2 | 22 |
| Unit Net/Gross weight | 233.03/265.87 |
| Unit dimensions (W*H*D) | 37.48x16.34x52.48 |
| Refrigerant precharge | up to 125 |
| Outdoor Noise Level | 63 |
| Outdoor Air Flow | 4,500 |
| Minimum circuit ampacity | 40 |
| Max.fuse | 60 |
| Max height difference between Indoor and Outdoor unit | 49.21 |
| Heating capacity (Min/Max) (Btu/h) | 55,000(12,500~57,500) |
| COP | 3.5 |
| Ambient temperature - Heating (F) | -22~75 |
| Ambient temperature - Cooling (F) | 5~122 |
| Additional Refrigerant Charge 3/8 liquid line | 0.32 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Manuals
Submittals
- https://media.cooperandhunter.us/3178/CH-HPR55M-230VO-%28Ducted%29.pdf
- https://media.cooperandhunter.us/3179/CH-HPR55M-230VO-%28Non-ducted%29.pdf
Documents
Warranty information
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
- 1-Year Remote Control Warranty
Note: Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.
Summary
Expand
Cooper & Hunter Universal Floor/Ceiling indoor units can be mounted on a ceiling or wall for flexible multi-zone installations. This system pairs a 55000 BTU outdoor unit with CH-HPR55M-230VO + 2X CH-18MSPHFC-230VI indoor units across 2 zones, offering control by remote, optional thermostat, or the C&H Remote app when used with a Smart Kit.
