Cooper&Hunter Hyper 2-Zone Ducted Mini Split AC & Heat Pump 55000 BTU (24K+24K), Slim Duct Units, 230V
Bring flexible, concealed comfort to your space with the Cooper & Hunter Slim-Duct system. A 55000 BTU condenser powers slim-profile duct air handlers that disappear into ceilings, soffits, or chases for a clean, unobtrusive finish. This inverter heat pump provides independent control in 2 zone(s) and supports low-ambient heating performance down to -22 F.
Slim-Duct air handlers use TU1 copper tubing, medium / high static pressure blower performance, built-in Smart Kit connectivity, and R454B refrigerant (low-GWP) for efficient operation up to 22.2 SEER2. Equipped models include a refrigerant sensor to help maintain optimal operation.
Slim-Duct
2 Zone(s)
55000 BTU Outdoor
SEER2 22.2
Heats to -22 F
Outdoor SKU CH-RVHP55M-230VO
Outdoor noise: 65 dB(A)
Indoor noise (min): 35 dB(A)
Built-in Smart Kit
Medium/High static pressure
Key features
Concealed comfort + ducted flexibility
- Slim-profile duct unit hides in ceilings/soffits for a clean finish
- Ideal for short duct runs to discreet registers/grilles
- Designed for Single-Zone or Multi-Zone applications (model dependent)
Performance
- 2-zone independent temperature control
- Medium static pressure models for standard duct layouts
- High static pressure models for longer runs / higher resistance (size dependent)
- High-efficiency operation up to 22.2 SEER2
- Quiet operation (Outdoor as low as 65 dB(A); Indoor as low as 35 dB(A))
- Reliable heating down to -22 F ambient
Built-in components
- TU1 copper tubing for durability and heat transfer efficiency

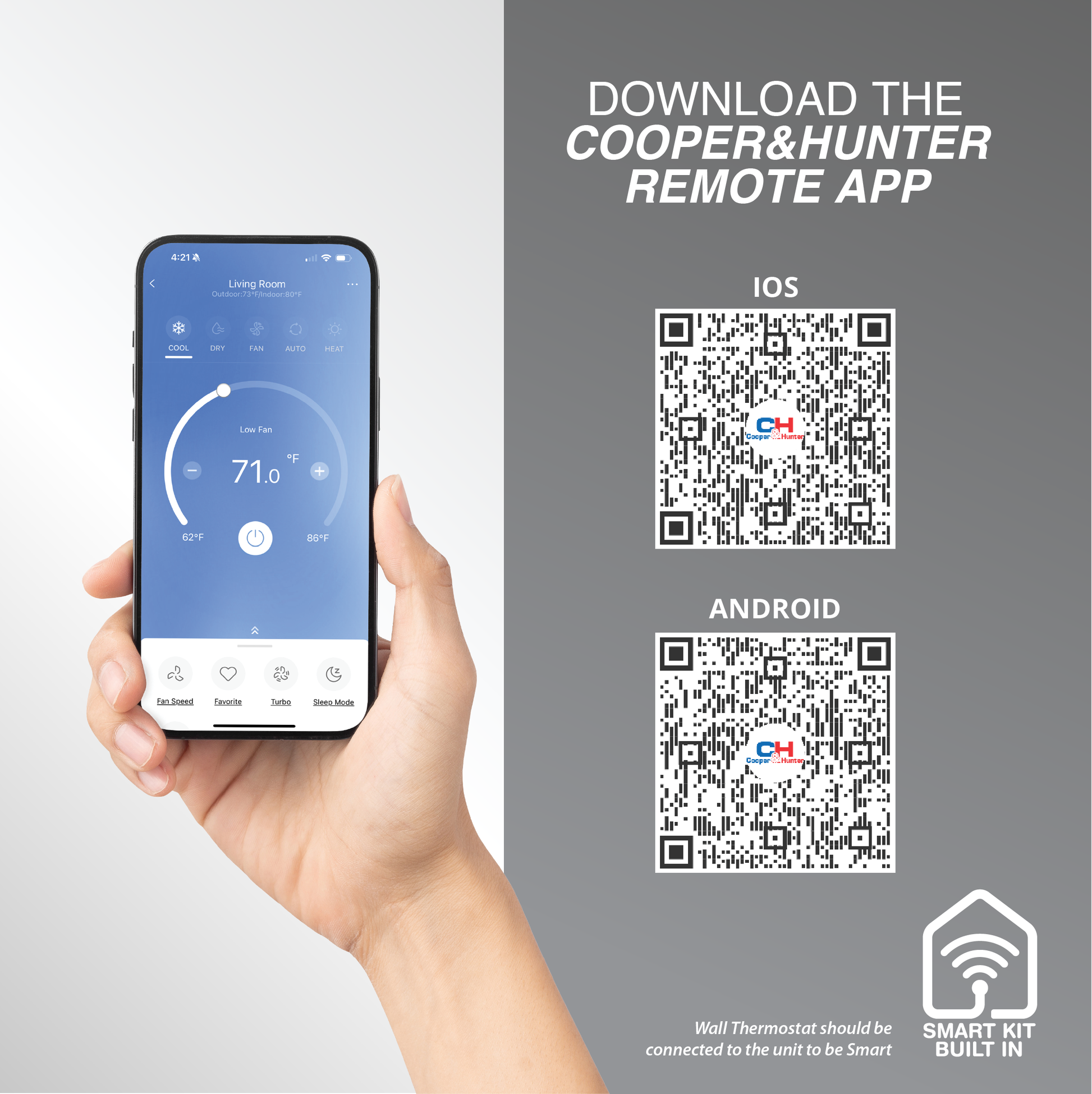

- Built-in Smart Kit with downloadable C&H app (where equipped)
- Refrigerant sensor (where equipped) for system monitoring
- Turbo mode for rapid conditioning
- 2025 model platform using R454B refrigerant (low-GWP)
Flexible installation

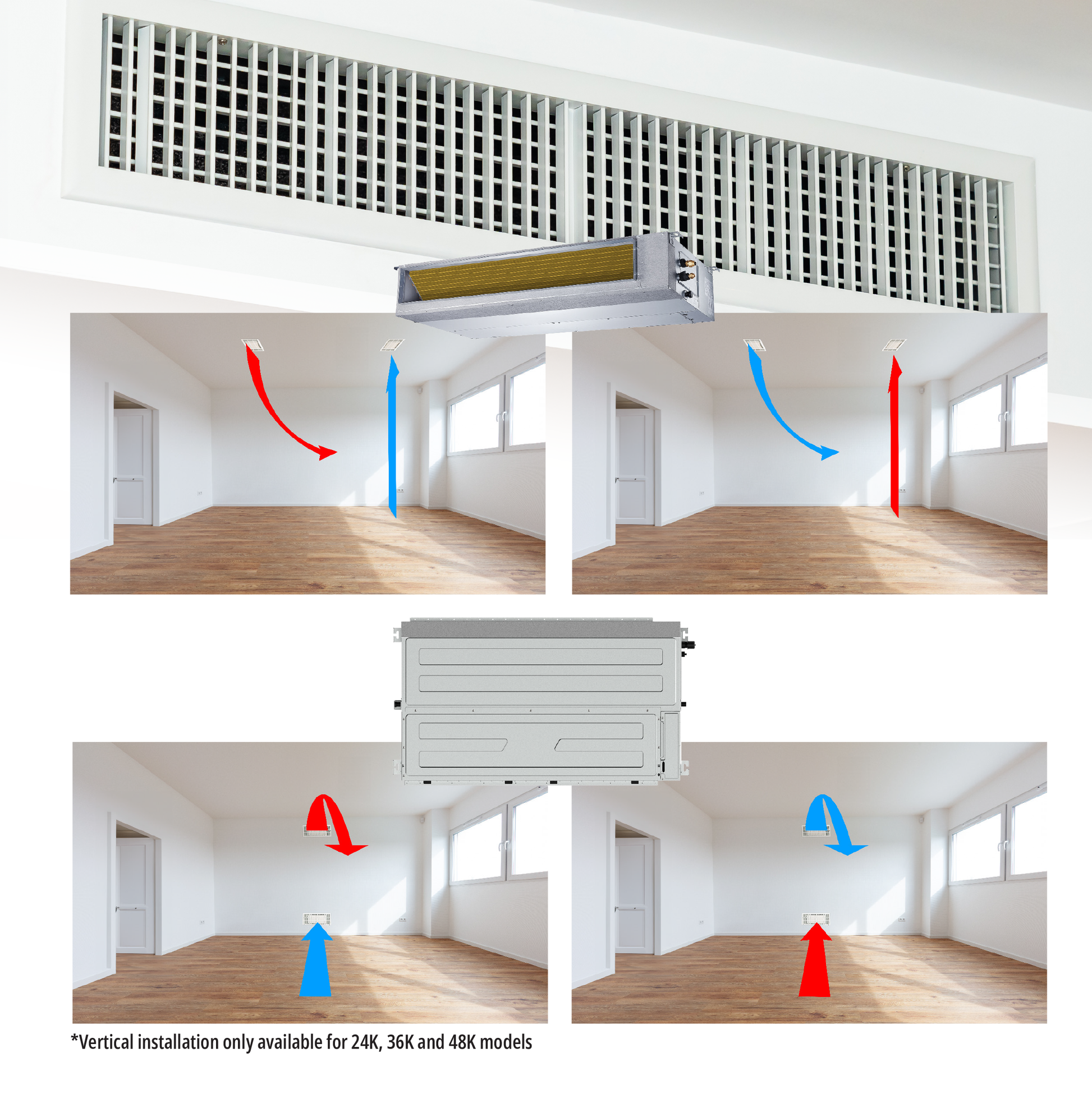

- Choose between horizontal and vertical installation (model dependent)
- Designed for tight spaces such as ceilings, soffits, or wall chases
Static pressure and install orientation vary by size (example: 24K can support high static pressure and flexible orientation). Confirm your model’s ESP range and dimensions in the indoor spec table below.
At-a-glance
Zones
2
2
Outdoor BTU
55000
55000
SEER2
22.2
22.2
Low ambient
-22 F
-22 F
Outdoor noise
65 dB(A)
65 dB(A)
Indoor noise (min)
35 dB(A)
35 dB(A)
Outdoor SKU
CH-RVHP55M-230VO
CH-RVHP55M-230VO
Control
Remote + Thermostat
Remote + Thermostat
Warranty requires licensed HVAC installation and registration within 60 days (if required).
Control options
- Remote control included
- Wall thermostat included
- Wall thermostat should be connected on the unit for smart control functionality (where applicable).
Product video
What’s included

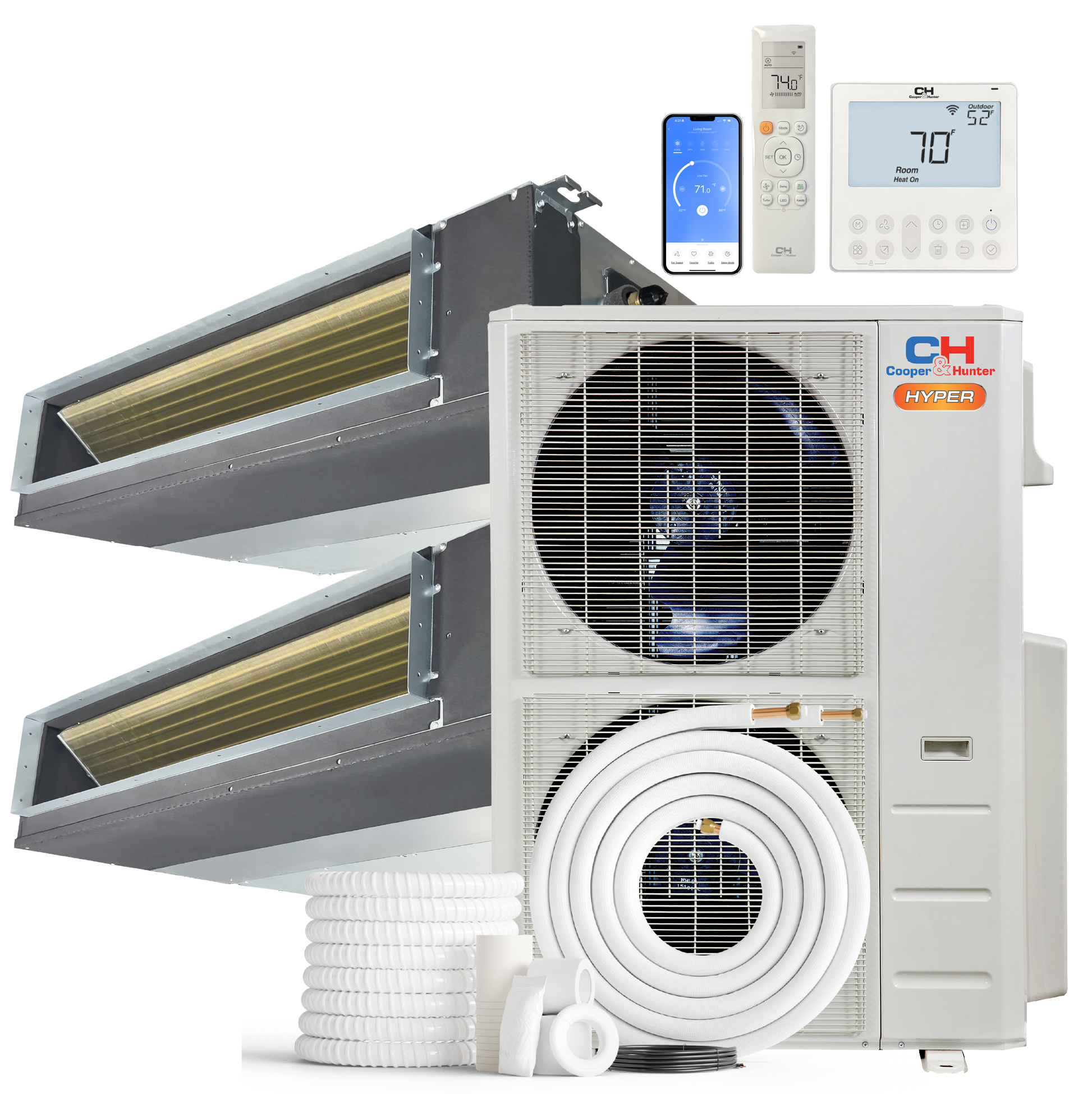

Cooper & Hunter Slim-Duct Mini Split System

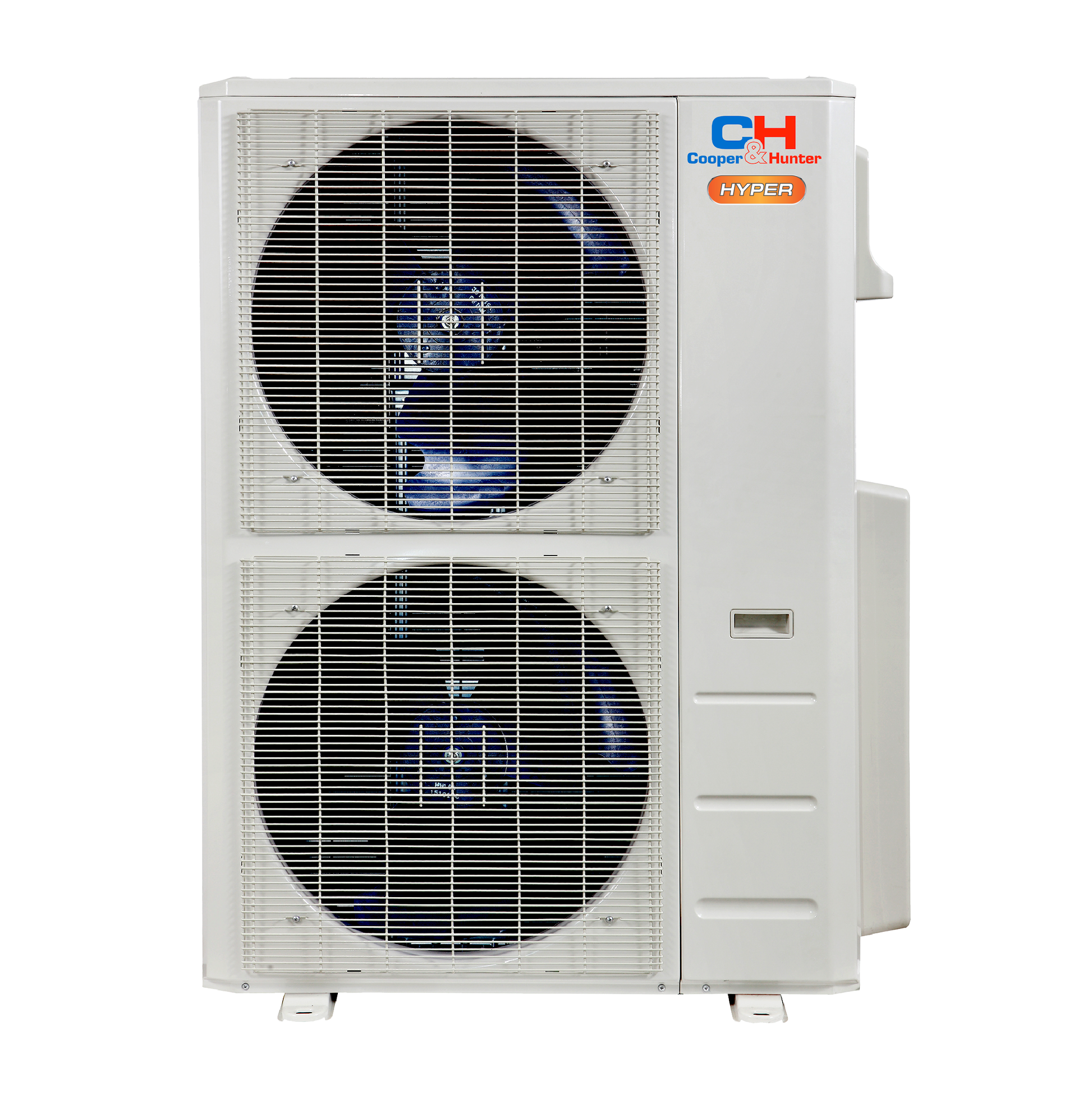

Outdoor Unit: 55000 BTU (1 pc) — Model: CH-RVHP55M-230VO
Indoor Units (Slim-Duct):
- 24,000 BTU (x2) — Model: CH-RS24MDT-HS
- Installation-Kit options (No Kit / 16 ft / 25 ft / 50 ft)
- (INSTALLATION KIT SIZE MUST BE SELECTED, to be included)
- Wireless Remote Controls (2 remotes)
- Built-in Smart-Kit & C&H App control
- Wall Thermostat
- Installation & User Manuals
- Manufacturer Warranty
6K–12K capacity selection (ENC1)
On supported 6K–12K Multiple Capacity Slim-Duct models, the ENC1 dip switch is used for capacity changes. When paired with single-zone condensers, the indoor unit can automatically adjust to match condenser capacity. When paired with multi-zone condensers, set ENC1 to select the desired indoor capacity.
- ENC1 from “0” to “1” → 6,000 BTU/H
- ENC1 from “0” to “2” → 9,000 BTU/H
- ENC1 from “0” to “3” → 12,000 BTU/H
If this product does not include a 6K–12K indoor unit, ignore this section. Your spec table and will reflect what applies.
Complete technical specifications — Indoor (Slim-Duct)
Indoor Unit Specifications — CH-RS24MDT-HS
| Refrigerant type | R454B |
|---|---|
| System type | Single Zone |
| Filter dimensions (WxD) (inch) | 17.28x7.95 |
| BTU Rated | 24,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 4.29 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 42.13 x 28.54 x 11.02 |
| Controller | wire controller + remote controller available |
| Refrigerant piping Liquid/Gas side (inch) | 3/8"/5/8" |
| EER2 | 12 |
| SEER2 | 19 |
| Unit Net/Gross weight | 54.45/66.14 |
| Unit dimensions (W*H*D) | 34.65 x 26.54 x 8.27 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 40/37/35 |
| Indoor Air Flow | 853.5 / 706.3 / 618 / 500.3 |
| ESP Range | 0-0.8 |
| Drainage water pipe diameter | 1" |
Manuals
- https://media.cooperandhunter.us/4195/120N-wire-controller---owners-manual.pdf
- https://media.cooperandhunter.us/4196/Installation-Manual---High-static-Duct.pdf
- https://media.cooperandhunter.us/4198/Owner_s-Manual---High-static-Duct..pdf
- https://media.cooperandhunter.us/4200/SlimDuct-Leaflet-R454B.pdf
Submittals
Complete technical specifications — Outdoor
Outdoor Unit Specifications — CH-RVHP55M-230VO
| Performance level | Hyper Heat |
|---|---|
| Refrigerant type | R454B |
| System type | Multi-zone unit |
| BTU Rated | / |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 5.29 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 43.11 x 19.49 x 58.27 |
| Refrigerant piping Liquid/Gas side (inch) | 6x1/4" - 4x3/8"+2x1/2" |
| HSPF2-5 | 8.5 |
| HSPF2-4 | 10.5 |
| EER2 | 12 |
| Cooling capacity (Min/Max) (BTU/h) | 51,000(19,000~59,000) |
| SEER2 | 22.2 |
| Unit Net/Gross weight | 246.47/276.68 |
| Unit dimensions (W*H*D) | 37.48 x 16.34 x 52.48 |
| Refrigerant precharge | 150 |
| Outdoor Noise Level | 65 |
| Outdoor Air Flow | 4502.8 |
| Minimum circuit ampacity | 39.5 |
| Max fuse | 40 |
| Max height difference between Indoor and Outdoor unit | 49.2 |
| Heating capacity (Min/Max) (BTU/h) | 55,000(20,000~59,000) |
| COP | 3.5 |
| Ambient temperature - Heating (F) | -22~75 |
| Ambient temperature - Cooling (F) | -22~122 |
| Additional Refrigerant Charge 3/8 liquid line | 0.32 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Manuals
Submittals
Warranty information
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
- 1-Year Remote Control Warranty
Note: Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.
Summary
Expand
This Cooper & Hunter Slim-Duct system uses a 55000 BTU outdoor condenser with CH-RVHP55M-230VO + 2X CH-RS24MDT-HS slim-profile duct air handler(s) for concealed, flexible comfort. Medium/high static pressure capability supports ducted distribution, and low-ambient heating supports operation down to -22 F. Smart control and monitoring features vary by model and are reflected in the included components and specification tables.
