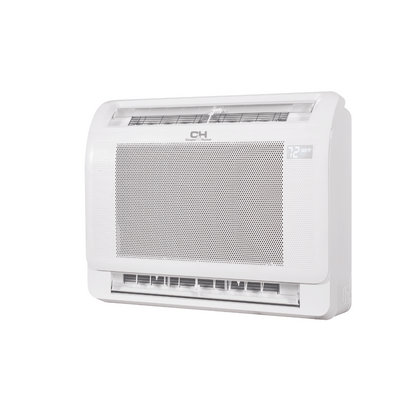

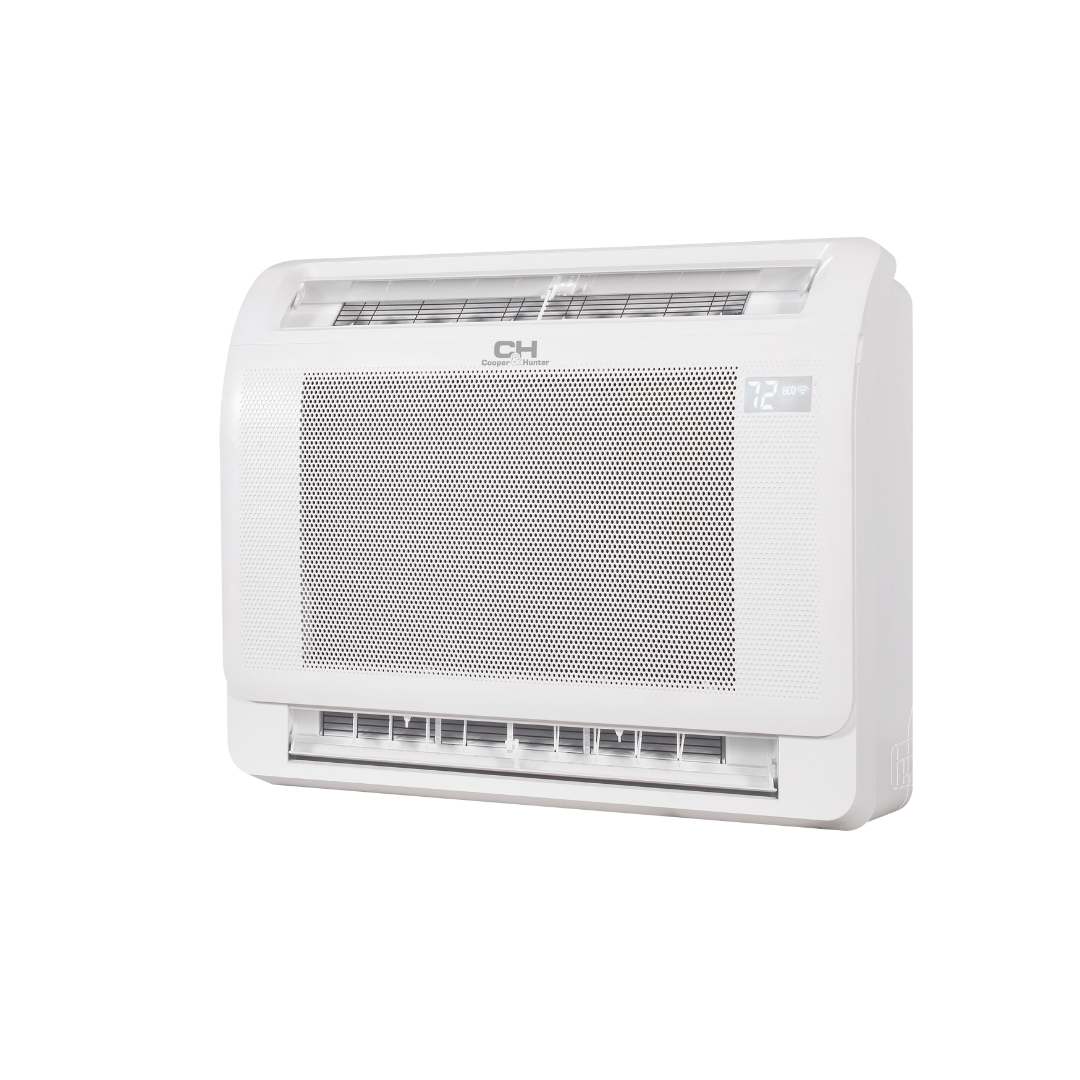

Cooper&Hunter 9K Mini Floor Console Indoor — CH-RSH09MMC
Compact floor console with dual-outlet airflow, sensors, and built-in Smart Kit for app control (regular & hyper compatible with matched outdoor units).
Overview
The Cooper&Hunter CH-RSH09MMC is a 9,000 BTU mini floor console indoor unit designed for flexible comfort delivery with a sleek, compact profile. It uses R454B refrigerant and is intended for single-zone applications, with the flexibility to be paired in multi-zone configurations when matched to compatible outdoor equipment. Air distribution is a key advantage: this console features a 65% larger upper air outlet and a 94% wider lower air outlet to help even out temperatures and reduce hot/cold pockets. For better environmental tracking, it includes a refrigerant sensor and humidity sensor. Control options include a built-in Smart Kit (C&H app), plus included remote control and wall thermostat support.
Highlights

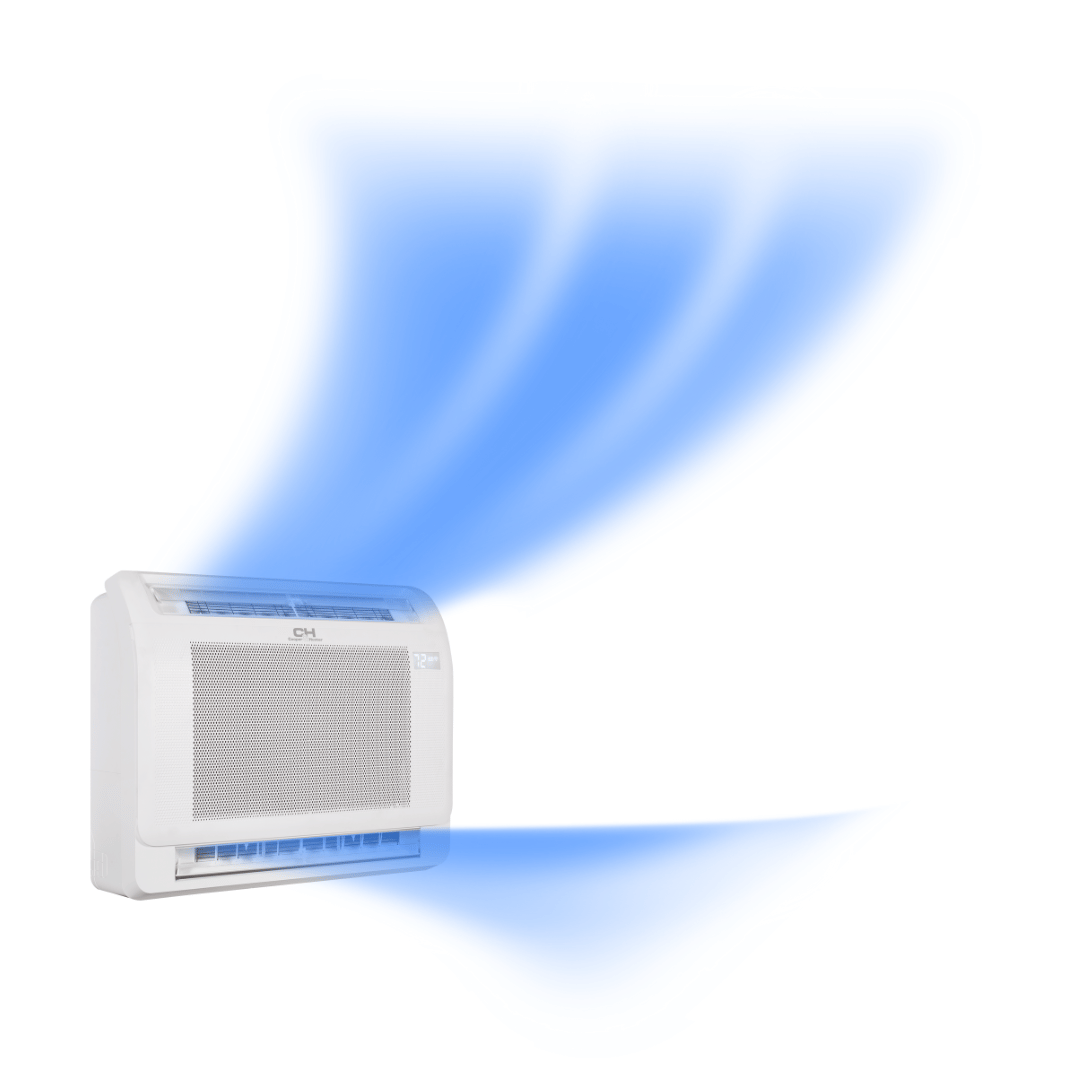

- Stronger, more even airflow: 65% larger upper outlet + 94% wider lower outlet for better distribution.
- Comfort tracking: Refrigerant sensor + humidity sensor help maintain stable indoor conditions.
- Compact, décor-friendly form: Floor console footprint fits well in rooms where wall space is limited.
- Flexible control: Built-in Smart Kit (C&H app) with included remote; wall thermostat supported.
- Regular & hyper capable: Designed for both operation types when paired with the correct outdoor unit.
What's Included

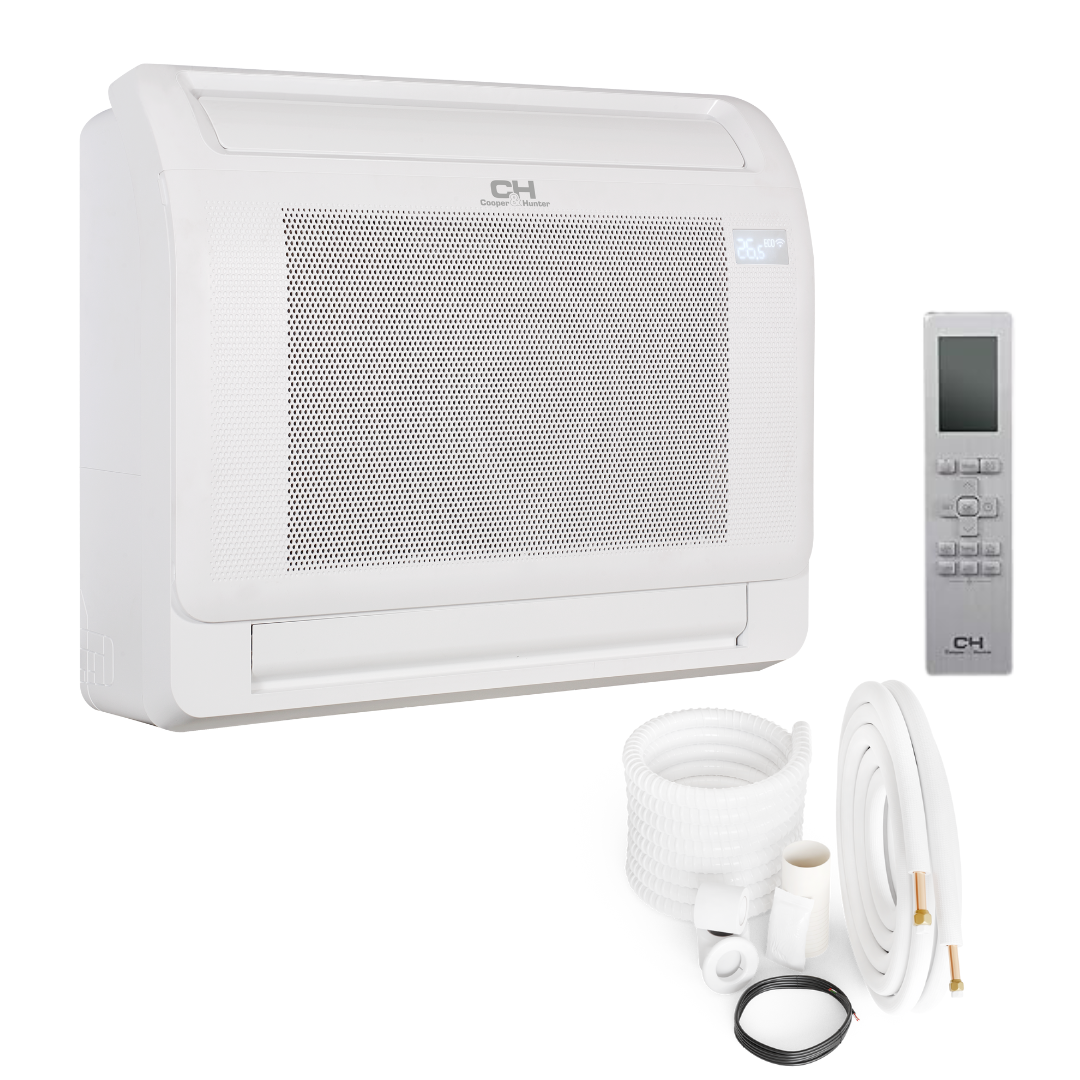

- Indoor mini floor console unit: CH-RSH09MMC
- Built-in Smart Kit (C&H app control)

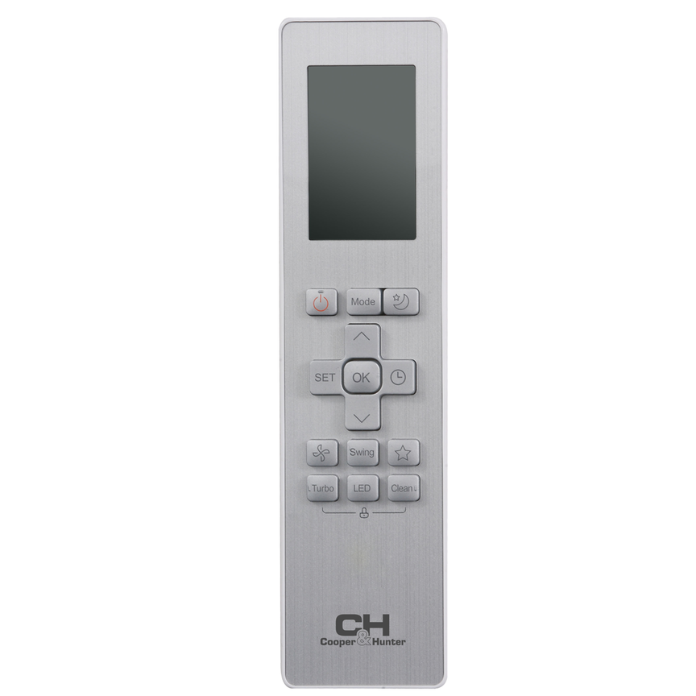

- Remote controller (included)
- Wall thermostat support (thermostat may be purchased separately depending on configuration)
- Refrigerant sensor + humidity sensor
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-RSH09MMC |
| Refrigerant Type | R454B |
| System Type | Single Zone/Multi-zone |
| BTU Rated | 9,000 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |

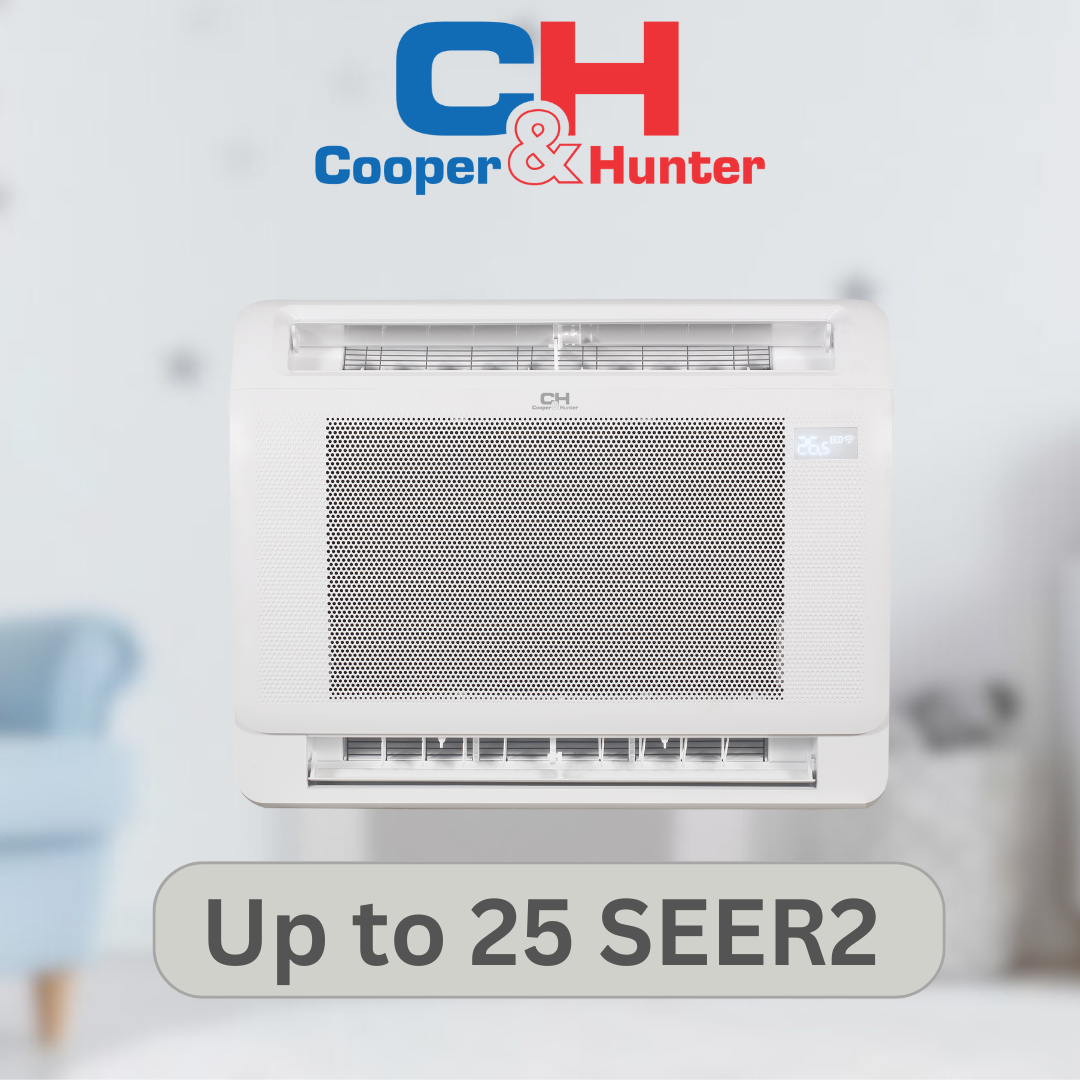

| SEER2 / EER2 | 27.2 / 15.1 |
| Minimum Circuit Ampacity (MCA) | 3 A |
| Max Fuse | 15 A |
| Dehumidification | 1.71 pints/day |
| Controller | Remote controller |
| Refrigerant Piping (Liquid / Gas) | 1/4" / 3/8" |
| Indoor Noise (H/M/L) | 41 / 37.5 / 25.5 dB(A) |
| Indoor Air Flow | 441.4 / 376.7 / 323.7 / 188.4 |

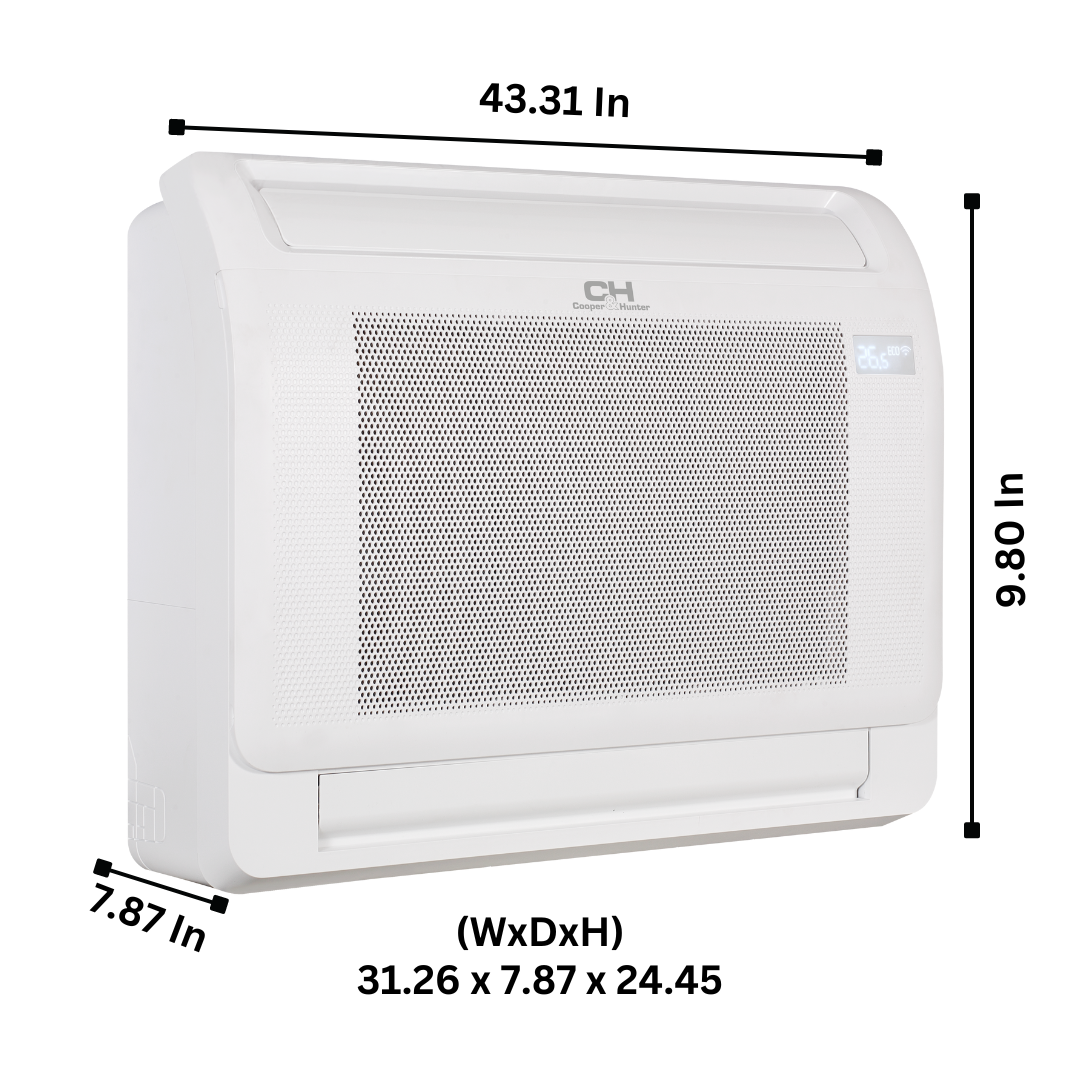

| Unit Dimensions (W×H×D) | 31.26 × 7.87 × 24.45 in |
| Unit Net / Gross Weight | 32.85 / 41.89 lb |
| Packing Dimensions (W×D×H) | 34.06 × 11.02 × 28.31 in |
| Drain Pipe Diameter | 5/8" |
| Operation Range (Cooling) | 60–90 °F |
| Operation Range (Heating) | 32–86 °F |
| ESP Range | / |
Documents & Downloads
Important
Installed by a licensed HVAC professional. This is an indoor unit intended to be matched with a compatible outdoor system. Confirm electrical requirements (208–230V), piping sizes (1/4" liquid, 3/8" gas), and condensate routing (5/8" drain).
FAQs
Is Wi-Fi / app control included?
What line sizes are required?
Does it work with regular and hyper outdoor units?
Is this single-zone or multi-zone?
