Cooper&Hunter Mini Floor Console Indoor • 230V • Single/Multi-Zone
Cooper&Hunter Mini Floor Console 16,000 BTU Indoor Unit — CH-16MMC-230VI
Compact floor console indoor unit for low-ceiling spaces and attics, with dual airflow outlets for efficient cooling and heating.
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS
CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Overview

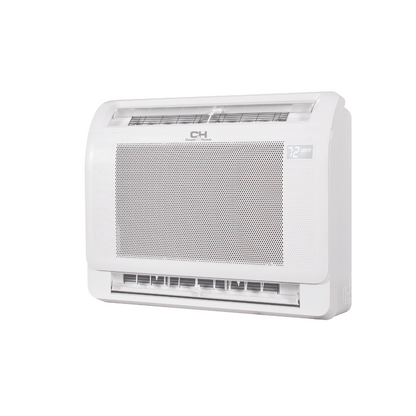

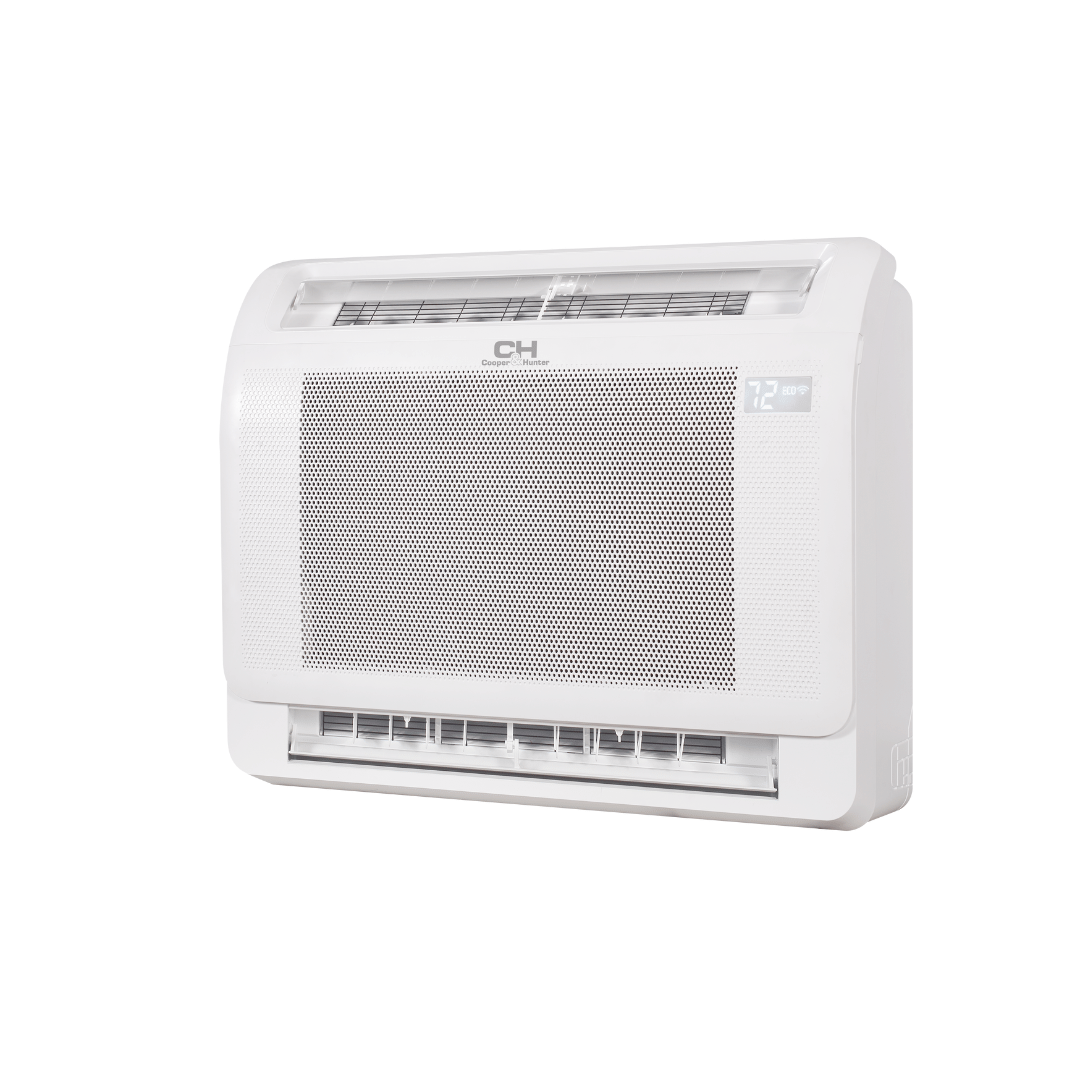

The Cooper&Hunter Mini Floor Console indoor unit features an elegant, compact design intended for spaces where a wall mount
isn’t ideal—such as rooms with low ceilings and attics. It can be installed floor-standing or mounted

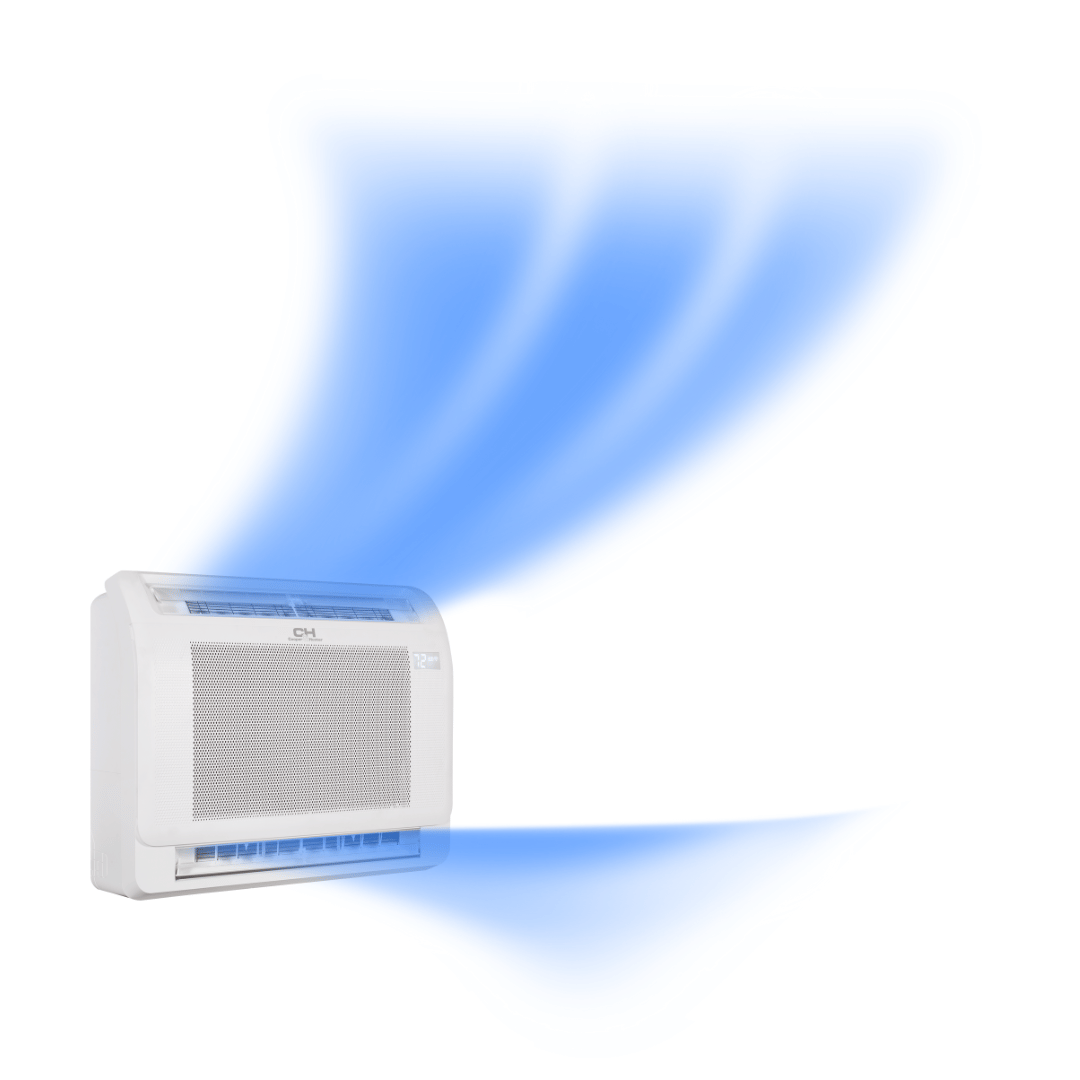

low on the wall. Dual airflow outlets with larger outlet dimensions help improve air volume for steady, room-level comfort in both
cooling and heating.
The CH-16MMC-230VI is a 16,000 BTU indoor unit designed for single-zone or compatible
multi-zone systems. It can be paired with both Regular and Hyper outdoor units (system dependent).
Highlights
16,000 BTU (rated)
SEER2 22.4
EER2 12.5
Floor-Standing or Low Wall
Dual Airflow Outlets
RG10K Remote
WiFi Kit Listed
Single/Multi-Zone Compatible
- Great for low-clearance installs: Designed for attics and rooms with low ceilings.
- Flexible mounting: Floor-standing or mounted low on the wall.
- Efficient air delivery: Dual outlets with airflow values up to 500.00.
- Control options: RG10K-exclusive remote and listed WiFi kit support.
- System flexibility: Can be used in single-zone or compatible multi-zone setups.
ModelCH-16MMC-230VI
System TypeSingle/Multi-Zone
Line Set1/4" (liq) / 1/2" (gas)
Sound (H/M/L)45/43.5/30.5 dB(A)
What's Included

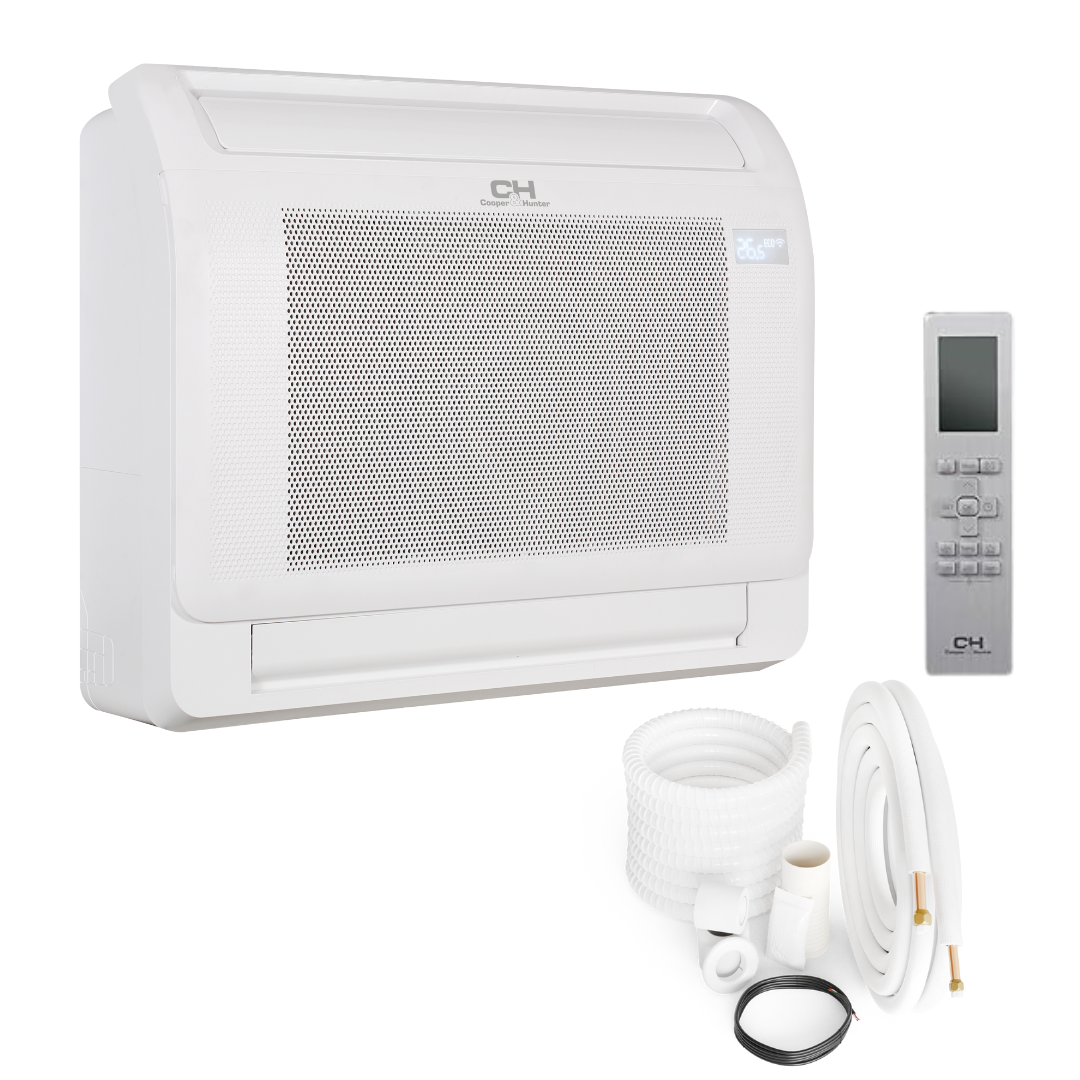

- Mini floor console indoor unit: CH-16MMC-230VI

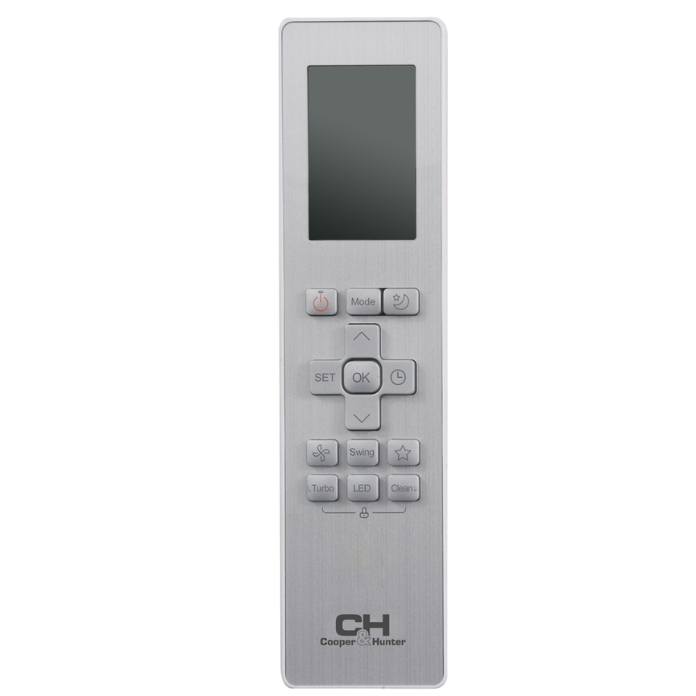

- Remote control: RG10K-exclusive
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-16MMC-230VI |
| System Type | Single/Multi-zone unit |
| BTU Rated | 16,000 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |
| SEER2 / EER2 | 22.4 / 12.5 |
| Minimum Circuit Ampacity (MCA) | 3 A |
| Max Fuse | 15 A |
| Dehumidification | 1.20 pints/day |
| Controller | RG10K-exclusive remote & wifi kit |
| Refrigerant Piping (Liquid / Gas) | 1/4" / 1/2" |
| Indoor Noise (H/M/L) | 45 / 43.5 / 30.5 dB(A) |
| Indoor Air Flow | 500.00 / 441.18 / 382.35 / 323.53 |
| Unit Dimensions (W×H×D) | 31.26 × 7.87 × 24.45 in |
| Unit Net / Gross Weight | 32.85 / 41.45 lb |
| Packing Dimensions (W×D×H) | 34.06 × 11.02 × 28.31 |
| Drain Pipe Diameter | 5/8" |
| Operation Range (Cooling) | 60–90 °F |
| Operation Range (Heating) | 32–86 °F |
Documents & Downloads
- Submittal — CH-16MMC-230VI (PDF)
- Submittal — CH-16MMC-230VI + CH-ES18-230VO (PDF)
- Submittal — CH-16MMC-230VI + CH-HPR18-230VO (PDF)
- Manual/Submittal — CH-16MMC-230VI + CH-ES18-230VO (PDF)
- Manual/Submittal — CH-16MMC-230VI + CH-HPR18-230VO (PDF)
- Remote Controller Manual (PDF)
- Installation Manual — MMC (PDF)
- Mini Floor Console — Leaflet (2024) (PDF)
- Floor/Ceiling — Leaflet (2024) (PDF)
- Multi-Zone Combination — HYPER (PDF)
- Multi-Zone Combination — Regular (PDF)
Important

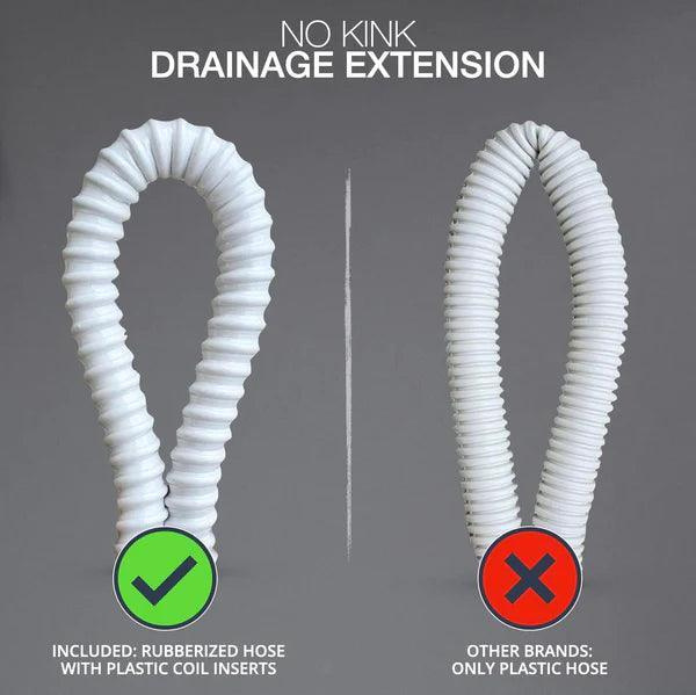

Install with a licensed HVAC professional. This indoor floor console is intended to be matched with a compatible outdoor system. Confirm electrical requirements (208–230V) and piping sizes (1/4" liquid, 1/2" gas). The unit can be installed floor-standing or low-wall mounted; ensure condensate drainage is routed correctly for the installation style.
FAQs
Where is a mini floor console a good fit?
It’s a strong option for rooms with low ceilings and attics, or anywhere a traditional wall mount isn’t ideal.
How can it be installed?
It can be installed floor-standing or mounted low on the wall.
What line sizes are required?
Use 1/4" liquid and 1/2" gas refrigerant piping.
Does it work with single-zone and multi-zone systems?
Yes. It can be used as a single-zone unit or as part of a compatible multi-zone system when paired correctly.
What are the unit dimensions and noise levels?
Dimensions are 31.26 × 7.87 × 24.45 in (W×H×D). Noise levels are 45/43.5/30.5 dB(A) (H/M/L).
