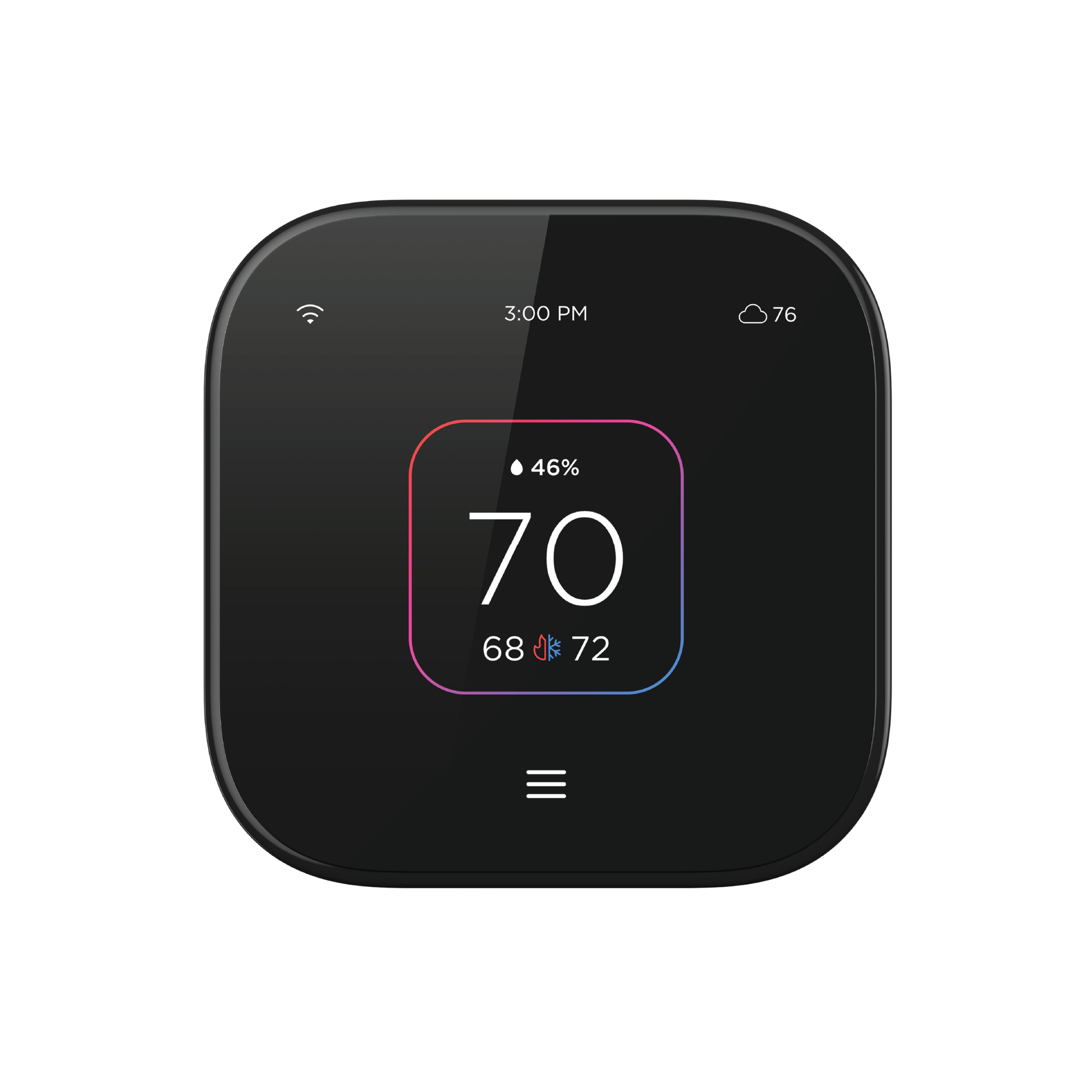

Cooper & Hunter CH-WTH24V — 24V Wall Thermostat
UL Listed, energy-saving wired controller with 3.95" touch display and weekly scheduling.
Custom quotes & questions
Key Points
- Compatible with all C&H 454B equipment (except Wall Mounts)
- Compatible with C&H 410A Multi-Position Air Handlers
- Works with many 3rd-party 24V systems
- UL Listed • Energy-saving operation
Connections & Wiring
Use HA&HB low-voltage terminals or standard 24V thermostat terminals.
| Mode | Terminals | Notes |
|---|---|---|
| HA&HB | HA, HB | C&H interface |
| 24V | Y2, Y1, G, R, C | Standard 24V thermostat wiring |
Highlights
- Simple design with 3.95" LCD touch screen (480×480)
- Weekly schedule—set up to 4 periods per day
- Delay function—postpone shutdown by 1–2 hours for overtime
- Room temperature & humidity display (sensor built-in)
- Error code display and service-friendly status indicators
- Energy saving modes; adjustable fan speed
Functions
- Modes: Auto / Cool / Dry / Heat / Fan
- Fan speeds: Auto / Low / Med / High
- Swing (on some models), Turbo
- Timer ON/OFF, 12-hour & 24-hour time
- Weekly timer (4 periods/day), Clock
- Automatic airflow test; Rotation & backup
- Dual & Group control, Child lock
- Individual louver control (on some models)
- Auto-restart
Remote App
Use the Cooper & Hunter Remote App. Scan QR codes on the product sheet or search your app store:
- iOS: “Cooper&Hunter Remote App”
- Android: “Cooper&Hunter Remote App”
Specifications
| Model | CH-WTH24V |
|---|---|
| Display | 3.95" LCD touch, 480×480 resolution |
| Power | 24V (from indoor unit / control circuit) |
| Temp setting range | 62–86 °F |
| Dimensions (H×W) | 3.95" × 3.95" |
Note: Wiring and feature availability can vary by indoor unit model and system configuration.
Why installers like it
Simple design
Weekly schedule wired controller with a clean, readable interface. View indoor temperature, error codes, and running state. Backlit LCD makes operation easy in low-light rooms.
Scheduling
Weekly schedule timer function
Set up to 4 periods per day (mode, fan speed, and temperature can be preset and stored for each period).
Delay Function
Designed for late-night or overtime operation—press Delay to postpone system shutdown by 1–2 hours.
Great fit for
- Cooper & Hunter Ceiling Cassette, Slim Duct, Universal Floor/Ceiling, and Floor Console units
