Cooper&Hunter 4-Way Ceiling Cassette Indoor • R454B • 230V • Multi-zone/Single Zone

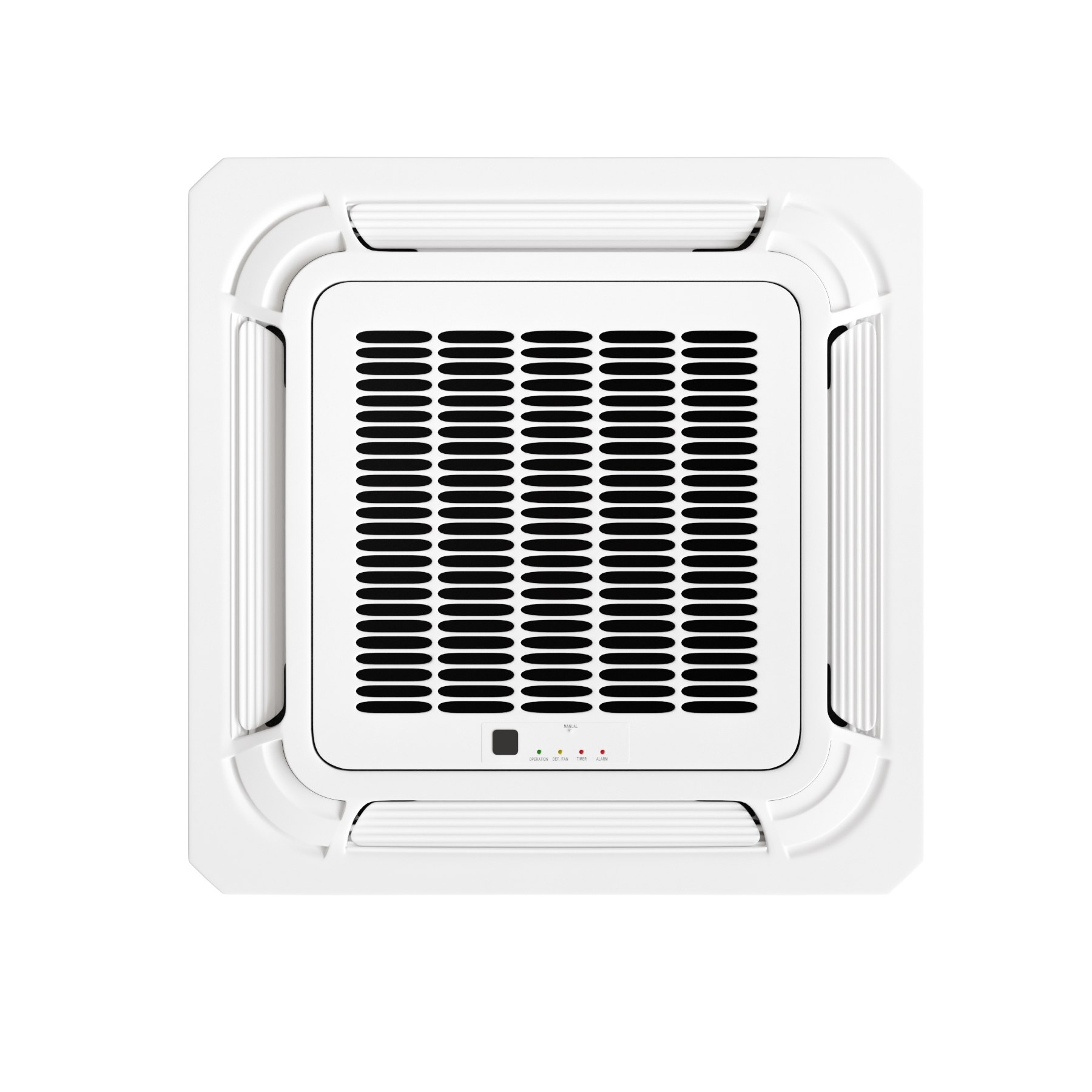

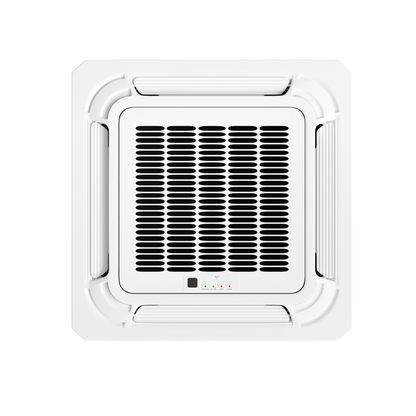

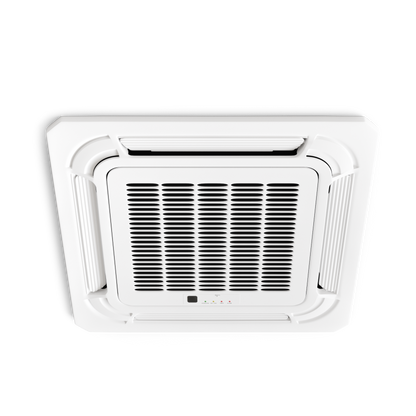

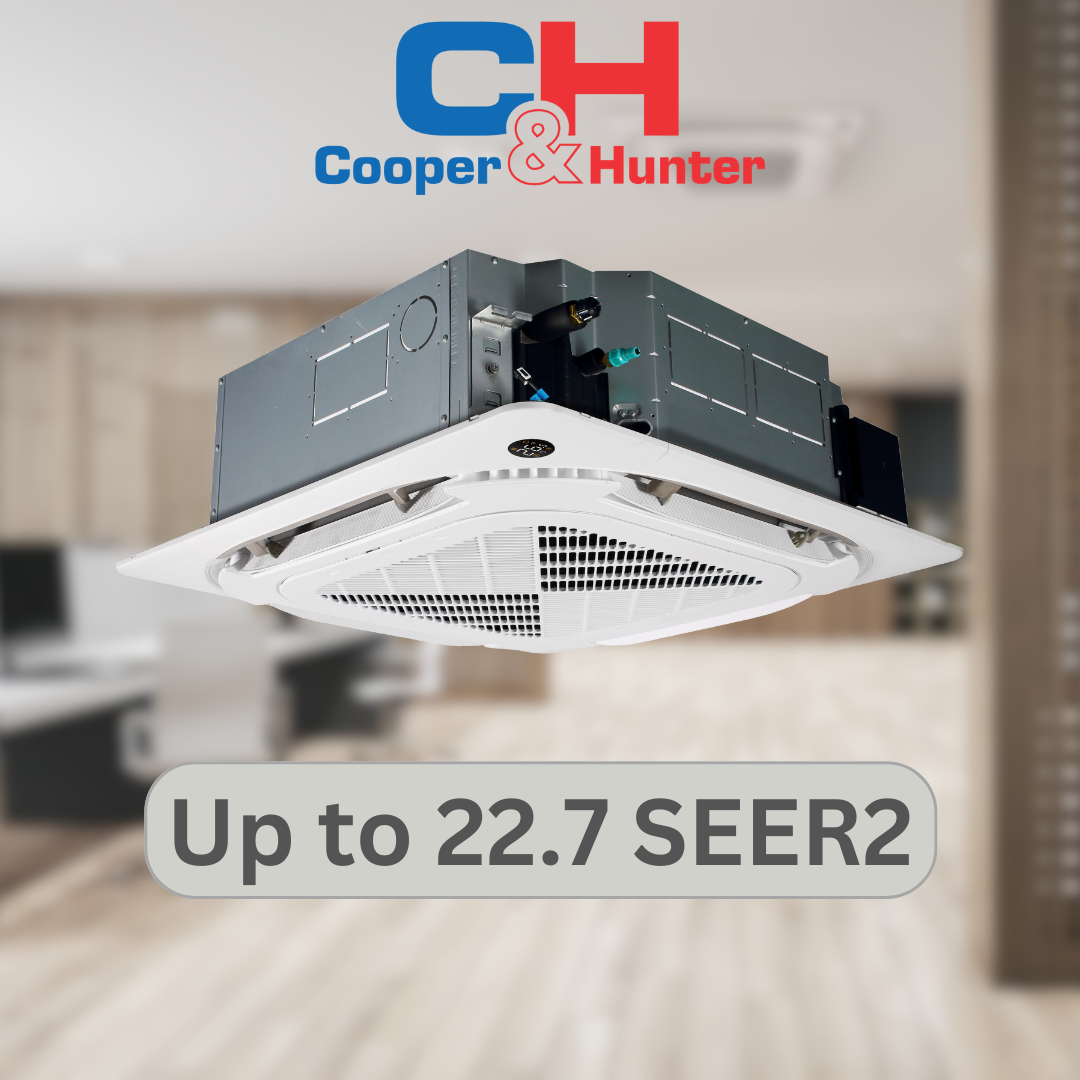

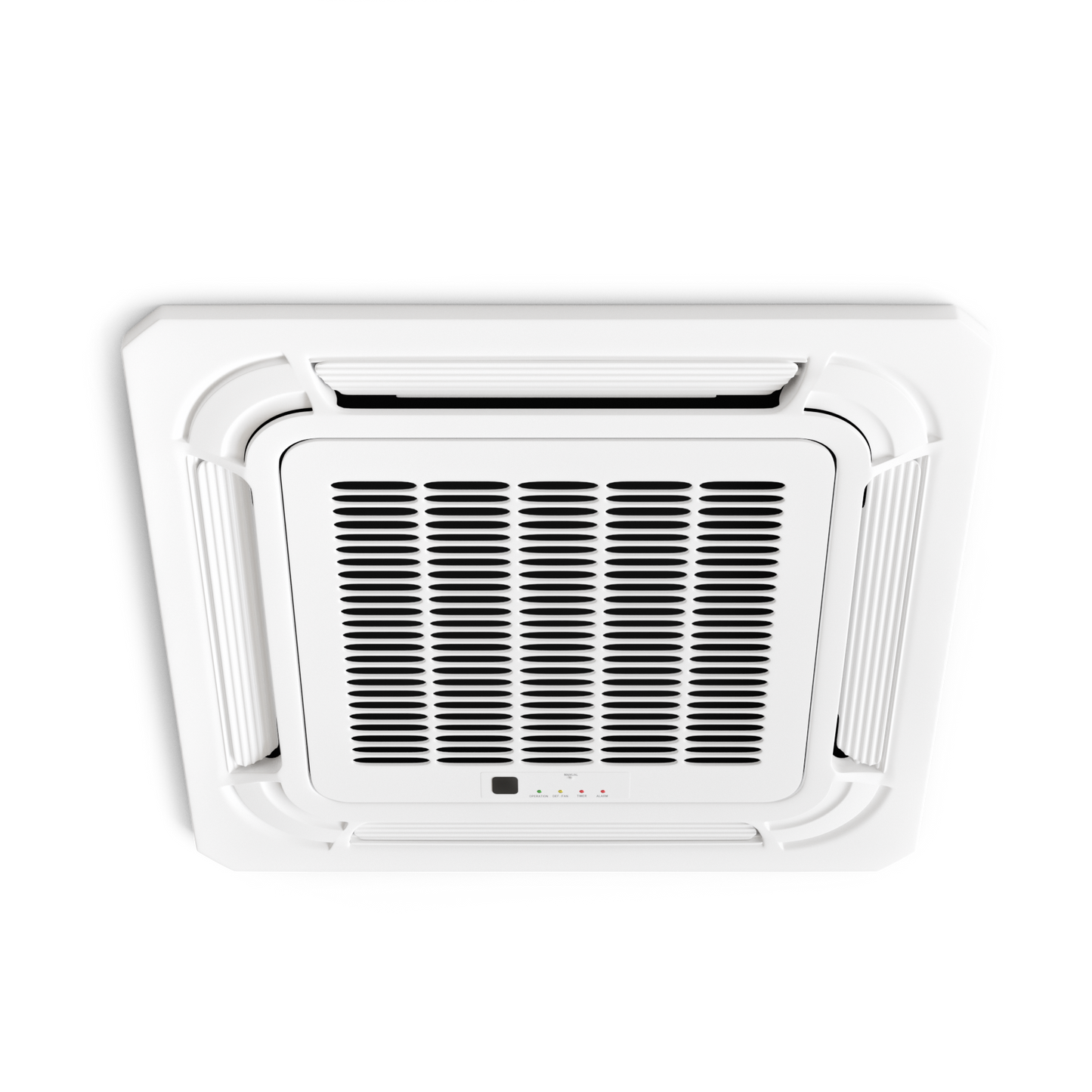

Cooper&Hunter 18,000 BTU 4-Way Ceiling Cassette Indoor — CH-RH18MCT
360° omni-directional airflow cassette with activated carbon filtration, GoldFin coating, built-in pump, and built-in Smart Kit + included wall thermostat.
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Overview
The Cooper&Hunter CH-RH18MCT is an 18K Btu 4-way ceiling cassette indoor unit engineered for consistent, even comfort in 208–230V systems. It uses R454B refrigerant and is listed as a single-zone cassette (with flexibility for matched multi-zone applications when paired correctly). Air is distributed through an omni-directional 4-way discharge supported by a 360° air flow panel, helping reduce hot and cold spots. An activated carbon filter supports fresher indoor air, while GoldFin anti-corrosive coating and TU1 copper tubing promote long-term durability and efficient heat transfer. Comfort and reliability features include Anti Cold Air, Sleep and Turbo modes, a humidity sensor, self-diagnosis, and a built-in condensate pump with float switch (rated lift up to 20.9"). Control options include a built-in Smart Kit (C&H app), an included remote, and an included wall thermostat.
Highlights
18,000 BTU (rated) SEER2 20.0 EER2 12.5 R454B 360° Air Flow Panel Omni-Directional Airflow Activated Carbon Filter GoldFin Coating Built-in Pump + Float Switch Built-in Smart Kit (App) Wall Thermostat Included
- Room-filling airflow: 4-way discharge with a 360° panel for even distribution.
- Cleaner air support: Activated carbon filtration plus fresh air intake capability.
- Built for longevity: GoldFin coating helps resist corrosion; TU1 copper supports efficient heat transfer.
- Comfort-focused heating: Anti Cold Air helps reduce chilly drafts during heat operation.
- Quick adjustment modes: Turbo operation and multiple fan speeds for rapid changes.
- Condensate handled: Built-in pump with float switch, up to 20.9" lift capability.
- Included controls: Built-in Smart Kit (C&H app), remote, and wall thermostat.
ModelCH-RH18MCT
System TypeMulti-zone/Single Zone
Line Set1/4" (liq) / 1/2" (gas)
Sound (H/M/L)44.5/41/27.5 dB(A)

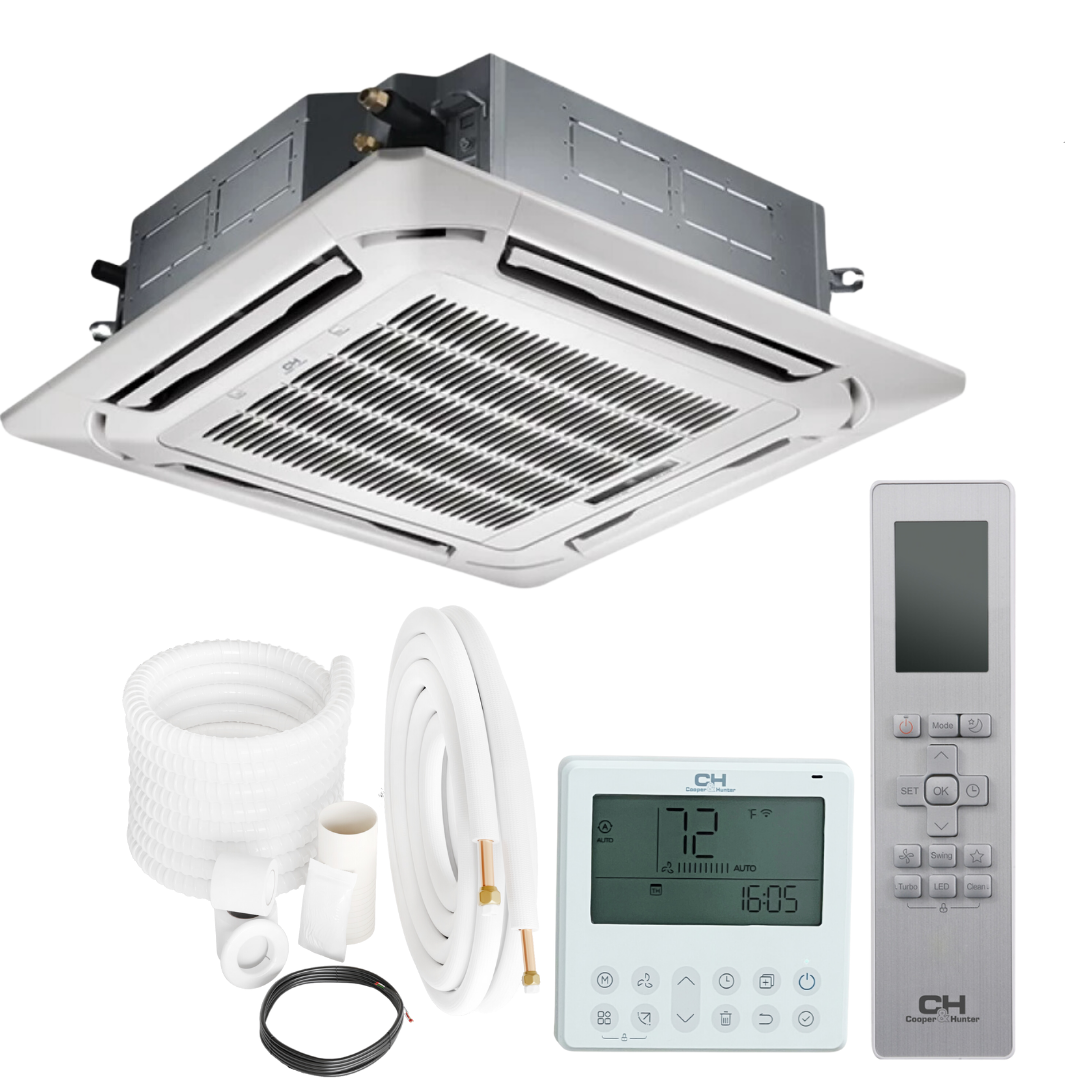

What's Included
- Indoor ceiling cassette unit: CH-RH18MCT

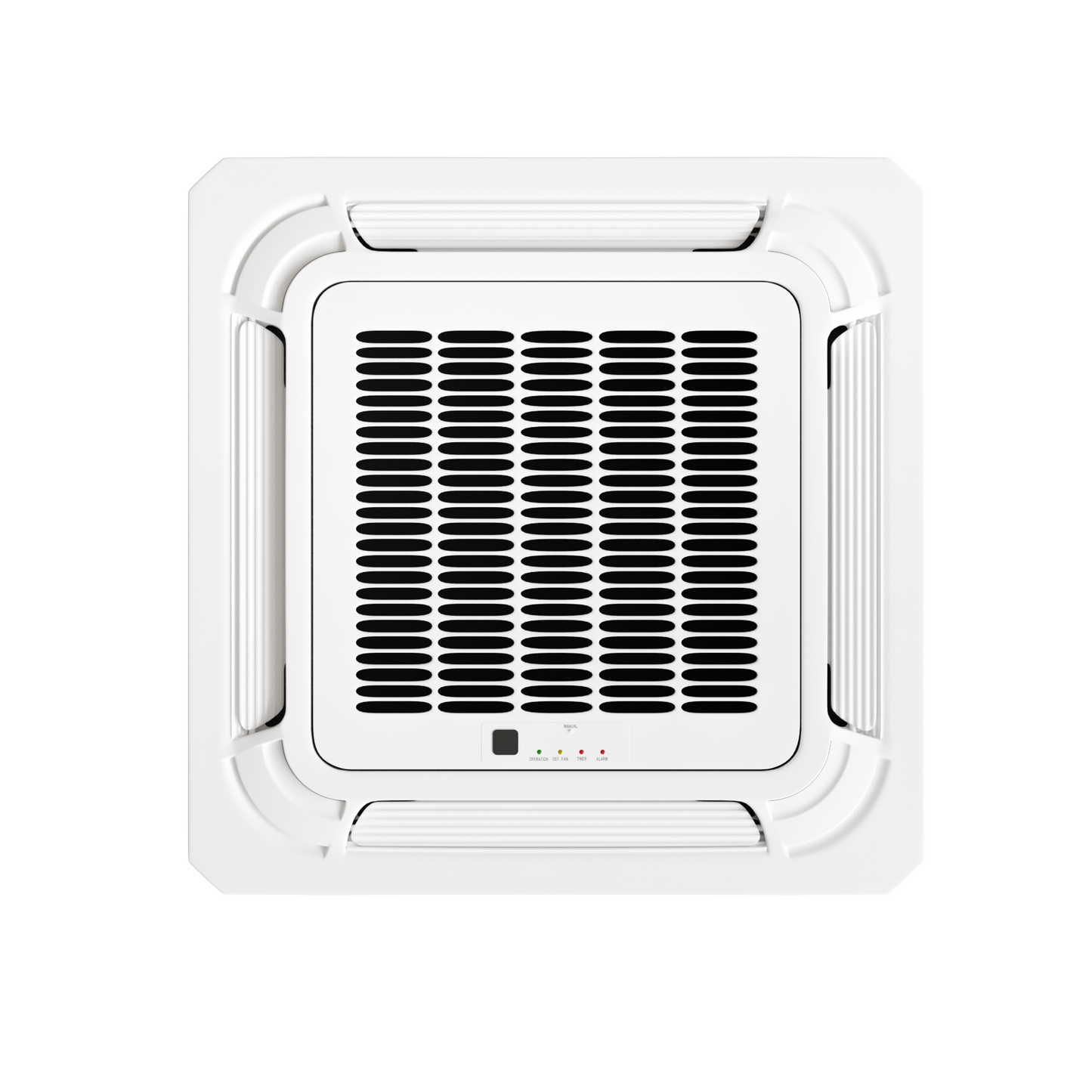

- Ceiling Cassette Panel
- Built-in Smart Kit (C&H app control)

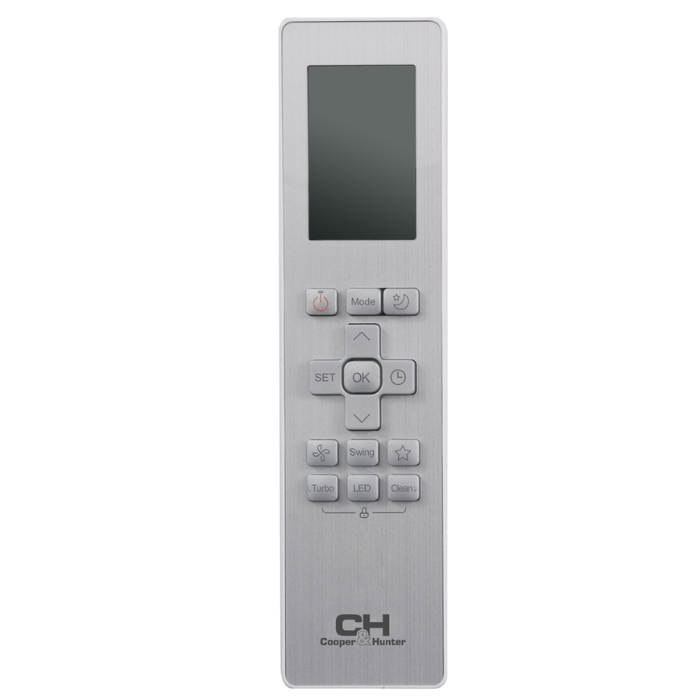

- Remote control (included)

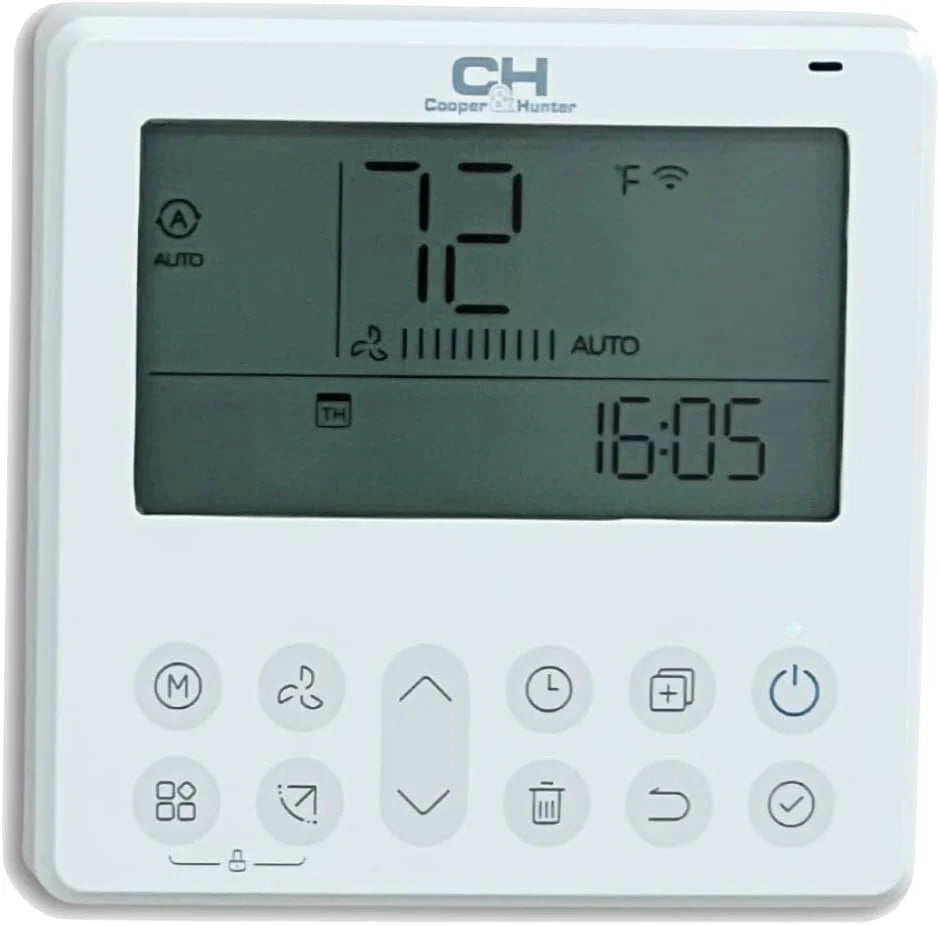

- Wall thermostat (included)
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-RH18MCT |
| Refrigerant Type | R454B |
| System Type | Single Zone/Multi-zone |
| BTU Rated | 18,000 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |
| SEER2 / EER2 | 20.0 / 12.5 |
| Minimum Circuit Ampacity (MCA) | 3 A |
| Max Fuse | 15 A |
| Dehumidification | 4.23 pints/day |
| Controller | Wire controller + remote controller available |
| Refrigerant Piping (Liquid / Gas) | 1/4" / 1/2" |
| Indoor Noise (H/M/L) | 44.5 / 41 / 27.5 dB(A) |
| Indoor Air Flow | 447.3 / 388.5 / 317.8 / 194.2 |

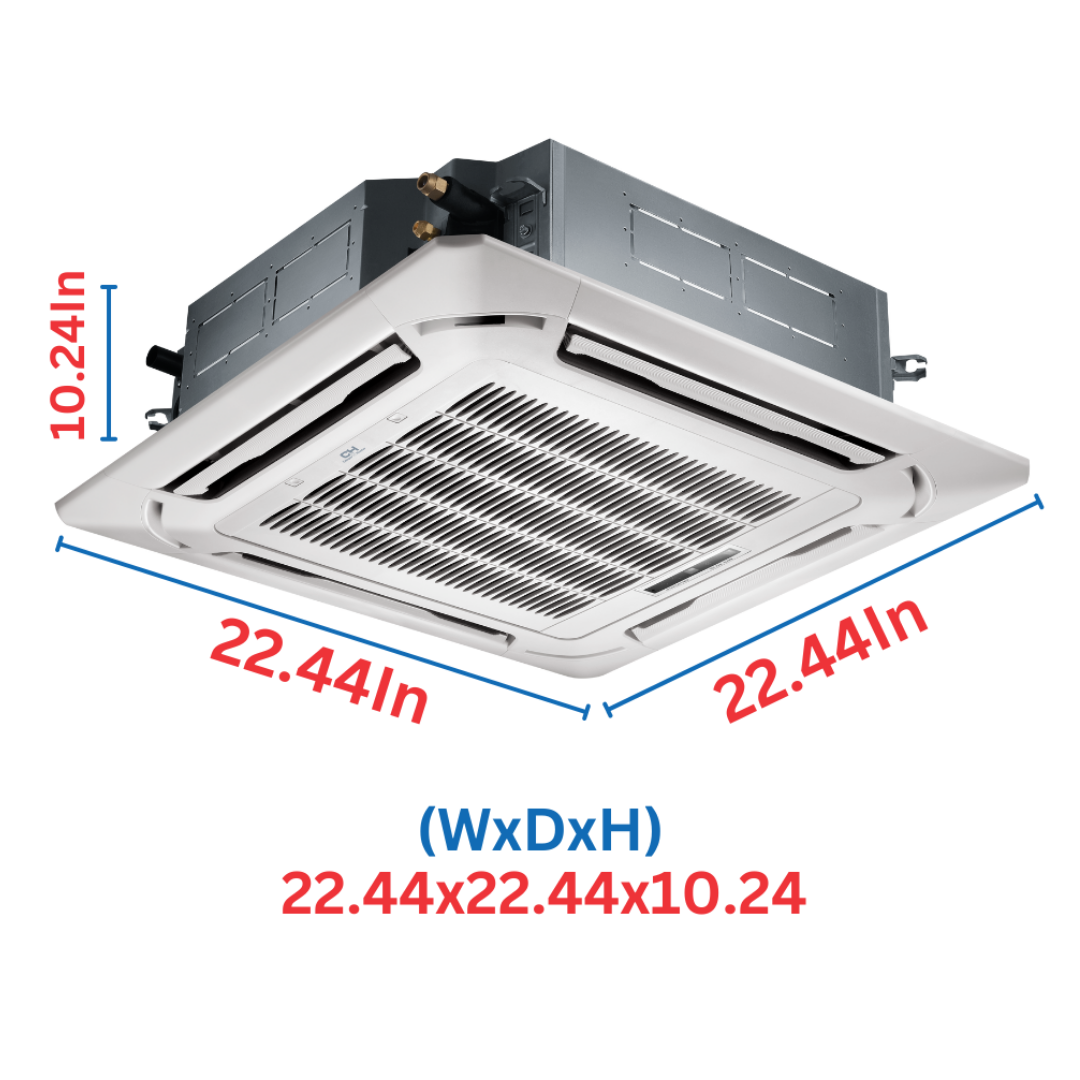

| Unit Dimensions (W×H×D) | 22.44 × 22.44 × 9.65 in |
| Unit Net / Gross Weight | 35.27 / 41.89 lb |
| Packing Dimensions (W×D×H) | 28.15 × 25.20 × 11.61 in |
| Drain Pipe Diameter | 1" |
| Operation Range (Cooling) | 60–90 °F |
| Operation Range (Heating) | 32–86 °F |
| ESP Range | / |
| Filter Dimensions | / |
Documents & Downloads
- Submittal — CH-RES18-230VO + CH-RH18MCT (PDF)
- Submittal — CH-RHP18-230VO + CH-RH18MCT (PDF)
- Installation Manual — R454B Ceiling Cassette (PDF)
- Owner’s Manual — R454B Ceiling Cassette (PDF)
- 120N Wire Controller — Uses & Installation Manual (PDF)
- Multi-Zone Combination — HYPER (PDF)
- Multi-Zone Combination — Regular (PDF)
Important
Installed by a licensed HVAC professional. This is an indoor cassette unit intended to be matched with a compatible outdoor system. Confirm electrical requirements (208–230V) and piping sizes (1/4" liquid, 1/2" gas). Drain routing must account for the built-in pump and lift capability.
FAQs
Is this single-zone or multi-zone?
This model is listed as a single-zone ceiling cassette indoor unit, and it can be paired in matched multi-zone applications when compatible with the outdoor system.
Does it include Wi-Fi / app control?
Yes. It includes a built-in Smart Kit for control via the C&H app.
Does it include a wall thermostat?
Yes. A wall thermostat is included, and a remote control is also included.
What line sizes are required?
1/4" liquid and 1/2" gas.
Does it have a condensate pump?
Yes. It includes a built-in pump with float switch, rated up to 20.9" lift.
