Cooper&Hunter Astoria Wall Mount Ductless Mini Split AC Indoor Unit – 9000 BTU | R410A

SKU: CH-09MASTWM-230VI

System highlights
AC Type
Wall Mount
Refrigerant Type
R410A
Brand
Cooper&Hunter
Indoor Unit
9000 BTU (0.75 TON)
Voltage
208-230V
Looking For
Wall Mount
Cooling Area (sq.ft.)
250-400
Series
Astoria
Installation Kit

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$398.00
Shipping calculated at checkout.
View full details
Cooper&Hunter Astoria • Wall Mount Indoor Unit • R410A • 230V

Cooper&Hunter Astoria Wall Mount Indoor Unit — 9,000 BTU • CH-09MASTWM-230VI

Top-tier single- or multi-zone ductless indoor unit with service-friendly design, improved airflow, and smart control capability.

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS

Overview

The Cooper&Hunter Astoria wall-mounted indoor unit is designed for both single-zone and multi-zone applications. This 9,000 BTU model (CH-09MASTWM-230VI) features a service-focused layout—easy access to key components—plus enhanced airflow from larger inlet/outlet geometry and auto-swing vertical and horizontal louvers. Control options include the included remote, optional wired thermostat, and the included Smart Kit for app-based control.

Highlights

9,000 BTU Single / Multi-Zone R410A Compatible System SEER2 28.1 (System Rating) EER2 16.2 Auto-Swing Vertical + Horizontal Service-Friendly Design App Control (Smart Kit)
  • Fast service access: convenient disassembly with easy access to blower wheel, front E-Box/PCB, and kickstand-style front cover support.
  • Improved airflow: larger inlet/outlet design plus auto-swinging vertical and horizontal louvers for better distribution.
  • Control flexibility: included remote, optional wall thermostat, and Smart Kit connectivity for control via the C&H app.
  • Efficiency: listed performance metrics include 16.2 EER2 and system ratings up to 28.1 SEER2 (pairing dependent).
ModelCH-09MASTWM-230VI
Capacity9,000 BTU
Voltage208–230V
Sound23.5–38 dB(A)

What's Included

  • Indoor wall-mounted unit: CH-09MASTWM-230VI
  • Handheld remote control
  • Included Smart Kit (for app control), as described

Indoor Specs

Spec Details
System Type Single/Multi-zone unit
BTU Rated 9,000
Power Source 208–230V, 1Ph, 60Hz
Voltage Range 187–253 V
Dehumidification 0.80 pints/day
Efficiency EER2: 16.2 • SEER2: 28.1
Controller RG10K-exclusive remote
Refrigerant Piping (Liquid / Gas) 1/4" - 3/8"

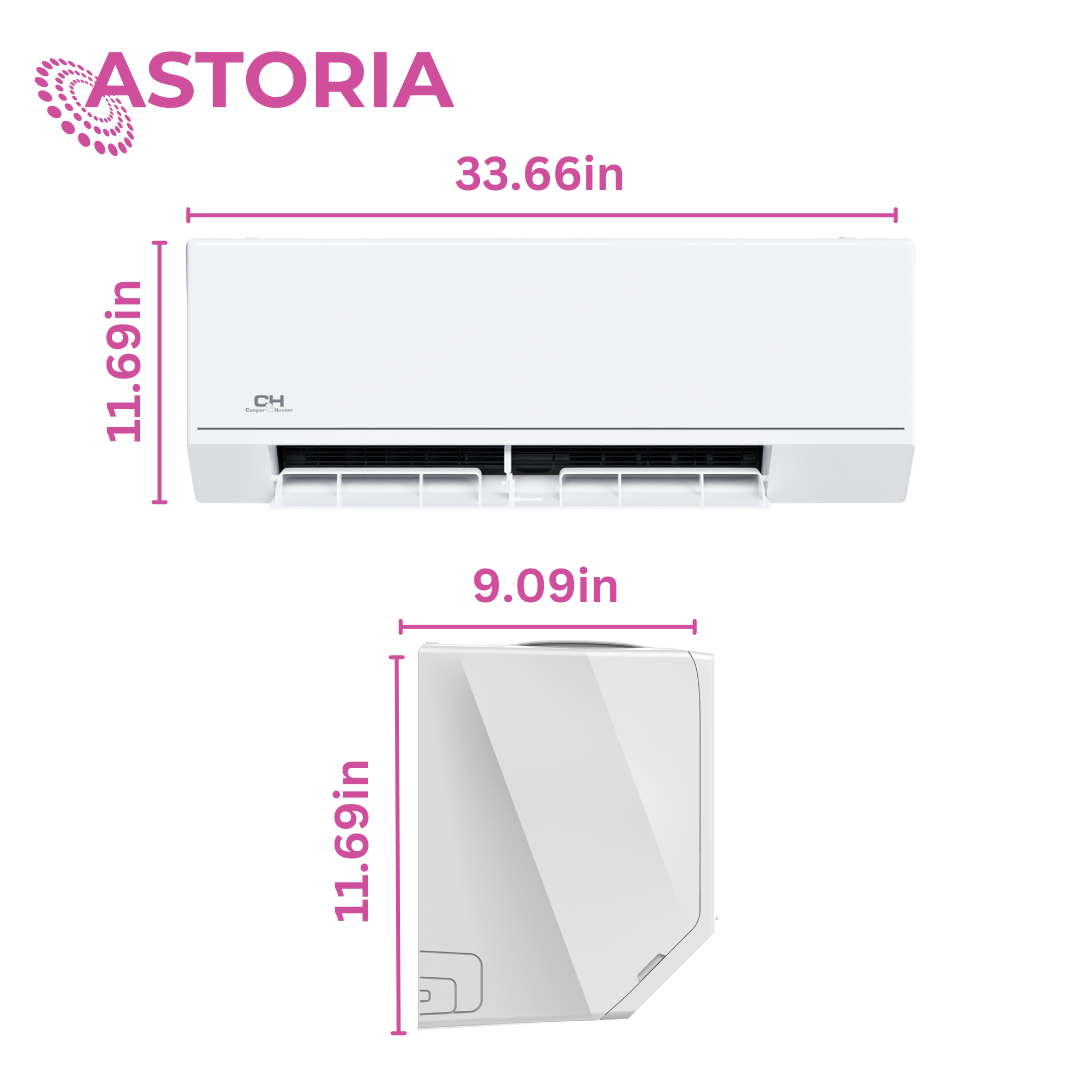

Unit Dimensions (W×H×D) 33.66 × 9.09 × 11.69 in
Packing Dimensions (W×D×H) 36.22 × 12.20 × 14.57 in
Unit Net / Gross Weight 22.71 / 28.88 lb
Operating Range (Heating) 32–86°F
Operating Range (Cooling) 60–90°F
Minimum Circuit Ampacity (MCA) 3 A
Max Fuse 15 A
Indoor Noise Level (H/M/L) 38 / 33.5 / 23.5 dB(A)
Indoor Air Flow 382.35 / 335.29 / 229.41 / 176.47
Drainage Pipe Diameter 5/8"

Documents & Downloads

Videos

Important

Professional installation is recommended. This listing is for the indoor unit only. System efficiency ratings (SEER2) depend on the outdoor unit pairing, line set length, and installation conditions. Verify compatibility and line sizes prior to ordering.

FAQs

Is this indoor unit single-zone or multi-zone?
It is designed for single-zone or multi-zone applications, depending on the outdoor unit pairing.
How is it controlled?
It supports the included RG10K remote, an optional wired thermostat, and app control via the included Smart Kit.
What line set sizes does it use?
Listed refrigerant piping sizes are 1/4" liquid and 3/8" gas.
What are the operating temperature ranges?
Cooling: 60–90°F. Heating: 32–86°F (as listed for the indoor unit).
How loud is it?
Listed indoor noise levels are 38 / 33.5 / 23.5 dB(A) (High/Medium/Low).
