Cooper&Hunter Astoria • Wall Mount Indoor Unit • R410A • 230V

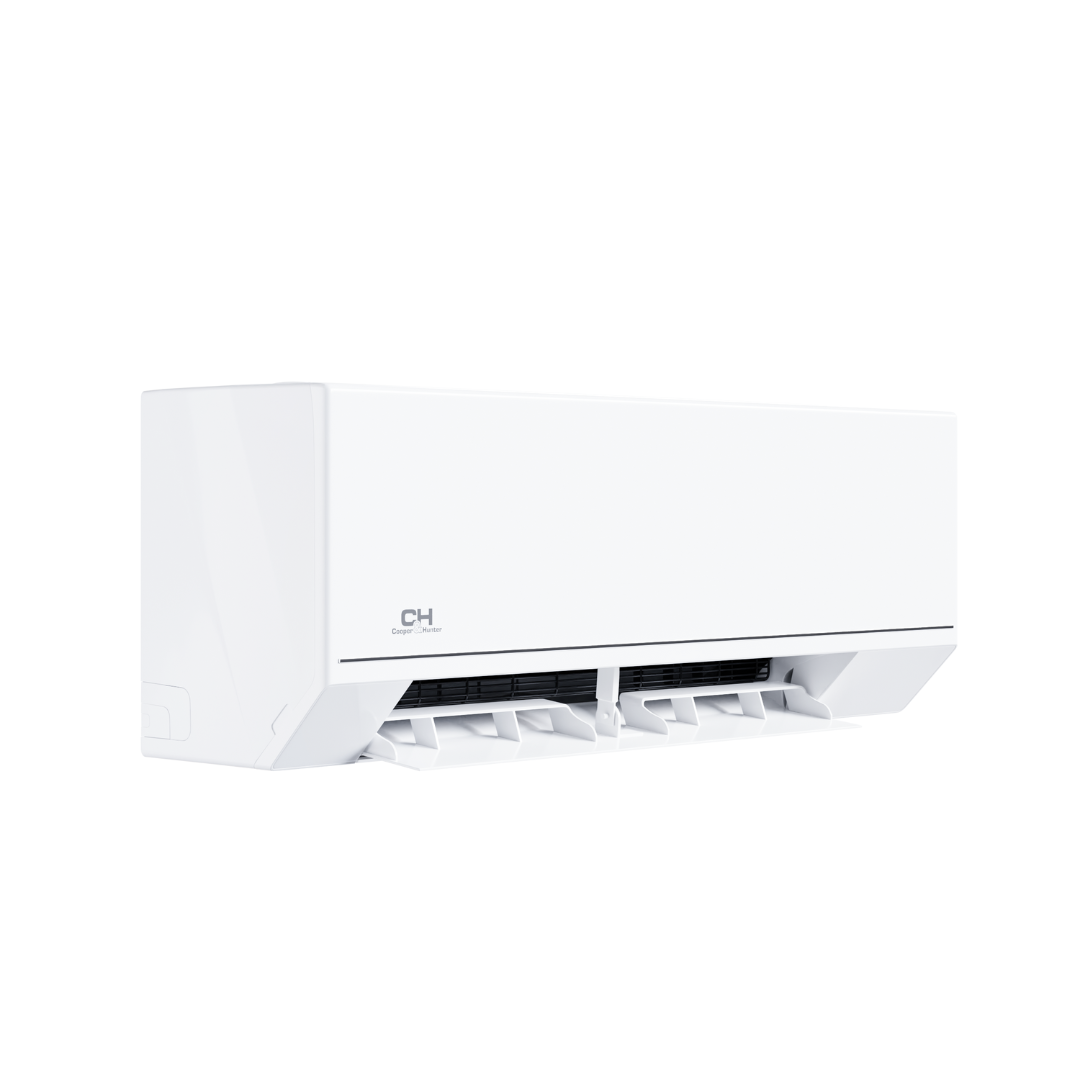

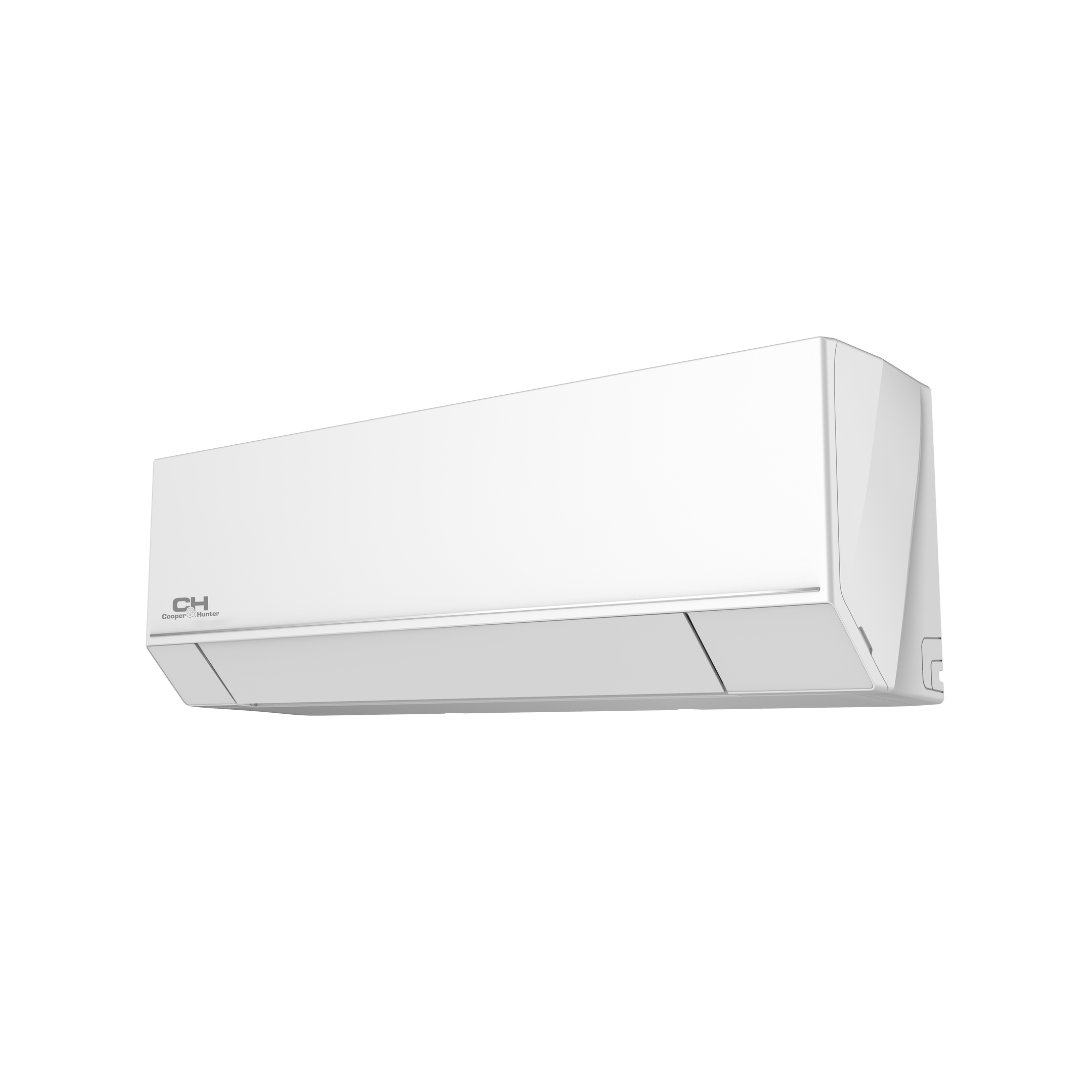

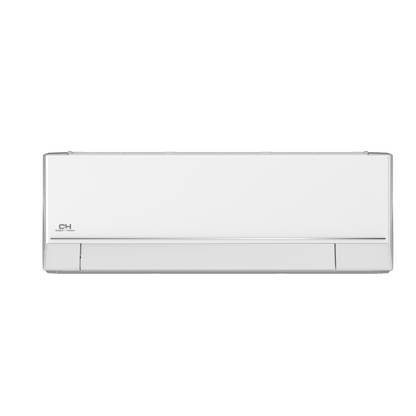

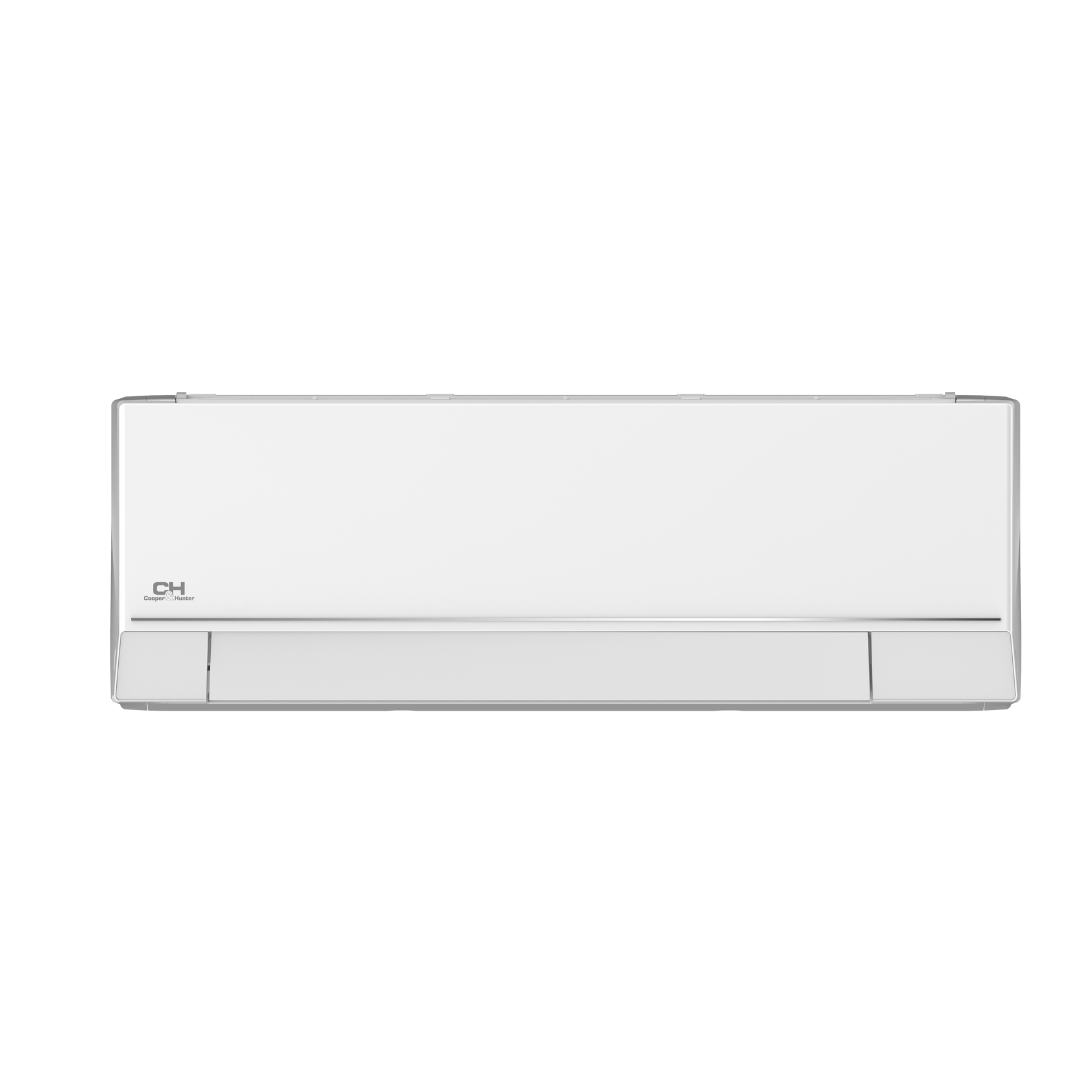

Cooper&Hunter Astoria Wall Mount Indoor Unit — 30,000 BTU • CH-30ASTWM-230VI
High-capacity wall mount designed for convenient service access, improved airflow coverage, and flexible control options.
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Overview
The Cooper&Hunter Astoria wall-mounted indoor unit is a top-tier mini split head built with serviceability in mind. This 30,000 BTU model (CH-30ASTWM-230VI) is listed as a single-zone indoor unit and features an easy-to-remove blower wheel, front E-Box/PCB access, and a front cover kickstand for faster maintenance. Comfort is enhanced with a larger inlet/outlet design and auto-swing vertical + horizontal louvers. It supports the included remote, optional wall thermostat, and Smart Kit app control capability.
Highlights
30,000 BTU Single-Zone Indoor Unit R410A SEER2 20 (System Rating) EER2 11.5 Auto-Swing Vertical + Horizontal Service-Friendly Design Optional App Control (Smart Kit)

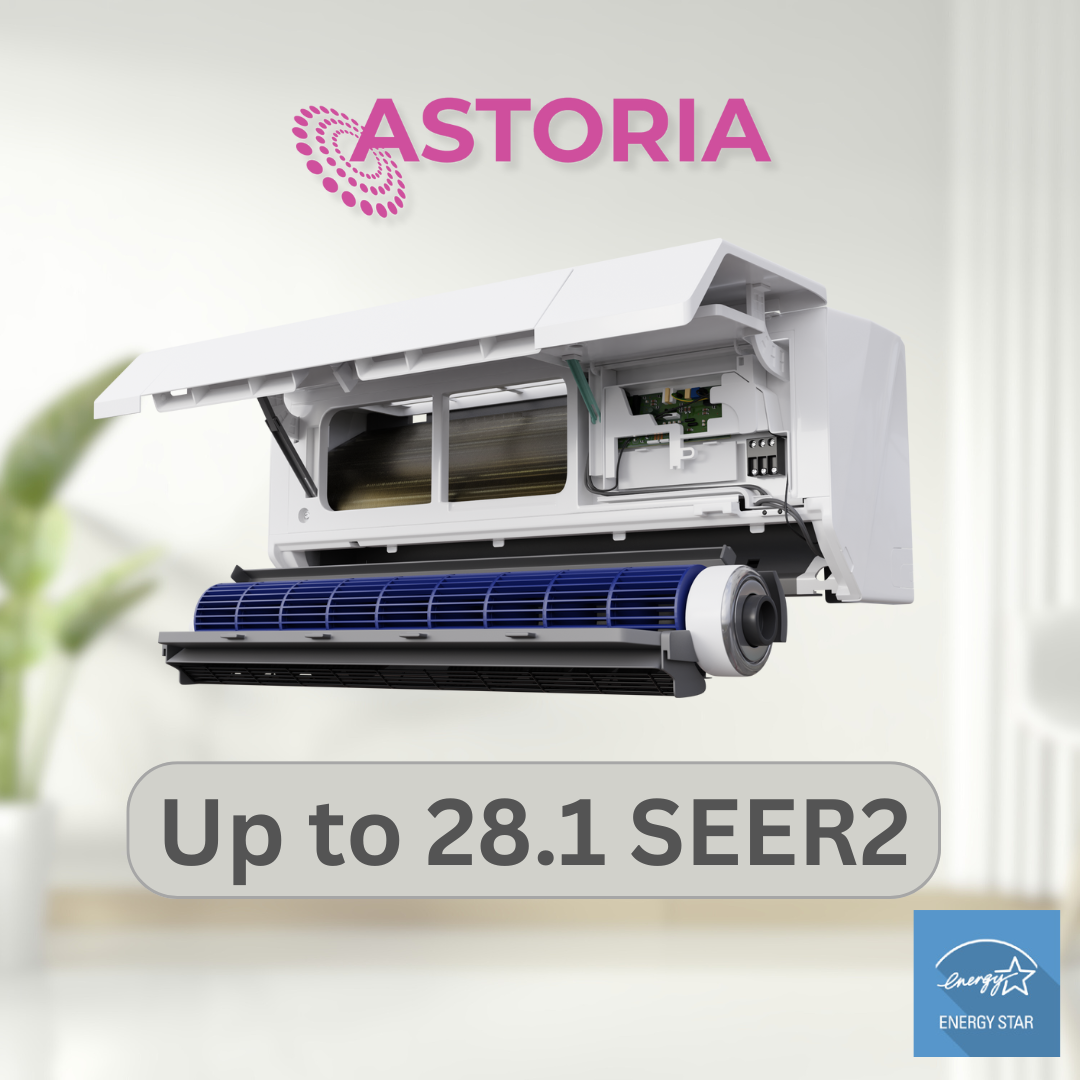

- Designed for quick service: easy access to blower wheel and electronics for maintenance.
- Improved air distribution: larger inlet/outlet and multi-direction auto-swing louvers.
- Control flexibility: RG10K remote included; optional wall thermostat and Smart Kit supported.
- Efficiency metrics: listed EER2 11.5 and system ratings up to SEER2 20 (pairing dependent).
ModelCH-30ASTWM-230VI
Capacity30,000 BTU
Voltage208–230V
Sound33–46 dB(A)
What's Included

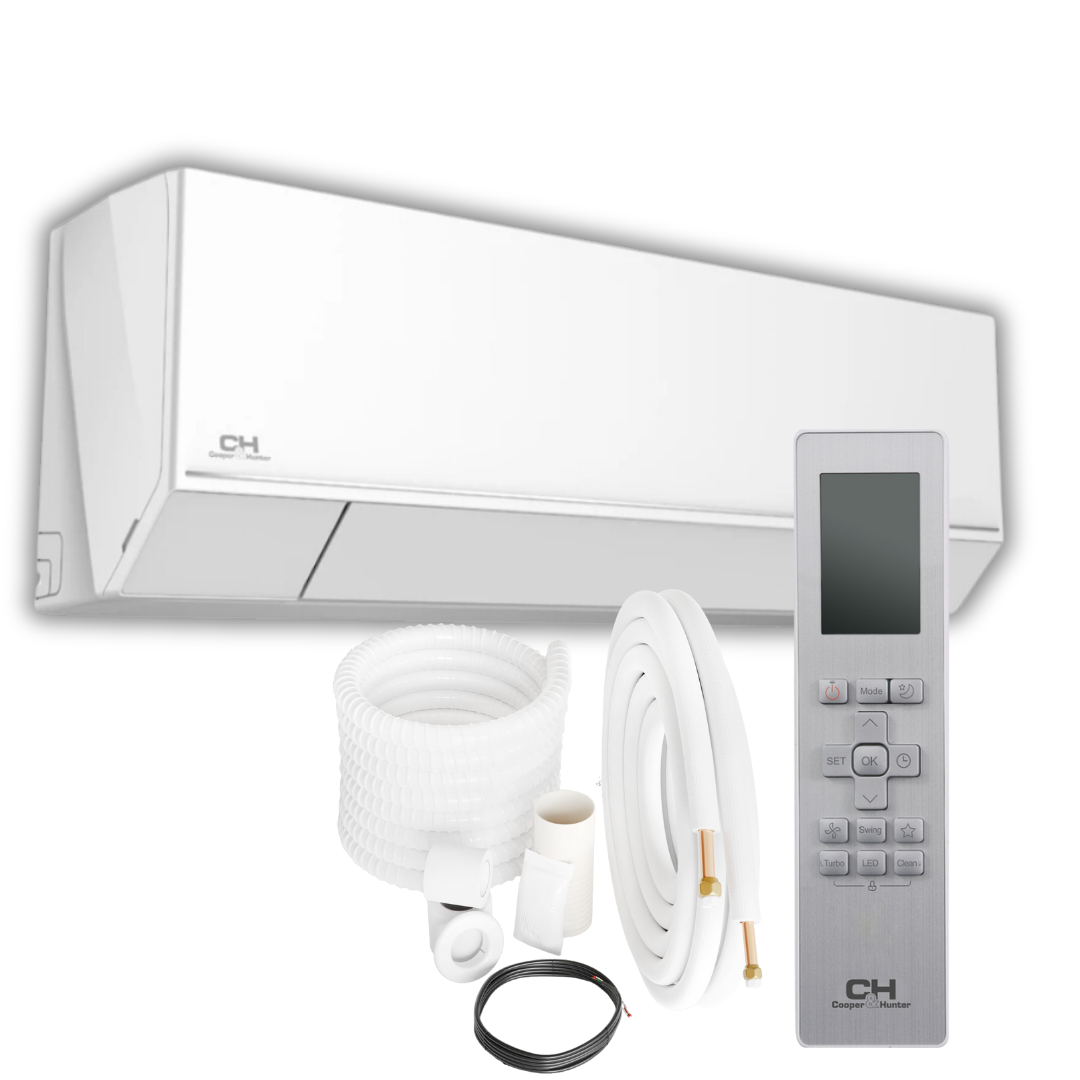

- Indoor wall-mounted unit: CH-30ASTWM-230VI

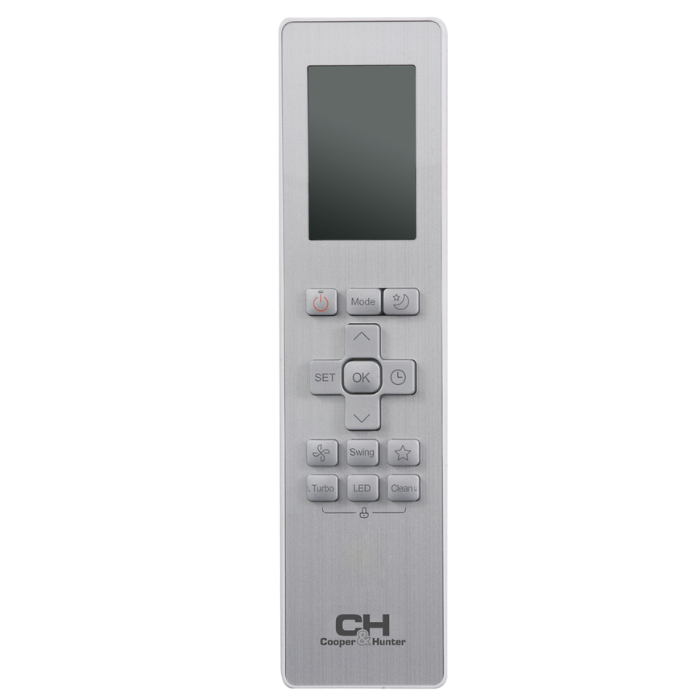

- Handheld remote control: RG10K-exclusive remote

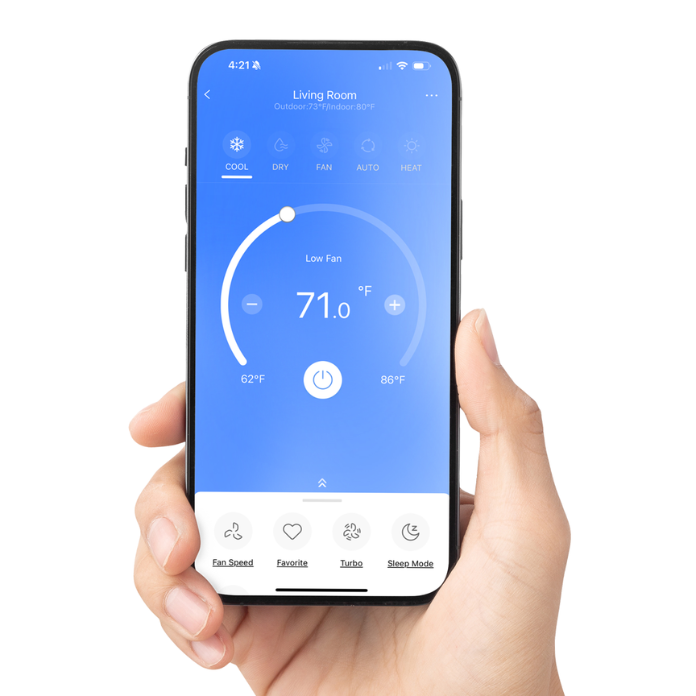

- Smart Kit support (for app control), as described
Indoor Specs
| Spec | Details |
|---|---|
| Refrigerant Type | R410A |
| System Type | Single-zone unit |
| BTU Rated | 30,000 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |
| Dehumidification | 7.65 pints/day |
| Efficiency | EER2: 11.5 • SEER2: 20 |
| Controller | RG10K-exclusive remote |
| Refrigerant Piping (Liquid / Gas) | 3/8" / 5/8" |

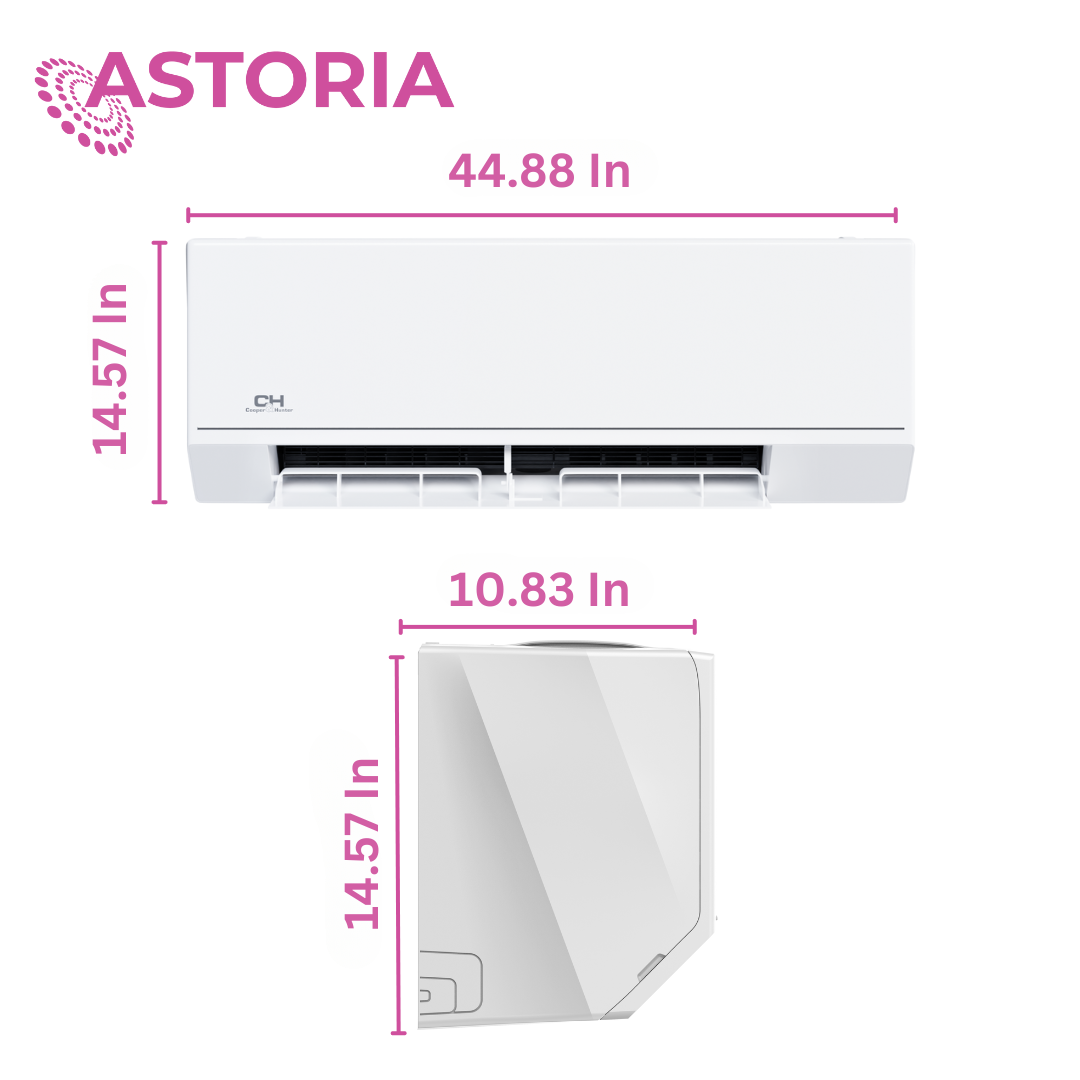

| Unit Dimensions (W×H×D) | 44.88 × 10.83 × 14.57 in |
| Packing Dimensions (W×D×H) | 48.43 × 17.91 × 13.98 in |
| Unit Net / Gross Weight | 43.65 / 54.89 lb |
| Operating Range (Heating) | 32–86°F |
| Operating Range (Cooling) | 60–90°F |
| Minimum Circuit Ampacity (MCA) | 3 A |
| Max Fuse | 15 A |
| Indoor Noise Level (H/M/L) | 46 / 40.5 / 33 dB(A) |
| Indoor Air Flow | 842.94 / 646.47 / 505.29 / 382.35 |
| Drainage Pipe Diameter | 5/8" |
Documents & Downloads
Videos
Mini-Splits
- Can You Use a Mini Split in EXTREME COLD? Heat Pump vs. Propane Cost Comparison with Thermal Camera
- Where To Mount a Mini Split Indoor Wall Hung Unit
- How To Wall Mount a Mini Split Outdoor Condenser Unit
- Are Mini Split Air Conditioners Worth It? - Top 5 Pros & Cons
- Does a Wall Mounted MINISPLIT Need a CONDENSATE TRAP?
- MINI SPLIT Parts Explained! Understand What They Do!
- Mini Split Failure from Electrical Surges, High and Low Voltage!
- Full Installation of an Inverter Minisplit Heat Pump with Indoor Ceiling Cassette
- Checking the Refrigerant Charge on a Running R-410A Inverter MINI SPLIT Unit
- Mini Split Indoor Unit Types Explained! 5 Types
- Cooper&Hunter Astoria Wall Mount 2022
Important
Professional installation is recommended. This listing is for the indoor unit only. System efficiency ratings depend on outdoor unit pairing, line set length, and installation conditions. Verify compatibility and line sizes prior to ordering.
FAQs
Is this indoor unit single-zone or multi-zone?
This model is listed as a single-zone indoor unit.
How is it controlled?
It supports the included RG10K remote, an optional wall thermostat, and app control via the Smart Kit (as described).
What line set sizes does it use?
Listed refrigerant piping sizes are 3/8" liquid and 5/8" gas.
What are the operating temperature ranges?
Cooling: 60–90°F. Heating: 32–86°F (as listed for the indoor unit).
How loud is it?
Listed indoor noise levels are 46 / 40.5 / 33 dB(A) (High/Medium/Low).
