Mini Floor Console + Regular Outdoor • 9K • R454B • 208–230V
Cooper&Hunter 9,000 BTU Single Zone Floor Console Minisplit Heat Pump System R454B 230V
Overview
This system pairs the CH-RSH09MMC Mini Floor Console indoor unit with the CH-RES09-230VO Regular single-zone outdoor unit. The indoor console supports flexible comfort delivery with strong airflow, humidity and refrigerant sensors, and smart control support. The Regular outdoor unit provides efficient inverter heating and cooling with heating ambient operation listed to -13°F.
Highlights
R454B Refrigerant Inverter Comfort Control Humidity + Refrigerant Sensors Smart Kit + Remote + Wall Thermostat High SEER2 Indoor (26) 1/4" / 3/8" Line Set
- Floor console design for versatile placement and room comfort control.
- Multiple fan speeds and strong airflow options for even temperature distribution.
- Efficient inverter outdoor operation for steady temperature control.
System Search
Line Set Size
1/4" Liquid • 3/8" Gas
Max Line Length
82 ft
Voltage
208–230V (187–253V)
Outdoor Rated BTU
9,000
Outdoor AHRI
207742317
What’s Included
- Indoor mini floor console: CH-RSH09MMC
- Outdoor condenser (Regular): CH-RES09-230VO
- Included remote control + wall thermostat support
- Built-in smart kit capability for app control (setup required)
Video title (not linked): Multi-Zone System with R454B
Indoor Specs (CH-RSH09MMC)
| Spec | Value |
|---|---|
| Refrigerant Type | R454B |
| BTU Rated | 9K |
| SEER2 / EER2 | 27.2 / 15.1 |
| Power | 208–230V • 1Ph • 60Hz (187–253V) |
| Dehumidification | 1.71 pints/day |
| Indoor Airflow | 441.4 / 376.7 / 323.7 / 188.4 |
| Noise (H/M/L) | 41 / 37.5 / 25.5 |

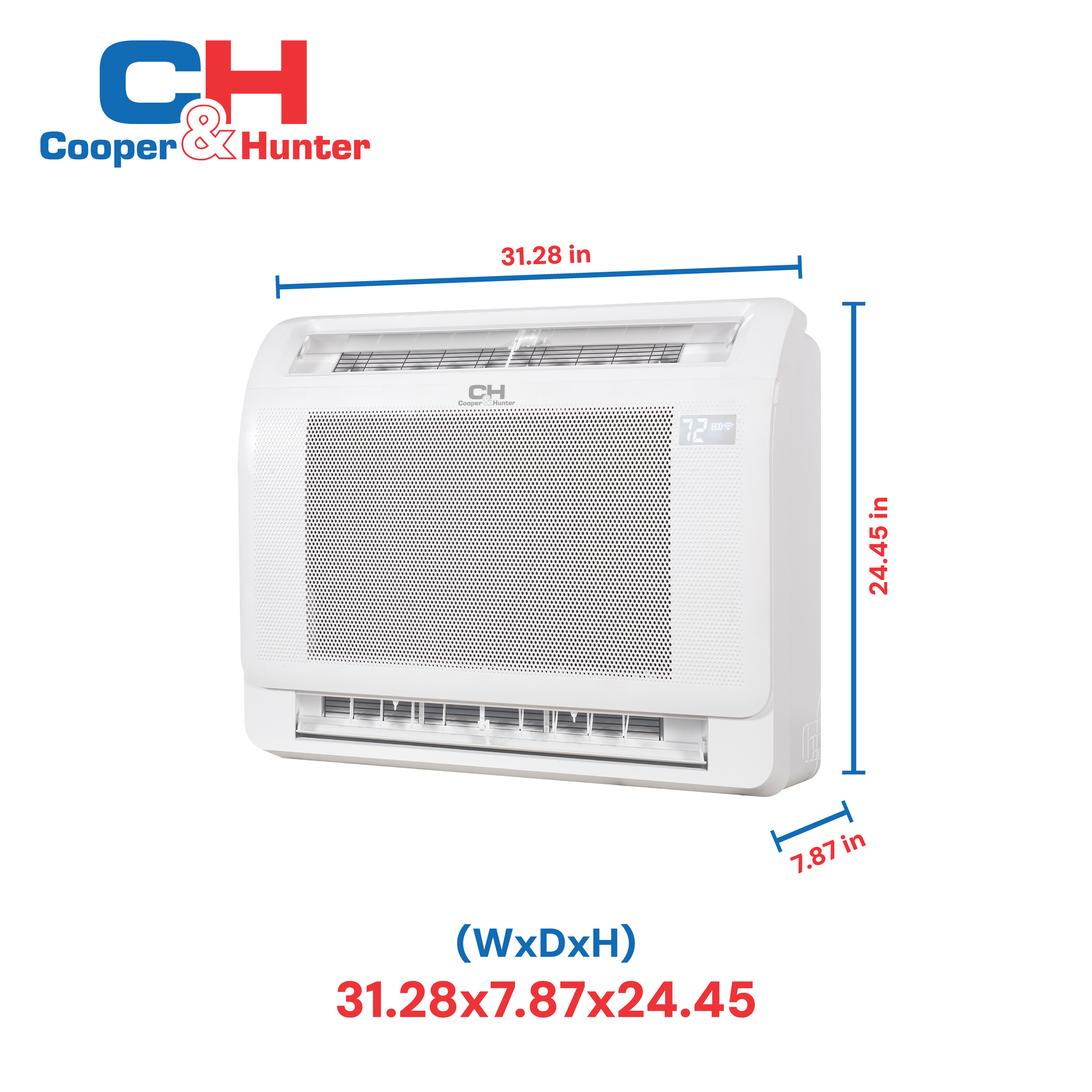

| Dimensions (W×D×H) | 31.26 × 7.87 × 24.45 in |
| Net / Gross Weight | 32.85 / 41.89 |
| Line Set | 1/4" Liquid • 3/8" Gas |
| Drain Pipe Diameter | 5/8" |
| Operating Range | Cooling: 60–90°F • Heating: 32–86°F |
| MCA / Max Fuse | 3A / 15A |
| Packing (W×D×H) | 34.06 × 11.02 × 28.31 in |
| Controller | Remote controller |
Outdoor Specs (CH-RES09-230VO)
| Spec | Value |
|---|---|
| Refrigerant Type | R454B |
| Rated BTU | 9,000 |
| SEER2 / EER2 | 19.5 / 12.8 |
| Cooling Capacity (Min/Max) | 9,000 (3,100–11,900) BTU/h |
| Heating Capacity (Min/Max) | 10,000 (3,600–14,000) BTU/h |
| HSPF2 (Region V / IV) | 8.8 / 11 |
| COP | 3.66 |
| Ambient Temperature | Cooling: -13–122°F • Heating: -13–75°F |
| Max Pipe Length / Height Difference | 82 ft / 49.2 ft |
| Outdoor Air Flow | 1,236.1 |
| Noise | 54 |

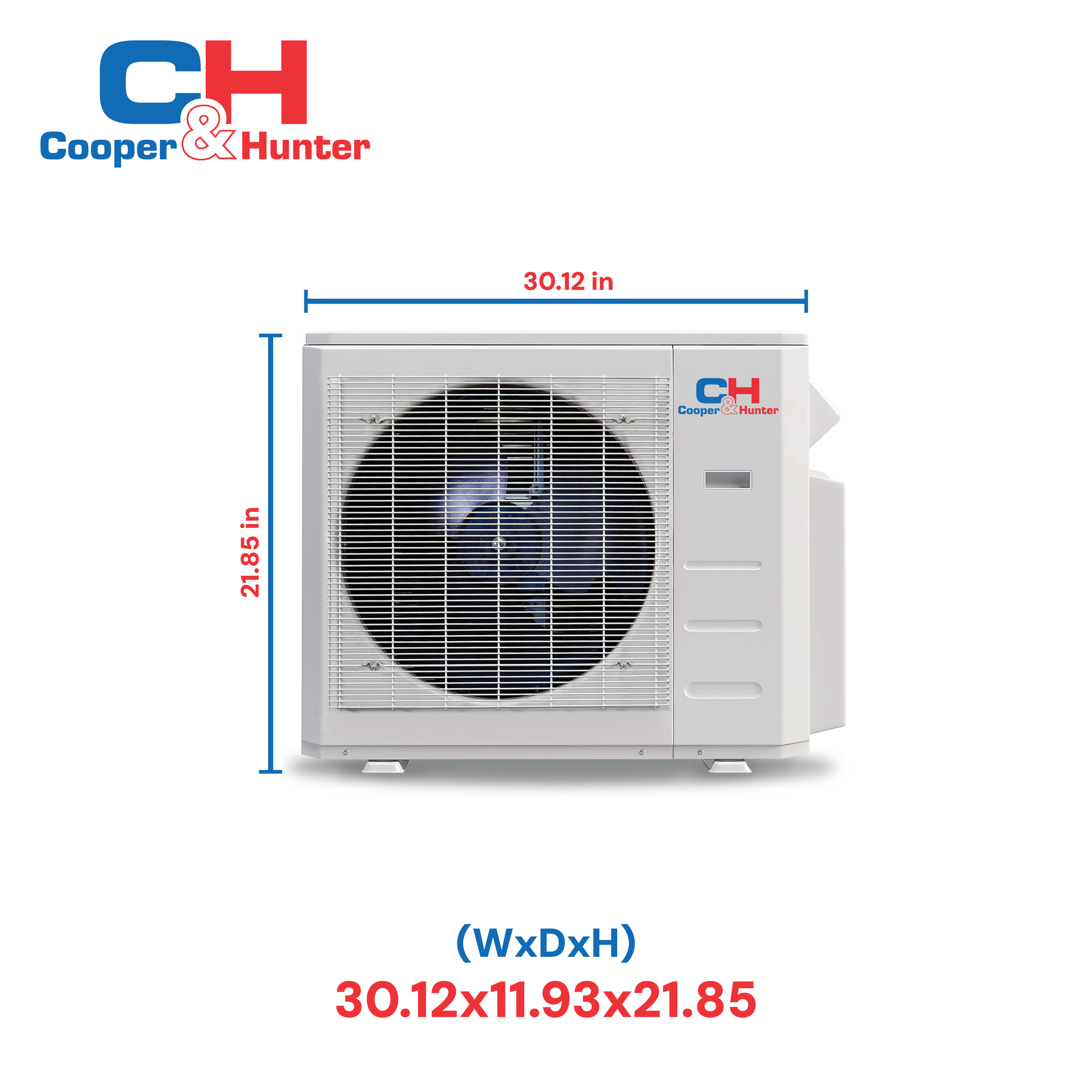

| Dimensions (W×D×H) | 30.12 × 11.93 × 21.85 in |
| Net / Gross Weight | 62.17 / 67.68 |
| MCA / Max Fuse | 12A / 15A |
| Additional Charge (1/4" liquid) | 0.16 |
| AHRI | 207742317 |
Documents & Downloads
- System Submittal (This Combination): CH-RES09-230VO + CH-RSH09MMC
- Indoor Manuals
- Owner’s Manual — CH-RSH09-16MMC (R454B)
- Installation Manual — CH-RSH09-16MMC (R454B)
- Outdoor Manuals
- Installation Manual — R454B Outdoor Units
- SlimDuct Leaflet (R454B)
- Outdoor Submittals (CH-RES09-230VO)
- CH-RES09-230VO + CH-RH09MASTWM-230VI
- CH-RES09-230VO + CH-PRO09MASTWM-230VI
- CH-RES09-230VO + CH-RS06-12MDT--MS
- CH-RES09-230VO + CH-RH09MCT
- CH-RES09-230VO + CH-RSH09MCT
Important
- Use the specified line set size: 1/4" liquid and 3/8" suction (gas).
- Confirm circuit sizing and breaker/fuse selection per MCA and local code.
- Support: hvacsupplies.com/pages/contact • (800) 543-8933
FAQs
What line set size is required?
1/4" liquid and 3/8" suction (gas).
How cold can this Regular system heat?
The outdoor unit’s heating ambient range is listed to -13°F.
What control options are supported?
Remote control, wall thermostat support, and smart kit/app capability (setup required).
