Cooper&Hunter Olivia • R454B • Single Zone
Cooper&Hunter 9,000 BTU Olivia Single Zone Wall Mount Mini Split Heat Pump System R454B 230V
SKU: CH-R09MOLVWM-230VI + CH-RES09-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview
Enhance your home's climate control with the Cooper&Hunter 9K BTU Olivia wall-mounted mini split utilizing R454B refrigerant for improved efficiency and a lower environmental impact. With up to 24.6 SEER2 performance in 230V, this single-zone system delivers modern comfort features, quiet operation, and smart control options for efficient heating and cooling.
Auto-swing horizontal louvers help reduce hot/cold spots, while inverter technology adjusts compressor output to match demand for steady comfort and energy savings. Controls include a Smart Kit for C&H app control, an included remote, and optional wall thermostat compatibility (sold separately).
Highlights
9,000 BTU class R454B refrigerant Up to 24.6 SEER2 208–230V, 1Ph, 60Hz Smart Kit (App control) Auto-swing (horizontal louvers) TU1 copper tubes
- Genius Core low-speed operation: ultra-low compressor speed (12Hz) for quiet, efficient comfort.
- 46°F freeze protection: added protection for cold conditions.
- High-Frequency Racer Technology: rapid ramp to maximum speed on startup for quick comfort.
- Electronic expansion valve: optimizes refrigerant flow management.
- Intelligent dusting switch: reverses the fan to help clear dust, sand, and debris from the coil.
- Comfort automation: Follow Me, Timer On/Off, Sleep Mode, and Turbo Mode.
IndoorCH-R09MOLVWM-230VI
OutdoorCH-RES09-230VO
Lines1/4" liquid · 3/8" gas
Max run82 ft
What’s Included
- Indoor unit: CH-R09MOLVWM-230VI
- Outdoor unit: CH-RES09-230VO
- Remote control
- Smart Kit (app connectivity)
- Manufacturer documentation (see Downloads)
Indoor Specs
| Spec | Details |
|---|---|
| Indoor Model | CH-R09MOLVWM-230VI |
| Power Supply (Rated) | 208/230 V, 1 Ø, 60 Hz |
| Rated Capacity | 9,000 Btu/h |
| Minimum Circuit Ampacity (MCA) | 3 |
| Max. fuse (A) | 15 |
| Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) | 382.6 / 294.3 / 194.2 / 153.0 / N/A |
| Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) | N/A / 39.5 / 33 / 24 / 20.5 |
| Dimension (W×D×H) (in) | 31.57 × 7.87 × 11.61 |
| Packing (W×D×H) (in) | 31.57 × 7.87 × 11.61 |
| Net/Gross Weight (lb) | 18.96 / 24.25 |
| Room Temperature (Cooling) (°F) | 60–90 |
| Room Temperature (Heating) (°F) | 32–86 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4" / 3/8" |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-RES09-230VO |
| System type | Single-zone unit |
| Refrigerant type | R454B |
| BTU Rated | 9,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Voltage range (V) | 187-253 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4" / 3/8" |
| Max. pipe length (ft) | 82 |
| Max height difference between Indoor and Outdoor unit | 49.2 |
| Cooling capacity (Min/Max) (BTU/h) | 9,000 (3,100~11,900) |
| Heating capacity (Min/Max) (Btu/h) | 10,000 (3,600~14,000) |
| SEER2 | 19.5 |
| EER2 | 12.8 |
| HSPF2-5 | 8.8 |
| HSPF2-4 | 11 |
| COP | 3.66 |
| Dehumidification value (pnt/day) | 1.44 |
| Outdoor Noise Level | 54 |
| Outdoor Air Flow | 1,236.1 |
| Minimum circuit ampacity | 12 |
| Max.fuse | 15 |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | -13 ~ 122 |

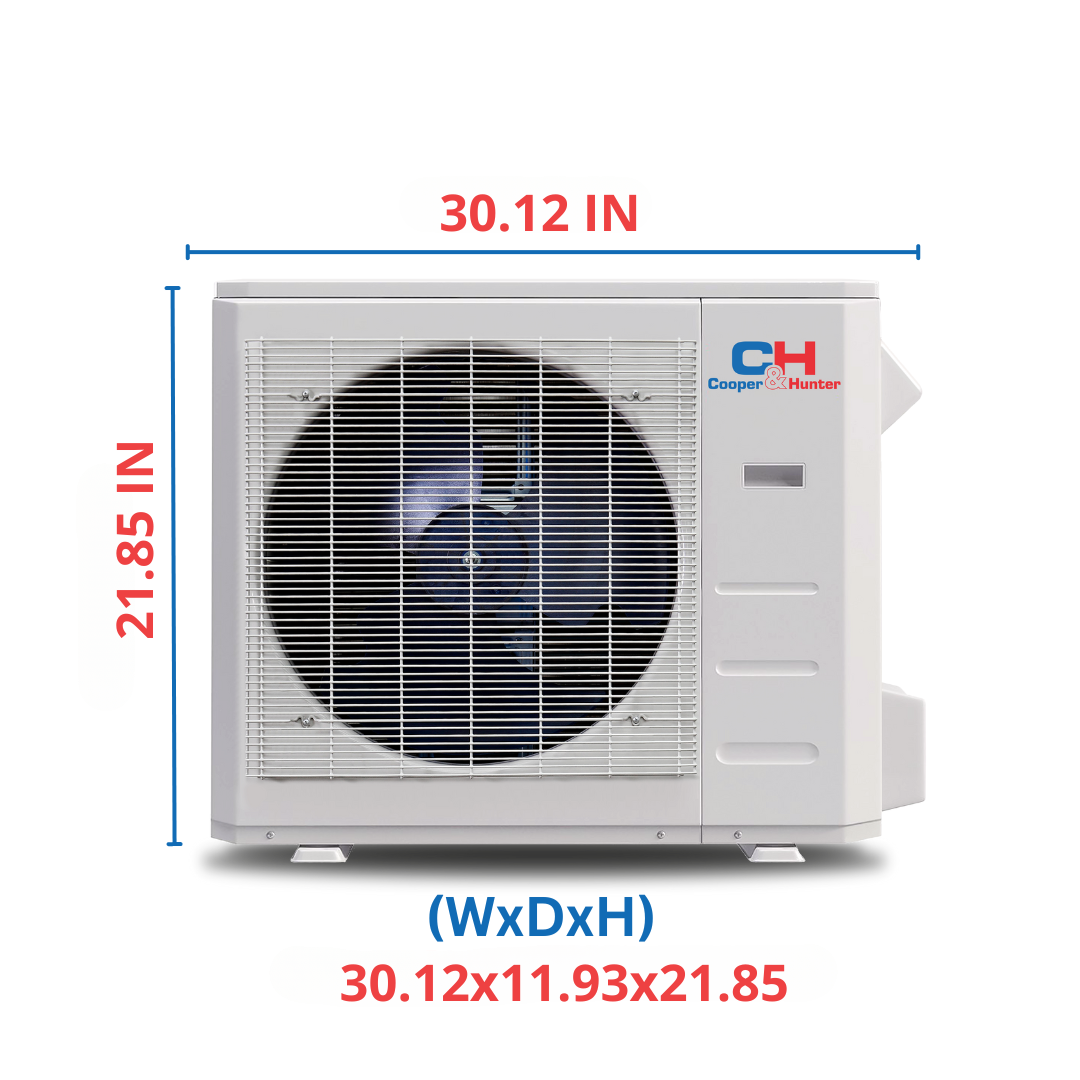

| Unit dimensions (W*H*D) | 30.12 x 11.93 x 21.85 |
| Unit Net/Gross weight | 62.17/67.68 |
| Packing dimensions (WxDxH) | 34.92 x 13.27 x 24.02 |
| Refrigerant precharge | 25 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Documents & Downloads
- Submittal (PDF): CH-R09MOLVWM-230VI (Link 1)
- Submittal (PDF): CH-R09MOLVWM-230VI (Link 2)
- Submittal (PDF): CH-RES09-230VO + CH-RH09MASTWM-230VI
- Submittal (PDF): CH-RES09-230VO + CH-PRO09MASTWM-230VI
- Submittal (PDF): CH-RES09-230VO + CH-RS06-12MDT--MS
- Submittal (PDF): CH-RES09-230VO + CH-RH09MCT
- Submittal (PDF): CH-RES09-230VO + CH-RSH09MCT
- Installation Manual (PDF): R454B Outdoor Units
- Leaflet (PDF): SlimDuct — R454B
- Manufacturer Page: CH-RES09-230VO
- AHRI Directory Listing: 207742317
Important
Professional installation is recommended. Confirm electrical requirements, line sizes, maximum line length, and ambient operating limits before installation.
FAQs
Is this a Hyper Heat system?
No—this is the Regular (non-Hyper) outdoor unit.
What line sizes does this system use?
1/4" liquid and 3/8" gas.
What is the maximum line set length?
Up to 82 ft (maximum pipe length).
Does it include smart control?
Yes—Smart Kit is included for C&H app control, and a remote is included.
What is the rated outdoor operating range?
Heating: -13°F to 75°F. Cooling: -13°F to 122°F.
