Cooper&Hunter Olivia Midnight • Black • R454B • 230V
Cooper&Hunter 9,000 BTU Olivia Midnight Single Zone Wall Mount Mini Split Heat Pump System R454B 230V
SKU: CH-RB09MOLVWM-230VI + CH-RES09-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS
CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview
Transform your home’s climate control with the Cooper&Hunter 9K BTU Olivia Midnight wall-mounted mini split system, featuring the new R454B refrigerant and an elegant black indoor unit for a modern, premium look. Designed for 208–230V installations, Olivia Midnight combines advanced comfort features with efficient performance (up to 26.4 SEER2 per provided indoor data).
Comfort and convenience features include Auto-Swing horizontal louvers for improved air circulation, Turbo Mode for rapid heating/cooling, Follow Me sensing from the remote, Timer On/Off and Sleep Mode, plus 46° Freeze Protection. Advanced technology includes 12Hz ultra-low compressor speed for quiet efficiency, High-Frequency Racer Technology for fast startup response, an electronic expansion valve for optimized refrigerant flow management, and an intelligent dusting switch that reverses the fan to help clear dust, sand, and debris from the coil. Built with TU1 copper tubes for durability and efficient heat transfer.
The Regular single-zone outdoor unit uses advanced inverter control to precisely match heating/cooling demand while helping reduce energy use.
Highlights
9,000 BTU class
Olivia Midnight (Black indoor)
R454B refrigerant
SEER2 26.4 (Indoor data)
EER2 15.8 (Indoor data)
Inverter-driven performance
Smart Kit included
Auto-swing (horizontal louvers)
208–230V, 1Ph, 60Hz
Single / Multi-zone capable indoor
- Even air distribution: Auto-Swing louvers help reduce hot/cold spots.
- Fast comfort: Turbo Mode and rapid startup response for quick temperature changes.
- Personalized control: Follow Me adjusts temperature based on remote sensor location.
- Smart control ready: Smart Kit enables app connectivity and remote control.
- Control options: Remote included; wall thermostat optional (sold separately).
IndoorCH-RB09MOLVWM-230VI
OutdoorCH-RES09-230VO
Lines1/4" liquid · 3/8" gas
Max run82 ft
What’s Included
- Indoor unit: CH-RB09MOLVWM-230VI (Olivia Midnight Black)
- Outdoor unit: CH-RES09-230VO (Regular)
- Remote control (included)

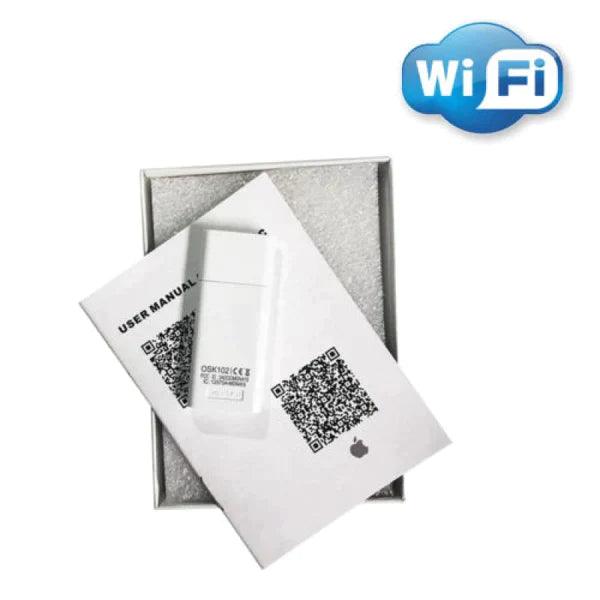

- Smart Kit for app control
- Manufacturer documentation (see Documents & Downloads)
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-RB09MOLVWM-230VI |
| Rated V-Ph-Hz | 208/230, 1, 60 |
| Rated capacity | 9,000 BTU/h |
| SEER2 | 26.4 |
| EER2 | 15.8 |
| Minimum circuit ampacity | 3 |
| Max fuse | 15 |
| Refrigerant piping (liq/gas) | 1/4" / 3/8" |
| Indoor air flow | 341.18 / 291.18 / 194.12 / 152.94 |
| Indoor noise level (H/M/L) | 40 / 34 / 23.5 |
| Indoor noise level (Turbo/Hi/Mi/Lo/Si) | 45.5 / 42 / 36 / 21 / 19.5 |
| Unit dimensions (W×D×H) | 31.57 × 7.87 × 11.61 |
| Packing dimensions (W×D×H) | 34.45 × 11.22 × 14.96 |
| Net / Gross weight | 18.96 / 24.25 |
| Operating range (Cooling) | 60–90 |
| Operating range (Heating) | 32–86 |
| Drainage water pipe diameter | 5/8" |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-RES09-230VO |
| System type | Single-zone unit |
| Refrigerant type | R454B |
| BTU rated | 9,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Refrigerant piping (liq/gas) | 1/4" / 3/8" |
| Max pipe length | 82 ft |
| Max height difference (IDU↔ODU) | 49.2 |
| Cooling capacity (Min/Max) | 9,000 (3,100~11,900) |
| Heating capacity (Min/Max) | 10,000 (3,600~14,000) |
| SEER2 | 19.5 |
| EER2 | 12.8 |
| HSPF2-5 | 8.8 |
| HSPF2-4 | 11 |
| COP | 3.66 |
| Dehumidification | 1.44 pnt/day |
| Outdoor noise level | 54 |
| Outdoor air flow | 1,236.1 |
| Minimum circuit ampacity | 12 |
| Max fuse | 15 |
| Ambient temp (Heating) | −13~75 |
| Ambient temp (Cooling) | −13~122 |
| Unit dimensions (W×H×D) | 30.12 × 11.93 × 21.85 |
| Net / Gross weight | 62.17 / 67.68 |
| Packing dimensions (W×D×H) | 34.92 × 13.27 × 24.02 |
| Refrigerant precharge | 25 |
| Additional charge (1/4" liquid) | 0.16 |
Documents & Downloads
- Submittal (PDF) — CH-RES09-230VO + CH-RB09MOLVWM-230VI
- Submittal (PDF) — CH-RHP09-230VO + CH-RB09MOLVWM-230VI
- Submittal (PDF) — CH-RB09MOLVWM-230VI
- Submittal (PDF) — CH-RES09-230VO + CH-RH09MASTWM-230VI
- Submittal (PDF) — CH-RES09-230VO + CH-PRO09MASTWM-230VI
- Submittal (PDF) — CH-RES09-230VO + CH-RS06-12MDT-MS
- Submittal (PDF) — CH-RES09-230VO + CH-RH09MCT
- Submittal (PDF) — CH-RES09-230VO + CH-RSH09MCT
- Installation Manual (PDF) — R454B Outdoor Units
