Cooper&Hunter Olivia Midnight • R410A • Inverter • 115V

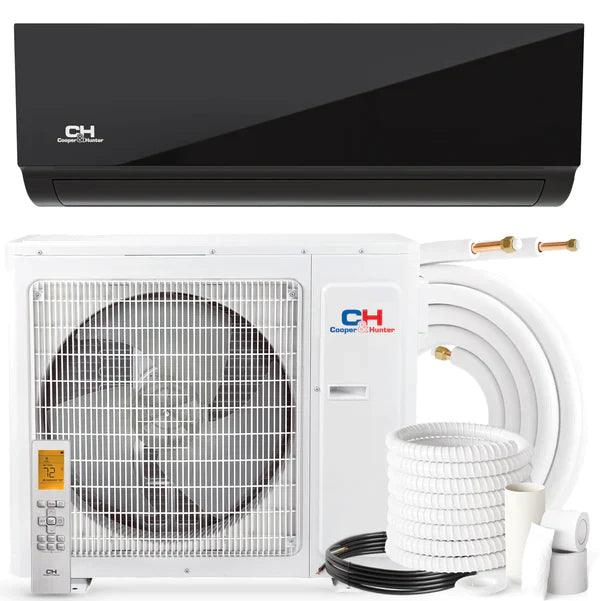

Cooper&Hunter 9,000 BTU Olivia Midnight Single Zone Wall Mount Minisplit Heat Pump System R410A 115V
SKU: CH-B09MOLVWM-230VI + CH-ES09-115VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview
The Cooper&Hunter 9,000 BTU Olivia Midnight system is a single-zone ductless mini split heat pump that combines modern black panel styling with inverter-driven comfort. Auto-swing horizontal louvers help maintain even airflow throughout the room for consistent comfort.
Comfort features include Follow Me temperature sensing via the remote, Sleep and Timer modes, and 46° Freeze Protection. Control is handled by the included C&H remote, with optional smart control supported when used with an optional Smart Kit and the C&H Remote app. Genius Core Technology supports ultra-low compressor operation (12Hz) for added energy savings.
Highlights
9,000 BTU class Single Zone system Black indoor panel R410A refrigerant Outdoor power: 115V SEER2: 23.0 EER2: 13.8 HSPF2-5: 7.6 Heating down to −13°F Follow Me / Sleep / Timer 46° Freeze Protection AHRI Ref: 210799640
- Style-forward indoor unit: sleek Olivia Midnight black front panel.
- 115V condenser: outdoor unit operates on 115V, 1Ph, 60Hz.
- Efficient performance: rated 23.0 SEER2 with inverter-driven output.
- Cold weather operation: outdoor heating ambient range down to −13°F.
- Comfort control: Follow Me mode uses the remote sensor to help maintain comfort at your location.
IndoorCH-B09MOLVWM-230VI
OutdoorCH-ES09-115VO
Lines1/4" liquid · 3/8"–1/2" gas (verify)
Max run82.02 ft
What’s Included
- Indoor unit: CH-B09MOLVWM-230VI (Olivia Midnight wall mount)
- Outdoor unit: CH-ES09-115VO (Single-Zone)
- Remote control (included)
- Manufacturer documentation (see Documents & Downloads)
- Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-B09MOLVWM-230VI |
| System type | Single Zone (as configured) |
| BTU rated | 9,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| SEER2 | 26.4 |
| EER2 | 15.8 |
| Refrigerant piping (liq/gas) | 1/4" / 3/8" |
| Minimum circuit ampacity | 3 |
| Max fuse | 15 |
| Indoor noise level (H/M/L) | 40 / 35 / 23.5 dB(A) |
| Indoor air flow | 341.18 / 291.18 / 194.12 / 152.94 CFM |
| Dehumidification | 0.85 pnt/day |
| Unit dimensions (W×H×D) | 31.57 × 7.87 × 11.61 in |
| Net / Gross weight | 18.96 / 24.25 lb |
| Packing dimensions (W×D×H) | 34.45 × 11.22 × 14.96 in |
| Drain pipe diameter | 5/8" |
| Operating range (Cooling) | 60–90°F |
| Operating range (Heating) | 32–86°F |
| Controller | RG10K-exclusive remote |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-ES09-115VO |
| System type | Single Zone |
| Refrigerant type | R410A |
| BTU rated | 9,000 |
| Power source | 115V, 1Ph, 60Hz |
| Voltage range | 103.5–126.5 V |
| Refrigerant piping (liq/gas) | 1/4" / 1/2" |
| Max pipe length | 82.02 ft |
| Max height difference (IDU↔ODU) | 32.81 ft |
| Cooling capacity (Min/Max) | 9,000 (3,930–13,200) BTU/h |
| Heating capacity (Min/Max) | 10,000 (5,000–12,600) BTU/h |
| SEER2 | 23.0 |
| EER2 | 13.8 |
| HSPF2-5 | 7.6 |
| HSPF2-4 | 9.8 |
| COP | 3.91 |
| Dehumidification | 1.71 pnt/day |
| Outdoor noise level | 54 dB(A) |
| Outdoor air flow | 794.12 CFM |
| Minimum circuit ampacity | 19 |
| Max fuse | 25 |
| Ambient temp (Heating) | −13–75°F |
| Ambient temp (Cooling) | −13–122°F |
| Unit dimensions (W×H×D) | 30.12 × 11.93 × 21.85 in |
| Net / Gross weight | 66.80 / 72.31 lb |
| Packing dimensions (W×D×H) | 34.92 × 13.27 × 24.02 in |
| Refrigerant precharge | 25 |
| Additional charge (1/4" liquid) | 0.16 |
Documents & Downloads
- Indoor Submittal (PDF) — CH-B09MOLVWM-230VI
- Submittal (PDF) — CH-ES09-115VO + CH-09OLVWM-115VI
- Submittal (PDF) — CH-ES09-115VO + CH-B09OLVWM-115VI
- Wall Mounted Installation Manual (PDF)
- Olivia Midnight Installation Manual (PDF)
- Olivia Midnight Owner’s Manual (PDF)
- Product Leaflet (PDF) — Olivia Midnight
- Accessories Leaflet (PDF) — 2023
- Remote Manual Content (PDF)
- Combination Reference (PDF) — Regular
- Combination Reference (PDF) — HYPER
- AHRI Directory Listing — AHRI #210799640
Videos
Featured video
Mini-split installation videos
- How to Install Mini Split Cooper&Hunter
- Cooper&Hunter Outdoor Wall Mounting Bracket
- Full Installation of Mini Split Ductless Unit, Step by Step!
How To & Instructional Videos
- Top Tips from Cooper&Hunter Mini Split User Manual
- Mini Split WiFi Set Up (Cooper&Hunter)
- Cooper&Hunter New Remote Control (2022)
Products overview
- Multi-Zone Mini-Split System vs Central A/C in Home (2019) Cooper&Hunter
- Cooper&Hunter Products at AHR Expo 2020 with Robot Millennia
- HVAC Installation Kit: 99.9% Copper Line Sets (Cooper&Hunter)
- Mini Split Indoor Unit Types Explained
Mini-Splits
- Can You Use a Mini Split in EXTREME COLD? Heat Pump vs. Propane Cost Comparison with Thermal Camera
- Where To Mount a Mini Split Indoor Wall Hung Unit
- How To Wall Mount a Mini Split Outdoor Condenser Unit
- Are Mini Split Air Conditioners Worth It? - Top 5 Pros & Cons
- Does a Wall Mounted MINISPLIT Need a CONDENSATE TRAP? Ductless vs Ducted Air Handlers!
- MINI SPLIT Parts Explained! Understand What They Do!
- Mini Split Failure from Electrical Surges, High and Low Voltage! HOW TO SOLVE IT!
- Full Installation of an Inverter Minisplit Heat Pump with Indoor Ceiling Cassette
- Checking the Refrigerant Charge on a Running R-410A Inverter MINI SPLIT Unit
- Mini Split Indoor Unit Types Explained! 5 Types- Applications, Connection Points, Mounting!
Important
Professional installation is recommended. Confirm electrical requirements, line sizes, maximum line length, and ambient operating limits before installation. Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
Verification note: As provided, the indoor model number (CH-B09MOLVWM-230VI) lists 208–230V power and 3/8" gas piping, while the outdoor unit (CH-ES09-115VO) is 115V and lists 1/2" gas piping. Verify that the indoor/outdoor models and electrical/piping requirements match your intended configuration before ordering or installing.
FAQs
Is this a single-zone system?
Yes—this bundle is configured as a single-zone system: CH-B09MOLVWM-230VI + CH-ES09-115VO.
What power does the outdoor condenser use?
The CH-ES09-115VO condenser is rated for 115V, 1Ph, 60Hz.
What line sizes does this system use?
The provided specs show 1/4" liquid and a gas line listed as 3/8" (indoor) vs 1/2" (outdoor). Verify the correct matched combination before installation.
What is the max line length and height difference?
Maximum line length is 82.02 ft and maximum height difference is 32.81 ft.
How cold can this system operate in heating?
The outdoor unit supports heating operation in ambient temperatures down to −13°F.
Are installation kits included?
No. Installation kits are only included if selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
