Cooper&Hunter CH-PTI-09HP Inverter PTAC Heat Pump with WiFi and Fresh-Air Ventilation
A high-efficiency packaged terminal air conditioner designed to provide cooling, heat-pump heating, electric resistance heating, humidity control, smart connectivity, and fresh-air ventilation from one compact through-the-wall unit.
4,000–11,000 BTU Variable cooling capacity
13.5 EER2 Cooling efficiency
31 dB(A) Minimum indoor sound level
R32 Refrigerant
Complete room comfort in one cabinet
Inverter PTAC performance for hotels, apartments, offices, and individual rooms
The Cooper&Hunter CH-PTI-09HP is an inverter-driven packaged terminal air conditioner that combines cooling, heat-pump heating, supplemental electric heating, ventilation, and humidity management in a compact through-the-wall configuration.
Unlike conventional fixed-speed PTAC equipment, inverter technology can modulate system output as room conditions change. This helps maintain more consistent temperatures while reducing the abrupt operating cycles commonly associated with traditional packaged terminal units.
Built-in WiFi technology provides smart-control capability, while the integrated fresh-air system introduces up to 60 CFM of outdoor air. The unit is also designed to control indoor relative humidity between approximately 40% and 60%.
Inverter compressor Cooling and heating Built-in WiFi R32 refrigerant Fresh-air ventilation Humidity control 208/230V 20A circuit
Advanced packaged-terminal technology
Smarter and quieter comfort for individual rooms
Designed to combine variable-capacity operation with ventilation, moisture management, and connected control.

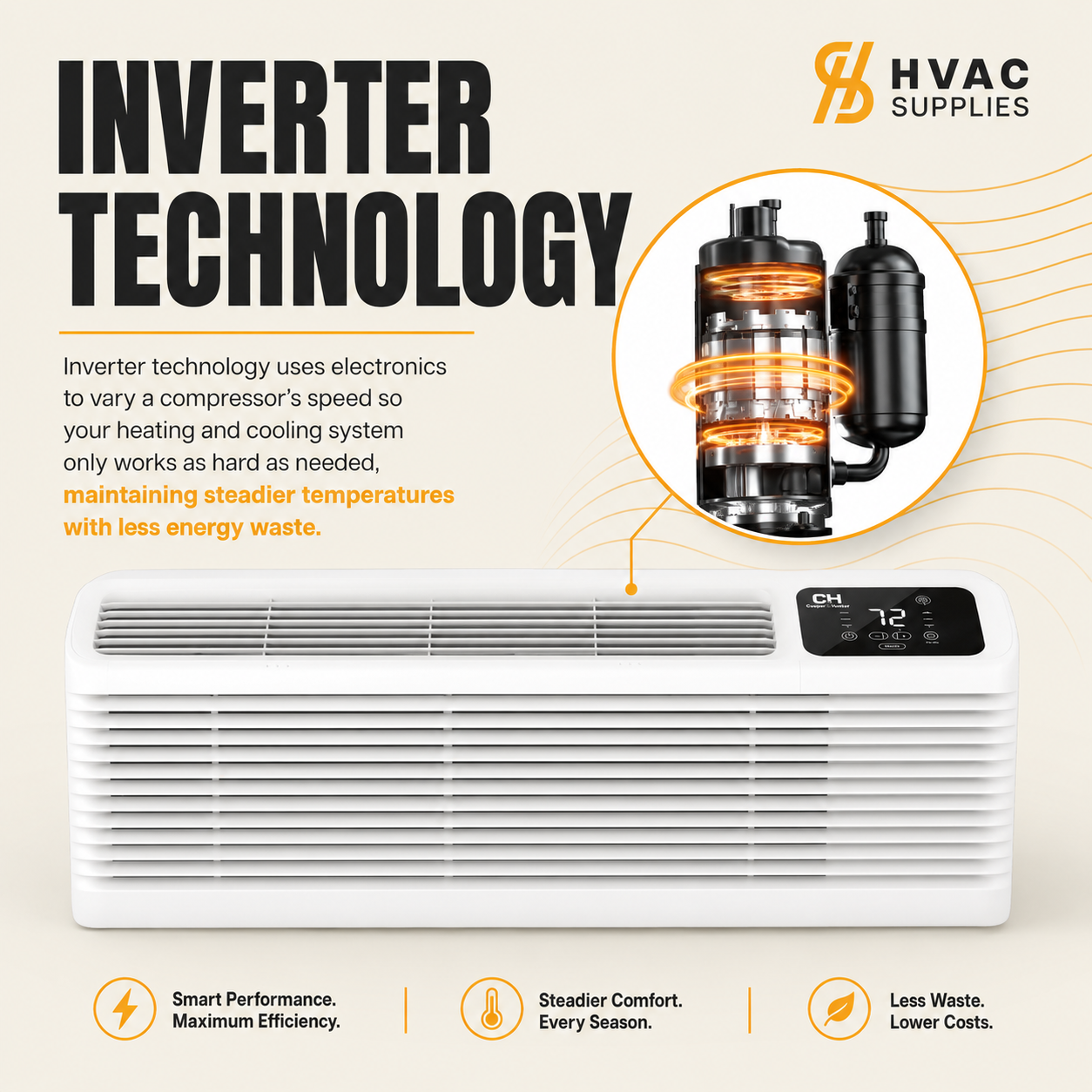

Variable-speed inverter operation
Inverter technology adjusts compressor output according to the room's heating or cooling demand instead of operating only at full capacity. This supports steadier comfort, improved part-load performance, and smoother operation.
Built-in smart connectivity
Integrated Smart Kit technology provides WiFi capability without requiring a separate external smart module. Compatible smart-control functionality may depend on the application, network configuration, and supported mobile platform.
Fresh-air ventilation system
The integrated fresh-air system can introduce up to 60 CFM of outside air, helping reduce reliance on separate ventilation equipment in supported applications.
Active humidity management
The unit is designed to maintain indoor relative humidity within an approximate 40% to 60% range, supporting greater occupant comfort in humid climates and moisture-sensitive environments.

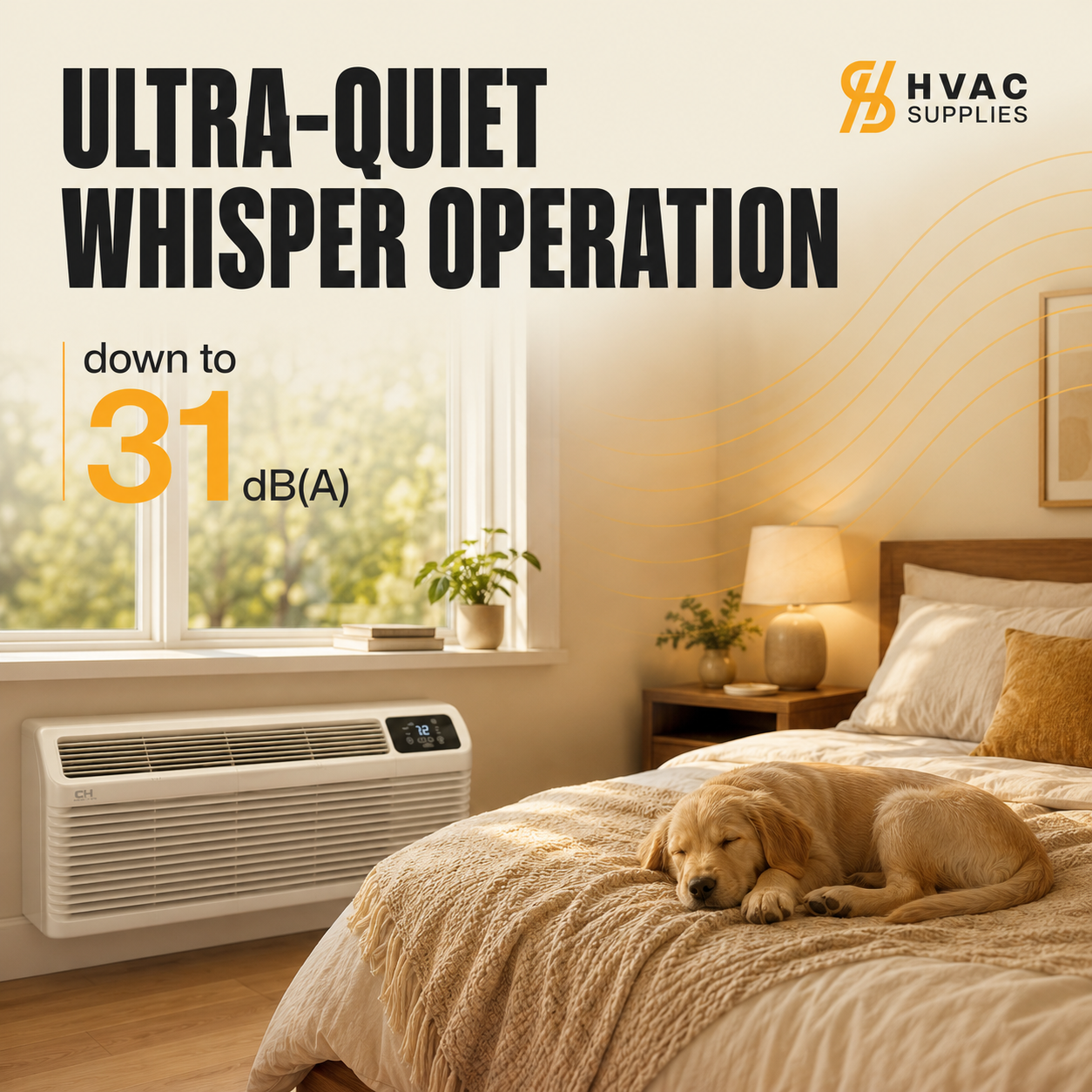

Quiet indoor operation
Indoor sound levels are rated as low as 31 dB(A) at the quietest setting, making the unit suitable for guestrooms, bedrooms, offices, and other noise-sensitive spaces.
Dual heating capability
The CH-PTI-09HP provides efficient heat-pump heating and includes electric PTC resistance heat for supplemental heating when operating conditions or room demand require additional output.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CH-PTI-09HP |
| System type | Inverter packaged terminal heat pump and air conditioner |
| Power supply | 208/230V, 1Ph, 60Hz |
| Cooling capacity | 4,000–11,000 BTU/h |
| EER / EER2 | 13.5 BTU/W |
| Cooling input | 670 W |
| Cooling rated current | 4.8 / 5.3 A |
| Electric heating capacity | 5,500–10,800 BTU/h |
| Electric heating input | 3,550 / 2,900 W |
| Electric heating rated current | 15.5 / 14.0 A |
| Heat-pump heating capacity | 5,500–10,800 BTU/h |
| Heat-pump heating input | 659 W |
| Heat-pump rated current | 3.3 / 3.6 A |
| COP | 4.0 W/W |
| Compressor type | Rotary inverter compressor |
| Compressor capacity | 2,305 W |
| Compressor input | 598 W |
| Compressor rated current | 4.15 A |
| Refrigerant oil | VG74 |
| Plug type | LCDI 6-20P |
| Recommended circuit breaker | 20 A |
| Outdoor fan motor input | 77 W |
| Refrigerant | R32 |
| Design pressure, low / high | 300 / 580 psi |
| Indoor airflow | 335 / 279 / 229 CFM |
| Fresh-air ventilation | Up to 60 CFM |
| Indoor sound levels | 46 / 44 / 40 / 31 dB(A) |
| Outdoor sound level | 63.5 dB(A) |
| Humidity control | Approximately 40%–60% relative humidity |

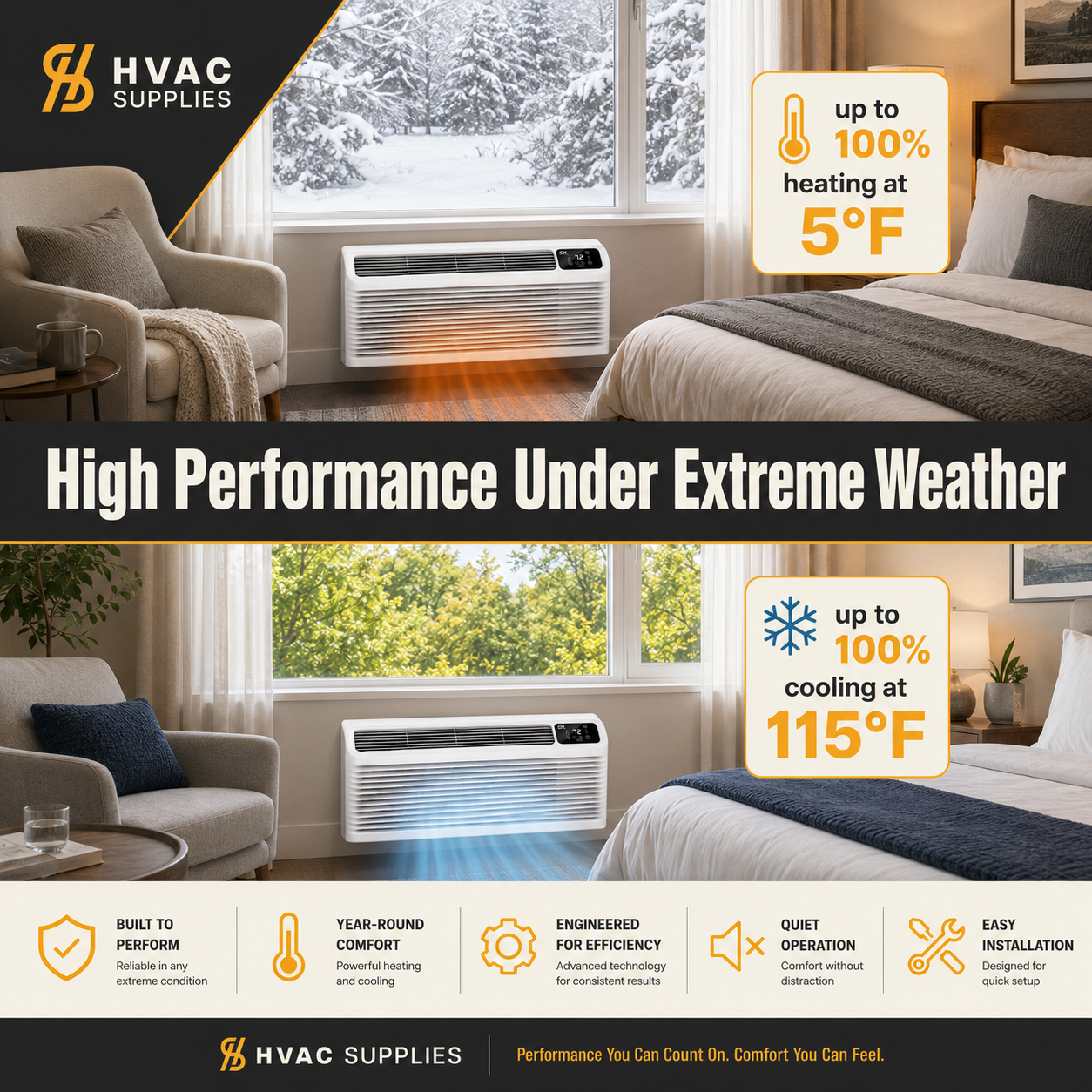

| Operating temperature range | 5°F to 122°F |
| Unit dimensions | 42 × 21 × 16 in. (W × D × H) |
| Packed dimensions | 44-1/8 × 24-3/8 × 19-1/4 in. (W × D × H) |
| Net / gross weight | 93.48 / 102.07 lb |
Documents & Downloads
Product Submittal View CH-PTI-09HP Submittal
Owner's Manual View PTAC Owner's Manual
Installation Considerations
Professional installation is recommended. Before ordering or installation, verify the required wall sleeve, exterior grille, electrical circuit, plug configuration, wall opening, drainage arrangement, clearances, and applicable local codes. Confirm whether the wall sleeve, grille, thermostat, and other accessories are included or sold separately.
Frequently Asked Questions
Is the CH-PTI-09HP an inverter PTAC?
Yes. The CH-PTI-09HP uses inverter technology to adjust system output according to the room's heating or cooling demand.
Does this PTAC provide both cooling and heating?
Yes. It provides air conditioning, heat-pump heating, and supplemental electric PTC resistance heating.
What is the cooling capacity?
The variable cooling capacity ranges from approximately 4,000 to 11,000 BTU per hour.
Does the unit include WiFi capability?
Yes. The unit is listed with built-in Smart Kit WiFi technology. Network and application requirements should be confirmed in the owner's manual.
Does it bring fresh air into the room?
Yes. The integrated fresh-air ventilation system is listed with airflow up to 60 CFM.
How quiet is the CH-PTI-09HP?
Published indoor sound levels range from 46 dB(A) down to approximately 31 dB(A), depending on the selected operating and fan setting.
What electrical connection does it require?

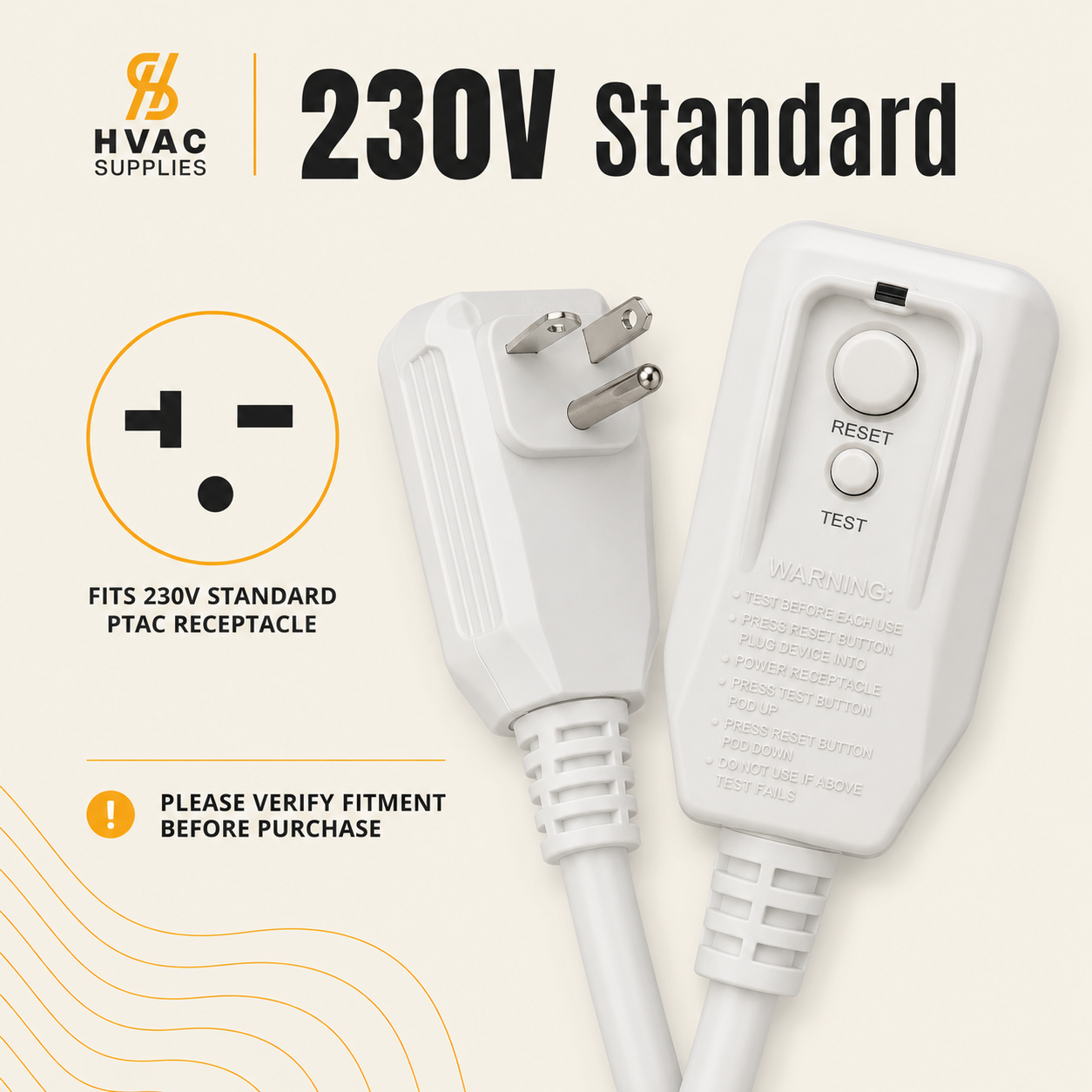

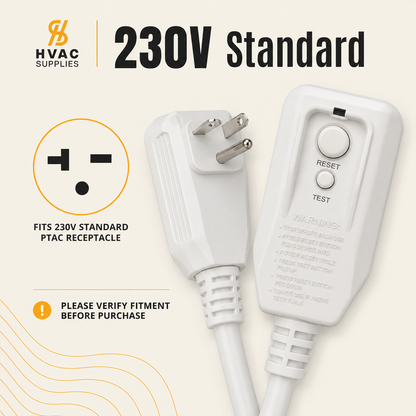

The unit operates on 208/230V, single-phase, 60Hz power and uses an LCDI 6-20P plug. A 20-amp circuit breaker is recommended in the supplied technical data.
What refrigerant does this PTAC use?
The CH-PTI-09HP uses R32 refrigerant.
Are the wall sleeve and exterior grille included?
The wall sleeve and exterior grille are optional accessories. They must be selected when ordering to be included with the PTAC unit.
