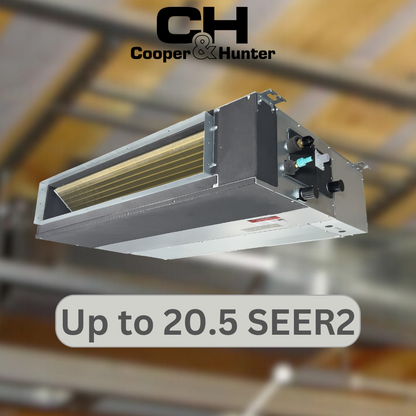

Cooper&Hunter 9,000 BTU Hyper Single Zone Slim Duct Ducted Minisplit Heat Pump System R410A 230V

SKU: CH-M09DTUI + CH-HYP09SPH230VO

System highlights
AC Type
Slim Duct
Refrigerant Type
R410A
Brand
Cooper&Hunter
Outdoor Unit
9000 BTU VO (0.75 TON)
Indoor Unit
9000 BTU (0.75 TON)
Voltage
208-230V
Looking For
Slim Duct
Cooling Area (sq.ft.)
250-400
Series
Hyper
SEER2 Rating
20.2
Line Set Length

Price

$1,420.00
Shipping calculated at checkout.
View full details
Cooper&Hunter Hyper Heat • Slim Duct • R410A • 208–230V

Cooper&Hunter 9,000 BTU Hyper Single Zone Slim Duct Ducted Minisplit Heat Pump System R410A 230V

SKU: CH-M09DTUI + CH-HPR09-230VO

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS

Overview

Cooper&Hunter Light Commercial Slim Duct systems deliver discreet, ducted comfort that can be concealed in attics and ceiling crawl spaces—without the energy loss often associated with many central ducted systems. This bundle pairs the CH-M09DTUI slim duct indoor unit with the CH-HPR09-230VO Hyper Heat outdoor condenser for a single-zone heat pump system using R410A.

Slim Duct installations offer flexibility: duct runs can be directed into separate areas while being collectively controlled by one wall thermostat/controller—ideal where you want a cleaner, low-profile finish.

Highlights

Single Zone bundle Hyper Heat outdoor Heat to -22°F (ODU) 208–230V, 1Ph, 60Hz R410A refrigerant Indoor SEER2: 20.2 Outdoor SEER2: 26.4 ESP range: 0–0.32 Max line: 82.02 ft AHRI Ref: 207742328
  • Cold-climate capable: Hyper Heat outdoor operation down to -22°F ambient (heating).
  • Hidden ducted comfort: slim duct air handler supports inconspicuous installs with ducted supply/return.
  • Static pressure support: indoor ESP range 0–0.32 helps accommodate duct layouts.

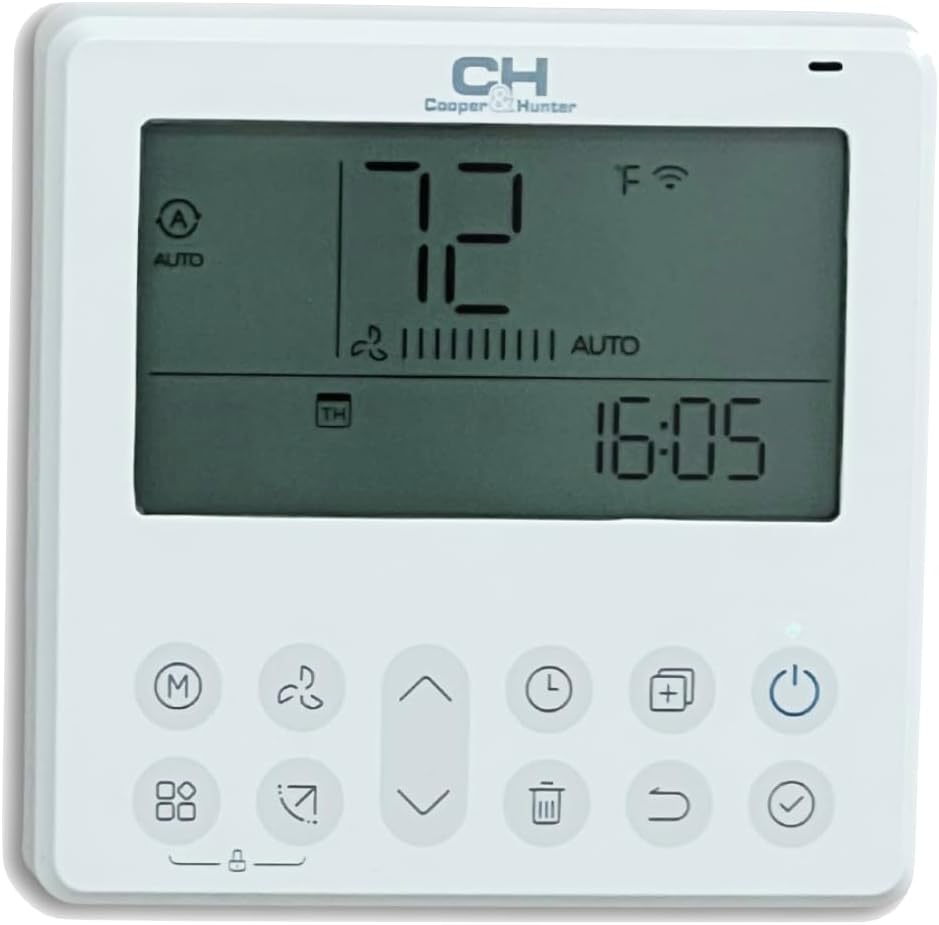

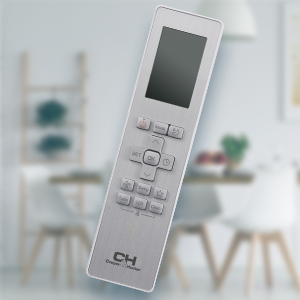

  • Control options: RG10K remote + wired controller compatibility (120X or 120N).
IndoorCH-M09DTUI
OutdoorCH-HPR09-230VO
Lines1/4" liquid · 3/8" gas
Max run82.02 ft

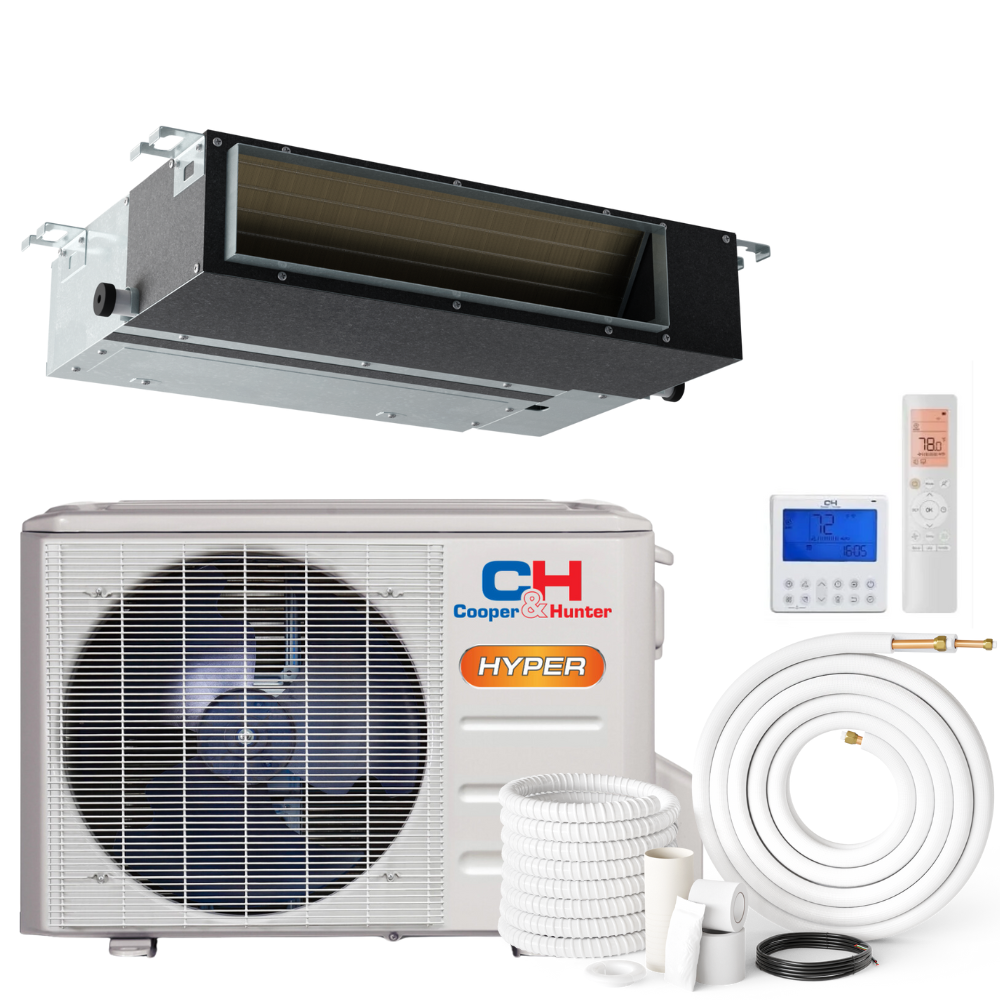

What’s Included

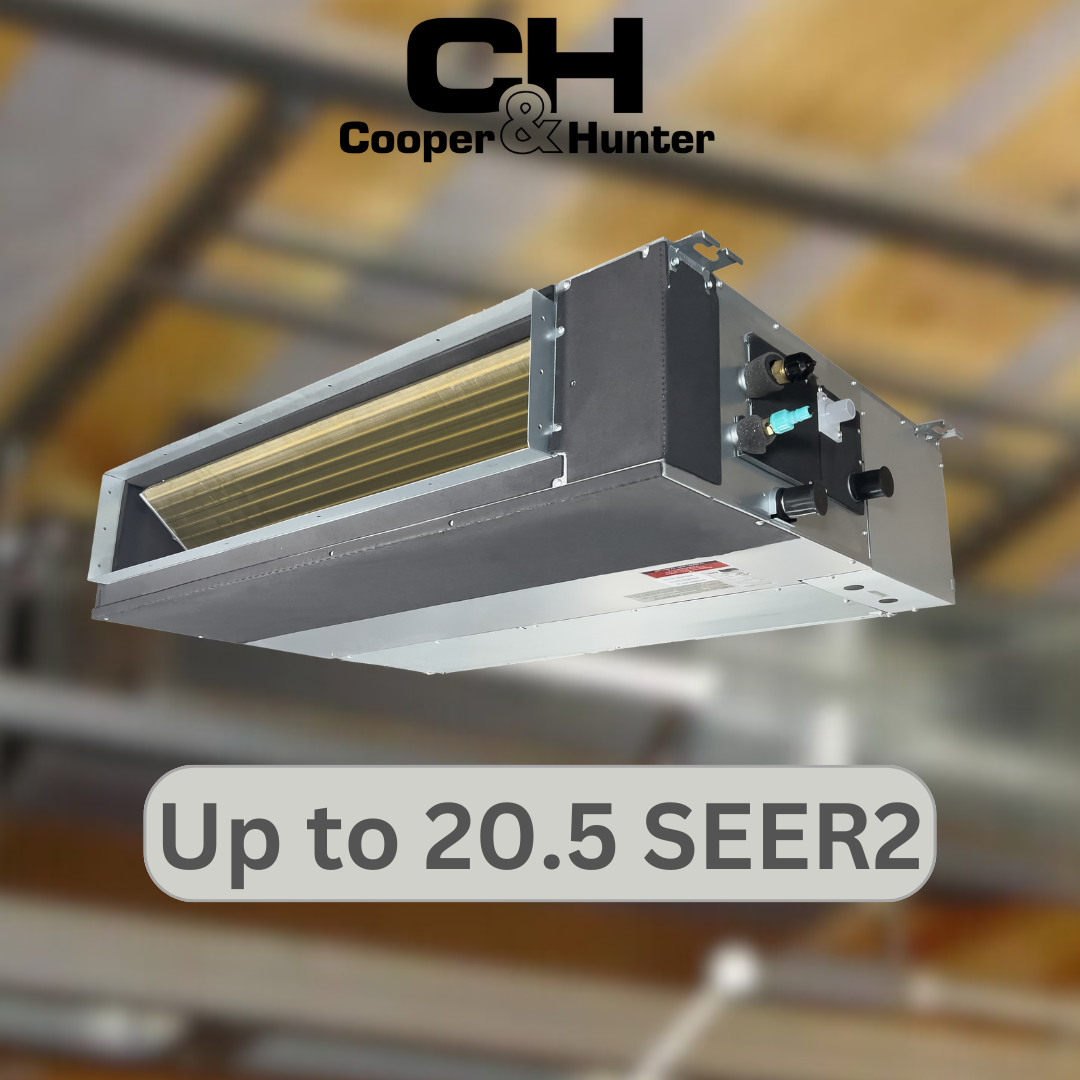

  • Indoor slim duct unit: CH-M09DTUI

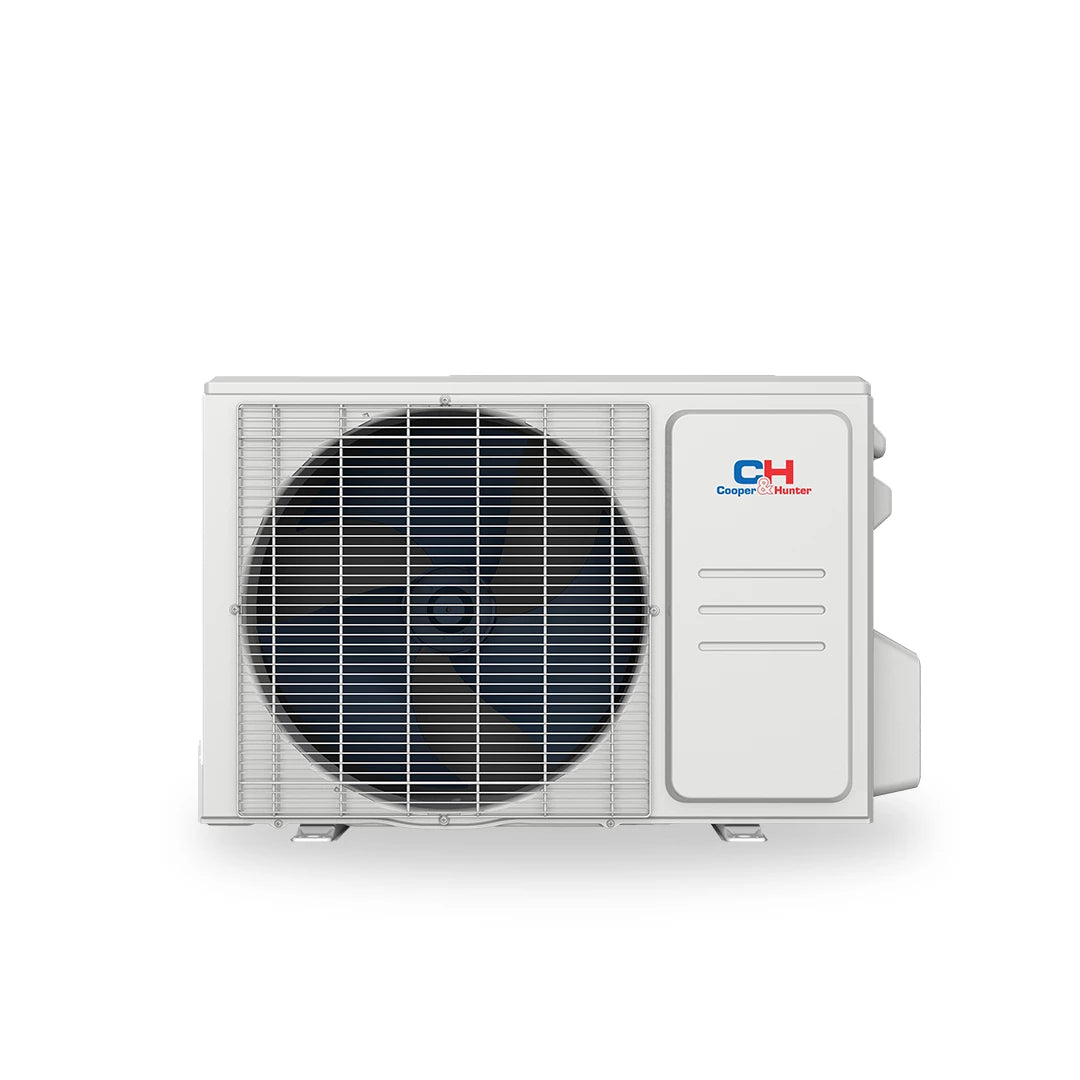

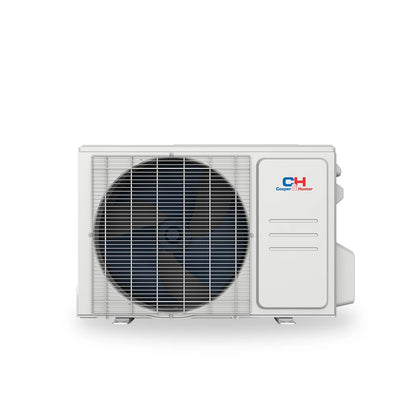

  • Outdoor Hyper Heat condenser: CH-HPR09-230VO
  • Remote control support: RG10K (wired controller compatible: 120X or 120N)
  • Manufacturer documentation (see Documents & Downloads)

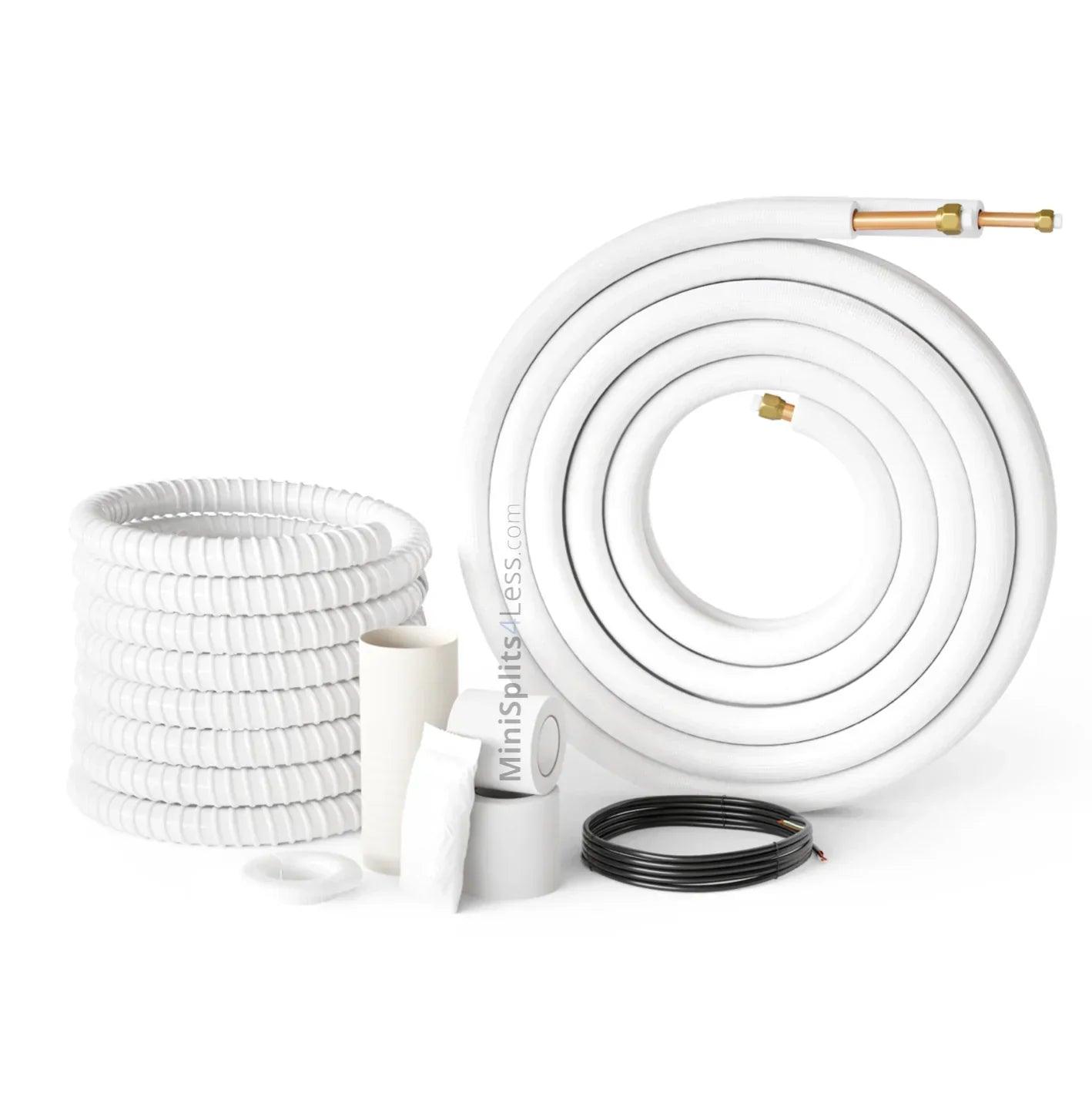

  • Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).

Indoor Specs

Spec Details
Model CH-M09DTUI
BTU rated 9,000
Power source 208–230V, 1Ph, 60Hz
Voltage range 187–253 V
Dehumidification 2.11 pnt/day
EER2 13.2
SEER2 20.2
Refrigerant piping (liq/gas) 1/4" – 3/8"
Minimum circuit ampacity 1.3
Max fuse 15
Indoor noise level (H/M/L) 33.5 / 28.5 / 27 dB(A)
Indoor air flow 352.94 / 282.35 / 176.47 CFM
ESP range 0 – 0.32
Drain pipe diameter 1"
Operating range (Cooling) 62–90°F
Operating range (Heating) 32–86°F
Controller RG10K-exclusive remote & 120X or 120N wire controller

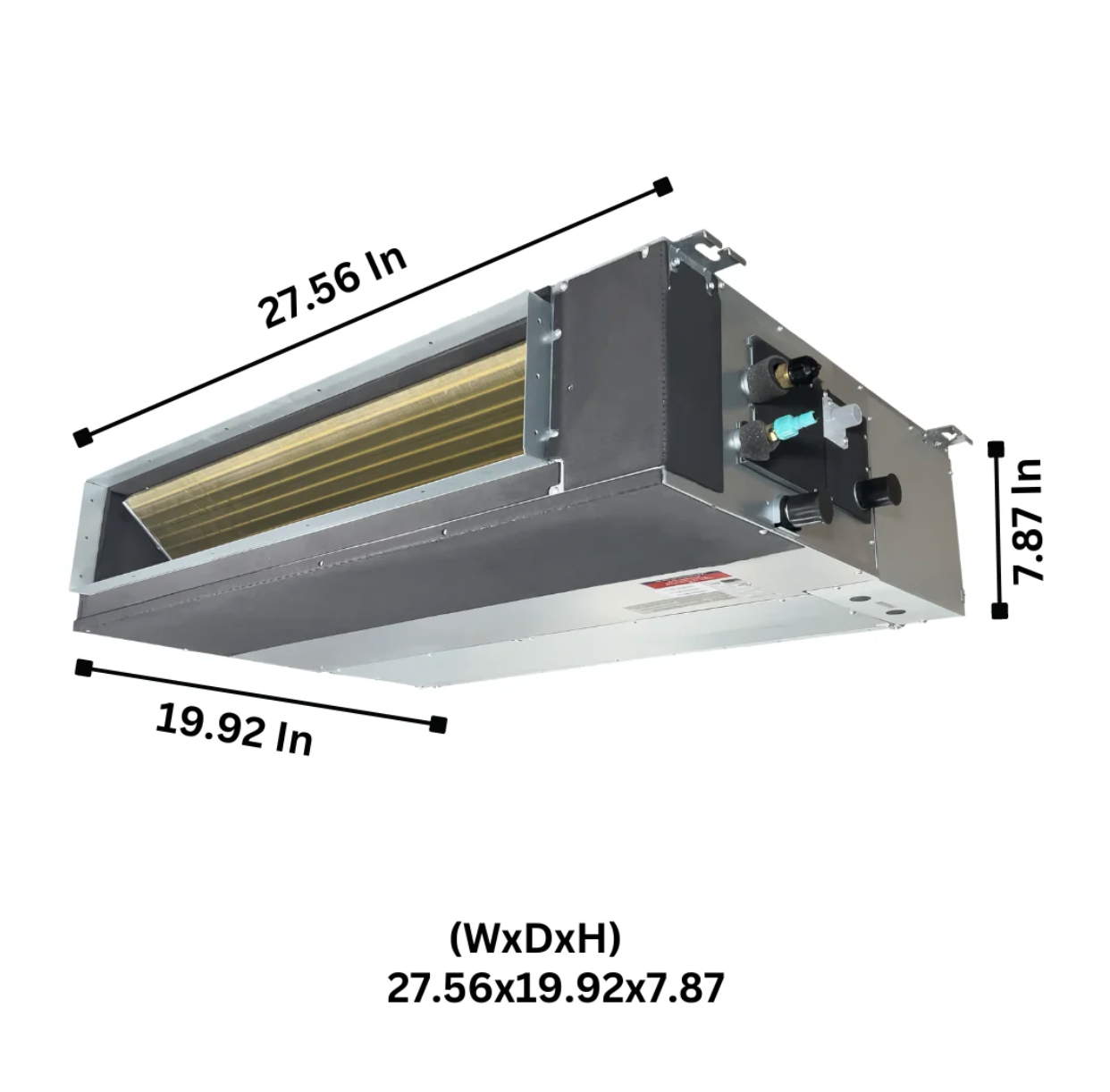

Unit dimensions (W×H×D) 27.56 × 19.92 × 7.87 in
Net / Gross weight 39.02 / 48.28 lb
Packing dimensions (W×D×H) 33.86 × 21.26 × 11.22 in

Outdoor Specs

Spec Details
Model CH-HPR09-230VO
System type Single-zone unit
Refrigerant type R410A
BTU rated 9,000
Power source 208–230V, 1Ph, 60Hz
Voltage range 187–253 V
Refrigerant piping (liq/gas) 1/4" / 3/8"
Max pipe length 82.02 ft
Max height difference (IDU↔ODU) 32.81 ft
Cooling capacity (Min/Max) 9,000 (3,700–13,300) BTU/h
Heating capacity (Min/Max) 12,000 (5,100–14,300) BTU/h
SEER2 26.4
EER2 15.8
HSPF2-5 8.5
HSPF2-4 11.6
COP 3.9
Dehumidification 0.85 pnt/day
Outdoor noise level 55.5 dB(A)
Outdoor air flow 1,323.53 CFM
Minimum circuit ampacity 15
Max fuse 15
Ambient temp (Heating) -22–75°F
Ambient temp (Cooling) -22–122°F
Unit dimensions (W×H×D) 31.69 × 12.99 × 21.81 in
Net / Gross weight 74.07 / 80.25 lb
Packing dimensions (W×D×H) 36.02 × 14.57 × 24.21 in
Refrigerant precharge 25
Additional charge (1/4" liquid) 0.16

Documents & Downloads

Videos

Featured video

Mini-split installation videos

How To & Instructional Videos

Products overview

Mini-Splits

Important

  • Professional installation is recommended. Confirm duct design/static pressure requirements, electrical requirements, line sizes, maximum line length/height limits, and ambient operating limits before installation.
  • Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).

FAQs

Is this a single-zone system?
Yes—this listing is a single-zone bundle pairing CH-M09DTUI with CH-HPR09-230VO.
How cold can it heat?
The Hyper Heat outdoor unit operates in heating down to -22°F ambient.
What line sizes does this system use?
1/4" liquid and 3/8" gas.
What are the max line length and height difference?
Maximum line length is 82.02 ft and maximum height difference is 32.81 ft.
Are installation kits included?
No. Installation kits are only included if selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
