Cooper&Hunter

Cooper&Hunter 60,000 BTU Single Zone Slim Duct Ducted Minisplit Heat Pump System R454B 230V

SKU: CH-RS60LCDT-HS + CH-R60LCU-230VO

System highlights
AC Type
Slim Duct
Refrigerant Type
R454B
Brand
Cooper&Hunter
Outdoor Unit
60000 BTU VO (5.0 TON)
Indoor Unit
60000 BTU (5.0 TON)
Voltage
208-230V
Looking For
Slim Duct
Cooling Area (sq.ft.)
1500 and up
SEER2 Rating
17.0
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$5,174.00
Shipping calculated at checkout.
View full details

High Static Slim Duct + Outdoor Unit • R454B • 208–230V

Cooper&Hunter 60,000 BTU Single Zone Slim Duct Ducted Minisplit Heat Pump System R454B 230V

Overview

60K high-static slim duct indoor paired with a single-zone outdoor unit for large residential and light commercial use. Inverter-driven performance supports steady temperature control, reduced energy usage, and strong ducted airflow with external static pressure support.

Highlights

Capacity: 60,000 BTU Refrigerant: R454B Indoor SEER2: 15.8 ESP Range: 0–0.8 Line Set: 3/8" × 3/4" Heating Ambient: -13°F to 75°F Cooling Ambient: -13°F to 122°F AHRI: 205287344

System Search

CH-RS60LCDT-HS + CH-R60LCU-230VO

Voltage

208–230V (1Ph, 60Hz)

Voltage Range

187–253V

Max Line / Lift

246 ft / 98.4 ft

Outdoor MCA / Max Fuse

42A / 45A

Indoor Airflow (Max)

2,001.2

  • High external static pressure support (ESP 0–0.8)
  • Controls: remote control + wall thermostat + wired controller support
  • Built-in smart kit connectivity support with app control
  • Indoor install orientation: horizontal or vertical

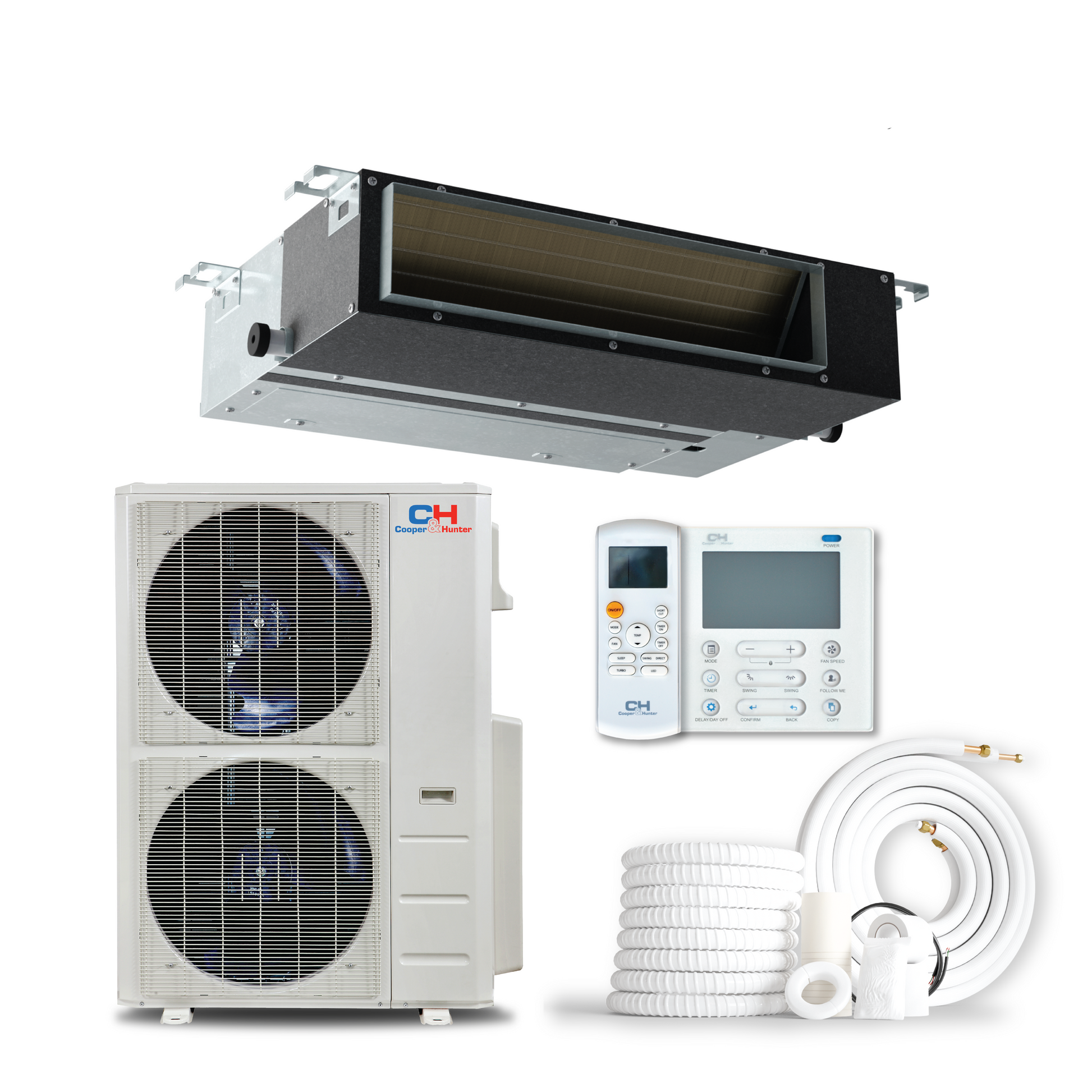

What’s Included

  • Indoor unit: CH-RS60LCDT-HS
  • Outdoor unit: CH-R60LCU-230VO
  • Remote control and wall thermostat
  • Wired controller support
  • Smart kit connectivity support

Indoor Specs (CH-RS60LCDT-HS)

Spec Value
Refrigerant Type R454B
System Type Single Zone
BTU Rated 60,000
Power Source 208–230V, 1Ph, 60Hz
Voltage Range 187–253V
Dehumidification 7.67 pints/day
Filter Dimensions (W×D) 24.80 × 12.60 in
Controller Wire controller + remote controller available
Refrigerant Piping (Liquid/Gas) 3/8" / 3/4"
EER2 10.2
SEER2 15.8
Minimum Circuit Ampacity 5A
Max Fuse 15A
Indoor Noise Level (H/M/L) 52 / 48 / 42
Indoor Air Flow 2,001.2 / 1,706.9 / 1,412.6 / 1,118.3
ESP Range 0–0.8
Drainage Water Pipe Diameter 1"
Operation Range – Heating 32–86°F
Operation Range – Cooling 60–90°F

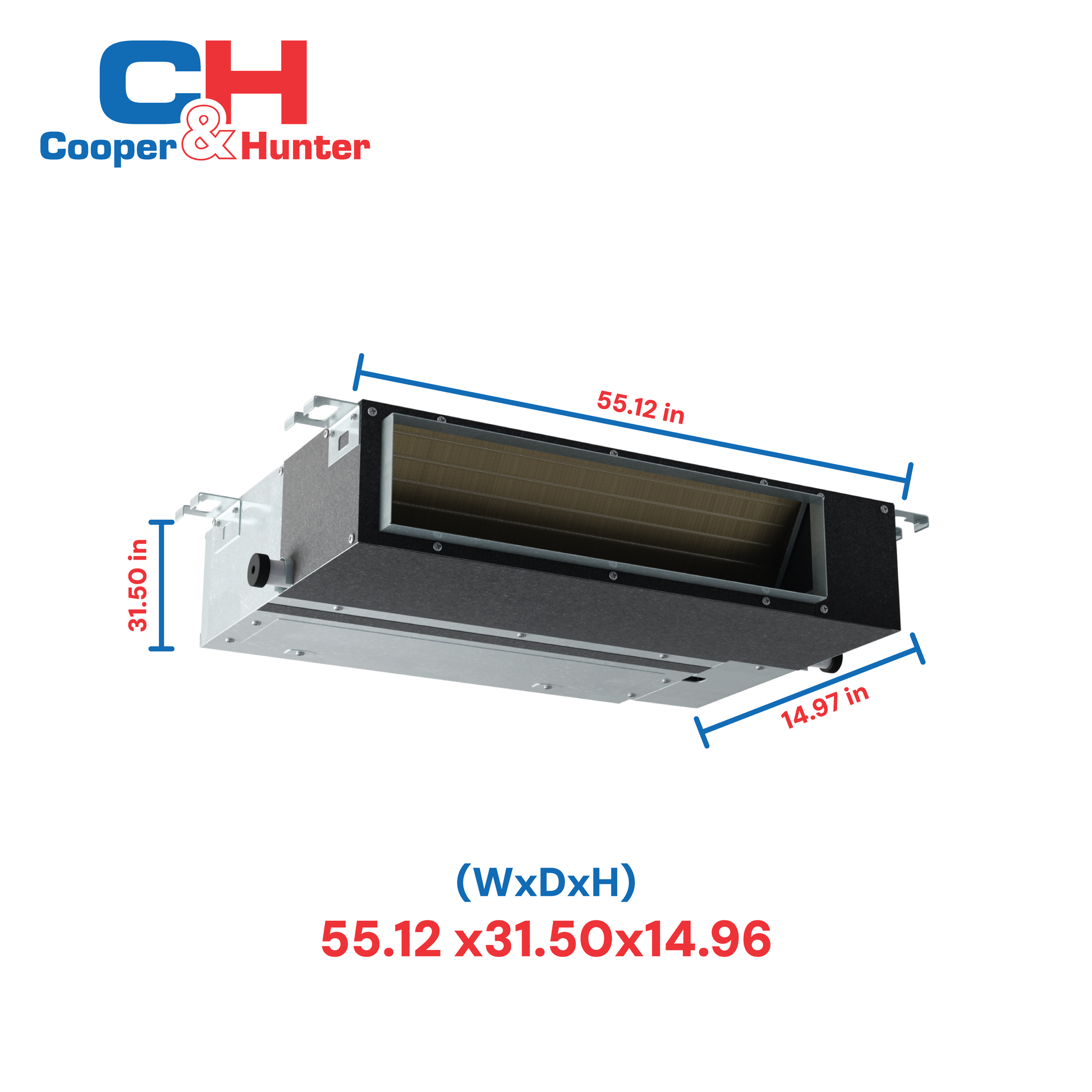

Unit Dimensions (W×H×D) 55.12 × 31.50 × 14.96 in
Packing Dimensions (W×D×H) 62.99 × 36.02 × 17.52 in
Unit Net / Gross Weight 161.38 / 178.13 lb

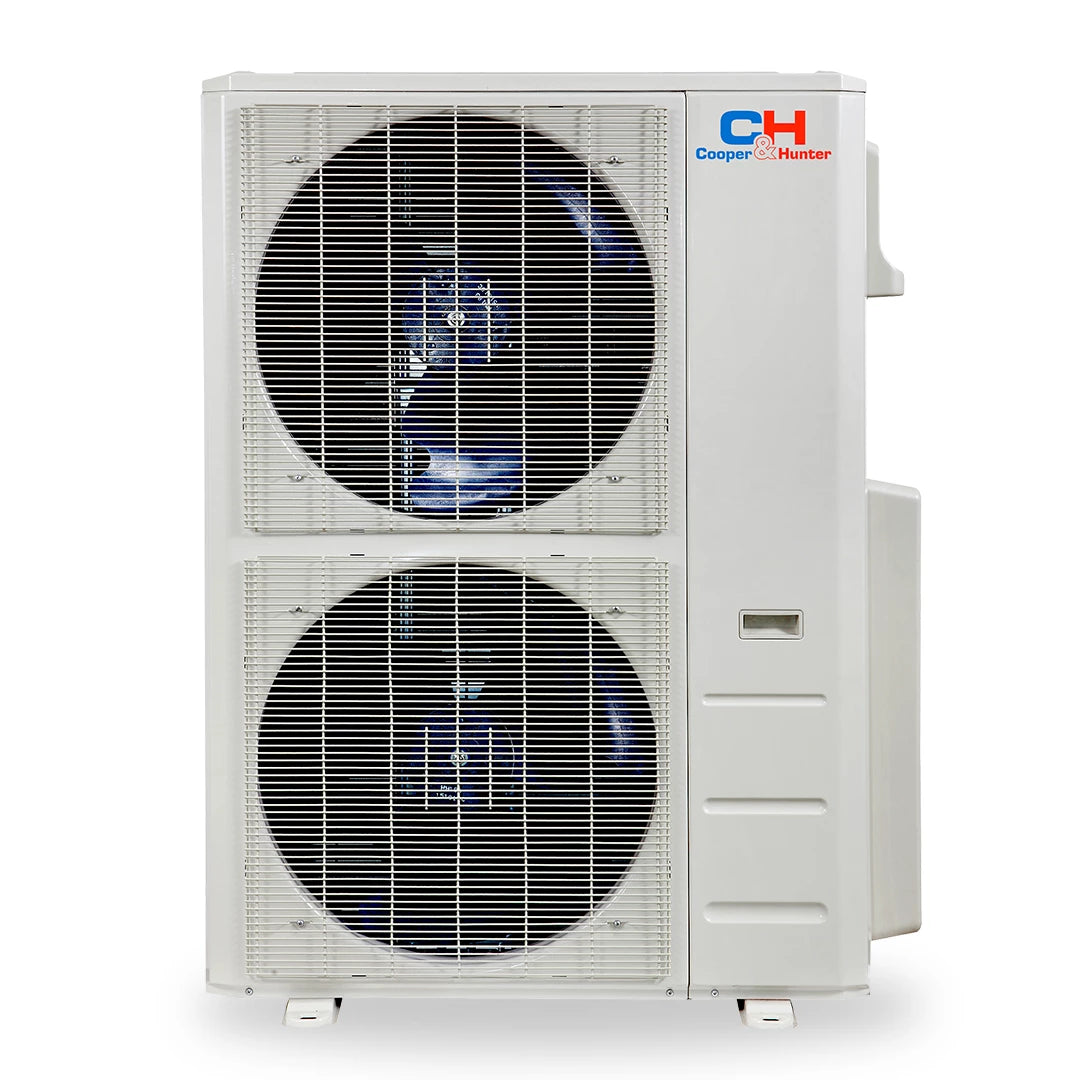

Outdoor Specs (CH-R60LCU-230VO)

Spec Value
Refrigerant Type R454B
BTU Rated 60,000
Power Source 208–230V, 1Ph, 60Hz
Voltage Range 187–253V
Max Pipe Length 246 ft
Max Height Difference (Indoor↔Outdoor) 98.4 ft
Refrigerant Piping (Liquid/Gas) 3/8" / 3/4"
HSPF2-5 / HSPF2-4 7.2 / 9.5
Cooling Capacity (Min/Max) 54,000 (15,000–54,500) BTU/h
Heating Capacity (Min/Max) 60,000 (20,200–60,000) BTU/h
COP 3.05
Ambient Temperature – Heating -13 to 75°F
Ambient Temperature – Cooling -13 to 122°F
Outdoor Noise Level 63.5
Outdoor Air Flow 4,237.9
Minimum Circuit Ampacity 42A
Max Fuse 45A
Unit Dimensions (W×H×D) 37.48 × 16.34 × 52.48 in

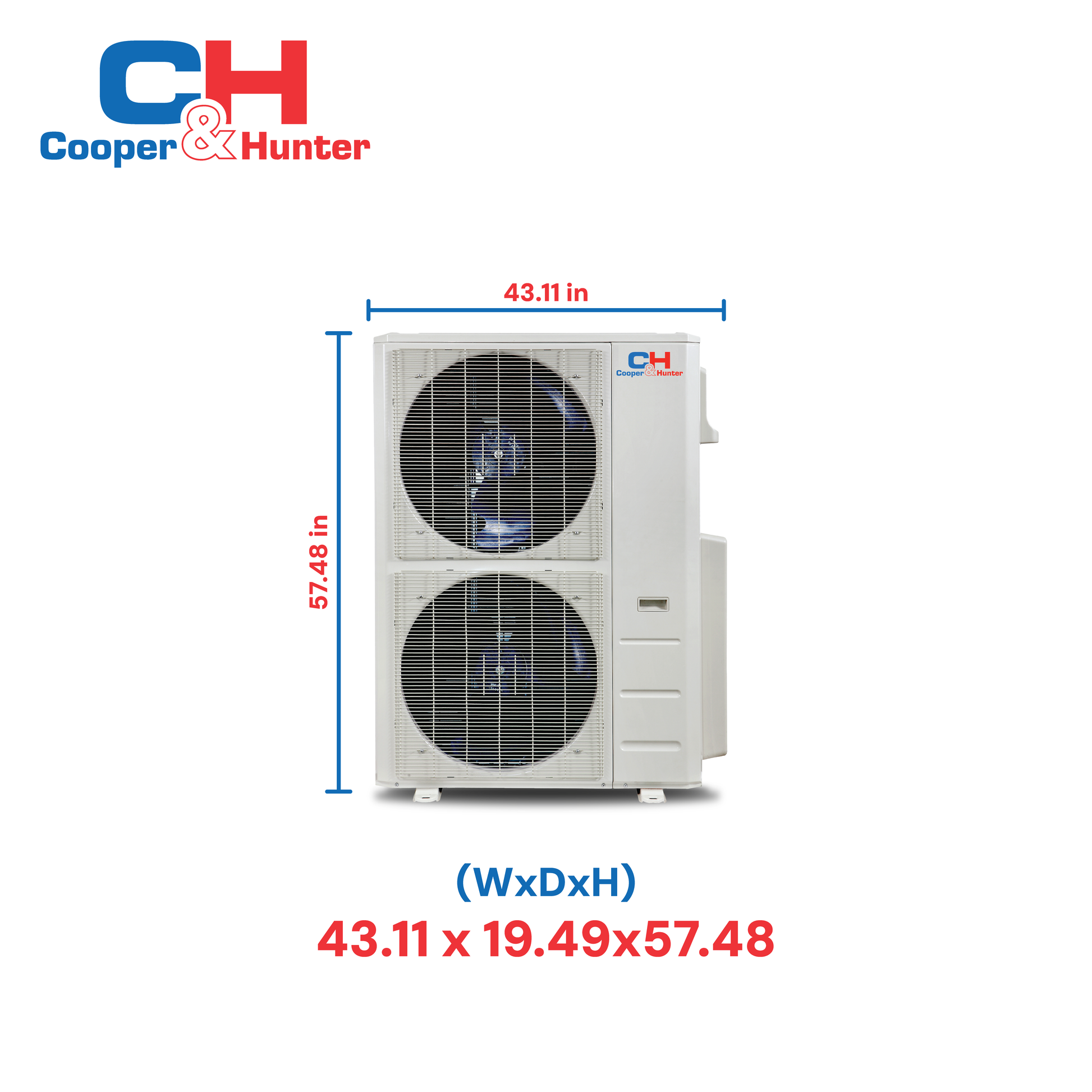

Packing Dimensions (W×D×H) 43.11 × 19.49 × 58.27 in
Unit Net / Gross Weight 209.44 / 240.08 lb
AHRI 205287344

Documents & Downloads

Important

  • Line set: 3/8" liquid and 3/4" suction (gas).
  • Max piping: 246 ft total length and 98.4 ft vertical separation.
  • Outdoor electrical: MCA 42A, max fuse 45A.
  • Indoor electrical: minimum circuit ampacity 5A, max fuse 15A.
  • AHRI number: 205287344.
  • Support: hvacsupplies.com/pages/contact • (800) 543-8933

FAQs

What line set size does this system use?

3/8" liquid line and 3/4" suction (gas) line.

What is the external static pressure range?

ESP range: 0–0.8.

What are the indoor airflow values?

2,001.2 / 1,706.9 / 1,412.6 / 1,118.3.

What are the indoor noise levels?

52 / 48 / 42 (H/M/L).

What are the outdoor capacity ranges?

Cooling: 54,000 (15,000–54,500) BTU/h. Heating: 60,000 (20,200–60,000) BTU/h.

What is the maximum piping length and vertical separation?

246 ft maximum piping length and 98.4 ft maximum height difference.

How cold can it operate in heating?

Heating ambient range: -13°F to 75°F.

What is the cooling ambient range?

Cooling ambient range: -13°F to 122°F.

What electrical does it use?

208–230V, 1Ph, 60Hz. Voltage range: 187–253V. Outdoor MCA 42A (max fuse 45A). Indoor MCA 5A (max fuse 15A).

What controls are supported?

Remote control and wall thermostat, plus wired controller support.

Can the indoor unit be installed horizontally or vertically?

Yes. Horizontal or vertical installation is supported.

What is the indoor drain connection size?

1" drainage water pipe diameter.

What is the AHRI number?

205287344.
