Cooper&Hunter Light Commercial • Multi-Position AHU • R410A • 208–230V

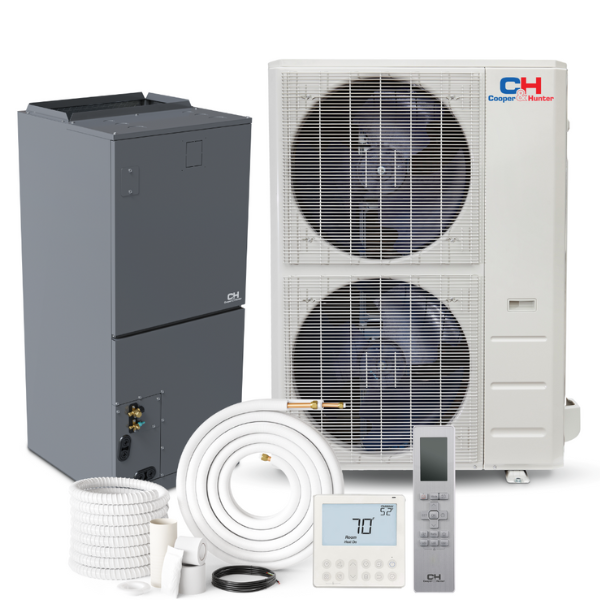

Cooper&Hunter 60,000 BTU High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R410A 230V
System: CH-60AHU + CH-N60LCU-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview
Air handler units offer a versatile replacement for traditional ducted systems that can connect to pre-existing ductwork, while operating quieter and more efficiently thanks to a variable-speed fan motor. This bundle pairs the CH-60AHU multi-position air handler with the CH-N60LCU-230VO light commercial outdoor unit for a single-zone ducted heat pump split system using R410A.
The air handler supports vertical, horizontal, or downflow installation and works with a standard 24V wall thermostat. The outdoor unit supports heating down to -22°F ambient.
Highlights
Single Zone bundle Multi-position install (IDU) 24V thermostat compatible High static pressure (ESP 0–0.8) Heat to -22°F (ODU) R410A refrigerant Indoor SEER2: 17.0 Outdoor SEER2: 17.3 Lines: 3/8" • 7/8" Max line: 213.25 ft AHRI Ref: 210799609
- Retrofit-friendly: pairs well with existing duct systems for a clean upgrade path.
- Quiet operation: variable-speed fan motor and staged airflow.
- Flexible orientation: vertical, horizontal, or downflow installation options.
- Controls: compatible with standard 24V thermostat; also supports RG10D remote + 120X/120N wire controller.
- Cold-climate capability: outdoor heating operation down to -22°F ambient.
IndoorCH-60AHU
OutdoorCH-N60LCU-230VO
ESP range0–0.8
Max run213.25 ft
What’s Included
- Indoor air handler unit: CH-60AHU
- Outdoor light commercial condenser: CH-N60LCU-230VO
- Remote/control support: RG10D standard remote & 120X or 120N wire controller compatibility
- Manufacturer documentation (see Documents & Downloads)
- Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-60AHU |
| System type | Single-zone unit |
| Refrigerant type | R410A |
| BTU rated | 60,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Dehumidification | 12.93 pnt/day |
| EER2 | 10 |
| SEER2 | 17 |
| Refrigerant piping (liq/gas) | 3/8" / 7/8" |
| Filter dimensions (W×D) | 22.91 × 20.35 in |
| Minimum circuit ampacity | 9 |
| Max fuse | 15 |
| Indoor noise level (H/M/L) | 51 / 46 / 42.5 dB(A) |
| Indoor air flow | 1,805.88 / 1,582.35 / 1,358.82 / 1,135.29 CFM |
| ESP range | 0 – 0.8 |
| Drain pipe diameter | 1" |
| Operating range (Cooling) | 60–90°F |
| Operating range (Heating) | 32–86°F |
| Controller | RG10D standard remote & 120X or 120N wire controller |
| Unit dimensions (W×H×D) | 21.02 × 24.49 × 52.99 in |
| Net / Gross weight | 164.02 / 189.82 lb |
| Packing dimensions (W×D×H) | 27.95 × 26.77 × 56.50 in |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-N60LCU-230VO |
| System type | Single-zone unit |
| Refrigerant type | R410A |
| BTU rated | 60,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Dehumidification | 16.00 pnt/day |
| Refrigerant piping (liq/gas) | 3/8" / 7/8" |
| Max pipe length | 213.25 ft |
| Max height difference (IDU↔ODU) | 98.42 ft |
| Cooling capacity (Min/Max) | 55,000 (20,000–55,000) BTU/h |
| Heating capacity (Min/Max) | 60,000 (10,200–62,000) BTU/h |
| SEER2 | 17.3 |
| EER2 | 9 |
| HSPF2-5 | 8.4 |
| HSPF2-4 | 10.2 |
| COP | 2.98 |
| Outdoor noise level | 61 dB(A) |
| Outdoor air flow | 4,235.29 CFM |
| Minimum circuit ampacity | 44 |
| Max fuse | 60 |
| Ambient temp (Heating) | -22–75°F |
| Ambient temp (Cooling) | 5–122°F |
| Unit dimensions (W×H×D) | 37.48 × 16.34 × 52.48 in |
| Net / Gross weight | 240.74 / 271.61 lb |
| Packing dimensions (W×D×H) | 43.11 × 19.49 × 58.27 in |
| Refrigerant precharge | 25 |
| Additional charge (3/8" liquid) | 0.32 |
Documents & Downloads
Videos
Featured video
Products overview
- Cooper&Hunter: Multi Zone AC for the Home
- Multi-Zone Mini-Split System vs Central A/C in Home (2019) Cooper&Hunter
AHU
Outdoor unit videos
Important
- Confirm thermostat selection (24V), duct sizing/static pressure, electrical requirements, line sizes, and maximum line length/height limits before installation.
- Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
FAQs
Is this a single-zone system?
Yes—this is a single-zone bundle pairing CH-60AHU with CH-N60LCU-230VO.
Can this connect to a standard wall thermostat?
Yes. The air handler is compatible with a standard 24V wall thermostat.
What installation orientations are supported?
The air handler can be installed vertically, horizontally, or in a downflow configuration.
How cold can it heat?
The outdoor unit supports heating down to -22°F ambient.
Are installation kits included?
No. Installation kits are only included if selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
