Cooper&Hunter 6,000 BTU Olivia Hyper Single Zone Wall Mount Minisplit Heat Pump System R454B 230V

SKU: CH-R06MOLVWM-230VI + CH-RHP06F9-230VO

AC Type

Wall Mount

Refrigerant Type

R454B

Brand

Cooper&Hunter

Outdoor Unit

6000 BTU VO (0.5 TON)

Indoor Unit

6000 BTU (0.5 TON)

Voltage

208-230V

Looking For

Wall Mount

Cooling Area (sq.ft.)

150-250

Series

Olivia, Hyper

SEER2 Rating

25.3

Line Set Length No installation 16FT 25FT 50FT

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$1,380.00

Shipping calculated at checkout.

View full details

Cooper&Hunter Olivia • R454B • Hyper Heat

Cooper&Hunter 6,000 BTU Olivia Single Zone Wall Mount Mini Split Heat Pump System R454B 230V

SKU: CH-R06MOLVWM-230VI + CH-RHP06F9-230VO

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS

Overview

Enhance your home's climate control with the Cooper&Hunter 6K BTU Olivia wall-mounted mini split—an efficient HVAC solution with up to 25.3 SEER2 performance and modern comfort features. Auto-swing horizontal louvers help circulate air evenly to reduce hot/cold spots, while inverter technology supports quiet, efficient operation.

Paired with a Hyper Heating single-zone outdoor unit that operates in heating down to −22°F, this system delivers dependable year-round comfort. Controls include Smart Kit with C&H App connectivity, an included remote, and optional wall thermostat compatibility (sold separately).

Highlights

6,000 BTU class R454B refrigerant Up to 25.3 SEER2 Hyper Heat to −22°F (Outdoor) 208–230V, 1Ph, 60Hz Smart Kit included (App control) Auto-swing (horizontal louvers) Turbo Mode

Genius Core inverter performance: ultra-low compressor speed support for efficient, quiet operation.
46°F freeze protection: added protection in cold conditions.
Rapid response: High-Frequency Racer Technology ramps to max speed quickly on startup.
Smarter comfort: Follow Me mode, Timer On/Off, and Sleep Mode for personalized scheduling.
Built to last: TU1 copper tubes for efficient heat transfer and durability.

IndoorCH-R06MOLVWM-230VI

OutdoorCH-RHP06F9-230VO

Lines1/4" liquid · 3/8" gas

Max run82 ft

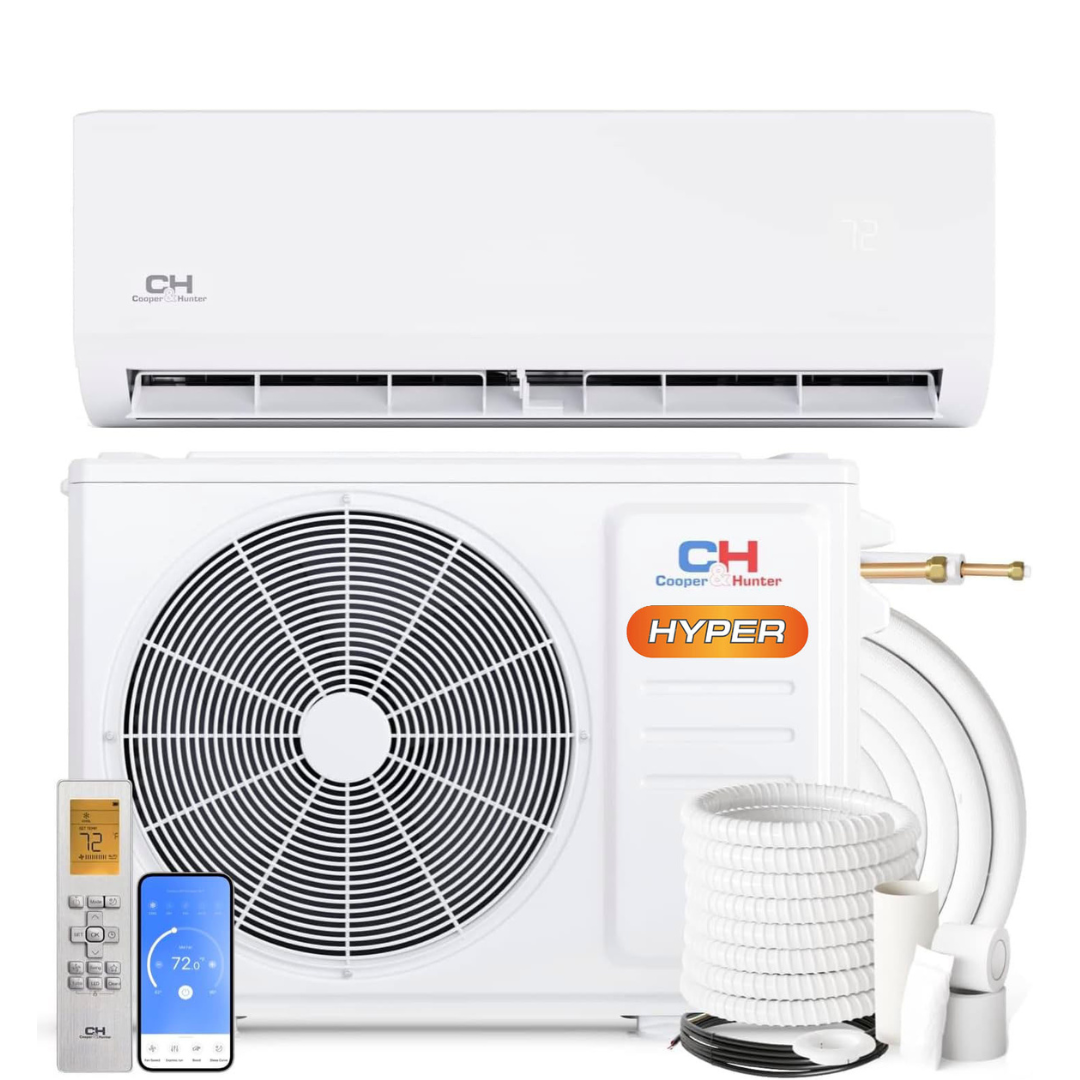

What’s Included

Indoor unit: CH-R06MOLVWM-230VI
Outdoor unit: CH-RHP06F9-230VO (Hyper Heating)
Remote control
Smart Kit (app connectivity)
Manufacturer documentation (see Downloads)

Indoor Specs

Spec	Details
Indoor Model	CH-R06MOLVWM-230VI
Power Supply (Rated)	208/230 V, 1 Ø, 60 Hz
Rated Capacity	6,000 Btu/h
Minimum Circuit Ampacity (MCA)	3
Max. fuse (A)	15
Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM)	294.3 / 235.4 / 176.6 / 141.3 / N/A
Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A)	42 / 37 / 32 / 24 / 20.5

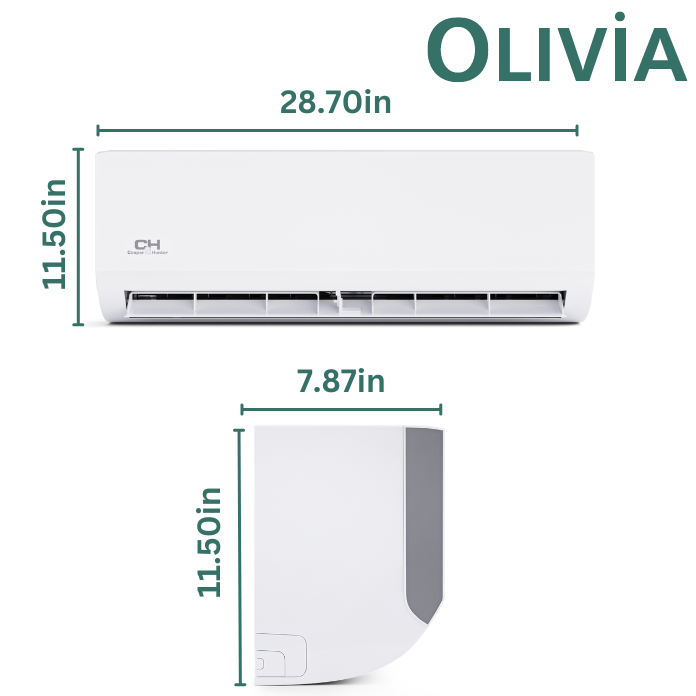

Dimension (W×D×H) (in)	28.70 × 7.8 × 11.50
Packing (W×D×H) (in)	31.10 × 10.63 × 14.76
Net/Gross Weight (lb)	17.64 / 23.15
Room Temperature (Cooling) (°F)	60–90
Room Temperature (Heating) (°F)	32–86
Refrigerant piping Liquid/Gas side (inch)	1/4" / 3/8"

Outdoor Specs

Spec	Details
Model	CH-RHP06F9-230VO
Refrigerant type	R454B
BTU Rated	6,000
Power source	208-230V, 1Ph, 60Hz
Voltage range (V)	187-253
Refrigerant piping Liquid/Gas side (inch)	1/4" / 3/8"
Max. pipe length (ft)	82
Max height difference between Indoor and Outdoor unit	49.2
Cooling capacity (Min/Max) (BTU/h)	6,000 (2,300~12,600)
Heating capacity (Min/Max) (Btu/h)	7,000 (3,000~11,000)
Outdoor Noise Level	53
Outdoor Air Flow	1,235.3
Minimum circuit ampacity	12
Max.fuse	15
HSPF2-5	11.5
HSPF2-4	14.8
COP	4.2
Ambient temperature - Heating (F)	-22~75
Ambient temperature - Cooling (F)	-22 ~ 122

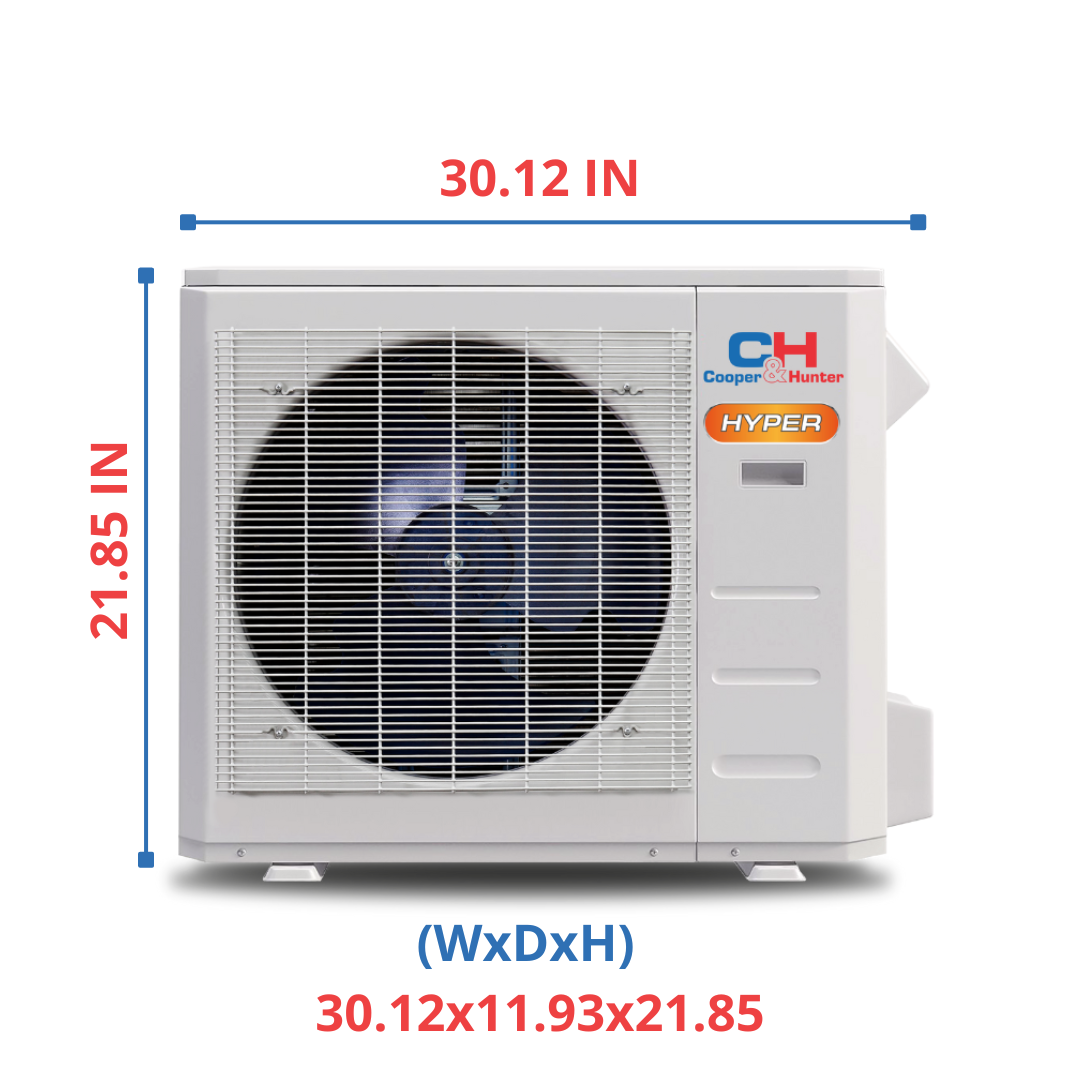

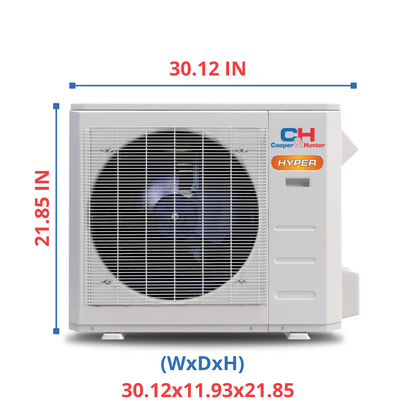

*Unit dimensions (WHD)*	30.12 x 11.93 x 21.85
Unit Net/Gross weight	62.17/67.68
Packing dimensions (WxDxH)	34.92 x 13.27 x 24.02
Refrigerant precharge	25
Additional Refrigerant Charge 1/4 liquid line	0.16

Documents & Downloads

Important

Professional installation is recommended. Confirm electrical requirements, line sizes, maximum line length, and ambient operating limits before installation.
