Cooper&Hunter Mia NY • Matte Wall Mount • R454B • 115V
Cooper&Hunter 6,000 BTU Mia Single Zone Wall Mount Minisplit Heat Pump System Includes 16FT Installation Kit R454B 115V
SKU: CH-RLS06MIA-115VI + CH-RLS06MIA-115VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview
The Cooper&Hunter Mia NY Series is an affordable, energy-efficient ductless solution for both cooling and heating. This entry-level wall-mount system features a sleek matte indoor unit, inverter technology for efficient comfort, and modern features like Quiet/Silent operation, Sleep Mode, Auto Swing horizontal louvers, and WiFi compatibility via the included Smart Kit.
This 6K (115V) single-zone pairing uses R454B refrigerant and includes the essentials to get started, including the remote and manufacturer documentation. A 12V wall thermostat option is available (sold separately).
Highlights
6,000 BTU class 115V system Single-zone R454B refrigerant Inverter technology Smart Kit and 16FT Installation Kit included Auto Swing (horizontal) Sleep Mode Self-clean function Follow Me
- Budget-friendly comfort: Mia NY brings efficient inverter performance to an entry-level price point.
- Smart control ready: Included Smart Kit supports app control (C&H app).
- Quiet comfort: Silent/Quiet function plus Sleep Mode for bedrooms and living spaces.
- Convenience features: Turbo Function, LED display, multiple fan speeds, Follow Me, and Auto Swing louvers.
- Control options: Remote included; 12V wall thermostat compatible (sold separately).
IndoorCH-RLS06MIA-115VI
OutdoorCH-RLS06MIA-115VO
Voltage115V
RefrigerantR454B
What’s Included
- Indoor unit: CH-RLS06MIA-115VI (Mia NY wall mount)
- Outdoor unit: CH-RLS06MIA-115VO
- 16FT Installation Kit
- Remote control (included)
- Smart Kit for app control
- Manufacturer documentation (see Documents & Downloads)

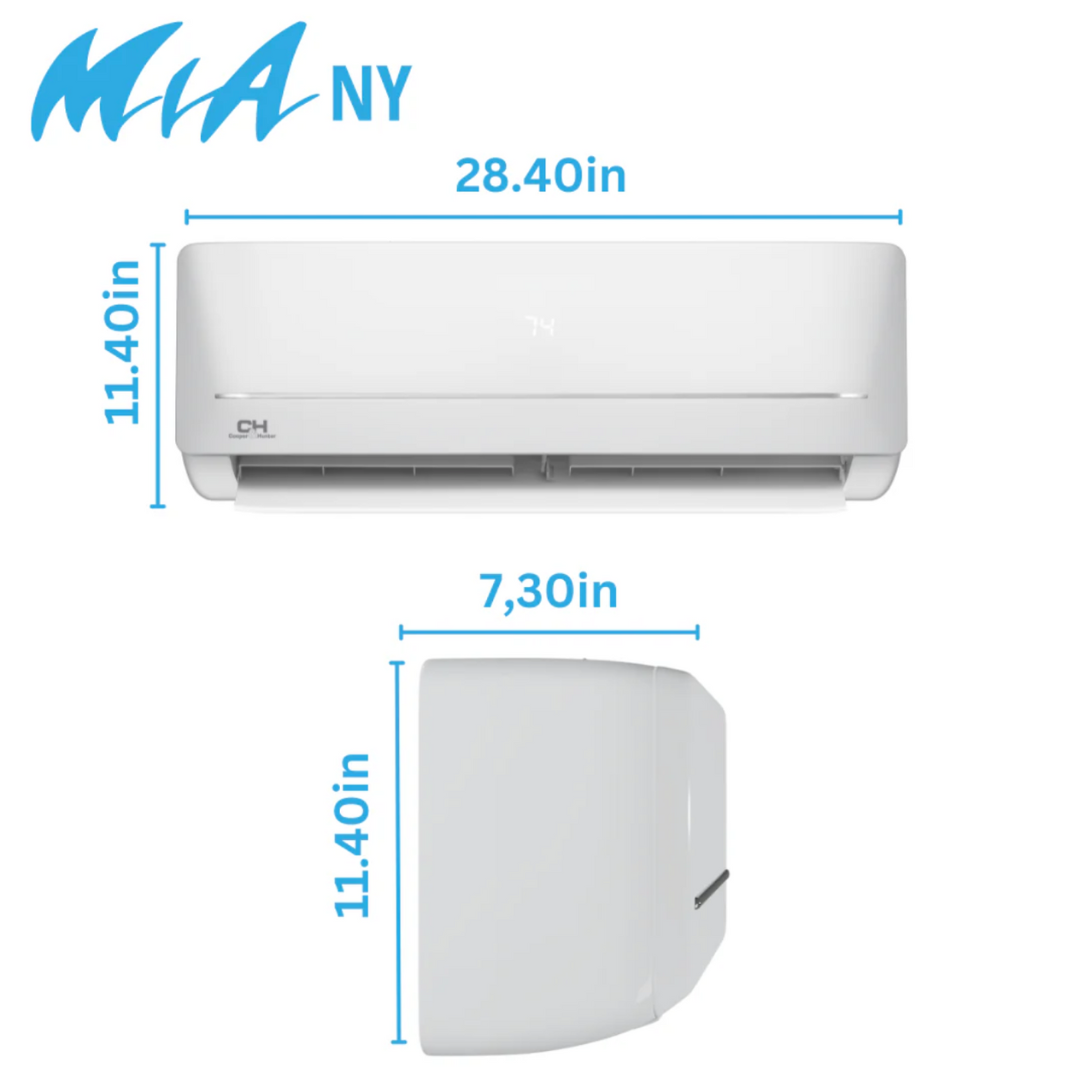

Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-RLS06MIA-115VI |
| System type | Single Zone |
| Refrigerant type | R454B |
| BTU rated | 6,000 |
| Power source | 115V, 1Ph, 60Hz |
| Voltage range | 103.5–126.5 V |
| Controller | Remote controller |
| Operating range (Cooling) | 60–90 |
| Operating range (Heating) | 32–86 |
| ESP range | / |
| Drainage water pipe diameter | 5/8" |

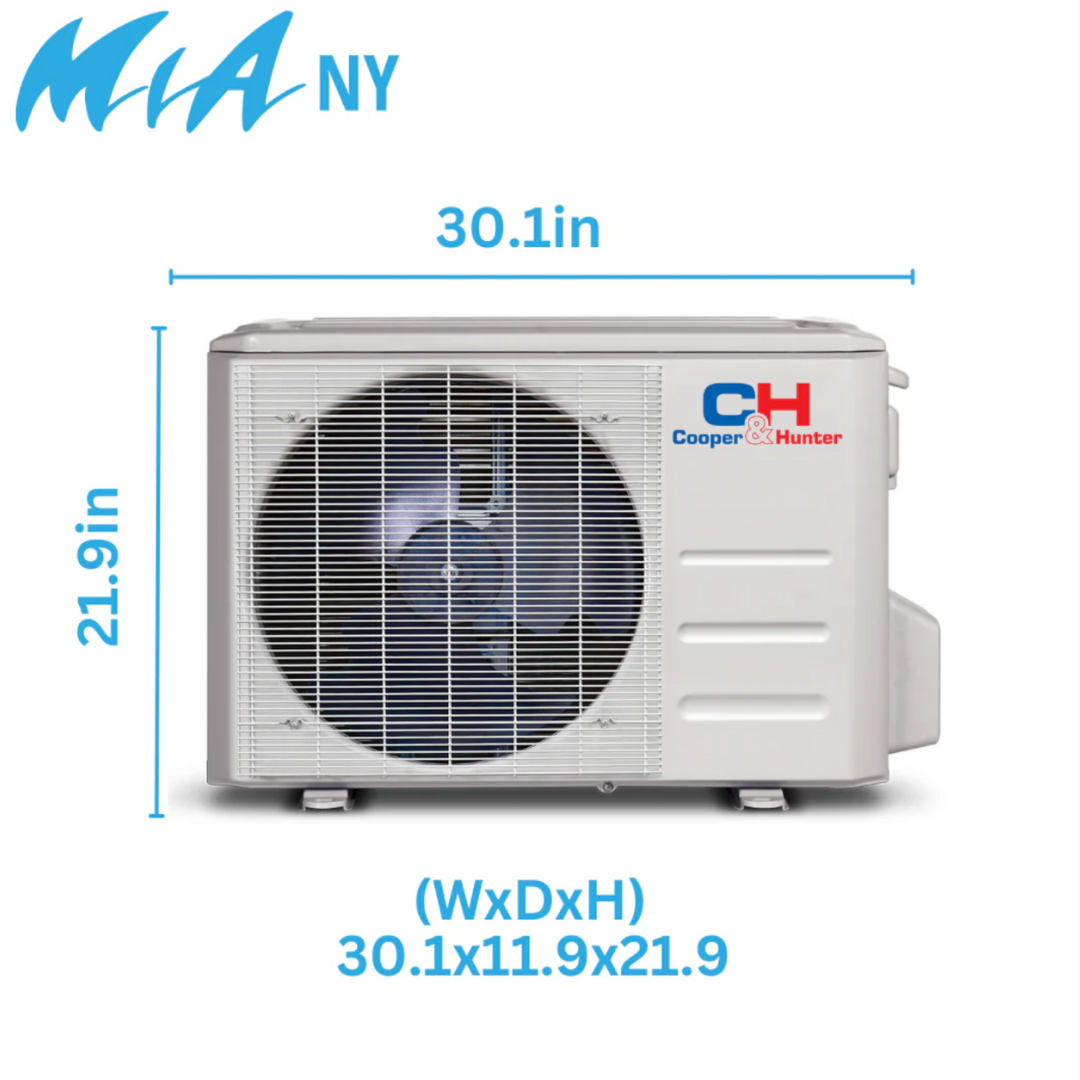

Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-RLS06MIA-115VO |
| Refrigerant type | R454B |
| BTU rated | 6,000 |
| Power source | 115V, 1Ph, 60Hz |
| Voltage range | 103.5–126.5 V |
| Cooling capacity (Min/Max) | 9,000 (2,200~9,900) |
| Heating capacity (Min/Max) | 10,000 (4,200~10,200) |
| Ambient temp (Cooling) | 5~122 |
| Ambient temp (Heating) | 5~75 |
| Refrigerant precharge | 25 |
| Additional charge (1/4" liquid) | 0.16 |
Documents & Downloads
Important
Professional installation is recommended. Verify electrical requirements, voltage range, and ambient operating limits before installation.
FAQs
What voltage does this system require?
115V, single phase, 60Hz.
Is this system single-zone or multi-zone?
Single-zone (one-to-one only).
What refrigerant does it use?
R454B.
What are the indoor operating ranges?
Cooling: 60–90. Heating: 32–86.
What are the outdoor ambient operating ranges?
Cooling: 5–122. Heating: 5–75.
What control options are supported?
Remote and Smart Kit app control are supported; 12V wall thermostat is optional (sold separately).
