Multiple-Capacity Medium Static Slim Duct + Hyper Outdoor • R454B • 208–230V
Cooper&Hunter 6,000 BTU Hyper Single Zone Slim Duct Ducted Minisplit Heat Pump System R454B 230V
Overview
Medium-static slim duct indoor unit with selectable capacity (6K / 9K / 12K) paired with a Hyper outdoor condenser. Designed for concealed ducted installs where space is limited and static pressure control is required.
Highlights
System Search
Voltage
208–230V (1Ph, 60Hz)
Max Line / Lift
82 ft / 49.2 ft
Outdoor MCA / Max Fuse
12A / 15A
Indoor Drain Size
1"
Indoor Filter
23.3 × 7.24 in

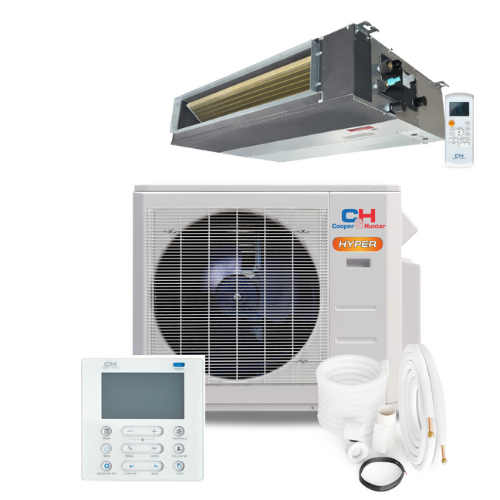

What’s Included
- Indoor: CH-RS06-12MDT-MS
- Outdoor: CH-RHP06F9-230VO
- Controller support: wire controller + remote controller available (varies by configuration)
- Built-in smart kit capability (setup required)
- Refrigerant sensor

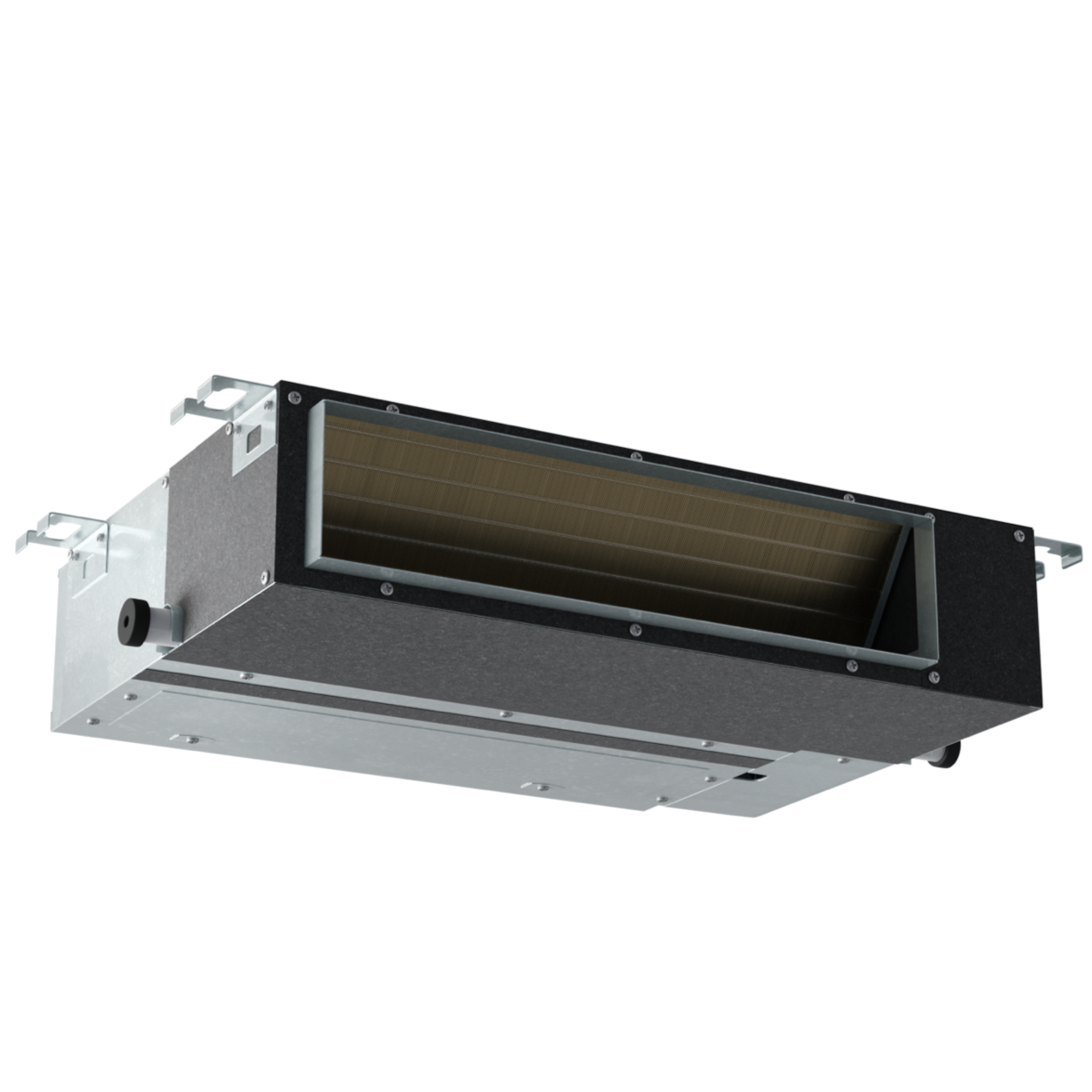

Indoor Specs (CH-RS06-12MDT-MS)
| Spec | Value |
|---|---|
| Refrigerant Type | R454B |
| System Type | Single Zone |
| BTU Rated | 12,000 (selectable capacity model) |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253V |
| Dehumidification | 2.66 pints/day |
| Filter Dimensions (W×D) | 23.3 × 7.24 in |
| Controller (listed) | Wire controller + remote controller available |
| Refrigerant Piping (Liquid/Gas) | 1/4" / 3/8" |
| EER2 | 12 |
| SEER2 | 20 |
| Minimum Circuit Ampacity | 3A |
| Max Fuse | 15A |
| Indoor Noise Level (H/M/L) | 36 / 34.5 / 32.5 dB(A) |
| Indoor Air Flow | 400.2 / 323.7 / 264.9 / 176.6 |
| ESP Range | 0–0.4 |
| Drainage Water Pipe Diameter | 1" |
| Operation Range – Cooling | 60–90°F |
| Operation Range – Heating | 32–86°F |
| Unit Dimensions (W×H×D) | 27.56 × 19.92 × 7.87 in |
| Packing Dimensions (W×D×H) | 33.86 × 21.26 × 11.22 in |
| Unit Net / Gross Weight | 39.46 / 46.74 lb |

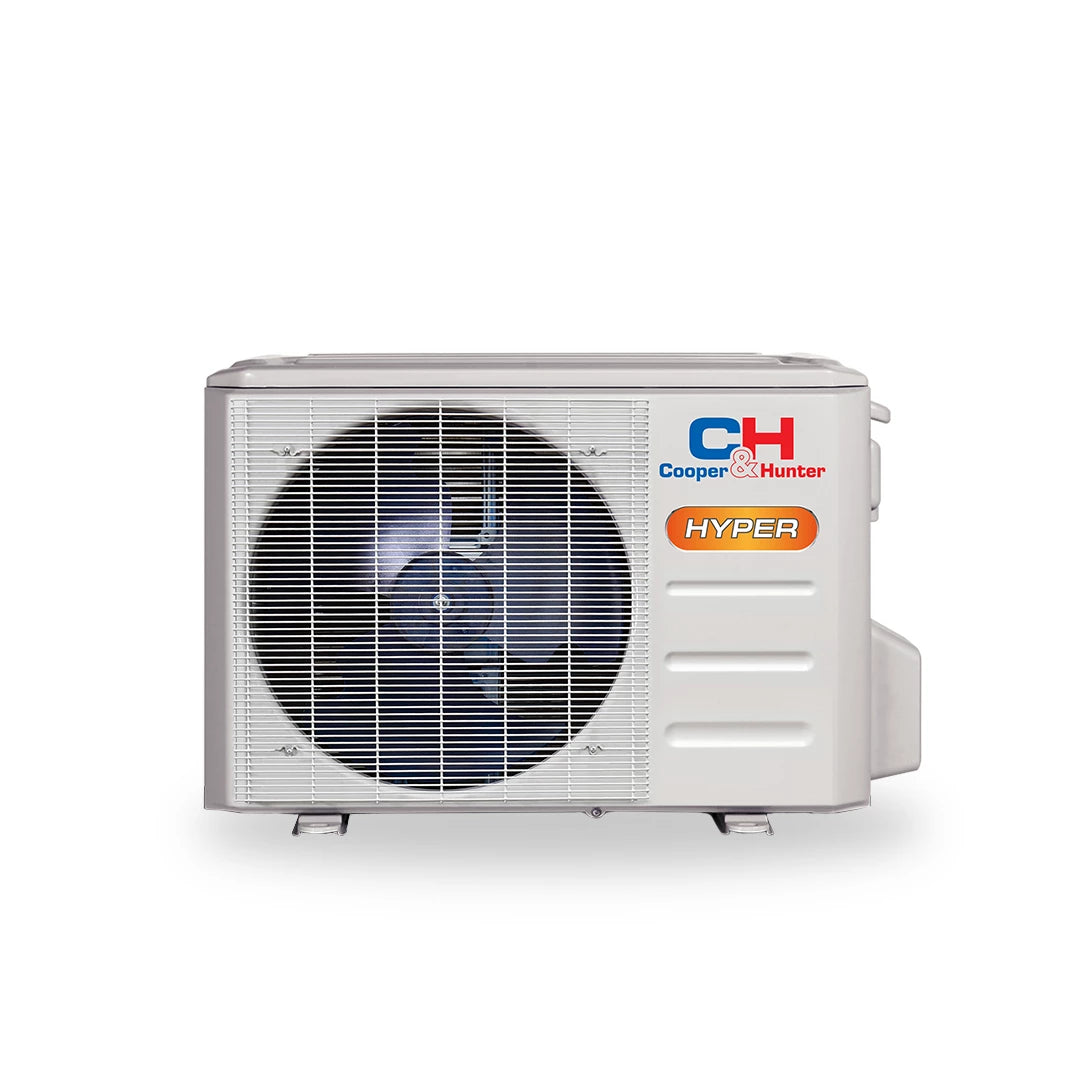

Outdoor Specs (CH-RHP06F9-230VO)
| Spec | Value |
|---|---|
| Refrigerant Type | R454B |
| BTU Rated | 6,000 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253V |
| Dehumidification | 0.63 pints/day |
| Max Pipe Length | 82 ft |
| Max Height Difference (Indoor↔Outdoor) | 49.2 ft |
| Refrigerant Piping (Liquid/Gas) | 1/4" / 3/8" |
| HSPF2-5 / HSPF2-4 | 11.5 / 14.8 |
| Cooling Capacity (Min/Max) | 6,000 (2,300–12,600) BTU/h |
| Heating Capacity (Min/Max) | 7,000 (3,000–11,000) BTU/h |
| COP | 4.2 |
| Ambient Temperature – Cooling | -22 to 122°F |
| Ambient Temperature – Heating | -22 to 75°F |
| Refrigerant Precharge | 25 |
| Outdoor Noise Level | 53 dB |
| Outdoor Air Flow | 1,235.3 |
| Minimum Circuit Ampacity | 12A |
| Max Fuse | 15A |

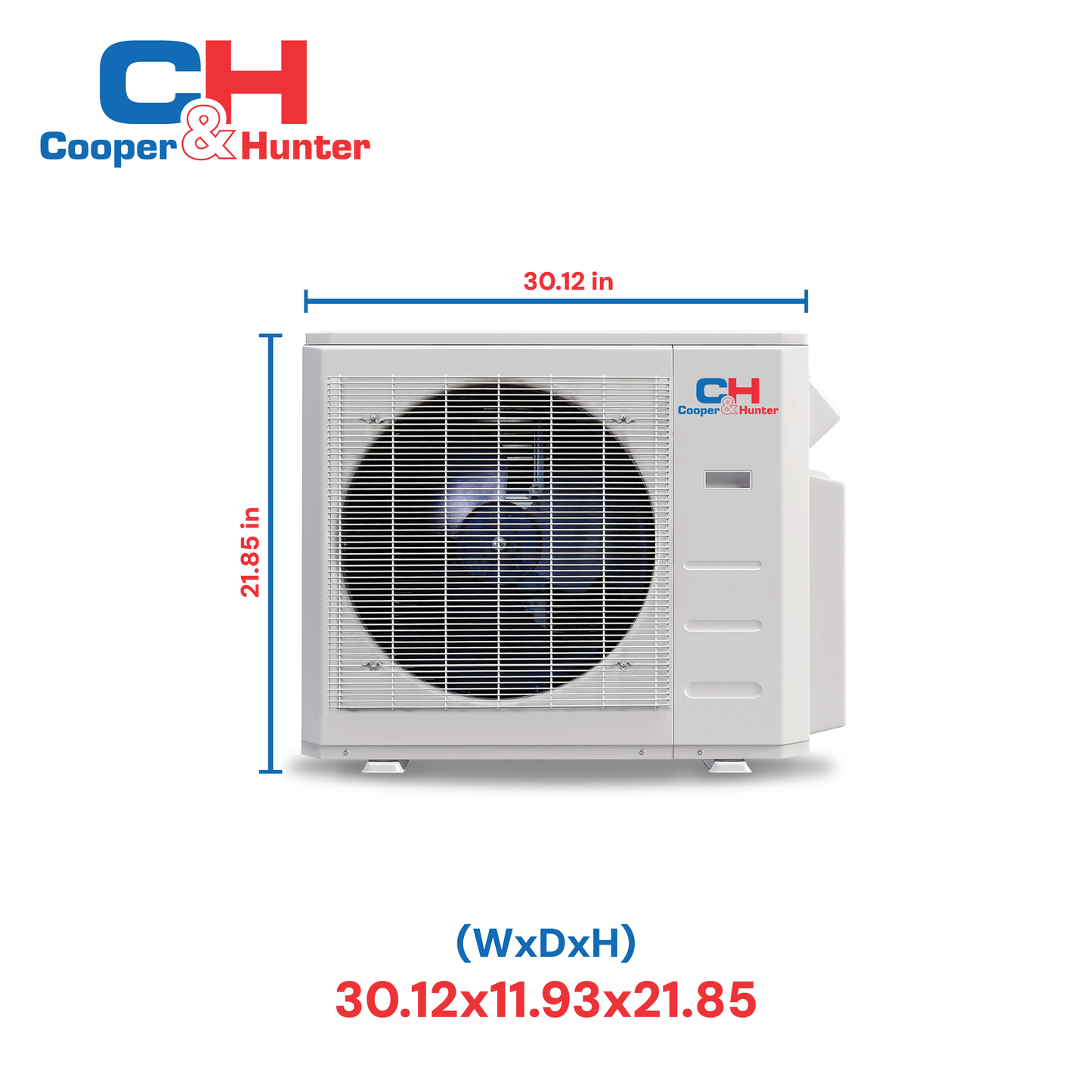

| Unit Dimensions (W×H×D) | 30.12 × 11.93 × 21.85 in |
| Packing Dimensions (W×D×H) | 34.92 × 13.27 × 24.02 in |
| Unit Net / Gross Weight | 62.17 / 67.68 lb |
| Additional Refrigerant Charge (3/8 liquid line) | / |
| Additional Refrigerant Charge (1/4 liquid line) | 0.16 |
| AHRI | 215864151 |
Documents & Downloads
- Matched Submittal (This Pairing): CH-RHP06F9-230VO + CH-RS06-12MDT--MS
- Additional Submittals (as provided)
- CH-RHP06F9-230VO + CH-PRO06MASTWM-230VI
- CH-RHP06F9-230VO + CH-RH06MASTWM-230VI
- Indoor Manuals
- 120N Wire Controller — Owner’s Manual
- Installation Manual — Medium Static Duct
- Owner’s Manual — Medium Static Duct
- SlimDuct Leaflet — R454B
- Outdoor Manuals
- Installation Manual — R454B Outdoor Units
- SlimDuct Leaflet — R454B
Important
- Use the specified line set size: 1/4" liquid and 3/8" suction (gas).
- Confirm duct design and target ESP are within the 0–0.4 range.
- Support: hvacsupplies.com/pages/contact • (800) 543-8933
FAQs
How do I choose 6K / 9K / 12K capacity?
This indoor unit is a multiple-capacity model; capacity is changed using the unit’s dip switch settings (ENC1).
What is the static pressure (ESP) range?
The ESP range is 0–0.4.
What line set size does this system use?
1/4" liquid line and 3/8" suction (gas) line.
What are the maximum piping limits?
Max pipe length is 82 ft and max height difference is 49.2 ft.
What are the operating temperature ranges?
Indoor operation: Cooling 60–90°F and Heating 32–86°F. Outdoor ambient: Cooling -22–122°F and Heating -22–75°F.
What controllers are supported?
The indoor unit lists “wire controller + remote controller available.” Controls can vary by configuration.
Does it support app control?
A built-in smart kit; app control requires setup and network configuration.
What is the indoor drain connection size?
The drainage water pipe diameter is 1".
What is the AHRI number for this outdoor unit?
AHRI is 215864151.
