Cooper&Hunter

Cooper&Hunter 6,000 BTU Hyper Single Zone One-Way Cassette Minisplit Heat Pump System R454B 230V

SKU: CH-RSH06-12MCT1W + CH-RHP06F9-230VO

AC Type

One-way Cassette

Refrigerant Type

R454B

Brand

Cooper&Hunter

Outdoor Unit

6000 BTU VO (0.5 TON)

Indoor Unit

6000 BTU (0.5 TON)

Voltage

208-230V

Looking For

One-way Cassette

Cooling Area (sq.ft.)

150-250

Series

Hyper

SEER2 Rating

22.0

Line Set Length No installation 16FT 25FT 50FT

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$2,415.00

Shipping calculated at checkout.

View full details

Single Zone • One-Way Ceiling Cassette • 6K–12K Configurable • R454B • 208–230V

Cooper&Hunter 6,000 BTU Hyper Single Zone One-Way Cassette Minisplit Heat Pump System R454B 230V

Overview

Compact, between-joist one-way ceiling cassette built for flexible installs in smaller spaces. The CH-RSH06-12MCT1W supports capacity selection (6K / 9K / 12K) via ENC1 dip switch and includes a built-in condensate pump. Pairing with the Hyper outdoor unit adds strong low-ambient performance for heating and cooling.

Highlights

R454B Refrigerant Between-Joist Fit 6K / 9K / 12K Selectable Built-In Pump Humidity Sensor Refrigerant Sensor Hyper Heating Outdoor

Designed to fit cleanly between structural ceiling beams for flexible placement.
Capacity can be set to 6K, 9K, or 12K via ENC1 dip switch for right-sized comfort.
Built-in condensate pump helps simplify drainage routing.
Humidity and refrigerant sensors support stable indoor conditions and system monitoring.
Hyper outdoor unit supports operation down to -22°F ambient in heating.

Indoor Model

CH-RSH06-12MCT1W

Outdoor Model

CH-RHP06F9-230VO

Line Set Size

1/4" Liquid • 3/8" Gas

Selectable Capacity

6K / 9K / 12K (ENC1)

Max Line Length

82 ft

Low-Ambient Heating

Down to -22°F

What’s Included

Indoor one-way ceiling cassette: CH-RSH06-12MCT1W
Outdoor condenser: CH-RHP06F9-230VO (Hyper)
Remote control (indoor control package)
Built-in condensate pump (indoor)
Smart kit capability for app control (setup required)

Indoor Specs (CH-RSH06-12MCT1W)

Spec	Value
Refrigerant Type	R454B
System Type	Single Zone
BTU Rated	12,000 (capacity selectable: 6K / 9K / 12K)
Power	208–230V • 1Ph • 60Hz (Voltage Range: 187–253V)
SEER2 / EER2	23 / 13
Dehumidification	3.57 pints/day
Indoor Airflow (CFM)	353.2 / 312 / 282.5 / 247.2
Noise (dB(A))	41 / 37 / 33 (H/M/L)

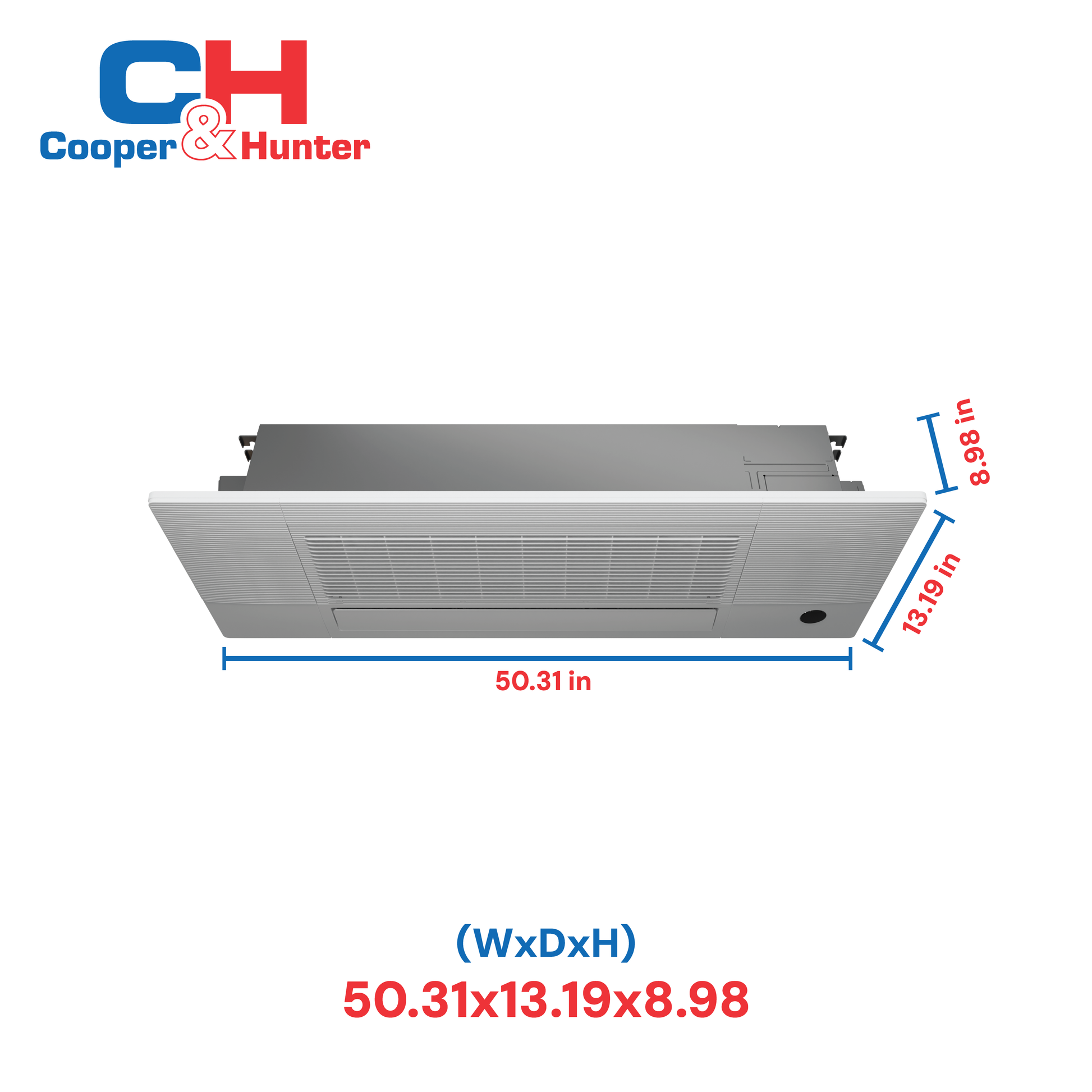

Unit Dimensions (W×D×H)	50.31 × 13.19 × 8.98 in
Net / Gross Weight	45.19 / 82.45 lb
Refrigerant Piping	1/4" Liquid • 3/8" Gas
Drain Pipe Diameter	3/4"
Operating Range	Cooling: 60–90°F • Heating: 32–86°F
Minimum Circuit Ampacity	3 A
Max Fuse	15 A
Packing Dimensions (WxDxH)	57.60 × 22.48 × 22.64 in

Outdoor Specs (CH-RHP06F9-230VO)

Spec	Value
Refrigerant Type	R454B
BTU Rated	6,000
Cooling Capacity (Min–Max)	6,000 (2,300–12,600) BTU/h
Heating Capacity (Min–Max)	7,000 (3,000–11,000) BTU/h
HSPF2 (Region IV / V)	14.8 / 11.5
COP	4.2
AHRI	215864151
Power	208–230V • 1Ph • 60Hz (Voltage Range: 187–253V)
Max Pipe Length	82 ft
Max Height Difference	49.2 ft
Minimum Circuit Ampacity	12 A
Max Fuse	15 A
Outdoor Airflow	1,235.3 CFM
Outdoor Noise	53 dB(A)

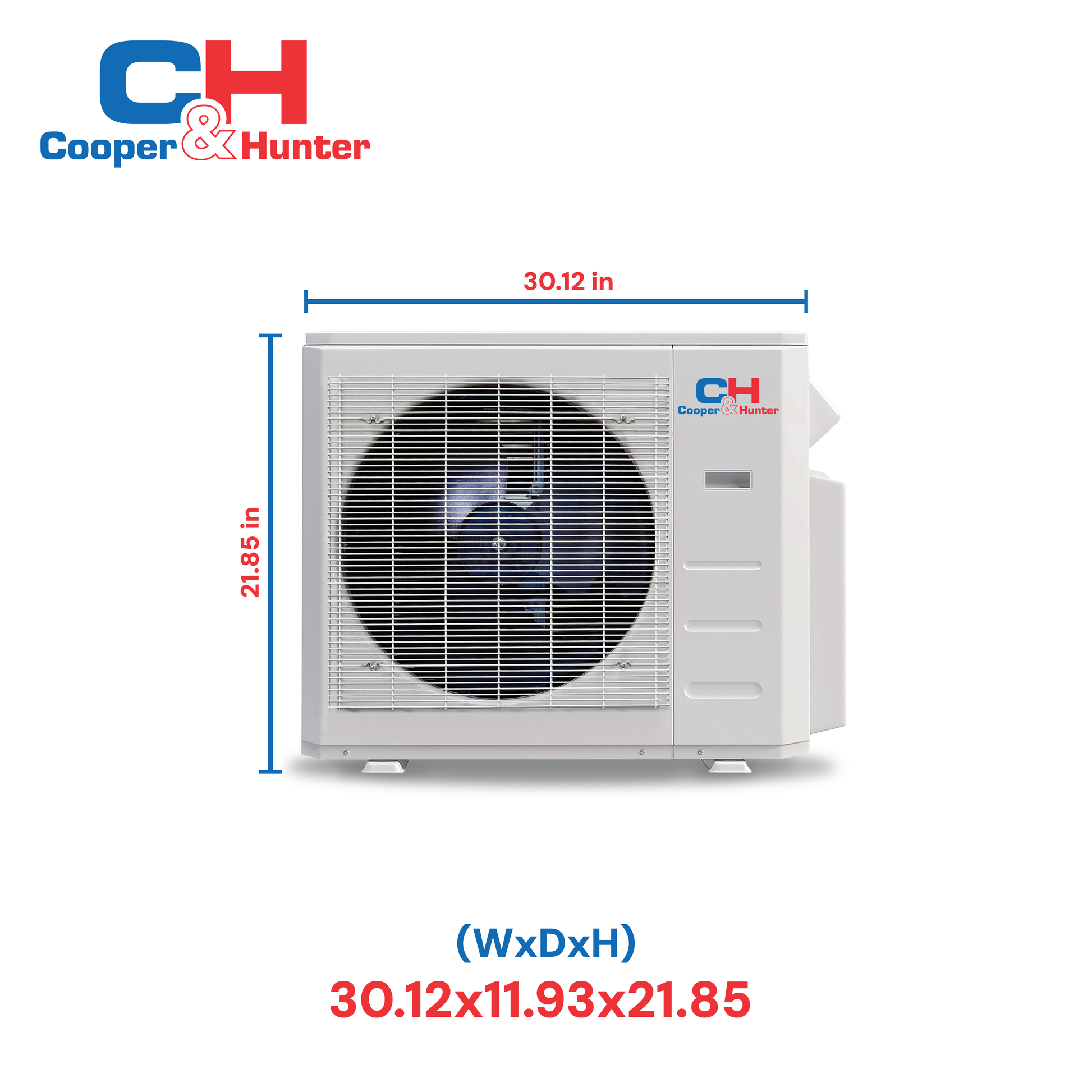

Unit Dimensions (W×D×H)	30.12 × 11.93 × 21.85 in
Net / Gross Weight	62.17 / 67.68 lb
Ambient Temperature	Cooling: -22–122°F • Heating: -22–75°F
Additional Charge	0.16 oz/ft (1/4" liquid line)
