Cooper&Hunter • Hyper Heat • One-Way Cassette System • R410A • 230V
Cooper&Hunter 6,000 BTU Hyper Single Zone One-Way Cassette Minisplit Heat Pump System — CH-06MCT1W-230VI + CH-HPR06F9-230VO
Compact one-way cassette indoor unit paired with a Hyper Heat outdoor condenser for efficient year-round comfort.
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Overview

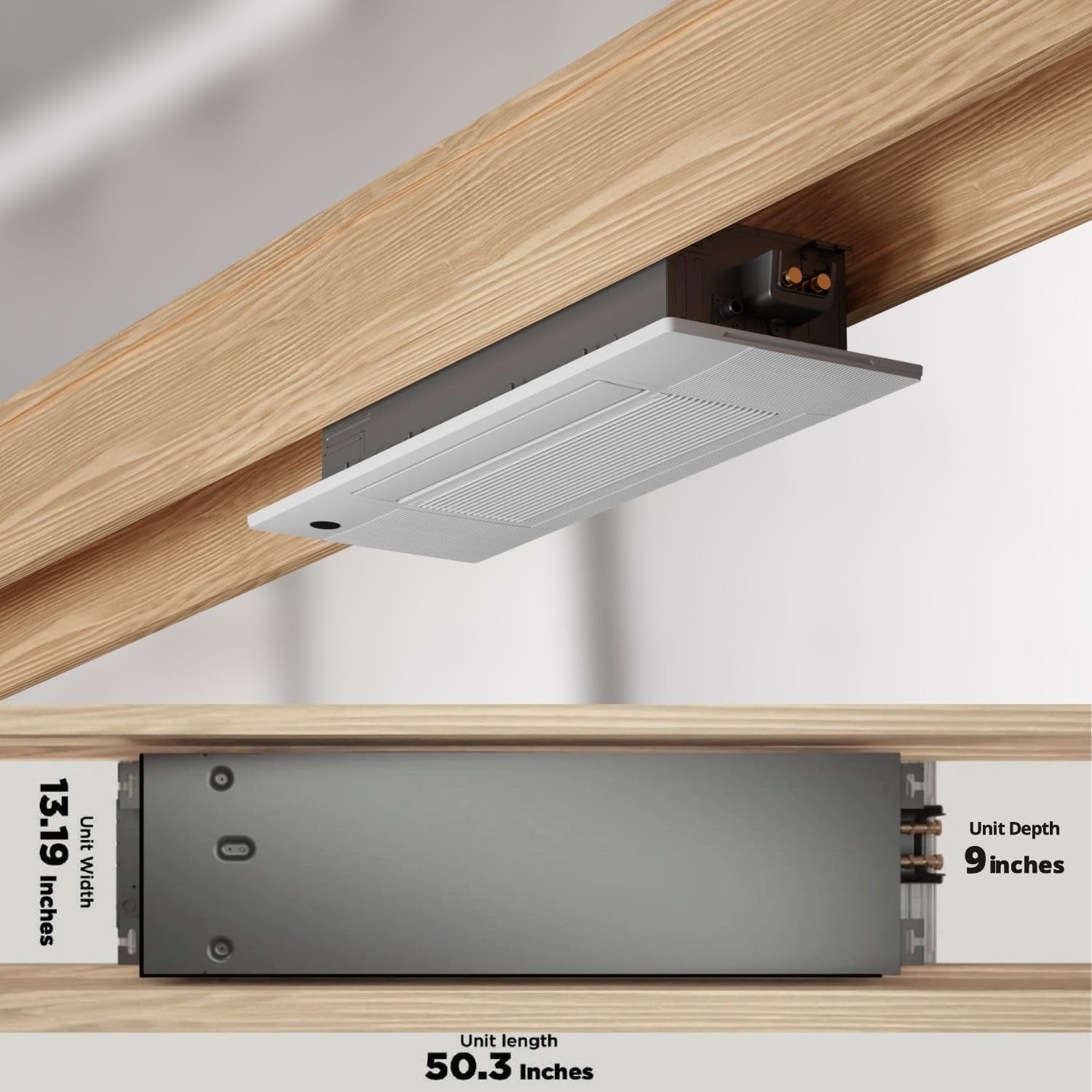

The Cooper&Hunter One-Way Cassette is designed for tight ceiling spaces and precise directional airflow, making it a strong fit for smaller rooms and compact applications. With a slim profile (listed at 13.19" width and ~9" depth), it can fit between structural ceiling beams and is described as requiring only 3-inch conduit holes.
This listing bundles the CH-06MCT1W-230VI indoor cassette with the CH-HPR06F9-230VO Hyper Heat outdoor condenser for a single-zone heat pump system. Hyper Heat is designed for cold-climate performance with heating operation described down to -22°F.
Highlights
6,000 BTU Class Hyper Heat Outdoor (to -22°F heat) One-Way Directional Airflow R410A 208–230V 1Ph SEER2 23.5 (Outdoor) HSPF2 10 (Region V) Low Profile Ceiling Install

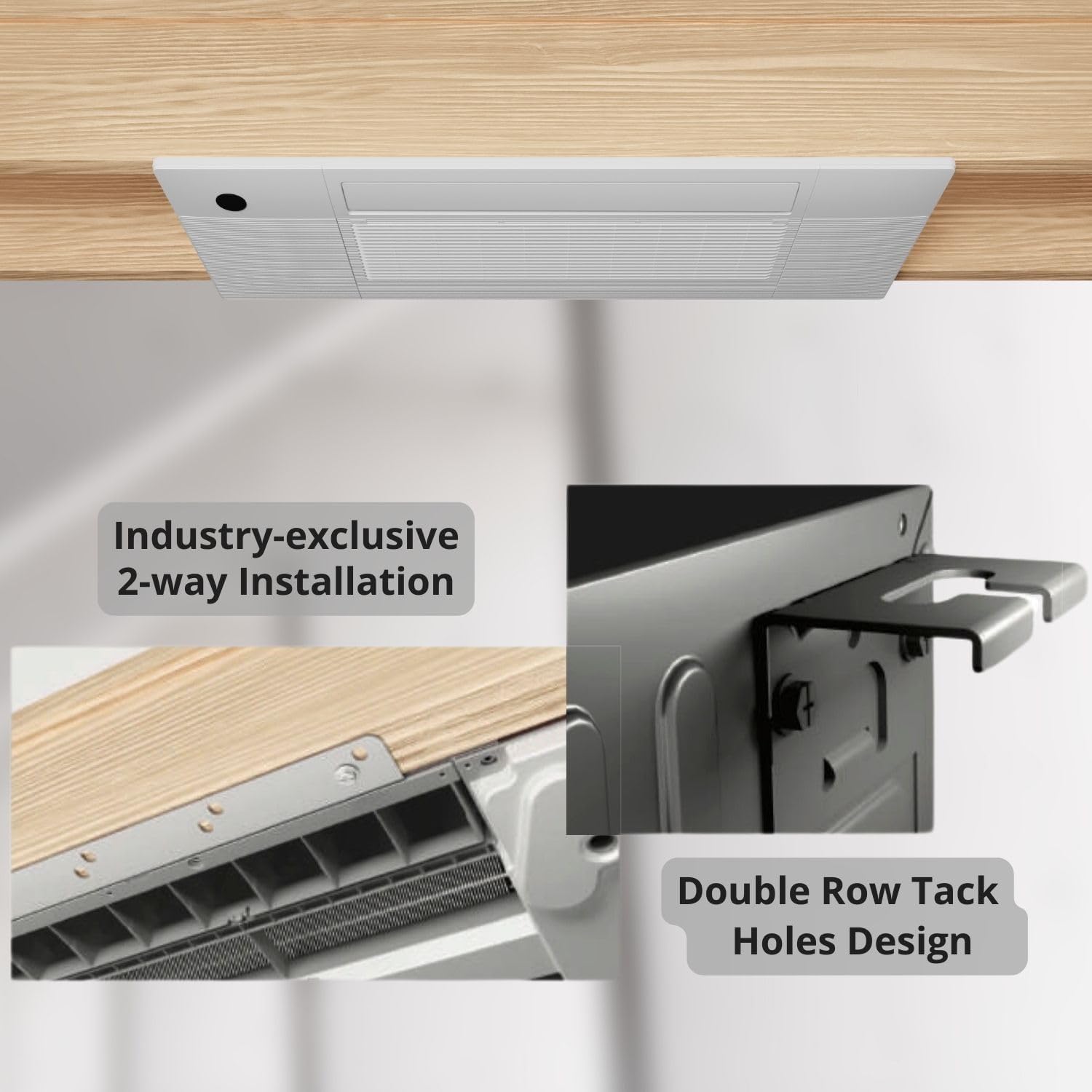

- Space-saving cassette: designed to install snugly between ceiling beams; compact depth for tight cavities.
- Precision comfort: one-way discharge supports targeted cooling/heating where you need it.

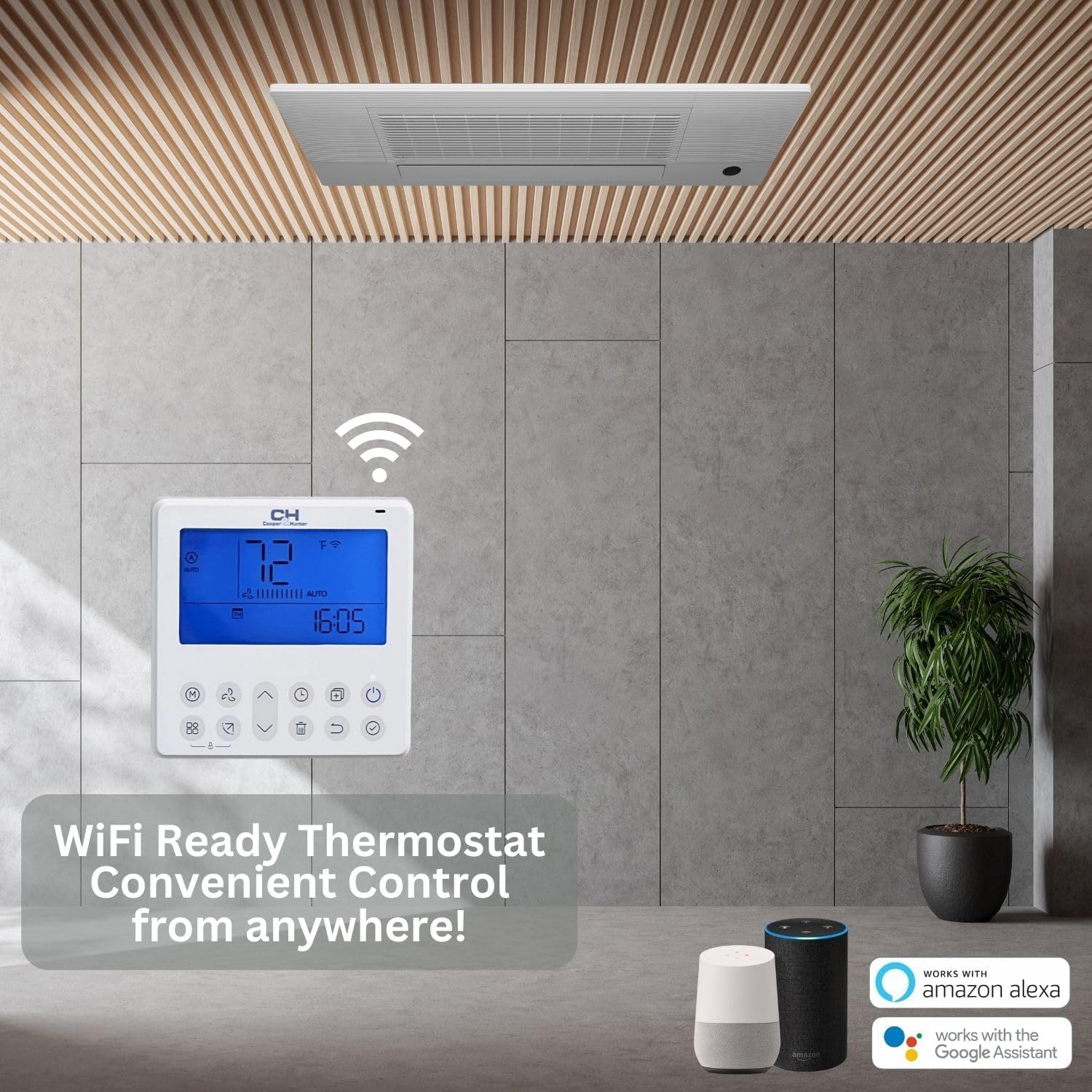

- Control options: indoor unit supports RG10K remote plus wired controller options (120X / 120N).
- Cold-climate capability: Hyper Heat outdoor unit lists heating ambient range down to -22°F.
IndoorCH-06MCT1W-230VI
OutdoorCH-HPR06F9-230VO
Voltage208–230V
ZonesSingle-zone

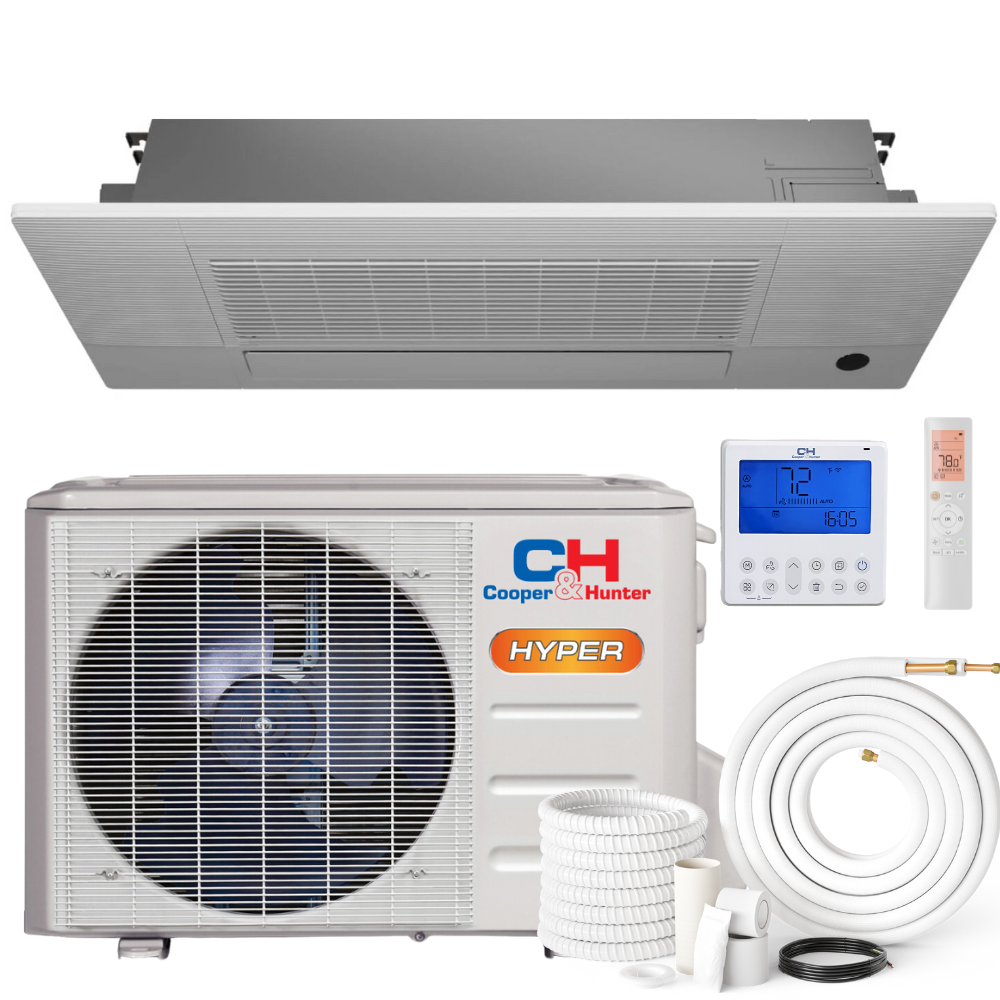

What’s Included
- Indoor Unit: CH-06MCT1W-230VI (One-Way Cassette)
- Outdoor Unit: CH-HPR06F9-230VO (Hyper Heat Condenser)
- Handheld remote control (included with indoor unit)

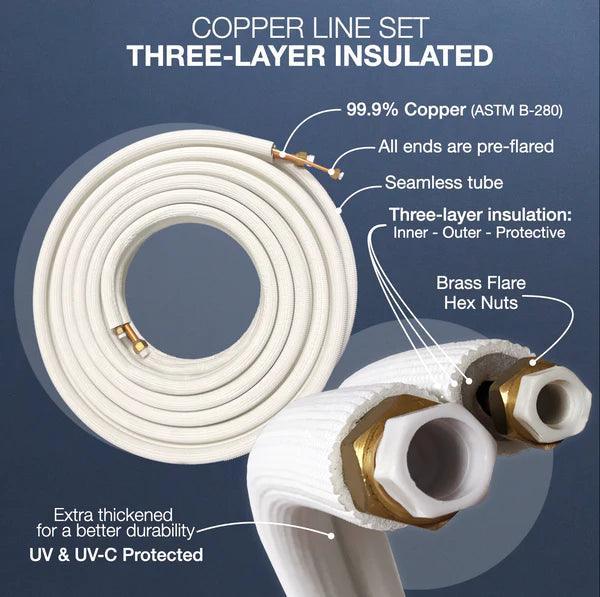

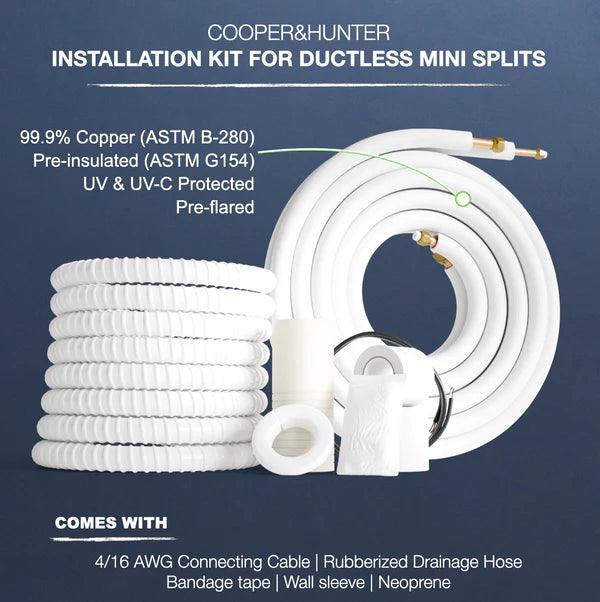

Installation Kits: Not included unless selected in the Variant Options: No Installation, 16ft, 25ft, or 50ft.
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-06MCT1W-230VI |
| System Type | Single/Multi-zone unit (indoor compatibility noted) |
| BTU Rated | 6,000 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |
| Dehumidification | 2.16 pints/day |
| EER2 | 14.5 |
| SEER2 | 22 (system rating depends on pairing) |
| Controller | RG10K-exclusive remote & 120X or 120N wire controller |
| Refrigerant Piping (Liquid / Gas) | 1/4" – 3/8" |

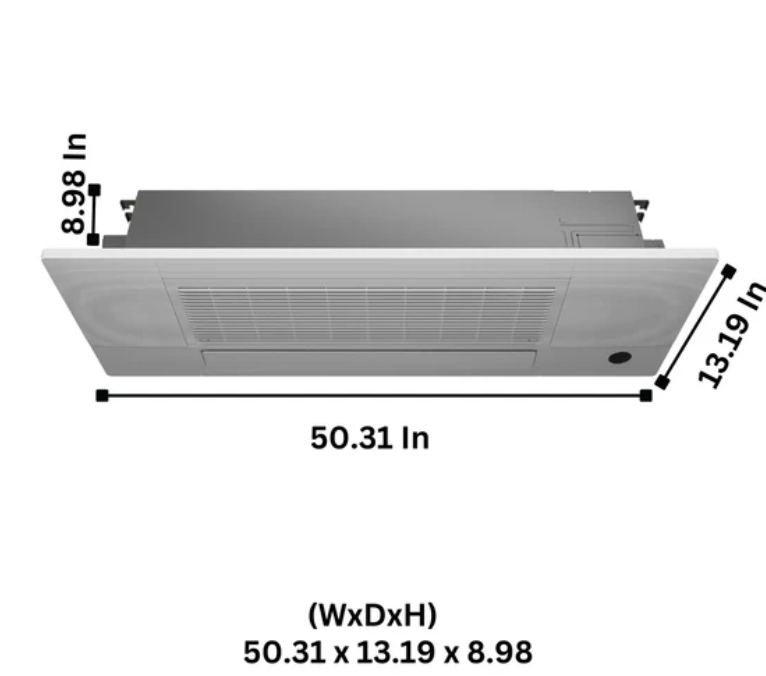

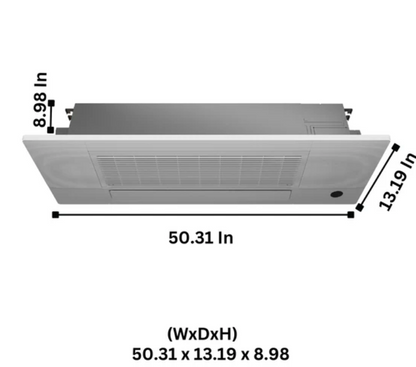

| Unit Dimensions (W×H×D) | 50.31 × 13.19 × 8.98 in |
| Packing Dimensions (W×D×H) | 57.60 × 22.48 × 22.64 in |
| Unit Net / Gross Weight | 43.87 / 81.35 lb |
| Operating Range (Heating) | 32–86°F |
| Operating Range (Cooling) | 60–90°F |
| MCA | 3 A |
| Max Fuse | 15 A |
| Indoor Noise (H/M/L) | 37.5 / 35.5 / 32.5 dB(A) |
| Indoor Air Flow | 341.18 / 294.12 / 258.82 / 235.29 |
| Drain Pipe Diameter | 1" |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-HPR06F9-230VO |
| Refrigerant Type | R410A |
| System Type | Single-zone unit |
| BTU Rated | 6,000 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |
| Max Pipe Length | 82.02 ft |
| Refrigerant Piping (Liquid / Gas) | 1/4" / 3/8" |
| Refrigerant Precharge | 25 |
| Additional Charge (1/4" liquid line) | 0.16 |
| Efficiency | SEER2: 23.5 • EER2: 15 |
| HSPF2 | Region V (HSPF2-5): 10 • Region IV (HSPF2-4): 12 |
| Cooling Capacity (Min/Max) | 6,000 (2,500–11,800) BTU/h |
| Heating Capacity (Min/Max) | 7,000 (3,400–11,230) BTU/h |
| COP | 3.76 |
| Ambient Temp (Heating) | -22–75°F |
| Ambient Temp (Cooling) | -22–122°F |

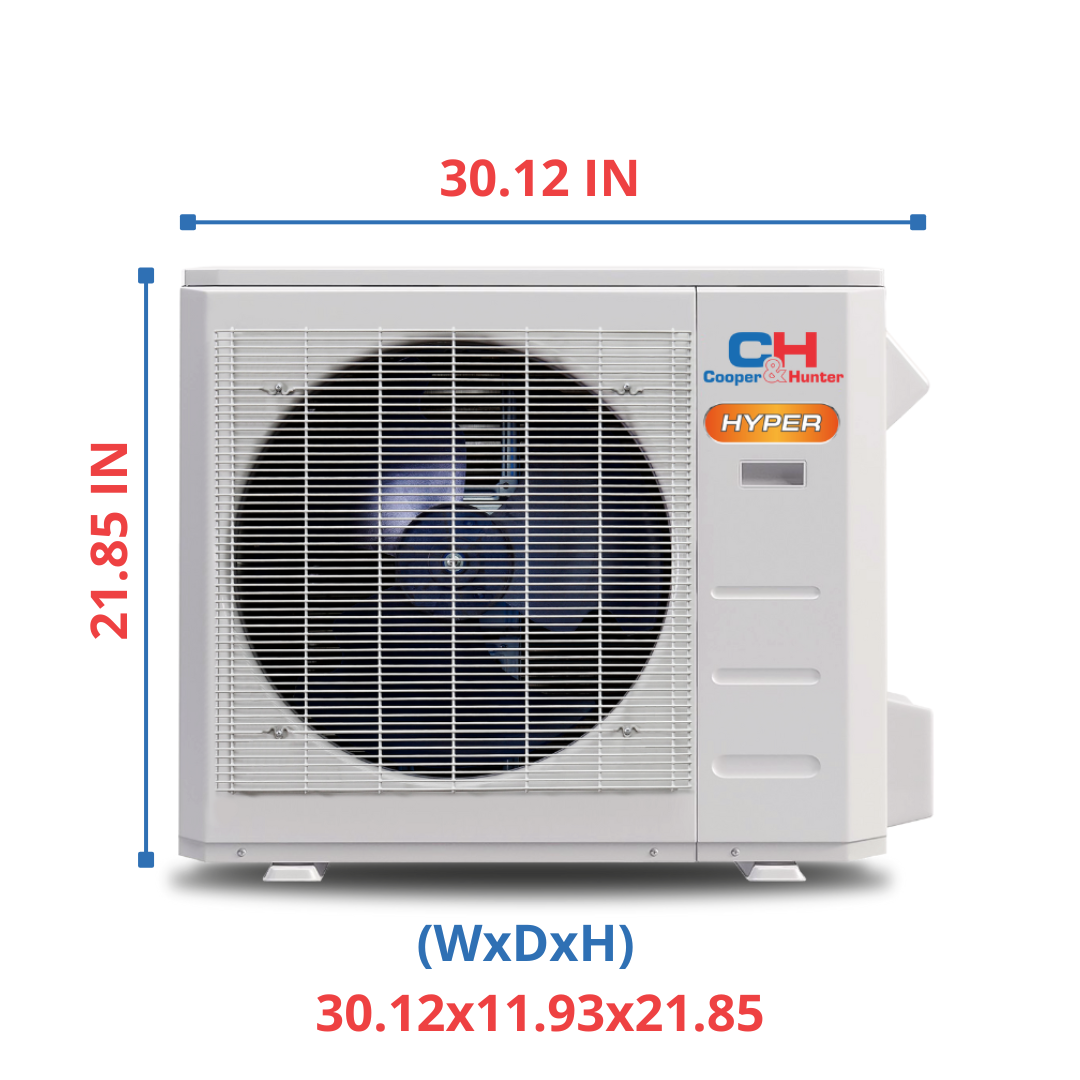

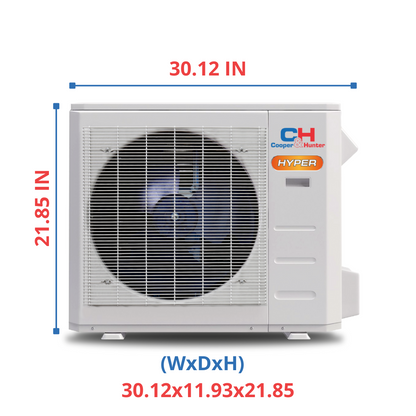

| Unit Dimensions (W×H×D) | 30.12 × 11.93 × 21.85 in |
| Packing Dimensions (W×D×H) | 34.92 × 13.27 × 24.02 in |
| Unit Net / Gross Weight | 63.71 / 69.00 lb |
| Outdoor Noise Level | 53.5 dB(A) |
| Outdoor Air Flow | 1,294.12 |
| MCA | 13 A |
| Max Fuse | 15 A |
| Max Height Difference (IDU/ODU) | 32.81 |
Documents & Downloads
- Submittal — CH-06MCT1W-230VI + CH-HPR06F9-230VO (PDF)
- One-Way Cassette Leaflet 2024 (PDF)
- User Manual (PDF)
- Remote Controller Manual (PDF)
- MultiZone Combination — HYPER (PDF)
- MultiZone Combination — Regular (PDF)
- Submittal — CH-HPR06F9-230VO + CH-06MOLVWM-230VI (PDF)
- Submittal — CH-HPR06F9-230VO + CH-B06MOLVWM-230VI (PDF)
- Submittal — CH-HPR06F9-230VO + CH-06MASTWM-230VI (PDF)
Videos
Mini-Splits
Important
Professional installation is recommended. Performance and efficiency depend on installation conditions and line set design. Confirm clearance, condensate routing, and compatibility before ordering.
FAQs
Is this system single-zone or multi-zone?
This bundle is configured as a single-zone system
How cold can it heat?
The Hyper Heat outdoor unit lists heating ambient operation down to -22°F.
What line set sizes does it use?
Outdoor refrigerant piping is listed as 1/4" liquid and 3/8" gas. The indoor unit lists 1/4" – 3/8".
Does the one-way cassette fit tight ceiling cavities?
It is described as fitting between ceiling beams, with a compact form factor (listed indoor dimensions include 13.19" in one direction and 8.98" depth).
