Cooper&Hunter

Cooper&Hunter 48,000 BTU Hyper Single Zone Slim Duct Ducted Minisplit Heat Pump System R454B 230V

SKU: CH-RS48LCDT-HS + CH-RHP48LCU-230VO

System highlights
AC Type
Slim Duct
Refrigerant Type
R454B
Brand
Cooper&Hunter
Outdoor Unit
48000 BTU VO (4.0 TON)
Indoor Unit
48000 BTU (4.0 TON)
Voltage
208-230V
Looking For
Slim Duct
Cooling Area (sq.ft.)
1500 and up
Series
Hyper
SEER2 Rating
16.7
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$5,755.00
Shipping calculated at checkout.
View full details

High Static Slim Duct + Hyper Outdoor • R454B • 208–230V

Cooper&Hunter 48,000 BTU Hyper Single Zone Slim Duct Ducted Minisplit Heat Pump System R454B 230V

Overview

48K high-static slim duct indoor unit built for concealed ducted installs in single-zone and light commercial applications. High external static pressure supports longer duct runs and consistent airflow delivery. Built-in smart kit connectivity support, refrigerant sensor monitoring, and multiple control options provide flexible control for demanding spaces.

Highlights

Capacity: 48,000 BTU Refrigerant: R454B SEER2: 16.7 ESP Range: 0–0.8 Line Set: 3/8" × 3/4" Heating Ambient: -22°F to 75°F Cooling Ambient: -22°F to 122°F

System Search

CH-RS48LCDT-HS + CH-RHP48LCU-230VO

Voltage

208–230V (1Ph, 60Hz)

Voltage Range

187–253V

Max Line / Lift

246 ft / 98.4 ft

Outdoor MCA / Max Fuse

44A / 45A

Drain Size

1"

  • High static pressure ducted performance (ESP 0–0.8)
  • Smart kit connectivity support with app control
  • Controls: remote + wall thermostat + wired controller support
  • TU1 copper tubing design
  • Refrigerant sensor for system monitoring
  • Hyper Heating operation down to -22°F heating ambient
  • Horizontal or vertical indoor installation flexibility

What’s Included

  • Indoor unit: CH-RS48LCDT-HS
  • Outdoor unit: CH-RHP48LCU-230VO
  • Remote control and wall thermostat
  • Wired controller support (wire controller + remote controller available)
  • Smart kit connectivity support

Indoor Specs (CH-RS48LCDT-HS)

Spec Value
Refrigerant Type R454B
System Type Single Zone
BTU Rated 48,000
Power Source 208–230V, 1Ph, 60Hz
Voltage Range 187–253V
Dehumidification 8.92 pints/day
Filter Dimensions (W×D) 21.26 × 10.12 in
Controller Wire controller + remote controller available
Refrigerant Piping (Liquid/Gas) 3/8" / 3/4"
EER2 10.4
SEER2 16.7
Minimum Circuit Ampacity 5A
Max Fuse 15A
Indoor Noise Level (H/M/L) 51 / 46 / 42
Indoor Air Flow 1,648.1 / 1,471.5 / 1,294.9 / 1,059.5
ESP Range 0–0.8
Drainage Water Pipe Diameter 1"
Operation Range – Heating 32–86°F
Operation Range – Cooling 60–90°F

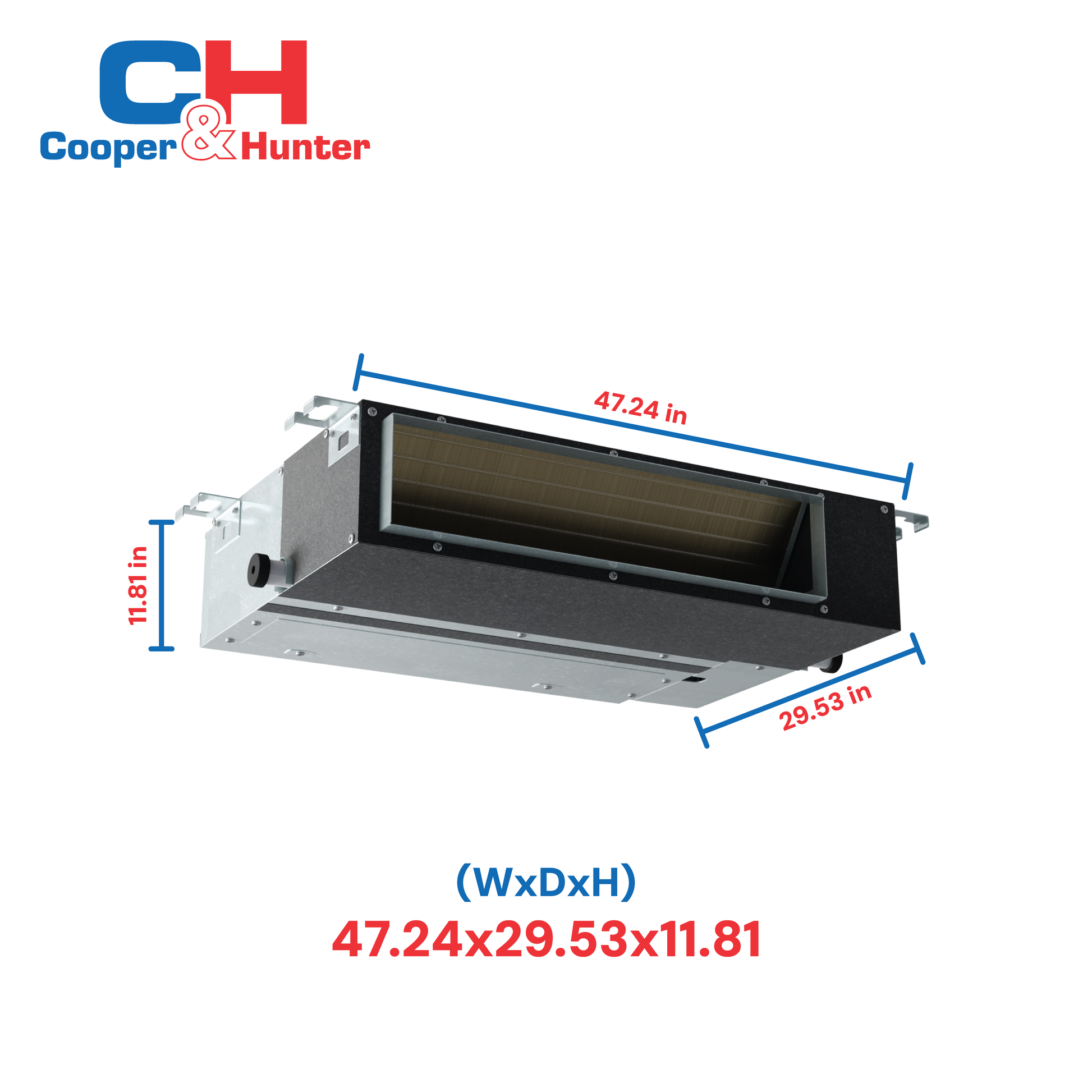

Unit Dimensions (W×H×D) 47.24 × 29.53 × 11.81 in
Packing Dimensions (W×D×H) 56.10 × 33.86 × 14.13 in
Unit Net / Gross Weight 111.33 / 124.78 lb

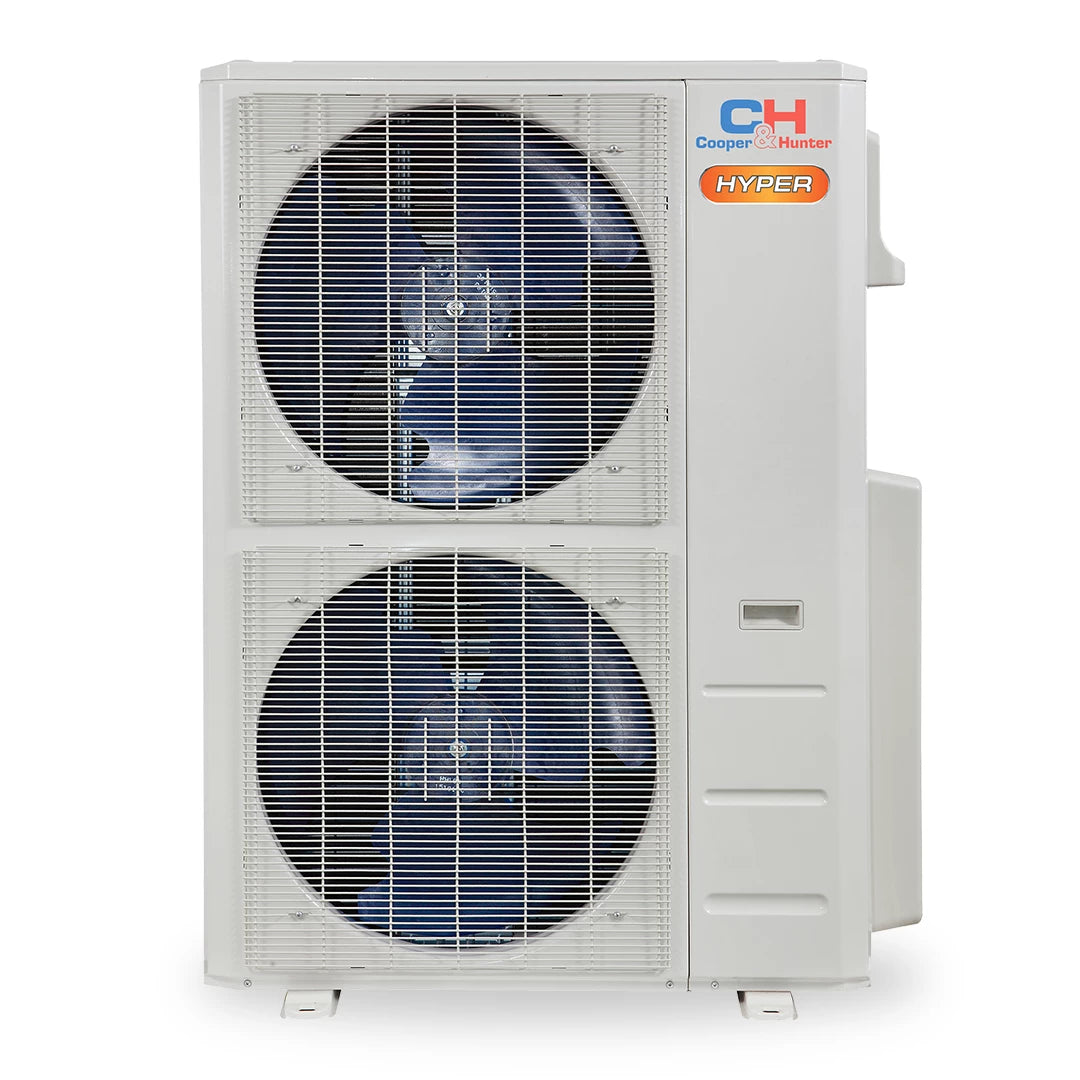

Outdoor Specs (CH-RHP48LCU-230VO)

Spec Value
Refrigerant Type R454B
System Type Single-zone unit
BTU Rated 48,000
Power Source 208–230V, 1Ph, 60Hz
Voltage Range 187–253V
Dehumidification 8.92 pints/day
Max Pipe Length 246 ft
Max Height Difference (Indoor↔Outdoor) 98.4 ft
Refrigerant Piping (Liquid/Gas) 3/8" / 3/4"
HSPF2-5 / HSPF2-4 8.8 / 10.8
EER2 10.4
SEER2 16.7
Cooling Capacity (Min/Max) 48,000 (11,000–56,500) BTU/h
Heating Capacity (Min/Max) 52,000 (11,200–60,000) BTU/h
COP 3.6
Ambient Temperature – Heating -22 to 75°F
Ambient Temperature – Cooling -22 to 122°F
Refrigerant Precharge 25
Outdoor Noise Level 65
Outdoor Air Flow 4,237.9
Minimum Circuit Ampacity 44A
Max Fuse 45A
Additional Refrigerant Charge (3/8 liquid line) 0.32
Unit Dimensions (W×H×D) 37.48 × 16.34 × 52.48 in
Packing Dimensions (W×D×H) 43.11 × 19.49 × 57.48 in
Unit Net / Gross Weight 208.78 / 239.86 lb

Documents & Downloads

Important

  • Line set: 3/8" liquid and 3/4" suction (gas).
  • Max piping: 246 ft total length and 98.4 ft vertical separation.
  • Outdoor electrical: MCA 44A, max fuse 45A.
  • Indoor electrical: minimum circuit ampacity 5A, max fuse 15A.
  • Support: hvacsupplies.com/pages/contact • (800) 543-8933

FAQs

What line set size does this system use?

3/8" liquid line and 3/4" suction (gas) line.

What is the external static pressure range?

ESP range: 0–0.8.

What are the indoor airflow values?

1,648.1 / 1,471.5 / 1,294.9 / 1,059.5.

What are the indoor noise levels?

51 / 46 / 42 (H/M/L).

What are the outdoor capacity ranges?

Cooling: 48,000 (11,000–56,500) BTU/h. Heating: 52,000 (11,200–60,000) BTU/h.

What is the maximum piping length and vertical separation?

246 ft maximum piping length and 98.4 ft maximum height difference.

How cold can it operate in heating?

Heating ambient range: -22°F to 75°F.

What is the cooling ambient range?

Cooling ambient range: -22°F to 122°F.

What electrical does the system use?

208–230V, 1Ph, 60Hz. Voltage range: 187–253V. Outdoor MCA 44A (max fuse 45A). Indoor MCA 5A (max fuse 15A).

What controls are supported?

Remote control and wall thermostat, plus wired controller support.

Can the indoor unit be installed horizontally or vertically?

Yes. The indoor unit supports horizontal or vertical installation.

What is the indoor drain connection size?

1" drainage water pipe diameter.
