Cooper&Hunter Light Commercial Hyper • Slim Duct • R410A • 208–230V
Cooper&Hunter 48,000 BTU Hyper Single Zone Slim Duct Ducted Minisplit Heat Pump System R410A 230V
SKU: CH-48LCDTU/I + CH-NHPR48LCU-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview

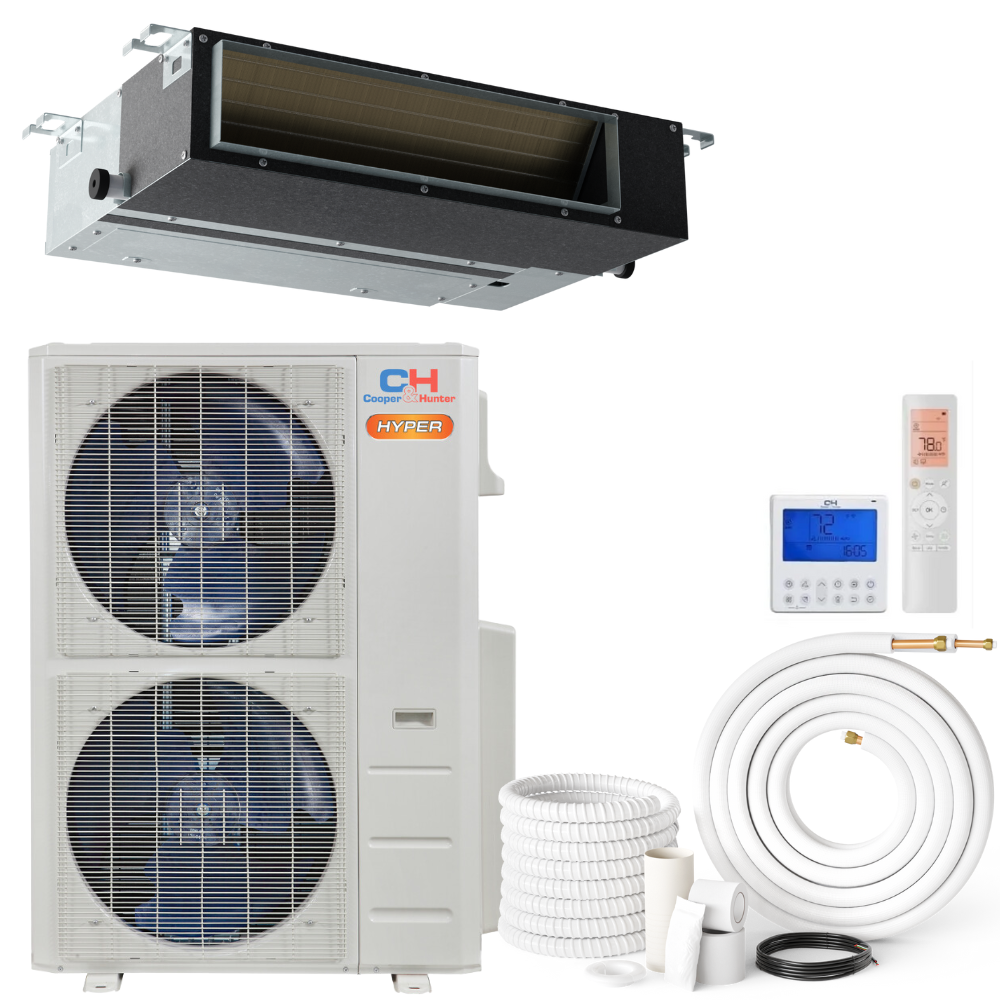

Cooper&Hunter Light Commercial Slim Duct systems deliver concealed, ducted comfort for larger spaces—ideal for installs hidden in attics and ceiling crawl spaces. This bundle pairs the CH-48LCDTU/I slim duct indoor unit with the CH-NHPR48LCU-230VO Light Commercial Hyper outdoor condenser for a single-zone heat pump system using R410A.
The Light Commercial Hyper series is built for demanding, cold-climate applications and can provide heating in ambient temperatures as low as -22°F.
Highlights
Single Zone bundle Light Commercial Hyper outdoor Heat to -22°F (ODU) 208–230V, 1Ph, 60Hz R410A refrigerant Indoor SEER2: 15.1 Outdoor SEER2: 14.6 ESP range: 0–0.64 Max line: 213.25 ft AHRI Ref: 210799615
- Designed for larger spaces: strong capacity for businesses, workshops, warehouses, and similar applications.
- Hidden ducted distribution: slim duct indoor unit supports discreet installs with ducted supply/return.
- Static pressure support: indoor ESP range 0–0.64 helps accommodate duct layouts.
- Cold-climate performance: heating operation down to -22°F ambient (outdoor unit).
- Control options: RG10K remote + wired controller compatibility (120X or 120N).
IndoorCH-48LCDTU/I
OutdoorCH-NHPR48LCU-230VO
Lines3/8" liquid · 5/8" gas
Max run213.25 ft
What’s Included
- Indoor slim duct unit: CH-48LCDTU/I
- Outdoor Light Commercial Hyper condenser: CH-NHPR48LCU-230VO
- Remote control support: RG10K (wired controller compatible: 120X or 120N)
- Manufacturer documentation (see Documents & Downloads)
- Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-48LCDTU/I |
| System type | Single-zone unit |
| Refrigerant type | R410A |
| BTU rated | 48,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Dehumidification | 10.14 pnt/day |
| EER2 | 8.5 |
| SEER2 | 15.1 |
| Refrigerant piping (liq/gas) | 3/8" / 5/8" |
| Minimum circuit ampacity | 5 |
| Max fuse | 15 |
| Indoor noise level (H/M/L) | 54.5 / 50.5 / 47.5 dB(A) |
| Indoor air flow | 1,529.41 / 1,529.41 / 1,117.65 / 735.29 CFM |
| ESP range | 0 – 0.64 |
| Drain pipe diameter | 1" |
| Operating range (Cooling) | 62–90°F |
| Operating range (Heating) | 32–86°F |
| Controller | RG10K-exclusive remote & 120X or 120N wire controller |

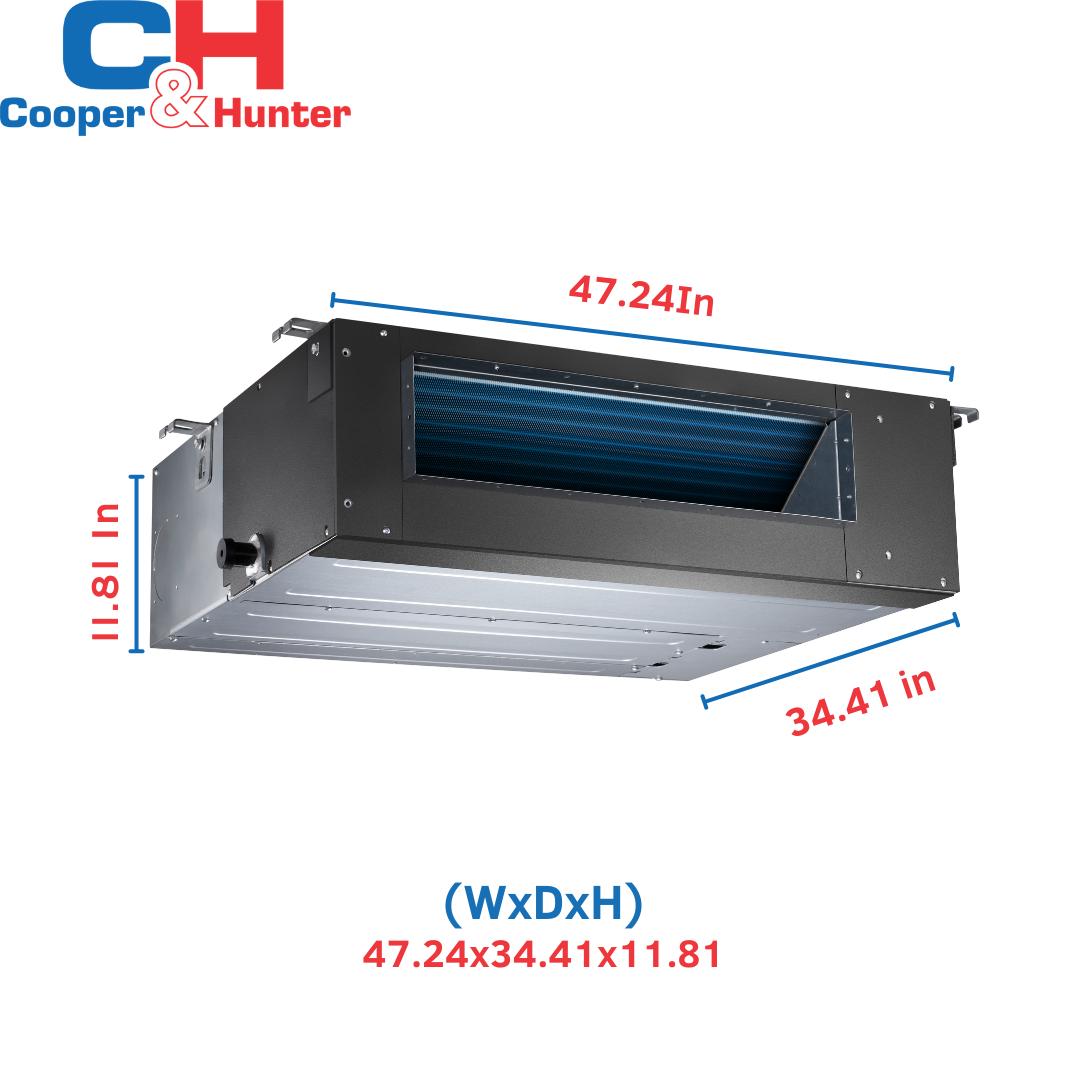

| Unit dimensions (W×H×D) | 47.24 × 34.41 × 11.81 in |
| Net / Gross weight | 119.71 / 141.76 lb |
| Packing dimensions (W×D×H) | 55.31 × 36.02 × 14.37 in |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-NHPR48LCU-230VO |
| System type | Single-zone unit |
| Refrigerant type | R410A |
| BTU rated | 48,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Dehumidification | 10.82 pnt/day |
| Refrigerant piping (liq/gas) | 3/8" / 5/8" |
| Max pipe length | 213.25 ft |
| Max height difference (IDU↔ODU) | 98.42 ft |
| Cooling capacity (Min/Max) | 47,000 (9,500–48,500) BTU/h |
| Heating capacity (Min/Max) | 48,000 (10,500–55,000) BTU/h |
| SEER2 | 14.6 |
| EER2 | 7.8 |
| HSPF2-5 | 7.3 |
| HSPF2-4 | 8.8 |
| COP | 2.96 |
| Outdoor noise level | 64 dB(A) |
| Outdoor air flow | 4,500 CFM |
| Minimum circuit ampacity | 40 |
| Max fuse | 50 |
| Ambient temp (Heating) | -22–75°F |
| Ambient temp (Cooling) | 5–122°F |

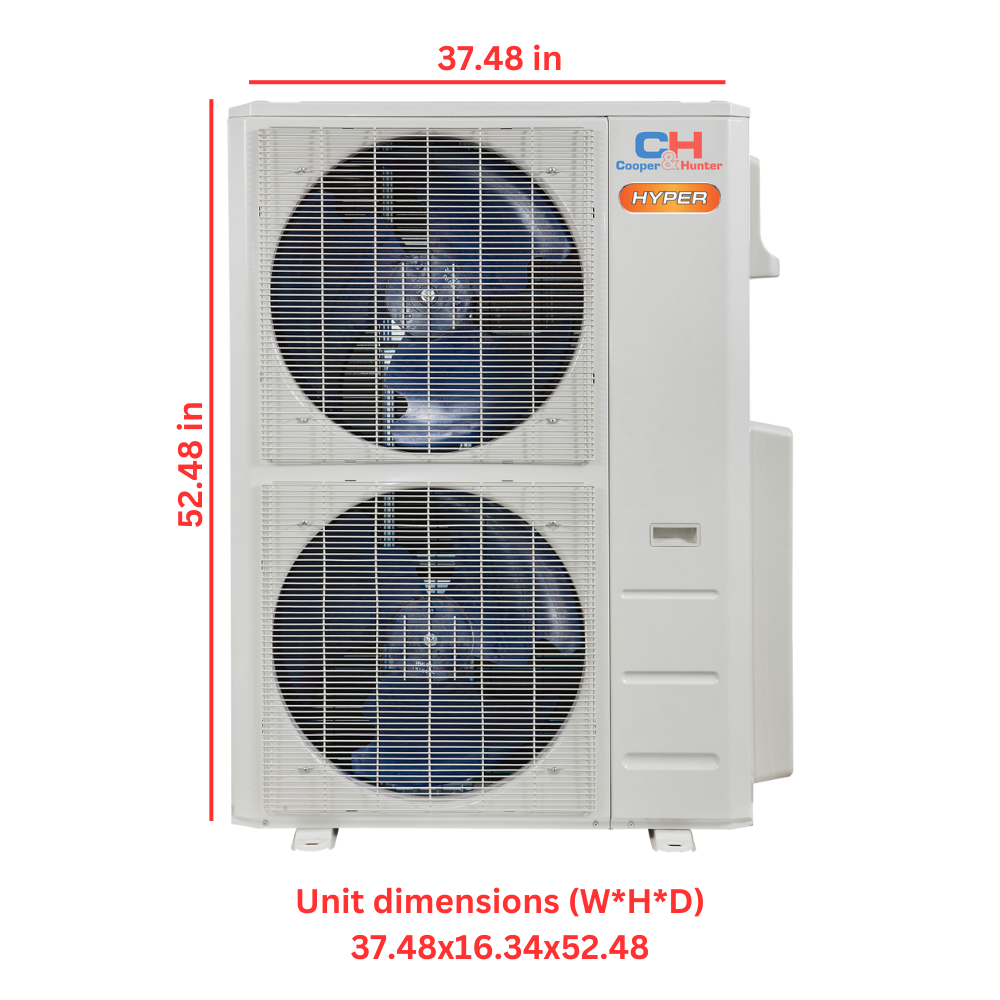

| Unit dimensions (W×H×D) | 37.48 × 16.34 × 52.48 in |
| Net / Gross weight | 227.07 / 255.73 lb |
| Packing dimensions (W×D×H) | 43.11 × 19.49 × 58.27 in |
| Refrigerant precharge | 25 |
| Additional charge (3/8" liquid) | 0.32 |
Documents & Downloads
- Submittal (PDF) — CH-NHPR48LCU-230VO + CH-48LCDTU/I
- Submittal (PDF) — CH-N48LCU-230VO + CH-48LCDTU/I
- Submittal (PDF) — CH-48LCUO + CH-48LCDTU/I
- Slim Duct Leaflet (PDF) — 2024
- Quick Start Guide (PDF)
- Installation Manual (PDF) — CH-24/36/48 LCDTU-I
- Owner’s Manual (PDF) — CH-24/36/48 LCDTU-I
- AHU Leaflet (PDF)
- User Manual (PDF) — 36–60K AHU
- AHRI Directory Reference — 210799615
Videos
Featured video
Mini-split installation videos
- How to Install Mini Split Cooper&Hunter
- Cooper&Hunter Mini Split Slim Duct Installation
- Full Installation of Mini Split Ductless Unit, Step by Step!
- How to Install Multi Zone Mini Split System (Cooper&Hunter) 2020
How To & Instructional Videos
Products overview
- Multi-Zone Mini-Split System vs Central A/C in Home (2019) Cooper&Hunter
- Cooper&Hunter Products at AHR Expo 2020 with Robot Millennia
- HVAC Installation Kit: 99.9% Copper Line Sets (Cooper&Hunter)
- Mini Split Indoor Unit Types Explained
Mini-Splits
- Can You Use a Mini Split in EXTREME COLD? Heat Pump vs. Propane Cost Comparison with Thermal Camera
- Where To Mount a Mini Split Indoor Wall Hung Unit
- How To Wall Mount a Mini Split Outdoor Condenser Unit
- Are Mini Split Air Conditioners Worth It? - Top 5 Pros & Cons
- Does a Wall Mounted MINISPLIT Need a CONDENSATE TRAP? Ductless vs Ducted Air Handlers!
- MINI SPLIT Parts Explained! Understand What They Do!
- Mini Split Failure from Electrical Surges, High and Low Voltage! HOW TO SOLVE IT!
- Full Installation of an Inverter Minisplit Heat Pump with Indoor Ceiling Cassette
- Checking the Refrigerant Charge on a Running R-410A Inverter MINI SPLIT Unit
Important
- Professional installation is recommended. Confirm duct design/static pressure requirements, electrical requirements, line sizes, maximum line length/height limits, and ambient operating limits before installation.
- Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
FAQs
Is this a single-zone system?
Yes—this listing is a single-zone bundle pairing CH-48LCDTU/I with CH-NHPR48LCU-230VO.
How cold can it heat?
The Light Commercial Hyper outdoor unit operates in heating down to -22°F ambient.
What line sizes does this system use?
3/8" liquid and 5/8" gas.
What are the max line length and height difference?
Maximum line length is 213.25 ft and maximum height difference is 98.42 ft.
Are installation kits included?
No. Installation kits are only included if selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
