Cooper&Hunter Light Commercial • 4-Way Ceiling Cassette • Hyper Heat • R410A • 208–230V
Cooper&Hunter 48,000 BTU Hyper Single Zone Four-Way Ceiling Cassette Minisplit Heat Pump System R410A 230V
System: CH-48LCCT-230VI + CH-NHPR48LCU-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview
Ceiling Cassettes are a clean, space-saving solution for offices and businesses because they fit into many ceiling grid layouts and deliver omni-directional airflow for even comfort. This bundle pairs the CH-48LCCT-230VI 4-way ceiling cassette with the CH-NHPR48LCU-230VO Hyper Heat outdoor unit for a single-zone system using R410A.
Control is available via the included remote, and app control is available when used with Cooper&Hunter’s optional WiFi kit. The Hyper Heat outdoor platform supports heating performance in cold climates down to -22°F ambient.
Highlights
Single Zone bundle 4-way ceiling cassette Omni-directional airflow Hyper Heat • heat to -22°F R410A refrigerant Outdoor SEER2: 14.6 Outdoor max line: 213.25 ft Lines: 3/8" • 5/8" AHRI Ref: 210799615
- Commercial-friendly: cassette mounts above the ceiling for an unobtrusive finished look.
- Even comfort: 4-way discharge pattern helps reduce hot/cold spots.
- Cold-climate heating: Hyper Heat outdoor unit supports heating down to -22°F ambient.
- Convenient control: remote control included; optional WiFi/app control available with add-on kit.
IndoorCH-48LCCT-230VI
OutdoorCH-NHPR48LCU-230VO
Cooling48,000 BTU/h
Heat48,000 BTU/h (up to 55,000)
What’s Included

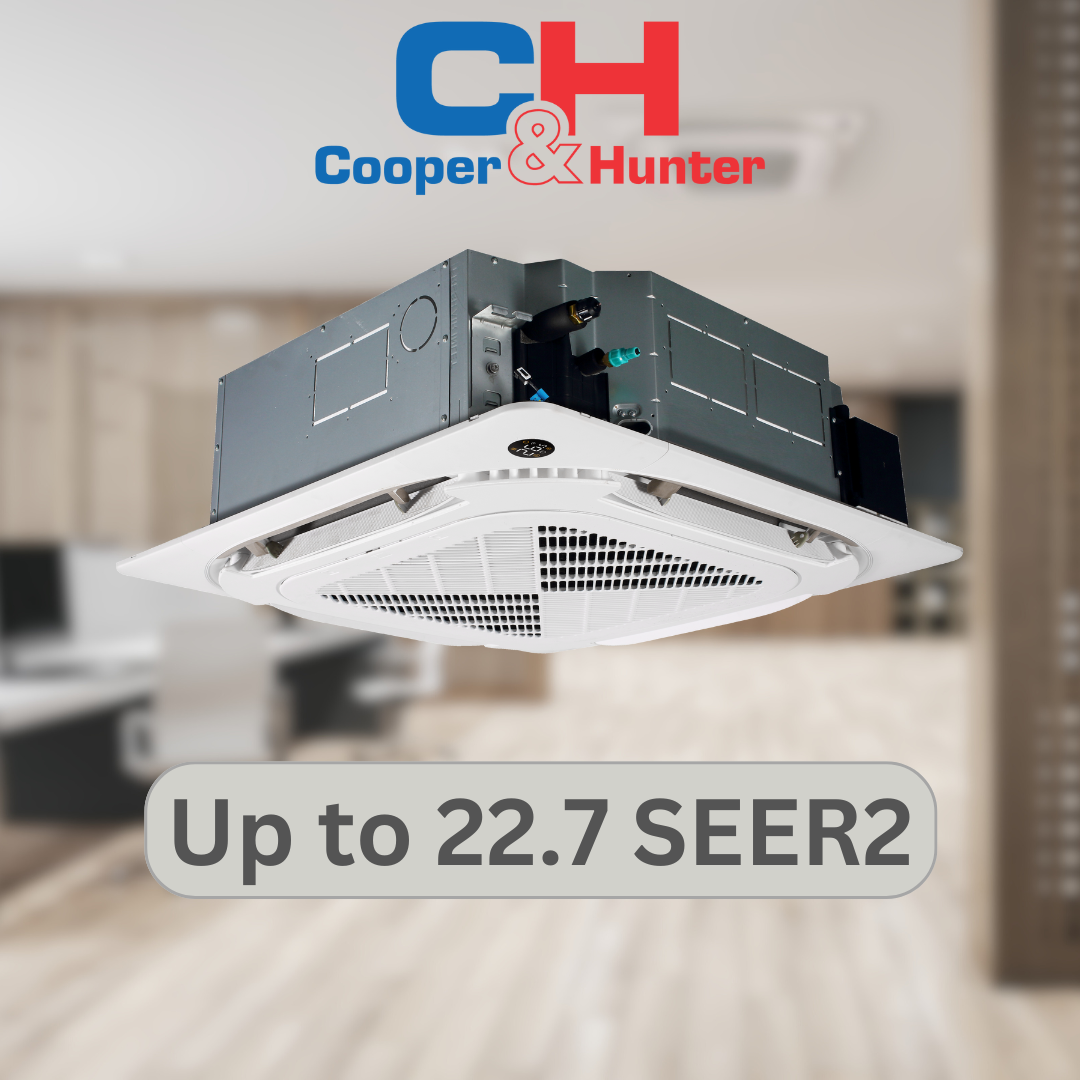

- Indoor 4-way ceiling cassette: CH-48LCCT-230VI
- Outdoor Hyper Heat condenser: CH-NHPR48LCU-230VO
- Manufacturer documentation (see Documents & Downloads)
- Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-48LCCT-230VI |
| Cooling capacity | 48,000 BTU/h |
| Heating capacity | 50,000 BTU/h |
| Heating @ +17°F | 35,410 BTU/h |
| SEER | 16.8 |
| EER | 9.5 |
| Port size (liq/gas) | 3/8" / 5/8" |
| Indoor noise level (H/M/L) | 54.5 / 51.5 / 46.5 dB(A) |
| Indoor air flow (H/M/L) | 1176 / 1029 / 853 CFM |
| Rated current (Cooling) | 23.1 A |
| Rated current (Heating) | 21.6 A |
| Minimum circuit ampacity | 2 |
| Max fuse | 15 |
| Unit dimensions (W×H×D) | 33.07 × 33.07 × 11.30 in |
| Packing dimensions (W×H×D) | 35.43 × 35.43 × 11.50 in |
| Net / Gross weight | 63.27 / 72.53 lb |
| Drain pipe diameter | ODΦ25 |
| Indoor room temp range (Heat) | 32–86°F |
| Indoor room temp range (Cool) | 62–90°F |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-NHPR48LCU-230VO |
| System type | Single-zone unit |
| Refrigerant type | R410A |
| BTU rated | 48,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Max pipe length | 213.25 ft |
| Refrigerant piping (liq/gas) | 3/8" / 5/8" |
| Cooling capacity (Min/Max) | 47,000 (9,500–48,500) BTU/h |
| Heating capacity (Min/Max) | 48,000 (10,500–55,000) BTU/h |
| SEER2 | 14.6 |
| EER2 | 7.8 |
| HSPF2-5 | 7.3 |
| HSPF2-4 | 8.8 |
| COP | 2.96 |
| Outdoor noise level | 64 dB(A) |
| Outdoor air flow | 4,500 CFM |
| Minimum circuit ampacity | 40 |
| Max fuse | 50 |
| Ambient temp (Heating) | -22–75°F |
| Ambient temp (Cooling) | 5–122°F |

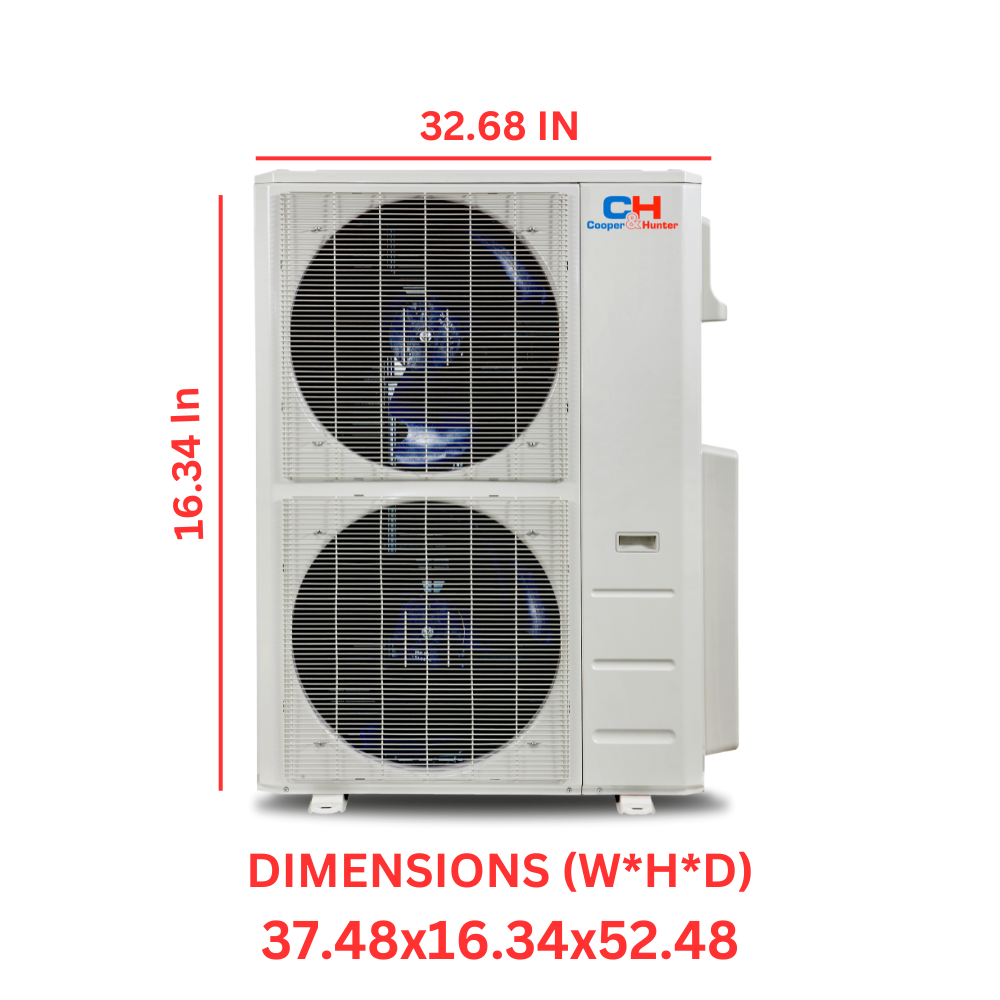

| Unit dimensions (W×H×D) | 37.48 × 16.34 × 52.48 in |
| Net / Gross weight | 227.07 / 255.73 lb |
| Refrigerant precharge | 25 |
| Additional charge (3/8" liquid) | 0.32 |
Documents & Downloads
- Submittal (PDF) — CH-48LCU-230VO + CH-48LCCT-230VI
- Submittal Data Sheet (PDF) — Sophia Ceiling Cassette 48K
- Cassette Leaflet (PDF) — 2024
- Owner’s Manual (PDF) — Cassette
- User’s Manual (PDF) — Cassette Type Indoor Unit
- Installation/User Manual (PDF) — Cassette
- Quick Start Guide (PDF) — Ceiling Cassette
- Installation Manual (PDF) — Cassette Type Indoor Unit
- Quick Start Guide (PDF)
- Accessories Leaflet (PDF) — 2023
- AHRI Directory Reference — 210799615
Videos
Featured installation video
Mini-split installation videos
- How to Install Mini Split Cooper&Hunter
- Ceiling Cassette Installation Video Cooper&Hunter
- Full Installation of Mini Split Ductless Unit, Step by Step!
- Full Installation of an Inverter Minisplit Heat Pump with Indoor Ceiling Cassette!
How To & Instructional Videos
- Cleaning Ductless Ceiling Cassette Air Conditioner (Cooper&Hunter)
- Top Tips from Cooper&Hunter Mini Split User Manual
Products overview
- Multi-Zone Mini-Split System vs Central A/C in Home (2019) Cooper&Hunter
- Cooper&Hunter Products at AHR Expo 2020 with Robot Millennia
- Mini Split Indoor Unit Types Explained
Mini-Splits
- Can You Use a Mini Split in EXTREME COLD? Heat Pump vs. Propane Cost Comparison with Thermal Camera
- Where To Mount a Mini Split Indoor Wall Hung Unit
- How To Wall Mount a Mini Split Outdoor Condenser Unit
- Are Mini Split Air Conditioners Worth It? - Top 5 Pros & Cons
- Does a Wall Mounted MINISPLIT Need a CONDENSATE TRAP? Ductless vs Ducted Air Handlers!
- MINI SPLIT Parts Explained! Understand What They Do!
- Mini Split Failure from Electrical Surges, High and Low Voltage! HOW TO SOLVE IT!
- Checking the Refrigerant Charge on a Running R-410A Inverter MINI SPLIT Unit
Important
- Verify available ceiling cavity space, condensate routing, and electrical requirements before installation.
- Confirm line sizes and maximum run/height limits prior to ordering materials.
- Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
FAQs
Is this a single-zone system?
Yes—this is a single-zone bundle pairing CH-48LCCT-230VI with CH-NHPR48LCU-230VO.
What kind of airflow does the cassette provide?
The 4-way cassette provides omni-directional airflow to help maintain even room temperatures.
How cold can it heat?
The Hyper Heat outdoor unit supports heating down to -22°F ambient.
Are installation kits included?
No. Installation kits are only included if selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
Can I control it with an app?
App control is available when used with Cooper&Hunter’s optional WiFi kit and the C&H app.
