Cooper&Hunter

Cooper&Hunter 48,000 BTU Hyper High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R454B 230V

SKU: CH-RS48LCAHU + CH-RHP48LCU-230VO

AC Type

Air Handler

Refrigerant Type

R454B

Brand

Cooper&Hunter

Outdoor Unit

48000 BTU VO (4.0 TON)

Indoor Unit

48000 BTU (4.0 TON)

Voltage

208-230V

Looking For

Ducted

Cooling Area (sq.ft.)

1500 and up

Series

Hyper

SEER2 Rating

17.0

Airflow Direction

Multi-Positional

Line Set Length No installation 25FT 50FT

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$6,140.00

Shipping calculated at checkout.

View full details

Multi-Position Air Handler + Hyper Outdoor • R454B • 208–230V

Cooper&Hunter 48,000 BTU Hyper High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R454B 230V

Overview

48K multi-position air handler paired with a Hyper single-zone outdoor unit for high-capacity heating and cooling. Flexible indoor installation (horizontal or vertical) plus inverter-driven operation support consistent comfort.

Highlights

Capacity: 48,000 BTU Refrigerant: R454B System SEER2: 17 Indoor EER2: 10 Outdoor SEER2: 16.7 Outdoor EER2: 10.4 ESP Range: 0–0.8 Line Set: 3/8" × 3/4" Max Pipe / Lift: 246 ft / 98.4 ft Heating Ambient: -22°F to 75°F Cooling Ambient: -22°F to 122°F

System Search

CH-RS48LCAHU + CH-RHP48LCU-230VO

Voltage

208–230V (1Ph, 60Hz)

Voltage Range

187–253V

Outdoor MCA / Max Fuse

44A / 45A

Indoor MCA / Max Fuse

9.75A / 15A

Filter Size

Field supply (23×20)

Multi-position indoor install (horizontal or vertical)
Intelligent airflow with multi-speed fan motor (auto/manual static adjustment)
Anti-cold air and fast cool/heat support
Refrigerant leak detection and wired controller support
Hyper heating ambient range support down to -22°F

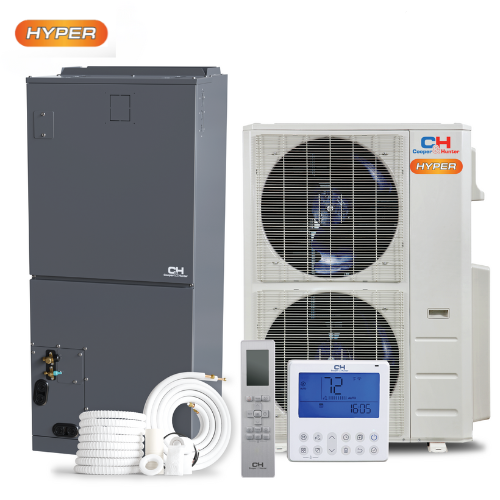

What’s Included

Indoor unit: CH-RS48LCAHU
Outdoor unit: CH-RHP48LCU-230VO
Remote control and wall thermostat
Wired controller support
Smart kit connectivity support
Optional auxiliary heater support (purchased separately)

Indoor Specs (CH-RS48LCAHU)

Spec	Value
Refrigerant Type	R454B
System Type	Single Zone
BTU Rated	48,000
Power Source	208–230V, 1Ph, 60Hz
Voltage Range	187–253V
Dehumidification	10.23 pints/day
Filter Dimensions (W×D)	Field supply (unit without filter 23×20)
Controller	Wire controller + remote controller available
Refrigerant Piping (Liquid/Gas)	3/8" / 3/4"
EER2	10
SEER2	17
Minimum Circuit Ampacity	9.75A
Max Fuse	15A
Indoor Noise Level (H/M/L)	54.5 / 51 / 48
Indoor Air Flow	1601 / 1471.5 / 1283.1 / 1094.8
ESP Range	0–0.8
Drainage Water Pipe Diameter	3/4"
Operation Range – Heating	32–86°F
Operation Range – Cooling	60–90°F

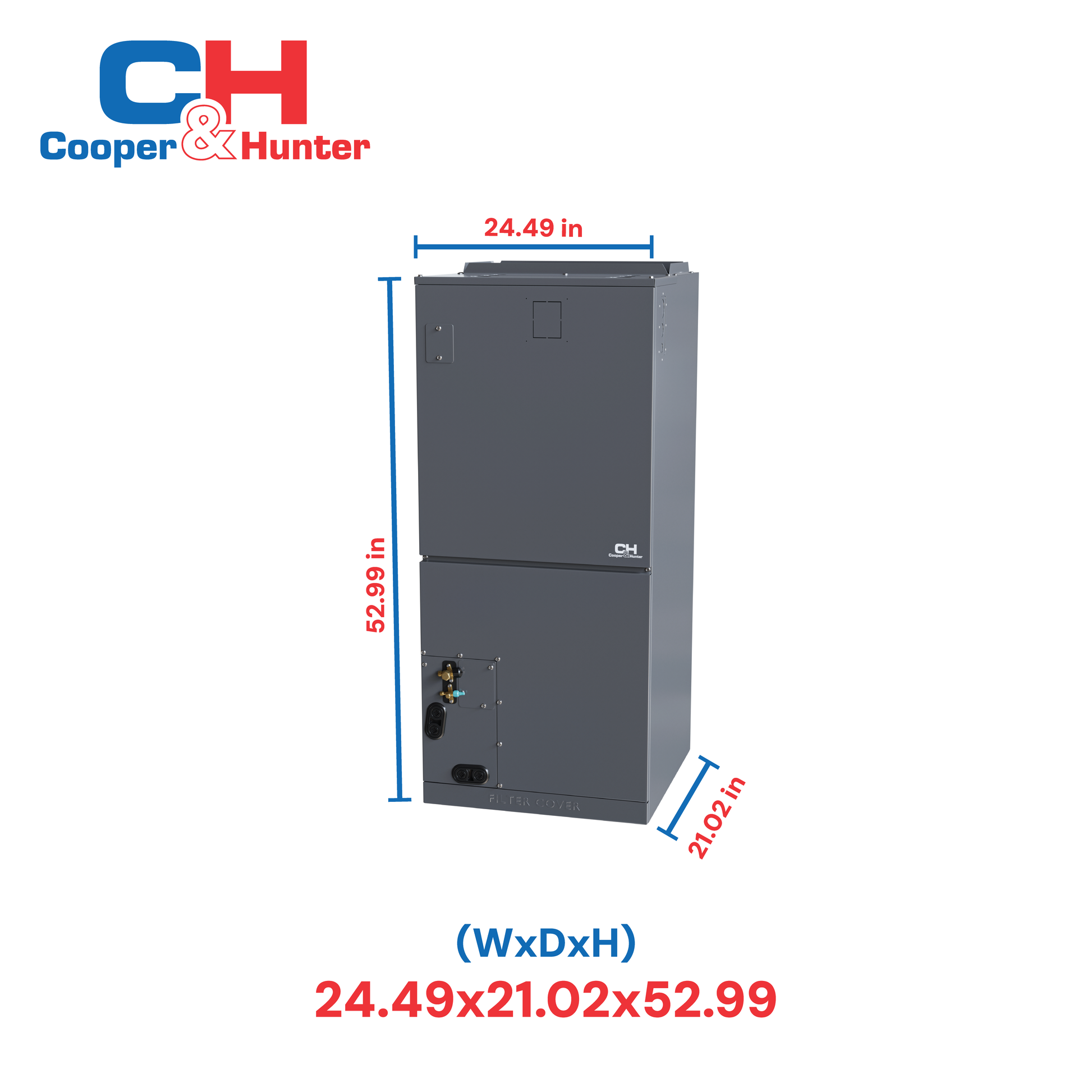

Unit Dimensions (W×H×D)	24.49 × 21.02 × 52.99 in
Packing Dimensions (W×D×H)	27.95 × 26.77 × 56.50 in
Unit Net / Gross Weight	161.82 / 191.58 lb

Outdoor Specs (CH-RHP48LCU-230VO)

Spec	Value
Refrigerant Type	R454B
System Type	Single-zone unit
BTU Rated	48,000
Power Source	208–230V, 1Ph, 60Hz
Voltage Range	187–253V
Dehumidification	8.92 pints/day
Max Pipe Length	246 ft
Max Height Difference (Indoor↔Outdoor)	98.4 ft
Refrigerant Piping (Liquid/Gas)	3/8" / 3/4"
HSPF2-5 / HSPF2-4	8.8 / 10.8
EER2	10.4
SEER2	16.7
Cooling Capacity (Min/Max)	48,000 (11,000–56,500) BTU/h
Heating Capacity (Min/Max)	52,000 (11,200–60,000) BTU/h
COP	3.6
Ambient Temperature – Heating	-22 to 75°F
Ambient Temperature – Cooling	-22 to 122°F
Refrigerant Precharge	25
Outdoor Noise Level	65
Outdoor Air Flow	4,237.9
Minimum Circuit Ampacity	44A
Max Fuse	45A
Additional Refrigerant Charge (3/8 liquid line)	0.32

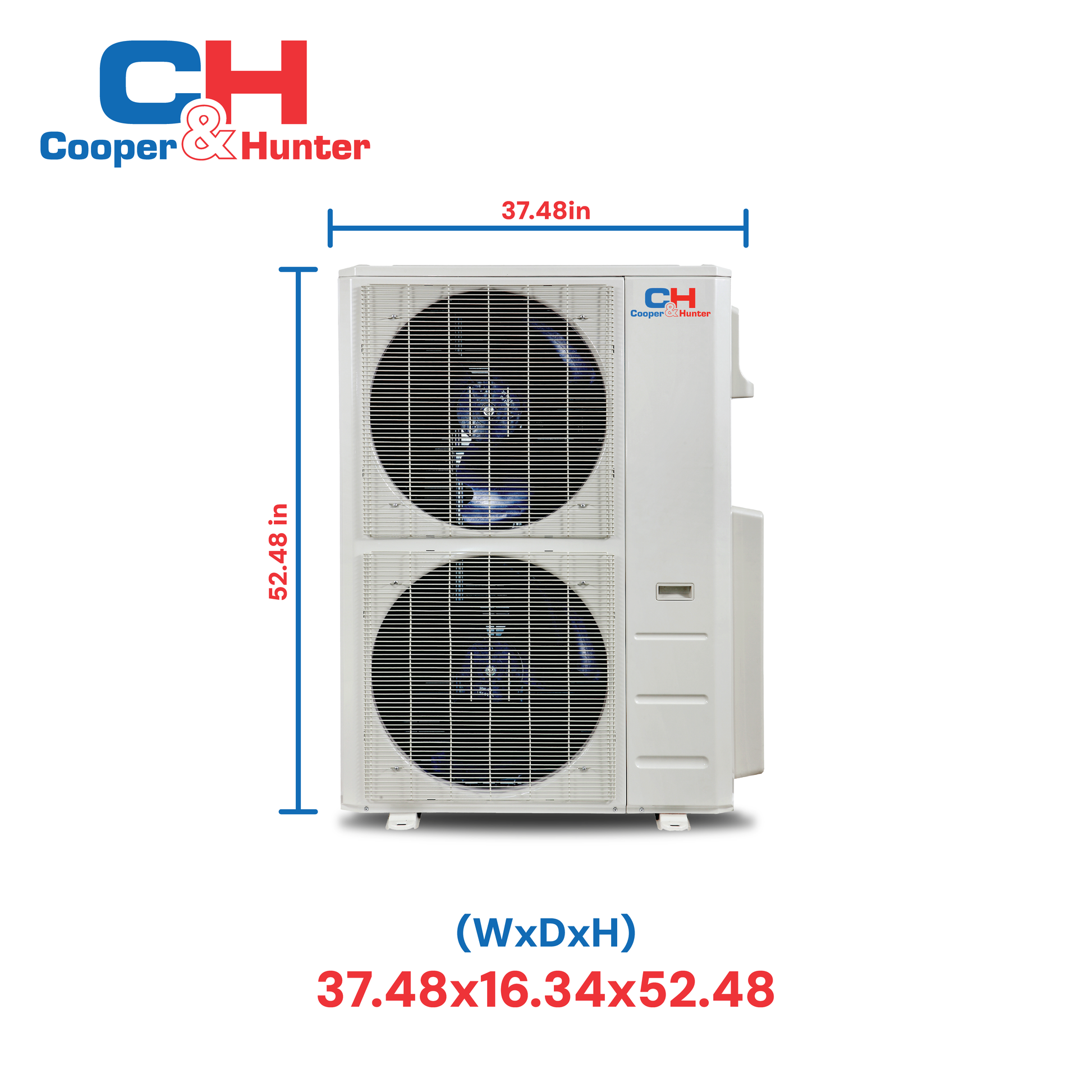

Unit Dimensions (W×H×D)	37.48 × 16.34 × 52.48 in
Packing Dimensions (W×D×H)	43.11 × 19.49 × 57.48 in
Unit Net / Gross Weight	208.78 / 239.86 lb
