Cooper&Hunter 4-Zone Ducted Mini Split AC & Heat Pump 36000 BTU (6K+6K+6K+12K), Slim Duct Units, 230V
Bring flexible, concealed comfort to your space with the Cooper & Hunter Slim-Duct system. A 36000 BTU condenser powers slim-profile duct air handlers that disappear into ceilings, soffits, or chases for a clean, unobtrusive finish. This inverter heat pump provides independent control in 4 zone(s) and supports low-ambient heating performance down to -13 F.
Slim-Duct air handlers use TU1 copper tubing, medium / high static pressure blower performance, built-in Smart Kit connectivity, and R454B refrigerant (low-GWP) for efficient operation up to 24 SEER2. Equipped models include a refrigerant sensor to help maintain optimal operation.
Key features
Concealed comfort + ducted flexibility
- Slim-profile duct unit hides in ceilings/soffits for a clean finish
- Ideal for short duct runs to discreet registers/grilles
- Designed for Single-Zone or Multi-Zone applications (model dependent)
Performance
- 4-zone independent temperature control
- Medium static pressure models for standard duct layouts
- High static pressure models for longer runs / higher resistance (size dependent)
- High-efficiency operation up to 24 SEER2
- Quiet operation (Outdoor as low as 64.5 dB(A); Indoor as low as 32.5 dB(A))
- Reliable heating down to -13 F ambient
Built-in components
- TU1 copper tubing for durability and heat transfer efficiency
- Built-in Smart Kit with downloadable C&H app (where equipped)
- Refrigerant sensor (where equipped) for system monitoring
- Turbo mode for rapid conditioning
- 2025 model platform using R454B refrigerant (low-GWP)
Flexible installation

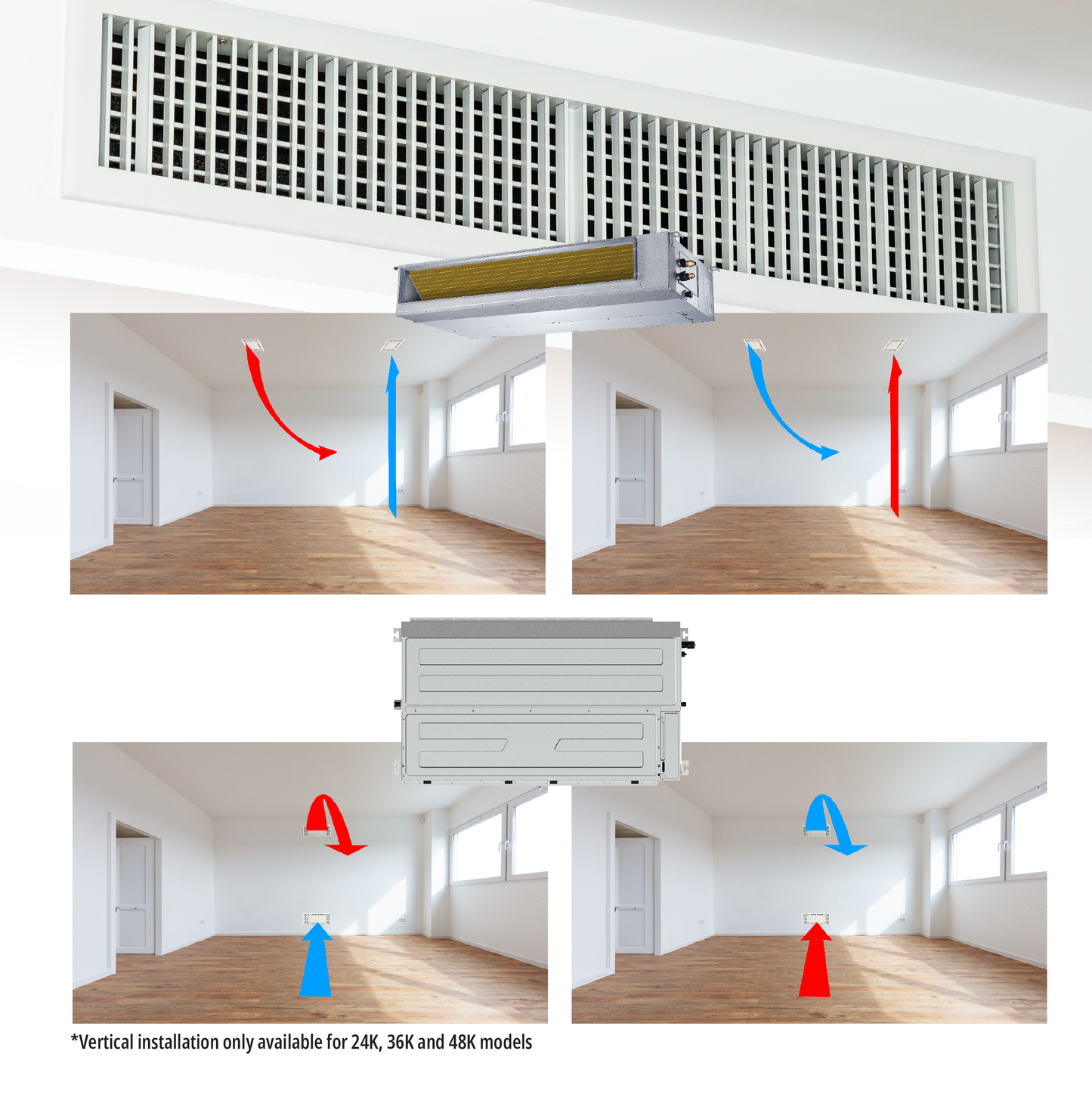

- Choose between horizontal and vertical installation (model dependent)
- Designed for tight spaces such as ceilings, soffits, or wall chases
Static pressure and install orientation vary by size (example: 24K can support high static pressure and flexible orientation). Confirm your model’s ESP range and dimensions in the indoor spec table below.
At-a-glance
4
36000
24
-13 F
64.5 dB(A)
32.5 dB(A)
CH-R36MES-230VO
Remote + Thermostat
Warranty requires licensed HVAC installation and registration within 60 days (if required).
Control options
- Remote control included
- Wall thermostat included
- Wall thermostat should be connected on the unit for smart control functionality (where applicable).
Product video

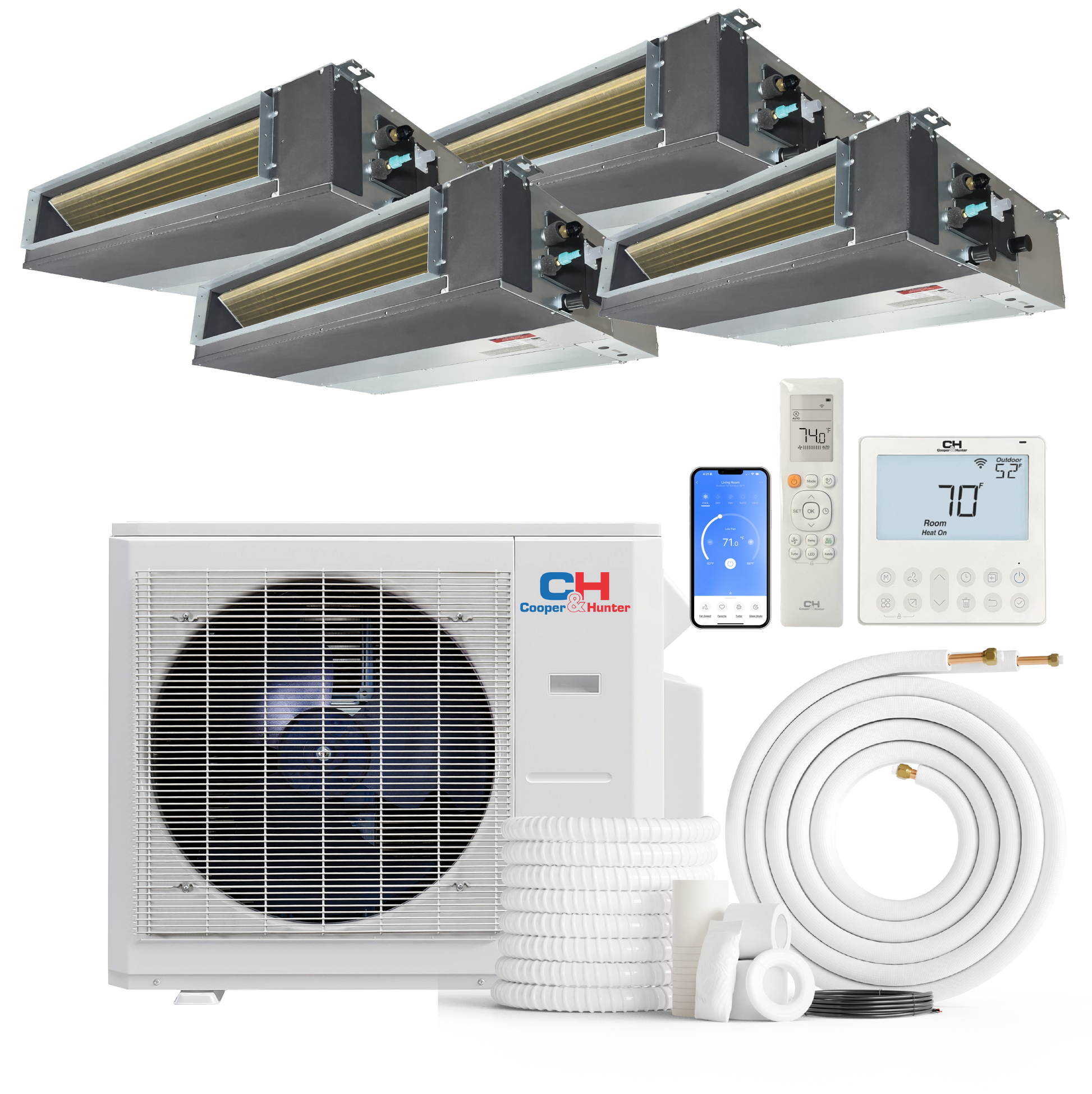

What’s included
Cooper & Hunter Slim-Duct Mini Split System

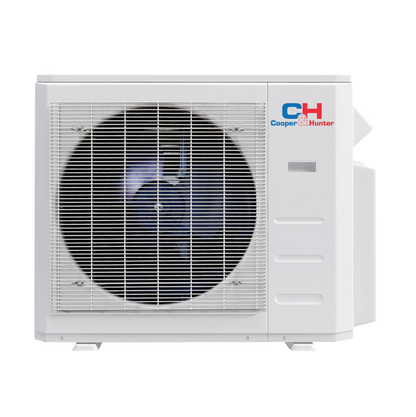

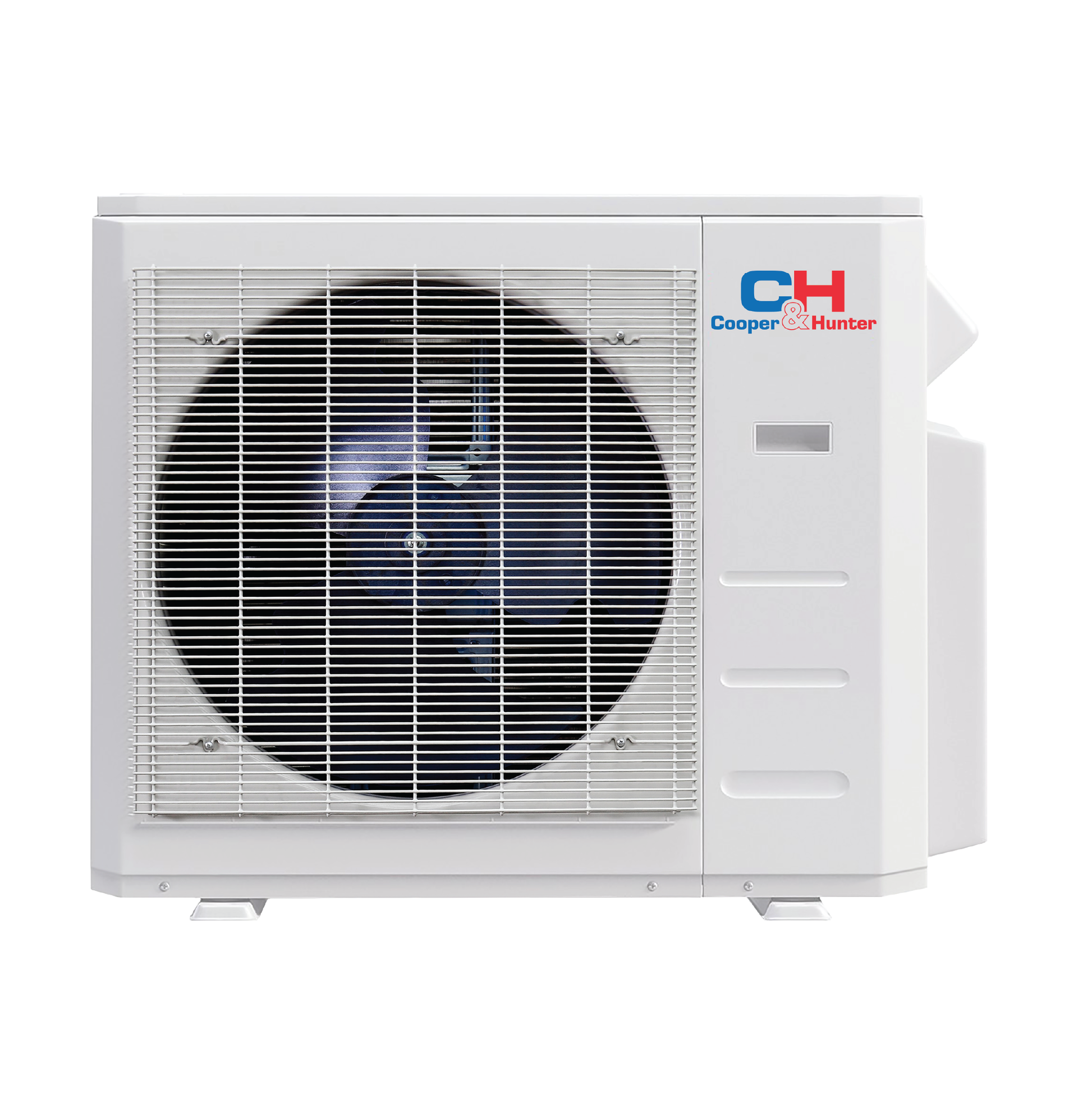

Outdoor Unit: 36000 BTU (1 pc) — Model: CH-R36MES-230VO

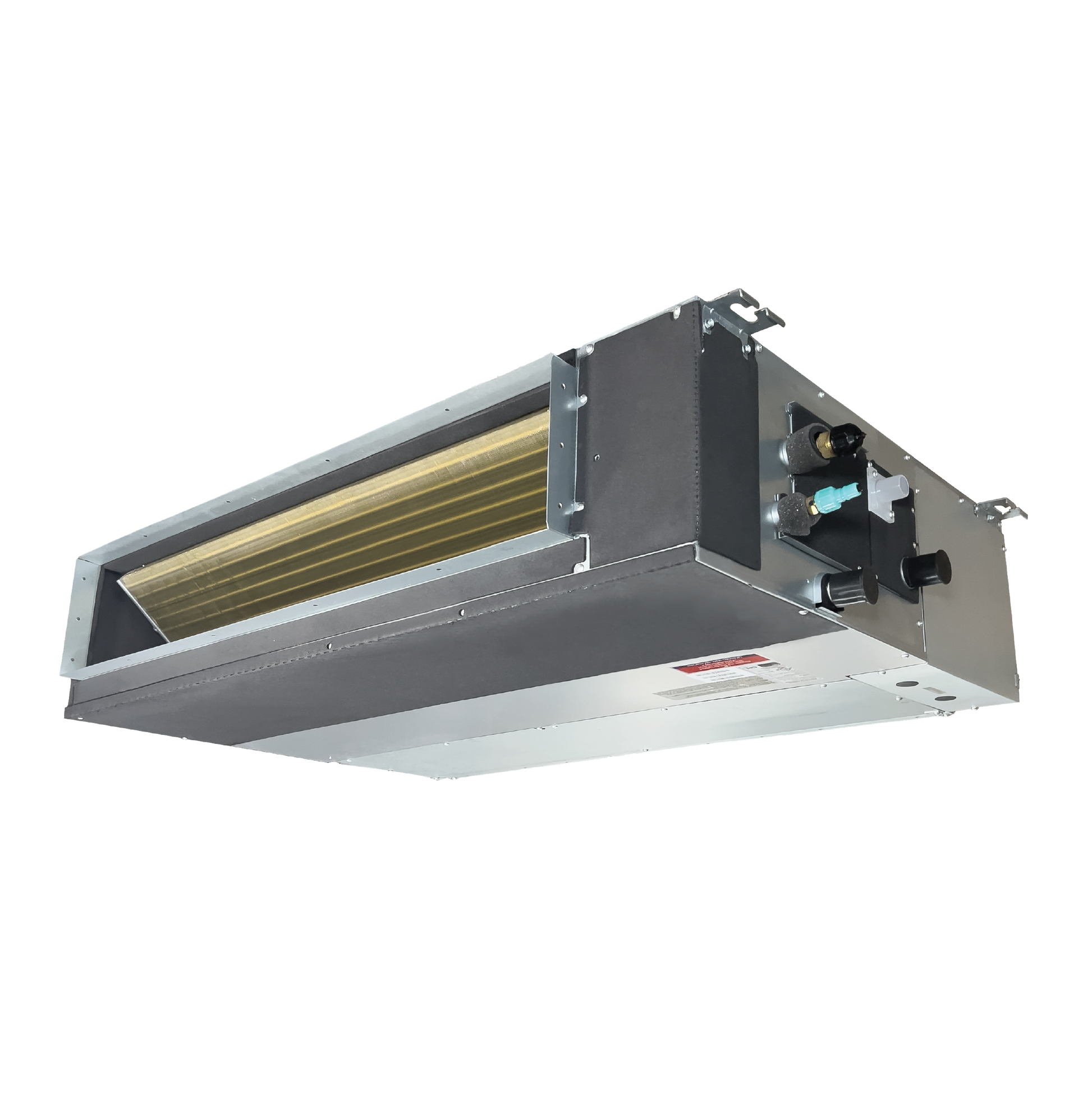

Indoor Units (Slim-Duct):
- 6,000-12,000 BTU (x1) — Model: CH-RS06-12MDT- MS
Capacity Selection (Dip-Switch ENC1)
- Set ENC1 from “0” to "1" → 6,000 BTU
- Set ENC1 from “0” to "2" → 9,000 BTU
- Set ENC1 from “0” to "3" → 12,000 BTU
- Installation-Kit options (No Kit / 16 ft / 25 ft / 50 ft)
- (INSTALLATION KIT SIZE MUST BE SELECTED, to be included)
- Wireless Remote Controls (4 remotes)
- Built-in Smart-Kit & C&H App control
- Wall Thermostat
- Installation & User Manuals
- Manufacturer Warranty
6K–12K capacity selection (ENC1)
On supported 6K–12K Multiple Capacity Slim-Duct models, the ENC1 dip switch is used for capacity changes. When paired with single-zone condensers, the indoor unit can automatically adjust to match condenser capacity. When paired with multi-zone condensers, set ENC1 to select the desired indoor capacity.
- ENC1 from “0” to “1” → 6,000 BTU/H
- ENC1 from “0” to “2” → 9,000 BTU/H
- ENC1 from “0” to “3” → 12,000 BTU/H
If this product does not include a 6K–12K indoor unit, ignore this section. Your spec table will reflect what applies.
Complete technical specifications — Indoor (Slim-Duct)
Indoor Unit Specifications — CH-RS06-12MDT- MS
| Refrigerant type | R454B |
|---|---|
| System type | Single Zone |
| Filter dimensions (WxD) (inch) | 23.3x7.24 |
| BTU Rated | 12,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 2.66 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 33.86 x 21.26 x 11.22 |
| Controller | wire controller + remote controller available |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| EER2 | 12 |
| SEER2 | 20 |
| Unit Net/Gross weight | 39.46/46.74 |
| Unit dimensions (W*H*D) | 27.56 x 19.92 x 7.87 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 36/34.5/32.5 |
| Indoor Air Flow | 400.2 / 323.7 / 264.9 / 176.6 |
| ESP Range | 0-0.4 |
| Drainage water pipe diameter | 1" |
Manuals
- https://media.cooperandhunter.us/4195/120N-wire-controller---owners-manual.pdf
- https://media.cooperandhunter.us/4197/Installation-Manual---Medium-static-Duct.pdf
- https://media.cooperandhunter.us/4199/Owner_s-Manual---Medium-static-Duct.pdf
- https://media.cooperandhunter.us/4200/SlimDuct-Leaflet-R454B.pdf
Submittals
- https://media.cooperandhunter.us/4201/CH-RHP06F9-230VO-%2B-CH-RS06-12MDT--MS.pdf
- https://media.cooperandhunter.us/4202/CH-RHP09-230VO-%2B-CH-RS06-12MDT--MS.pdf
- https://media.cooperandhunter.us/4203/CH-RHP12-230VO-%2B-CH-RS06-12MDT--MS.pdf
- https://media.cooperandhunter.us/4210/CH-RES12-230VO-%2B-CH-RS06-12MDT--MS.pdf
- https://media.cooperandhunter.us/4209/CH-RES09-230VO-%2B-CH-RS06-12MDT--MS.pdf
Complete technical specifications — Outdoor
Outdoor Unit Specifications — CH-R36MES-230VO
| Refrigerant type | R454B |
|---|---|
| System type | Multi-zone unit |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 2.11 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 42.91 x 19.68 x 34.84 |
| Refrigerant piping Liquid/Gas side (inch) | 5x1/4" - 4x3/8"+1x1/2" |
| HSPF2-5 | 7.4 |
| HSPF2-4 | 9.5 |
| EER2 | 12 |
| Cooling capacity (Min/Max) (BTU/h) | 36,000(9,000~42,000) |
| SEER2 | 24 |
| Unit Net/Gross weight | 168.87/180.12 |
| Unit dimensions (W*H*D) | 37.24 x 16.14 x 31.89 |
| Refrigerant precharge | 125 |
| Outdoor Noise Level | 64.5 |
| Outdoor Air Flow | 2,148.4 |
| Minimum circuit ampacity | 30.5 |
| Max.fuse | 35 |
| Max height difference between Indoor and Outdoor unit | 49.2 |
| Heating capacity (Min/Max) (Btu/h) | 37,000(10,000~42,500) |
| COP | 3.5 |

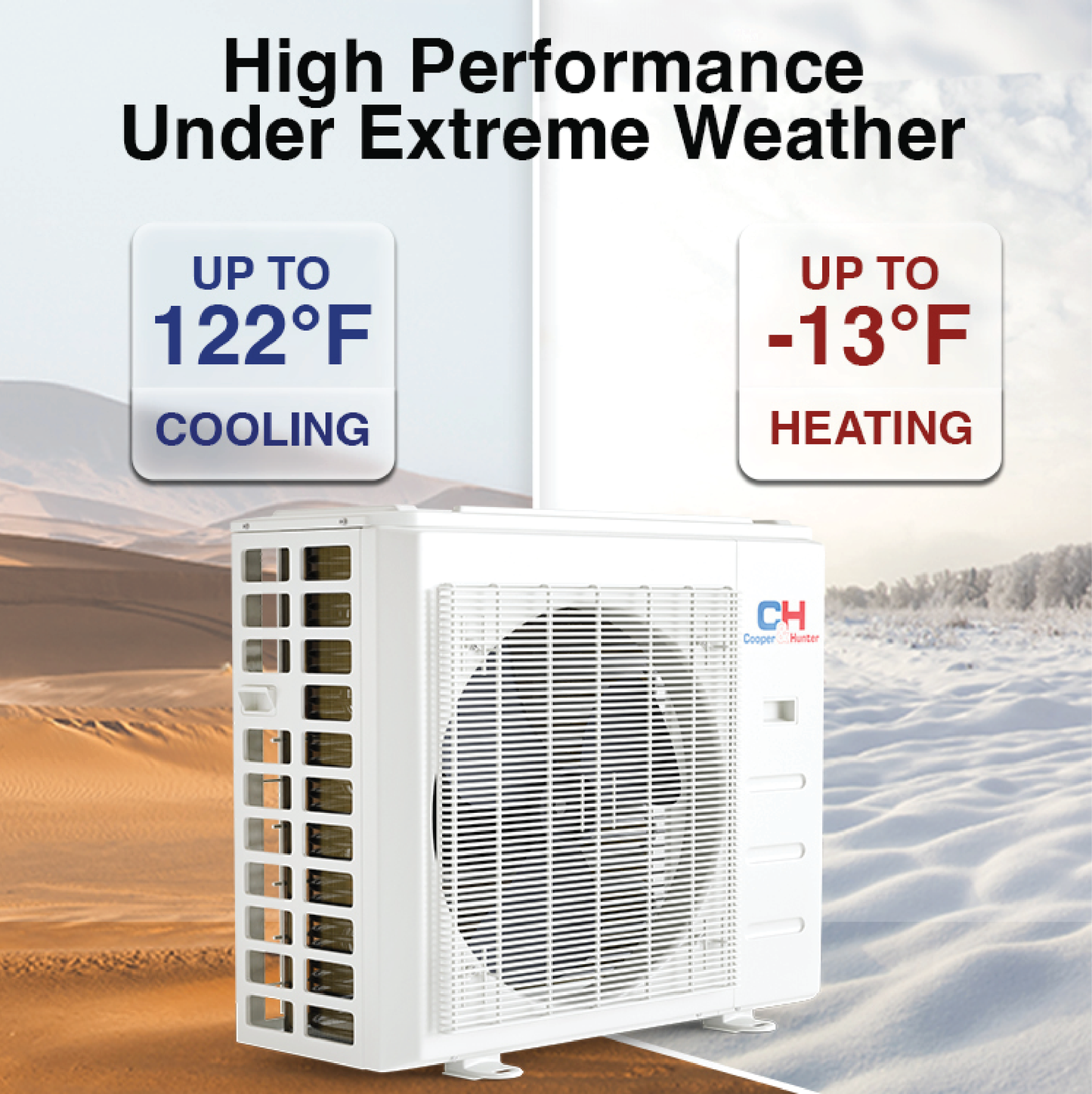

| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | -13~122 |
| Additional Refrigerant Charge 3/8 liquid line | 0.32 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Manuals
Submittals
- https://media.cooperandhunter.us/4448/CH-R36MES-230VO_Non-ducted.pdf
- https://media.cooperandhunter.us/4447/CH-R36MES-230VO.pdf
Documents
Warranty information
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
- 1-Year Remote Control Warranty
Note: Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.
Summary
Expand
This Cooper & Hunter Slim-Duct system uses a 36000 BTU outdoor condenser with CH-R36MES-230VO + 4X CH-RS06-12MDT- MS slim-profile duct air handler(s) for concealed, flexible comfort. Medium/high static pressure capability supports ducted distribution, and low-ambient heating supports operation down to -13 F. Smart control and monitoring features vary by model and are reflected in the included components and specification tables.
