Cooper&Hunter

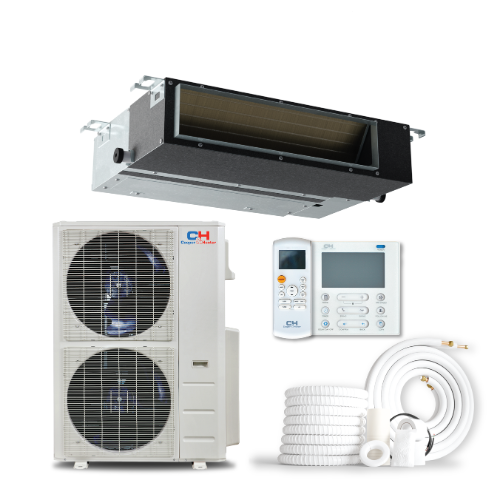

Cooper&Hunter 36,000 BTU Single Zone Slim Duct Ducted Minisplit Heat Pump System R454B 230V

SKU: CH-RS36LCDT-HS + CH-R36LCU-230VO

System highlights
AC Type
Slim Duct
Refrigerant Type
R454B
Brand
Cooper&Hunter

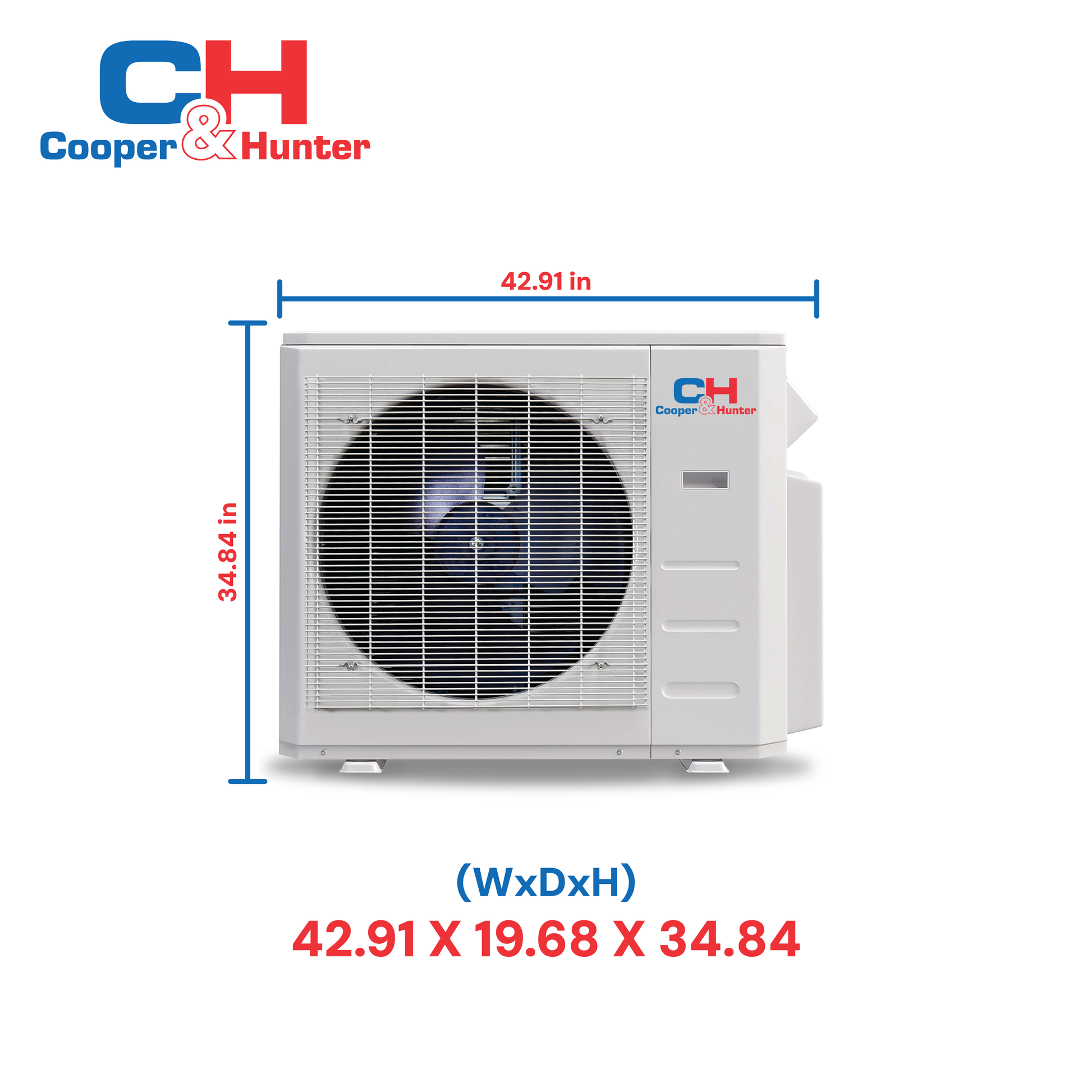

Outdoor Unit
36000 BTU VO (3.0 TON)

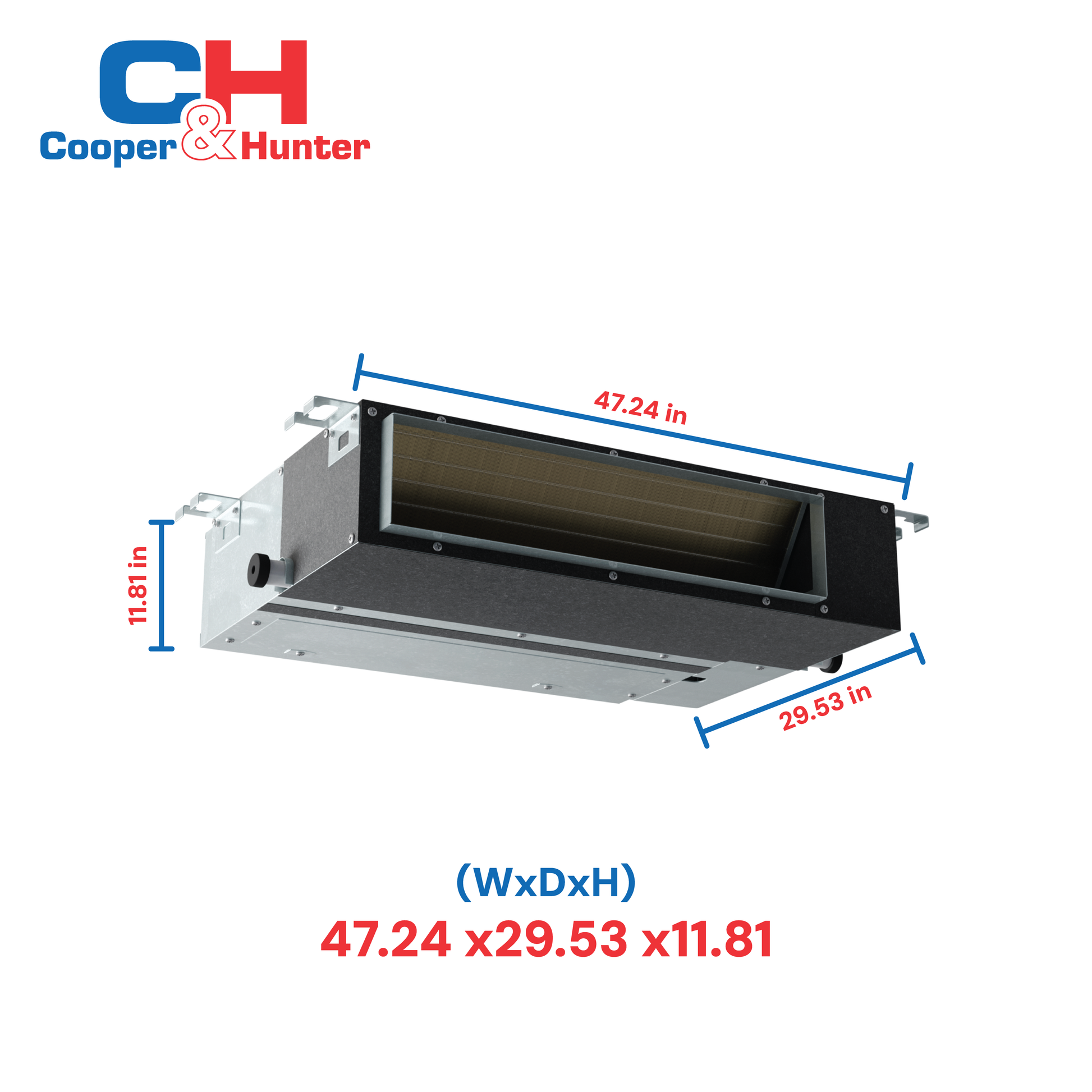

Indoor Unit
36000 BTU (3.0 TON)
Voltage
208-230V
Looking For
Slim Duct
Cooling Area (sq.ft.)
1500 and up
SEER2 Rating
17.7
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$3,865.00
Shipping calculated at checkout.
View full details

Multiple-Capacity Medium Static Slim Duct + Hyper Outdoor • R454B • 208–230V

Cooper&Hunter 36,000 BTU Single Zone Slim Duct Ducted Minisplit Heat Pump System R454B 230V

Overview

Multiple-capacity medium-static slim duct indoor unit paired with a 12K Hyper outdoor condenser for ducted heating/cooling and low-ambient heating operation.

Highlights

Selectable Capacity: 6K / 9K / 12K ESP Range: 0–0.4 R454B Refrigerant Hyper Heating (Up to -22°F) Line Set: 1/4" × 3/8" AHRI: 207742320

System Search

CH-RS06-12MDT-MS + CH-RHP12-230VO

Max Line / Lift

82 ft / 49.2 ft

Outdoor MCA / Max Fuse

15A / 15A

Outdoor Noise

56 dB

Indoor Dimensions

27.56 × 19.92 × 7.87 in

Indoor Weight (Net/Gross)

39.46 / 46.74 lb

Indoor Specs (CH-RS06-12MDT-MS)

Spec Value
Refrigerant Type R454B
System Type Single Zone
Filter Dimensions (W×D) 23.3 × 7.24 in
BTU Rated 12,000 (selectable capacity model)
Power Source 208–230V, 1Ph, 60Hz
Dehumidification 2.66 pints/day
Voltage Range 187–253V
Packing Dimensions (W×D×H) 33.86 × 21.26 × 11.22 in
Controller (listed) Wire controller + remote controller available
Refrigerant Piping (Liquid/Gas) 1/4" / 3/8"
EER2 12
SEER2 20
Unit Net / Gross Weight 39.46 / 46.74 lb
Unit Dimensions (W×H×D) 27.56 × 19.92 × 7.87 in
Operation Range – Heating 32–86°F
Operation Range – Cooling 60–90°F
Minimum Circuit Ampacity 3A
Max Fuse 15A
Indoor Noise Level (H/M/L) 36 / 34.5 / 32.5 dB(A)
Indoor Air Flow 400.2 / 323.7 / 264.9 / 176.6
ESP Range 0–0.4
Drainage Water Pipe Diameter 1"

Outdoor Specs (CH-RHP12-230VO)

Spec Value
Refrigerant Type R454B
BTU Rated 12,000
Power Source 208–230V, 1Ph, 60Hz
Dehumidification 2.54 pints/day
Max Pipe Length 82 ft
Voltage Range 187–253V
Packing Dimensions (W×D×H) 36.02 × 14.57 × 24.21 in
Refrigerant Piping (Liquid/Gas) 1/4" / 3/8"
HSPF2-5 / HSPF2-4 8 / 10.5
Cooling Capacity (Min/Max) 12,000 (3,800–14,600) BTU/h
Unit Net / Gross Weight 72.75 / 78.70 lb
Unit Dimensions (W×H×D) 31.69 × 12.99 × 21.81 in
Refrigerant Precharge 25
Outdoor Noise Level 56 dB
Outdoor Air Flow 1,470.6
Minimum Circuit Ampacity 15A
Max Fuse 15A
Max Height Difference (Indoor↔Outdoor) 49.2 ft
Heating Capacity (Min/Max) 12,000 (3,800–16,000) BTU/h
COP 3.76
Ambient Temperature – Heating -22 to 75°F
Ambient Temperature – Cooling -22 to 122°F
Additional Refrigerant Charge (3/8 liquid line) /
Additional Refrigerant Charge (1/4 liquid line) 0.16
AHRI 207742320

Documents & Downloads

FAQs

How do I select capacity on the indoor unit?

Use the dip switch settings to select 6K / 9K / 12K capacity.

What is the indoor air flow?

400.2 / 323.7 / 264.9 / 176.6

What is the indoor sound level?

36 / 34.5 / 32.5 dB(A) (H/M/L).

What’s the line set size and max length?

Line set is 1/4" (liquid) and 3/8" (gas). Max pipe length is 82 ft

How cold can this Hyper outdoor unit heat?

Outdoor heating ambient is down to -22°F.

What voltage range is supported?

187–253V .

Is a wired controller supported?

Yes—indoor lists “wire controller + remote controller available.”

Does it have a drain connection?

Yes—indoor drainage water pipe diameter is 1".
