Cooper&Hunter Olivia • R454B • Inverter
Cooper&Hunter 36,000 BTU Olivia Single Zone Wall Mount Mini Split Heat Pump System R454B 230V
SKU: CH-R36MELVWM-230VI + CH-REL36-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview
Enhance your home’s climate control with the Cooper&Hunter 36K BTU Olivia wall-mounted mini split heat pump system, utilizing the new R454B refrigerant for environmentally friendly operation and efficient inverter performance. Designed for 208–230V applications, Olivia provides powerful heating and cooling for large residential spaces with smooth output control and quiet operation.
Advanced comfort features include Auto-Swing horizontal louvers for thorough air circulation, Turbo Mode for rapid heating/cooling, and Follow Me comfort control using remote-sensed temperature. The Olivia Mini Split includes a Smart Kit for app connectivity via the C&H experience. Additional technologies include a 12Hz low compressor speed for quiet efficiency, High-Frequency Racer Technology for rapid startup response, an electronic expansion valve for optimized refrigerant management, and an intelligent dusting switch that reverses the fan to help clear dust, sand, and debris from the coil. Built with high-quality TU1 copper tubes, Olivia is engineered for durability and efficient heat transfer, with added protection such as 46° Freeze Protection.
Highlights
36,000 BTU class R454B refrigerant Up to 19.5 SEER2 Smart Kit included Auto-swing (horizontal louvers) 12Hz low-speed operation Turbo Mode 46° Freeze Protection 208–230V, 1Ph, 60Hz
- Inverter efficiency: dynamically adjusts output to demand for improved comfort and lower energy usage.
- Fast response comfort: High-Frequency Racer Technology targets rapid temperature control at startup.
- Optimized refrigerant flow: electronic expansion valve (EEV) supports stable operation across changing conditions.
- Cleaner operation: intelligent dusting switch helps clear dust, sand, and debris from the coil.
- Control options: Smart Kit with app control, included remote control, wall thermostat optional (sold separately).
IndoorCH-R36MELVWM-230VI
OutdoorCH-REL36-230VO
Lines3/8" liquid · 5/8" gas
Max run213.2 ft
What’s Included
- Indoor unit: CH-R36MELVWM-230VI
- Outdoor unit: CH-REL36-230VO (Single-Zone)
- Remote control (included)
- Smart Kit for app control
- Manufacturer documentation (see Documents & Downloads)
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-R36MELVWM-230VI |
| System type | Single Zone |
| Refrigerant type | R454B |
| BTU rated | 36,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| SEER2 | 19.5 |
| EER2 | 9.3 |
| Refrigerant piping (liq/gas) | 3/8" / 5/8" |
| Minimum circuit ampacity | 3 |
| Max fuse | 15 |
| Indoor noise level (H/M/L) | 51 / 45 / 33.5 dB(A) |
| Indoor air flow | 871.1 / 676.9 / 447.3 / 329.6 CFM |
| Dehumidification | 10.78 pnt/day |

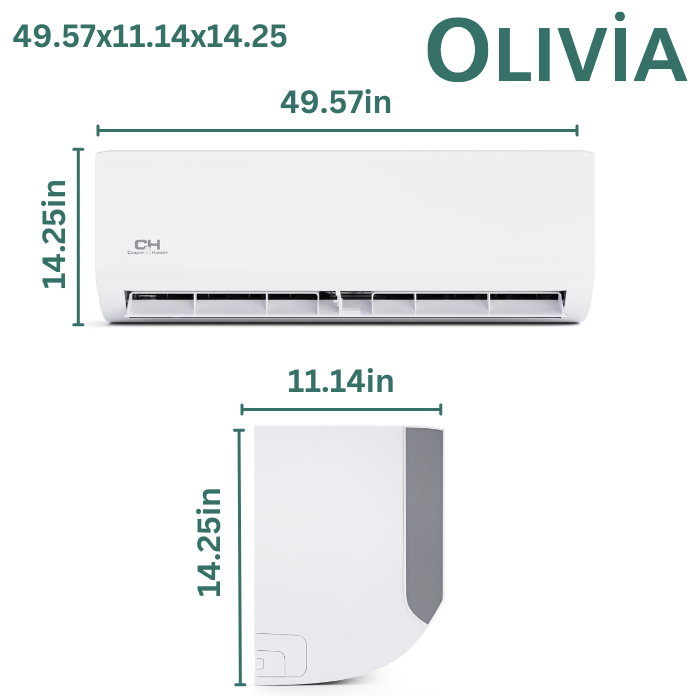

| Unit dimensions (W×H×D) | 49.57 × 11.14 × 14.25 in |
| Net / Gross weight | 43.43 / 56.88 lb |
| Packing dimensions (W×D×H) | 52.76 × 17.72 × 15.16 in |
| Drain pipe diameter | 5/8" |
| Operating range (Cooling) | 60–90°F |
| Operating range (Heating) | 32–86°F |
| Controller | Remote controller |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-REL36-230VO |
| Refrigerant type | R454B |
| BTU rated | 36,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Refrigerant piping (liq/gas) | 3/8" / 5/8" |
| Max pipe length | 213.2 ft |
| Max height difference (IDU↔ODU) | 98.4 ft |
| Cooling capacity (Min/Max) | 36,000 (6,600–36,800) BTU/h |
| Heating capacity (Min/Max) | 36,000 (11,400–44,000) BTU/h |
| HSPF2-5 | 7 |
| HSPF2-4 | 9.1 |
| COP | 2.95 |
| Dehumidification | 10.78 pnt/day |
| Outdoor noise level | 63 dB(A) |
| Outdoor air flow | 2,235.3 CFM |
| Minimum circuit ampacity | 33 |
| Max fuse | 35 |
| Ambient temp (Heating) | −13–75°F |
| Ambient temp (Cooling) | −13–122°F |
| Unit dimensions (W×H×D) | 37.24 × 16.14 × 31.89 in |
| Net / Gross weight | 150.35 / 160.27 lb |
| Packing dimensions (W×D×H) | 42.91 × 19.68 × 34.84 in |
| Refrigerant precharge | 25 |
| Additional charge (3/8" liquid) | 0.32 |
Documents & Downloads
- Submittal (PDF) — CH-REL36-230VO + CH-R36MELVWM-230VI
- Submittal (PDF) — CH-REL36-230VO + CH-PRO36MASTWM-230VI
- Submittal (PDF) — CH-REL36-230VO + CH-RH36MASTWM-230VI
- Installation Manual (PDF) — R454B Outdoor Units
- AHRI Directory Listing — AHRI #207742340
- Manufacturer Page — CH-R36MELVWM-230VI
- Manufacturer Page — CH-REL36-230VO
Videos
Mini-split installation videos
- How to Install Mini Split Cooper&Hunter
- How to Install Multi Zone Mini Split System (Cooper&Hunter) 2020
- Full Installation of Mini Split Ductless Unit, Step by Step!
How To & Instructional Videos
- How to Clean Cooper&Hunter Mini Split Wall Mount A/C
- Top Tips from Cooper&Hunter Mini Split User Manual
- Mini Split WiFi Set Up (Cooper&Hunter)
- Cooper&Hunter New Remote Control (2022)
Products overview
Important
Professional installation is recommended. Confirm electrical requirements, line sizes, maximum line length, and ambient operating limits before installation.
FAQs
What line sizes does this system use?
3/8" liquid and 5/8" gas.
What is the max line length and height difference?
Maximum line length is 213.2 ft and maximum height difference is 98.4 ft.
What is the outdoor heating and cooling ambient range?
Cooling: −13–122°F. Heating: −13–75°F.
What controls are supported?
Smart Kit app control, included remote control; wall thermostat optional (sold separately).
