Cooper&Hunter Olivia • R410A • Inverter
Cooper&Hunter 36,000 BTU Olivia Single Zone Wall Mount Mini Split Heat Pump System R410A 230V
SKU: CH-36ELVWM-230VI + CH-EL36-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview
Bring powerful, reliable comfort to larger spaces with the Cooper&Hunter 36,000 BTU Olivia wall-mounted mini split heat pump system. This single-zone inverter system uses R410A refrigerant and is built for 208–230V applications with strong heating and cooling performance and precision temperature control.
Olivia includes a feature-rich remote control and supports convenient comfort modes like Follow Me, Sleep, and Timer, plus 46° Freeze Protection. Optional control upgrades can include a wired thermostat and app control when used with an optional WiFi kit.
Highlights
36,000 BTU class Single Zone system R410A refrigerant Up to 18 SEER2 Follow Me / Sleep / Timer 46° Freeze Protection 208–230V, 1Ph, 60Hz 3/8" liquid • 5/8" gas Max line length 213.25 ft
- Consistent comfort: inverter operation adapts output to demand for steadier temperatures.
- Flexible control: included remote; supports wired thermostat and optional app control (with optional WiFi kit).
- Cold-weather protection: 46° Freeze Protection helps maintain safe operation.
- Room comfort features: Follow Me, Sleep mode, and Timer options for day-to-day convenience.
IndoorCH-36ELVWM-230VI
OutdoorCH-EL36-230VO
Lines3/8" liquid · 5/8" gas
Max run213.25 ft

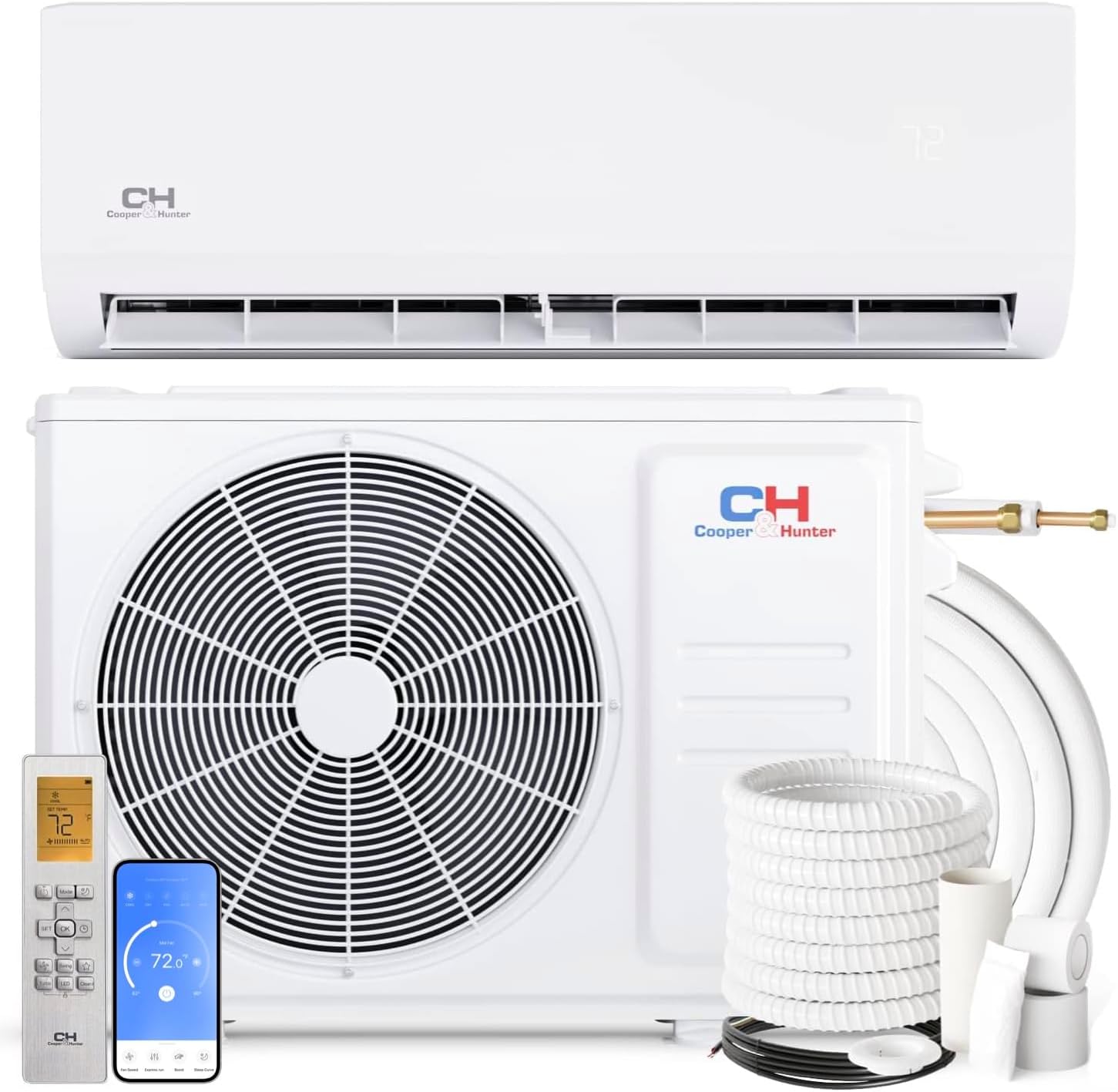

What’s Included
- Indoor unit: CH-36ELVWM-230VI
- Outdoor unit: CH-EL36-230VO (Single-Zone)
- Remote control (included)
- Manufacturer documentation (see Documents & Downloads)

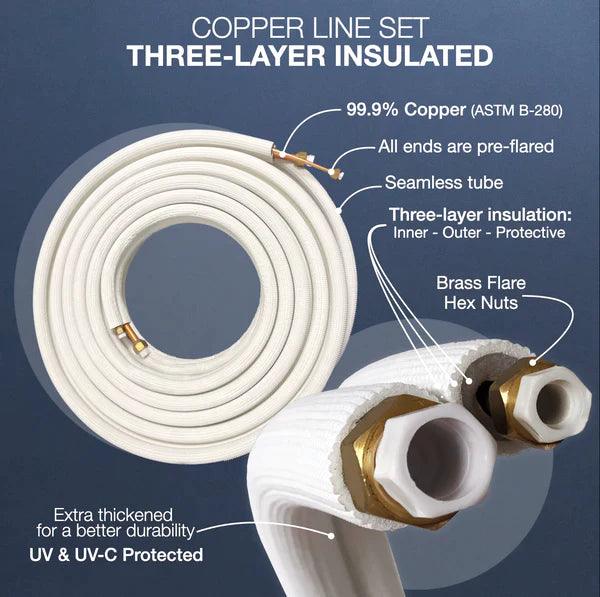

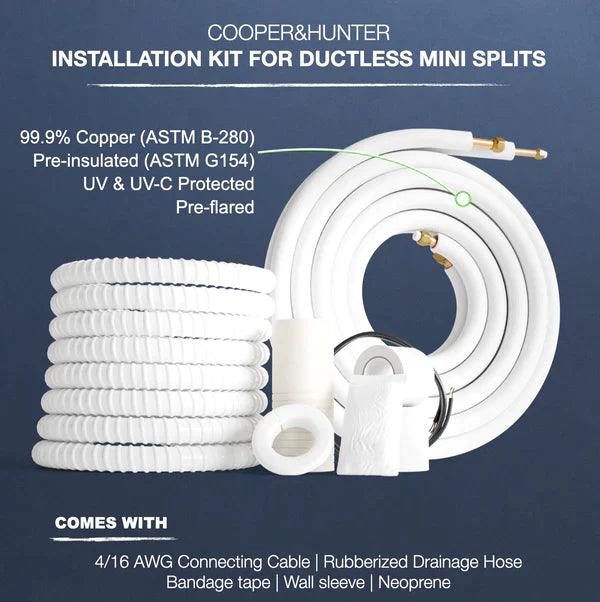

- Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-36ELVWM-230VI |
| System type | Single Zone |
| Refrigerant type | R410A |
| BTU rated | 36,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| SEER2 | 18 |
| EER2 | 9.5 |
| Refrigerant piping (liq/gas) | 3/8" / 5/8" |
| Minimum circuit ampacity | 3 |
| Max fuse | 15 |
| Indoor noise level (H/M/L) | 54 / 45 / 40 dB(A) |
| Indoor air flow | 794.12 / 652.94 / 447.06 / 329.41 CFM |
| Dehumidification | 9.47 pnt/day |

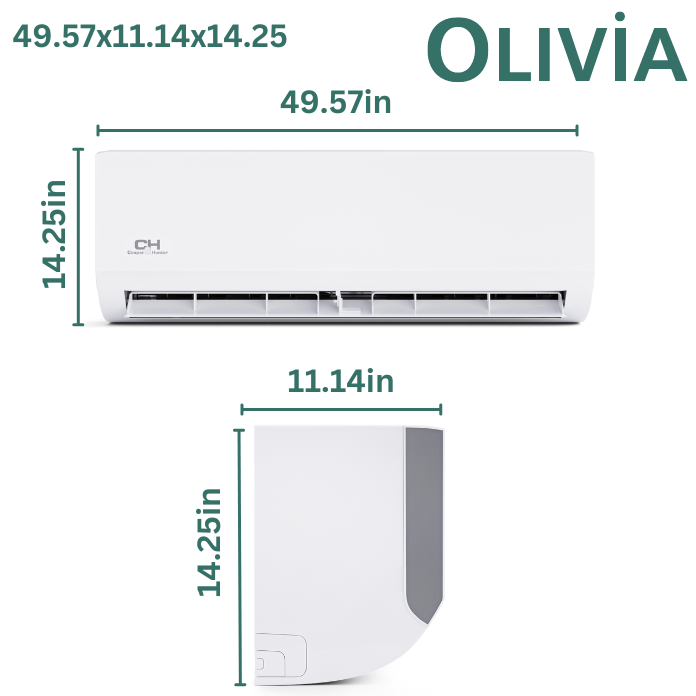

| Unit dimensions (W×H×D) | 49.57 × 11.14 × 14.25 in |
| Net / Gross weight | 42.77 / 55.56 lb |
| Packing dimensions (W×D×H) | 52.76 × 17.72 × 15.16 in |
| Drain pipe diameter | 5/8" |
| Operating range (Cooling) | 60–90°F |
| Operating range (Heating) | 32–86°F |
| Controller | RG10K-exclusive remote |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-EL36-230VO |
| System type | Single Zone |
| Refrigerant type | R410A |
| BTU rated | 36,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Refrigerant piping (liq/gas) | 3/8" / 5/8" |
| Max pipe length | 213.25 ft |
| Max height difference (IDU↔ODU) | 98.42 ft |
| Cooling capacity (Min/Max) | 36,000 (8,900–36,300) BTU/h |
| Heating capacity (Min/Max) | 36,000 (11,400–37,800) BTU/h |
| SEER2 | 17.5 |
| EER2 | 8.5 |
| HSPF2-5 | 6.8 |
| HSPF2-4 | 8.7 |
| COP | 2.47 |
| Dehumidification | 9.98 pnt/day |
| Outdoor noise level | 63.5 dB(A) |
| Outdoor air flow | 2,235.29 CFM |
| Minimum circuit ampacity | 28 |
| Max fuse | 35 |
| Ambient temp (Heating) | 5–86°F |
| Ambient temp (Cooling) | 5–122°F |
| Unit dimensions (W×H×D) | 37.24 × 16.14 × 31.89 in |
| Net / Gross weight | 150.13 / 158.95 lb |
| Packing dimensions (W×D×H) | 42.91 × 19.69 × 34.84 in |
| Refrigerant precharge | 25 |
| Additional charge (3/8" liquid) | 0.32 |
Documents & Downloads
Videos
Mini-Splits
- Can You Use a Mini Split in EXTREME COLD? Heat Pump vs. Propane Cost Comparison with Thermal Camera
- Where To Mount a Mini Split Indoor Wall Hung Unit
- How To Wall Mount a Mini Split Outdoor Condenser Unit
- Are Mini Split Air Conditioners Worth It? - Top 5 Pros & Cons
- Does a Wall Mounted MINISPLIT Need a CONDENSATE TRAP? Ductless vs Ducted Air Handlers!
- MINI SPLIT Parts Explained! Understand What They Do!
- Mini Split Failure from Electrical Surges, High and Low Voltage! HOW TO SOLVE IT!
- Full Installation of an Inverter Minisplit Heat Pump with Indoor Ceiling Cassette
- Checking the Refrigerant Charge on a Running R-410A Inverter MINI SPLIT Unit
- Mini Split Indoor Unit Types Explained! 5 Types- Applications, Connection Points, Mounting!
Important
Professional installation is recommended. Confirm electrical requirements, line sizes, maximum line length, and ambient operating limits before installation. Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
FAQs
Is this a single-zone system?
Yes—this bundle is configured as a single-zone system: CH-36ELVWM-230VI + CH-EL36-230VO.
What line sizes does this system use?
3/8" liquid and 5/8" gas.
What is the max line length and height difference?
Maximum line length is 213.25 ft and maximum height difference is 98.42 ft.
Is WiFi/app control included?

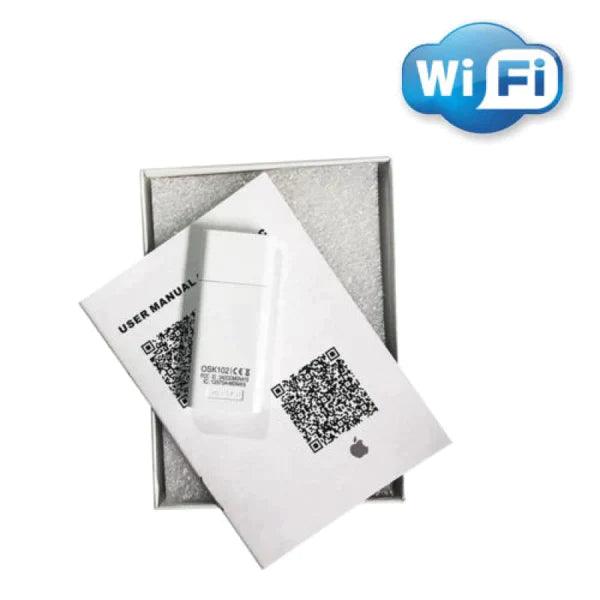

App control is supported when used with an optional WiFi kit. The included remote is provided for standard operation.
What is the outdoor heating and cooling ambient range?
Cooling: 5–122°F. Heating: 5–86°F.
Are installation kits included?
No. Installation kits are only included if selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
