Cooper&Hunter

Cooper&Hunter 36,000 BTU Hyper Single Zone Slim Duct Ducted Minisplit Heat Pump System R454B 230V

SKU: CH-RS36LCDT-HS + CH-RHP36LCU-230VO

System highlights
AC Type
Slim Duct
Refrigerant Type
R454B
Brand
Cooper&Hunter
Outdoor Unit
36000 BTU VO (3.0 TON)
Indoor Unit
36000 BTU (3.0 TON)
Voltage
208-230V
Looking For
Slim Duct
Cooling Area (sq.ft.)
1500 and up
Series
Hyper
SEER2 Rating
17.7
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$5,273.00
Shipping calculated at checkout.
View full details

High Static Slim Duct + Outdoor Unit • R454B • 208–230V

Cooper&Hunter 36,000 BTU Hyper Single Zone Slim Duct Ducted Minisplit Heat Pump System R454B 230V

Overview

36K high-static slim duct indoor unit paired with a single-zone outdoor condenser for large residential and light commercial use. Concealed ducted installation with strong static pressure capability supports consistent air delivery across duct runs.

Highlights

Capacity: 36,000 BTU Refrigerant: R454B ESP Range: 0–0.8 Line Set: 3/8" × 3/4" Heating Ambient: -13°F to 75°F Cooling Ambient: -13°F to 122°F

System Search

CH-RS36LCDT-HS + CH-R36LCU-230VO

Voltage

208–230V (1Ph, 60Hz)

Voltage Range

187–253V

Max Line / Lift

246 ft / 98.4 ft

Outdoor MCA / Max Fuse

33A / 35A

AHRI

207742340

  • High static pressure ducted performance (ESP 0–0.8)
  • Smart kit connectivity support with app control
  • Control options: remote control + wall thermostat + wired controller support
  • TU1 copper tubing design
  • Refrigerant sensor for system monitoring

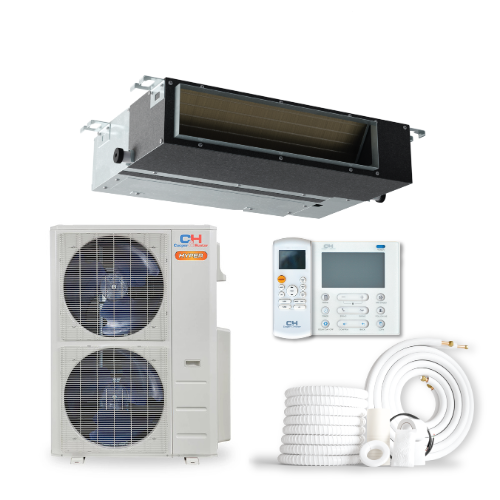

What’s Included

  • Indoor unit: CH-RS36LCDT-HS
  • Outdoor unit: CH-R36LCU-230VO
  • Remote control and wall thermostat
  • Wired controller support (wire controller + remote controller available)
  • Smart kit connectivity support

Indoor Specs (CH-RS36LCDT-HS)

Spec Value
Refrigerant Type R454B
System Type Single Zone
BTU Rated 36,000
Power Source 208–230V, 1Ph, 60Hz
Voltage Range 187–253V
Dehumidification 6.34 pints/day
Filter Dimensions (W×D) 21.26 × 10.12 in
Controller Wire controller + remote controller available
Refrigerant Piping (Liquid/Gas) 3/8" / 3/4"
EER2 12
SEER2 17.7
Minimum Circuit Ampacity 4A
Max Fuse 15A
Indoor Noise Level (H/M/L) 45 / 40 / 34
Indoor Air Flow 1,236.1 / 1,059.5 / 941.8 / 765.2
ESP Range 0–0.8
Drainage Water Pipe Diameter 1"
Operation Range – Heating 32–86°F
Operation Range – Cooling 60–90°F
Unit Dimensions (W×H×D) 47.24 × 29.53 × 11.81 in
Packing Dimensions (W×D×H) 56.10 × 33.86 × 14.13 in
Unit Net / Gross Weight 106.26 / 120.37 lb

Outdoor Specs (CH-R36LCU-230VO)

Spec Value
Refrigerant Type R454B
System Type Single-zone unit
BTU Rated 36,000
Power Source 208–230V, 1Ph, 60Hz
Voltage Range 187–253V
Dehumidification 7.72 pints/day
Max Pipe Length 246 ft
Max Height Difference (Indoor↔Outdoor) 98.4 ft
Refrigerant Piping (Liquid/Gas) 3/8" / 3/4"
HSPF2-5 / HSPF2-4 7.8 / 10.2
EER2 10.1
SEER2 18.7
Cooling Capacity (Min/Max) 36,000 (7,900–42,500) BTU/h
Heating Capacity (Min/Max) 40,000 (8,100–43,500) BTU/h
COP 3.7
Ambient Temperature – Heating -13 to 75°F
Ambient Temperature – Cooling -13 to 122°F
Refrigerant Precharge 25
Outdoor Noise Level 63
Outdoor Air Flow 2,413.3
Minimum Circuit Ampacity 33A
Max Fuse 35A
Additional Refrigerant Charge (3/8 liquid line) 0.32
Unit Dimensions (W×H×D) 37.24 × 16.14 × 31.89 in
Packing Dimensions (W×D×H) 42.91 × 19.68 × 34.84 in
Unit Net / Gross Weight 152.34 / 162.48 lb
AHRI 207742340

Documents & Downloads

Important

  • Line set: 3/8" liquid and 3/4" suction (gas).
  • Max piping: 246 ft total length and 98.4 ft vertical separation.
  • Electrical (outdoor): MCA 33A, max fuse 35A.
  • AHRI reference: 207742340.
  • Support: hvacsupplies.com/pages/contact • (800) 543-8933

FAQs

What line set size does this system use?

3/8" liquid line and 3/4" suction (gas) line.

What is the duct static pressure range?

ESP range: 0–0.8.

What is the maximum piping length and vertical separation?

246 ft maximum piping length and 98.4 ft maximum height difference.

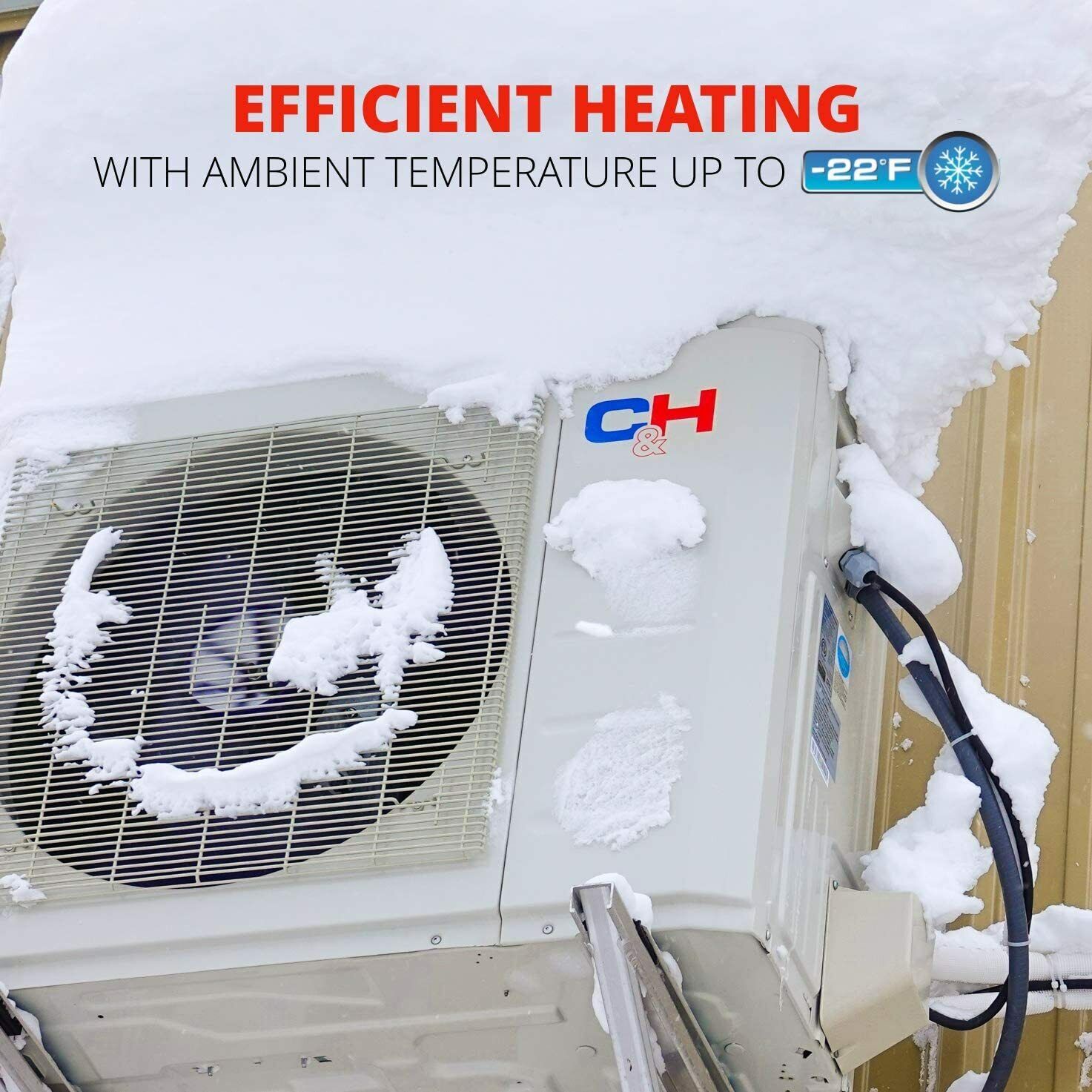

How cold can it operate in heating?

Heating ambient range: -13°F to 75°F.

What is the cooling ambient range?

Cooling ambient range: -13°F to 122°F.

What are the outdoor capacity ranges?

Cooling: 36,000 (7,900–42,500) BTU/h. Heating: 40,000 (8,100–43,500) BTU/h.

What are the indoor airflow values?

1,236.1 / 1,059.5 / 941.8 / 765.2.

What control options are supported?

Remote control and wall thermostat, plus wired controller support.

What electrical requirements does the outdoor unit use?

208–230V, 1Ph, 60Hz. Voltage range: 187–253V. MCA: 33A. Max fuse: 35A.
