Cooper&Hunter 36,000 BTU Hyper High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R454B 230V

SKU: CH-RS36LCAHU + CH-RHP36LCU-230VO

AC Type

Air Handler

Refrigerant Type

R454B

Brand

Cooper&Hunter

Outdoor Unit

36000 BTU VO (3.0 TON)

Indoor Unit

36000 BTU (3.0 TON)

Voltage

208-230V

Looking For

Ducted

Cooling Area (sq.ft.)

1500 and up

Series

Hyper

SEER2 Rating

17.2

Airflow Direction

Multi-Positional

Line Set Length No installation 25FT 50FT

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$5,720.00

Shipping calculated at checkout.

View full details

Multi-Position Air Handler + Hyper Outdoor • R454B • 208–230V

Cooper&Hunter 36,000 BTU Hyper High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R454B 230V

Overview

36K multi-position air handler paired with a Hyper single-zone outdoor unit for efficient heating and cooling. Flexible indoor installation (horizontal or vertical) plus inverter-driven operation support consistent comfort.

Highlights

Capacity: 36,000 BTU Refrigerant: R454B System SEER2: 17.2 Indoor EER2: 11.7 Outdoor SEER2: 17.7 Outdoor EER2: 12 ESP Range: 0–0.8 Line Set: 3/8" × 3/4" Max Pipe / Lift: 246 ft / 98.4 ft Heating Ambient: -22°F to 75°F Cooling Ambient: -22°F to 122°F

System Search

CH-RS36LCAHU + CH-RHP36LCU-230VO

Voltage

208–230V (1Ph, 60Hz)

Voltage Range

187–253V

Outdoor MCA / Max Fuse

38A / 40A

Indoor MCA / Max Fuse

6A / 15A

Filter Size

Field supply (20×20)

Multi-position indoor install (horizontal or vertical)
Intelligent airflow with multi-speed fan motor (auto/manual static adjustment)
Anti-cold air and fast cool/heat support
Refrigerant leak detection and wired controller support
Hyper heating ambient range support down to -22°F

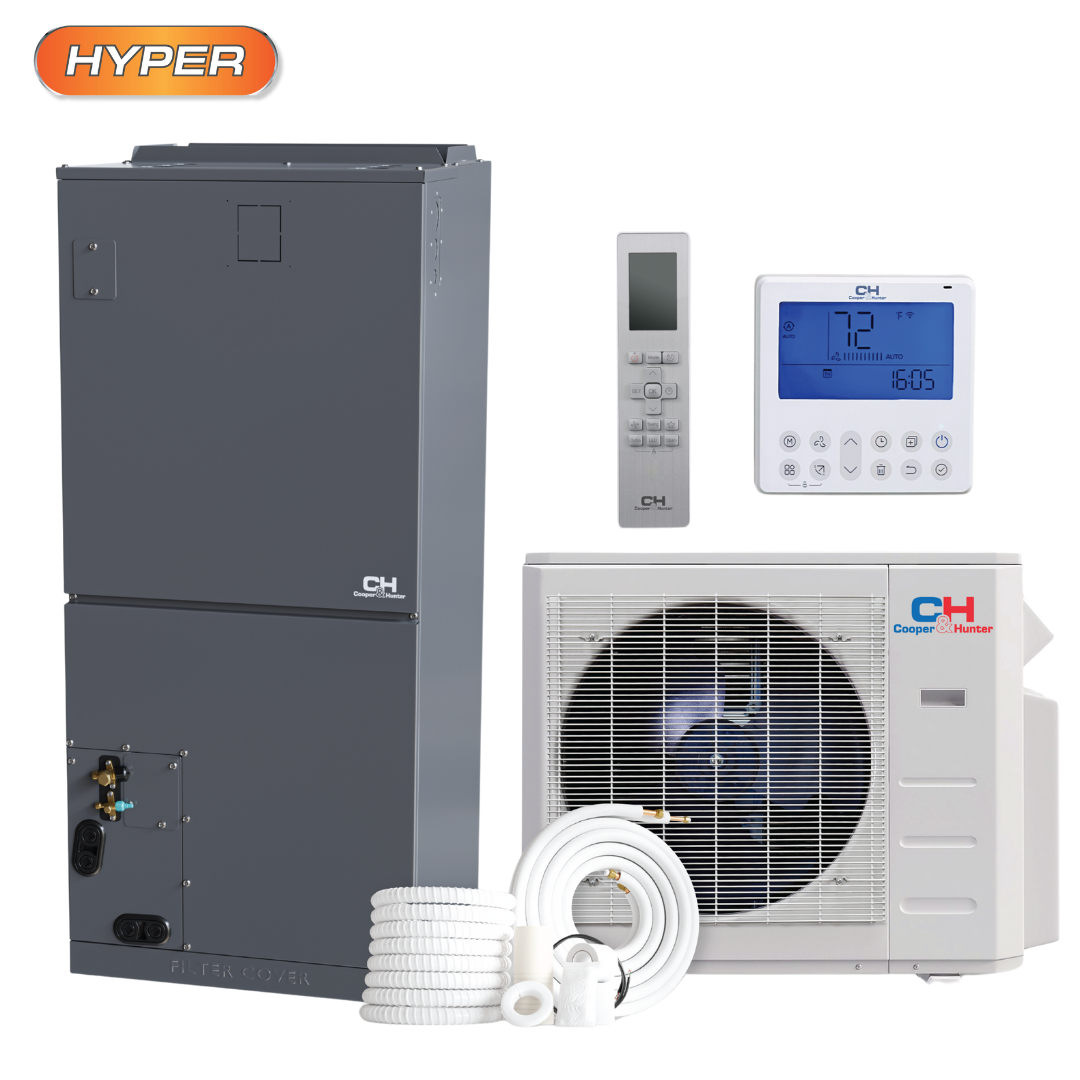

What’s Included

Indoor unit: CH-RS36LCAHU
Outdoor unit: CH-RHP36LCU-230VO
Remote control and wall thermostat
Wired controller support
Smart kit connectivity support
Optional auxiliary heater support (purchased separately)

Indoor Specs (CH-RS36LCAHU)

Spec	Value
Refrigerant Type	R454B
System Type	Single Zone
BTU Rated	36,000
Power Source	208–230V, 1Ph, 60Hz
Voltage Range	187–253V
Dehumidification	7.59 pints/day
Filter Dimensions (W×D)	Field supply (unit without filter 20×20)
Controller	Wire controller + remote controller available
Refrigerant Piping (Liquid/Gas)	3/8" / 3/4"
EER2	11.7
SEER2	17.2
Minimum Circuit Ampacity	6A
Max Fuse	15A
Indoor Noise Level (H/M/L)	47 / 42 / 30.5
Indoor Air Flow	1189 / 1083 / 971.2 / 865.2
ESP Range	0–0.8
Drainage Water Pipe Diameter	3/4"
Operation Range – Heating	32–86°F
Operation Range – Cooling	60–90°F

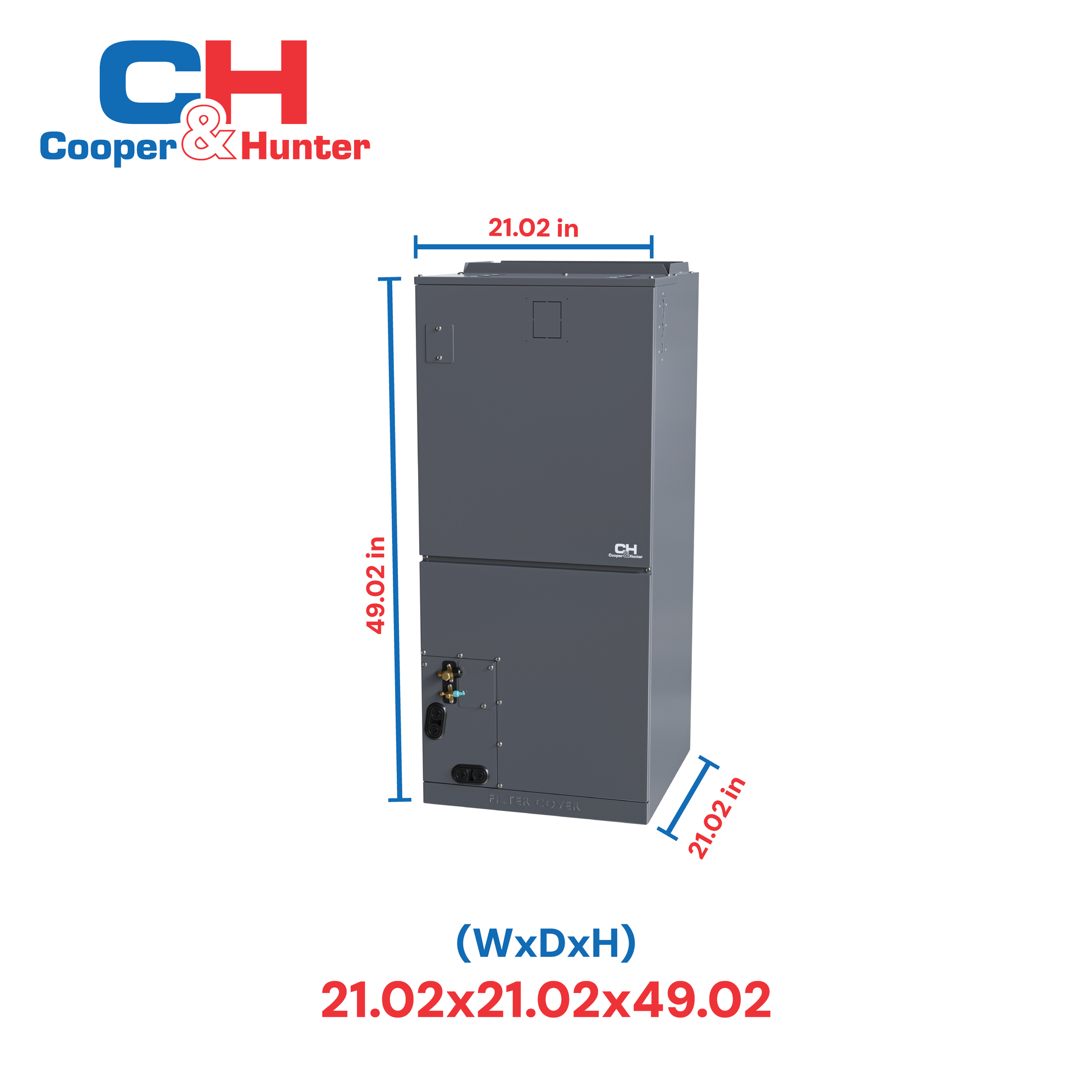

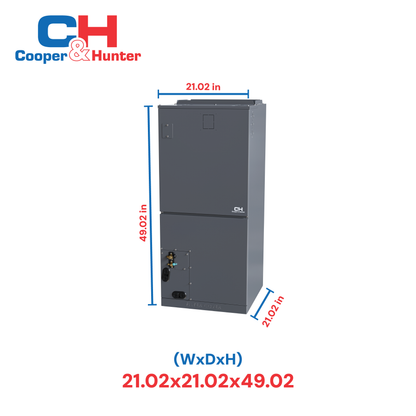

Unit Dimensions (W×H×D)	21.02 × 21.02 × 49.02 in
Packing Dimensions (W×D×H)	24.41 × 26.57 × 52.56 in
Unit Net / Gross Weight	127.87 / 152.78 lb

Outdoor Specs (CH-RHP36LCU-230VO)

Spec	Value
Refrigerant Type	R454B
System Type	Single-zone unit
BTU Rated	36,000
Power Source	208–230V, 1Ph, 60Hz
Voltage Range	187–253V
Dehumidification	6.34 pints/day
Max Pipe Length	246 ft
Max Height Difference (Indoor↔Outdoor)	98.4 ft
Refrigerant Piping (Liquid/Gas)	3/8" / 3/4"
HSPF2-5 / HSPF2-4	9.2 / 11.1
EER2	12
SEER2	17.7
Cooling Capacity (Min/Max)	36,000 (9,800–37,000) BTU/h
Heating Capacity (Min/Max)	42,000 (11,000–45,500) BTU/h
COP	3.8
Ambient Temperature – Heating	-22 to 75°F
Ambient Temperature – Cooling	-22 to 122°F
Refrigerant Precharge	25
Outdoor Noise Level	65
Outdoor Air Flow	3,001.9
Minimum Circuit Ampacity	38A
Max Fuse	40A
Additional Refrigerant Charge (3/8 liquid line)	0.32

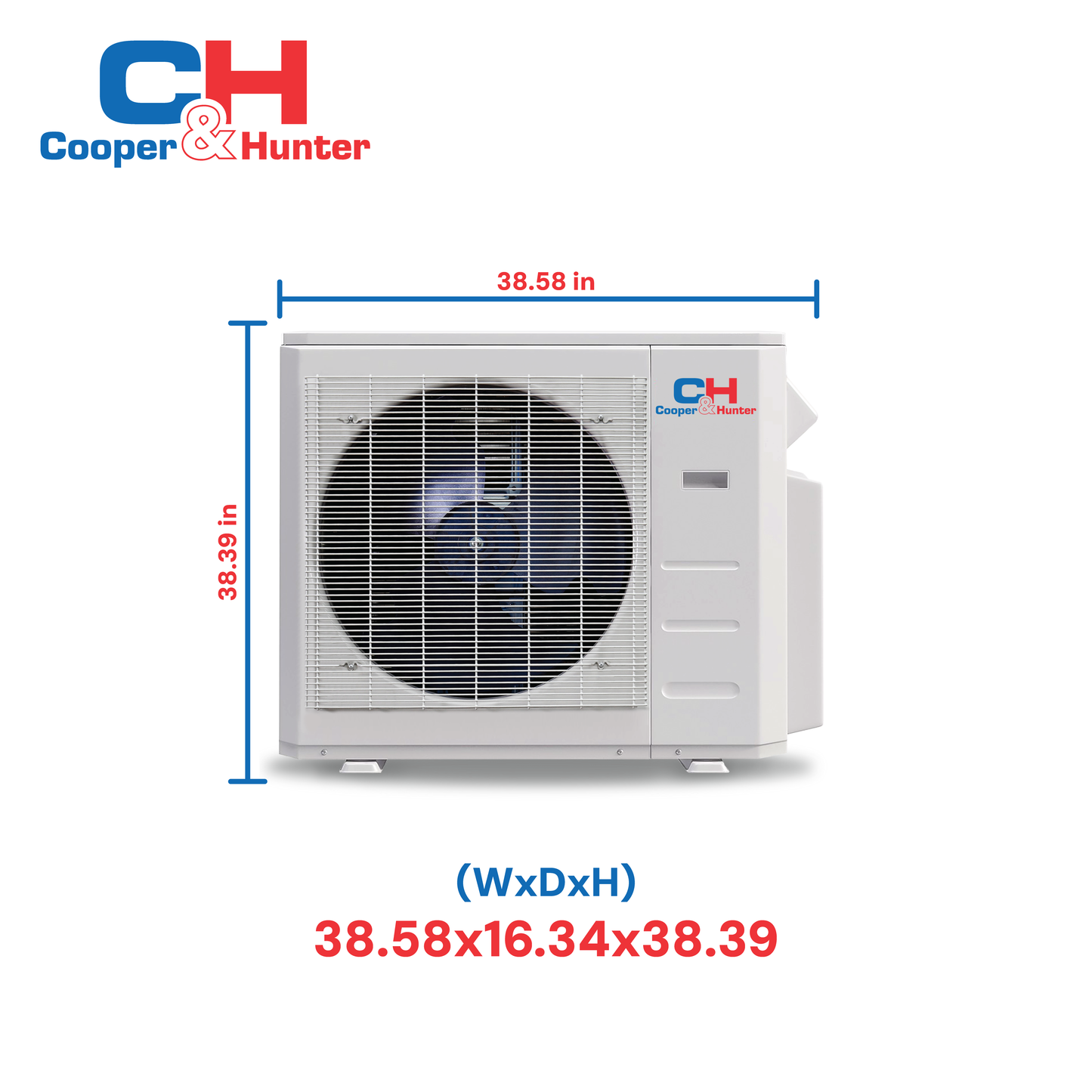

Unit Dimensions (W×H×D)	38.58 × 16.34 × 38.39 in
Packing Dimensions (W×D×H)	45.08 × 19.68 × 42.52 in
Unit Net / Gross Weight	206.57 / 237.44 lb
