Cooper&Hunter

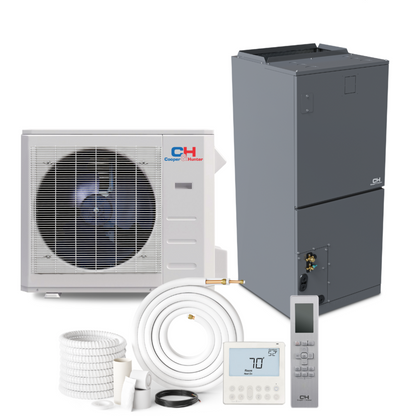

Cooper&Hunter 30,000 BTU High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R454B 230V

SKU: CH-RS30MAHU + CH-REL30-230VO

System highlights
AC Type
Air Handler
Refrigerant Type
R454B
Brand
Cooper&Hunter
Outdoor Unit
30000 BTU VO (2.5 TON)
Indoor Unit
30000 BTU (2.5 TON)
Voltage
208-230V
Looking For
Ducted
Cooling Area (sq.ft.)
1500 and up
SEER2 Rating
17.0
Airflow Direction
Multi-Positional
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$3,419.00
Shipping calculated at checkout.
View full details

Multi-Position Air Handler + Outdoor Unit • R454B • 208–230V

Cooper&Hunter 30,000 BTU High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R454B 230V

Overview

30K multi-position air handler paired with a single-zone outdoor unit for efficient, inverter-driven heating and cooling. The indoor unit supports horizontal or vertical installation and includes airflow and comfort features designed for ducted applications.

Highlights

Capacity: 30,000 BTU Refrigerant: R454B System SEER2: 17.7 Indoor EER2: 11 ESP Range: 0–0.8 Line Set: 3/8" × 5/8" Max Pipe / Lift: 164 ft / 82 ft Heating Ambient: -13°F to 75°F Cooling Ambient: -13°F to 122°F AHRI: 207742340

System Search

CH-RS30MAHU + CH-REL30-230VO

Voltage

208–230V (1Ph, 60Hz)

Voltage Range

187–253V

Outdoor MCA / Max Fuse

28A / 30A

Indoor MCA / Max Fuse

6A / 15A

Filter Size

Field supply (16×20)

  • Multi-position indoor installation (horizontal or vertical)
  • Intelligent airflow with multi-speed fan motor (auto/manual static adjustment)
  • Anti-cold air and fast cool/heat support
  • Refrigerant leak detection and wired controller support
  • R454B refrigerant for lower environmental impact vs. many legacy options

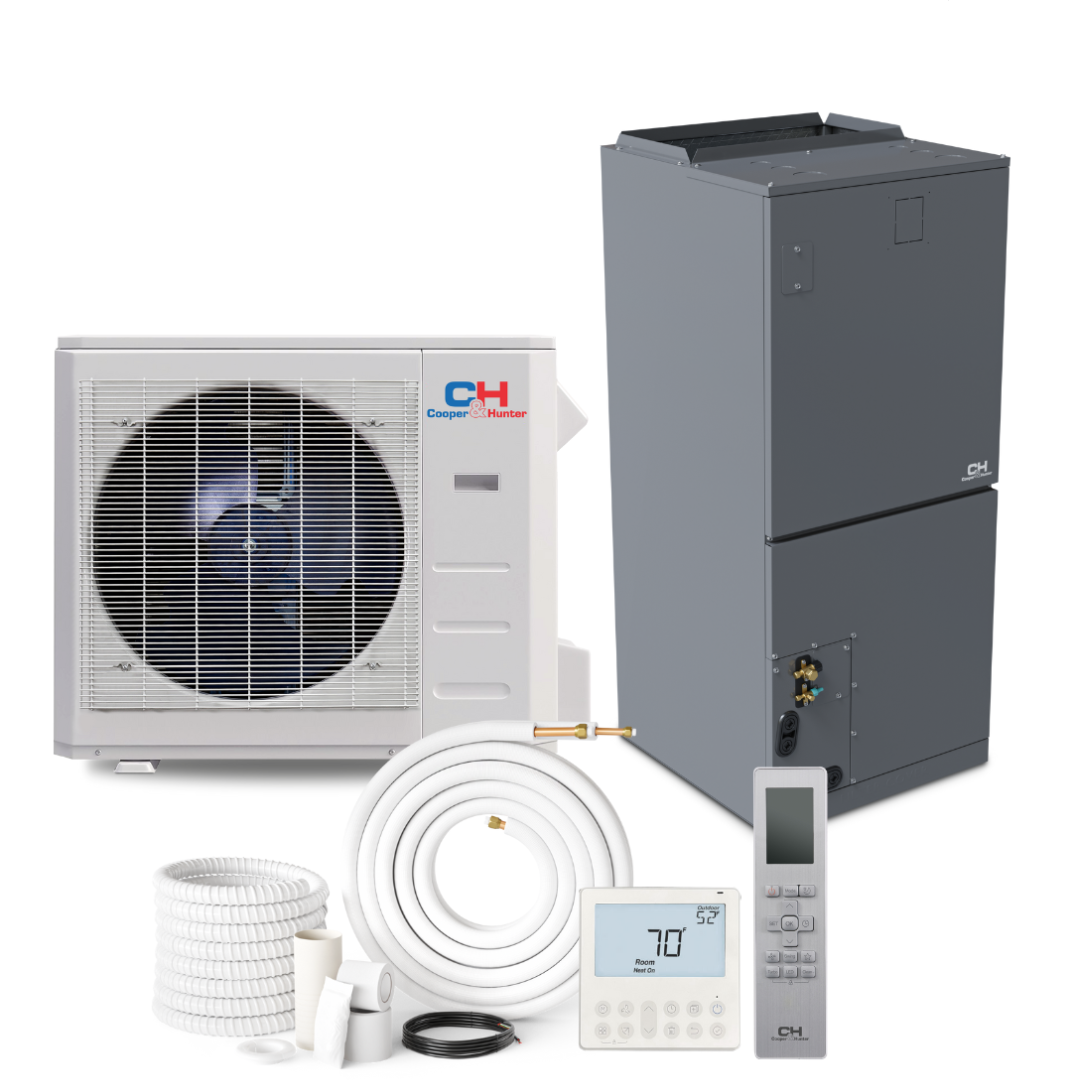

What’s Included

  • Indoor unit: CH-RS30MAHU
  • Outdoor unit: CH-REL30-230VO
  • Remote control and wall thermostat
  • Wired controller support
  • Smart kit connectivity support
  • Optional auxiliary heater support (purchased separately)

Indoor Specs (CH-RS30MAHU)

Spec Value
Refrigerant Type R454B
System Type Single Zone
BTU Rated 30,000
Power Source 208–230V, 1Ph, 60Hz
Voltage Range 187–253V
Dehumidification 7.4 pints/day
Filter Dimensions (W×D) Field supply (unit without filter 16×20)
Controller Wire controller + remote controller available
Refrigerant Piping (Liquid/Gas) 3/8" / 5/8"
EER2 11
SEER2 17
Minimum Circuit Ampacity 6A
Max Fuse 15A
Indoor Noise Level (H/M/L) 44 / 41 / 26
Indoor Air Flow 988.8 / 894.7 / 806.4 / 712.2
ESP Range 0–0.8
Drainage Water Pipe Diameter 3/4"
Operation Range – Heating 32–86°F
Operation Range – Cooling 60–90°F
Unit Dimensions (W×H×D) 21.02 × 21.02 × 49.02 in
Packing Dimensions (W×D×H) 24.41 × 26.57 × 52.56 in
Unit Net / Gross Weight 127.43 / 151.68 lb

Outdoor Specs (CH-REL30-230VO)

Spec Value
Refrigerant Type R454B
BTU Rated 30,000
Power Source 208–230V, 1Ph, 60Hz
Voltage Range 187–253V
Dehumidification 8.45 pints/day
Max Pipe Length 164 ft
Max Height Difference (Indoor↔Outdoor) 82 ft
Refrigerant Piping (Liquid/Gas) 3/8" / 5/8"
HSPF2-5 / HSPF2-4 7.2 / 9.5
Cooling Capacity (Min/Max) 30,000 (6,500–32,800) BTU/h
Heating Capacity (Min/Max) 30,000 (12,600–31,400) BTU/h
COP 3.08
Ambient Temperature – Heating -13 to 75°F
Ambient Temperature – Cooling -13 to 122°F
Refrigerant Precharge 25
Outdoor Noise Level 61
Outdoor Air Flow 2,235.3
Minimum Circuit Ampacity 28A
Max Fuse 30A
Additional Refrigerant Charge (3/8 liquid line) 0.32
Unit Dimensions (W×H×D) 37.24 × 16.14 × 31.89 in
Packing Dimensions (W×D×H) 42.91 × 19.68 × 34.84 in
Unit Net / Gross Weight 142.86 / 154.54 lb
AHRI 207742340

Documents & Downloads

Important

  • Line set: 3/8" liquid and 5/8" suction (gas).
  • Max piping: 164 ft total length and 82 ft vertical separation.
  • Outdoor electrical: MCA 28A, max fuse 30A.
  • Indoor electrical: MCA 6A, max fuse 15A.
  • Field-supplied filter: unit without filter is sized for 16×20.
  • Support: hvacsupplies.com/pages/contact • (800) 543-8933

FAQs

What line set size does this system use?

3/8" liquid line and 5/8" suction (gas) line.

Can the indoor air handler be installed horizontally or vertically?

Yes. It supports horizontal and vertical installation.

What is the maximum piping length and vertical separation?

164 ft maximum piping length and 82 ft maximum height difference.

How cold can it operate in heating?

Outdoor heating ambient range: -13°F to 75°F.

Does it include an auxiliary heater?

Auxiliary heater support is optional and purchased separately.

What electrical does it use?

208–230V, 1Ph, 60Hz. Voltage range: 187–253V. Outdoor MCA 28A (max fuse 30A). Indoor MCA 6A (max fuse 15A).
