Cooper&Hunter Astoria • R410A • Inverter Heat Pump

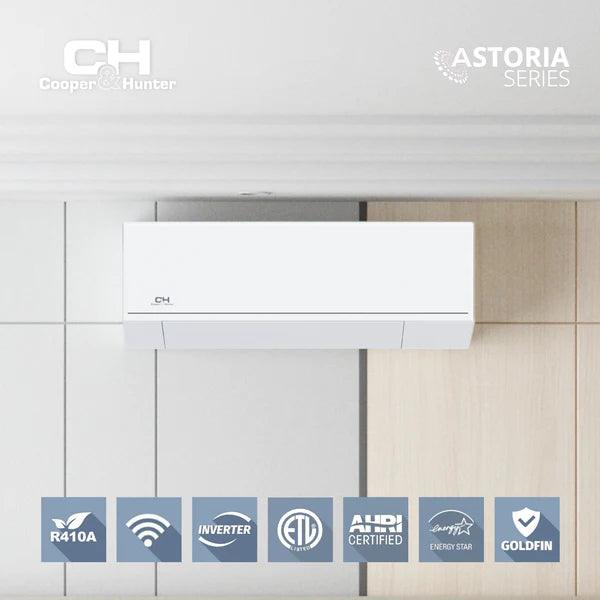

Cooper&Hunter 30,000 BTU Astoria Single Zone Wall Mount Minisplit Heat Pump System R410A 230V
SKU: CH-30ASTWM-230VI + CH-EL30-230VO
Overview

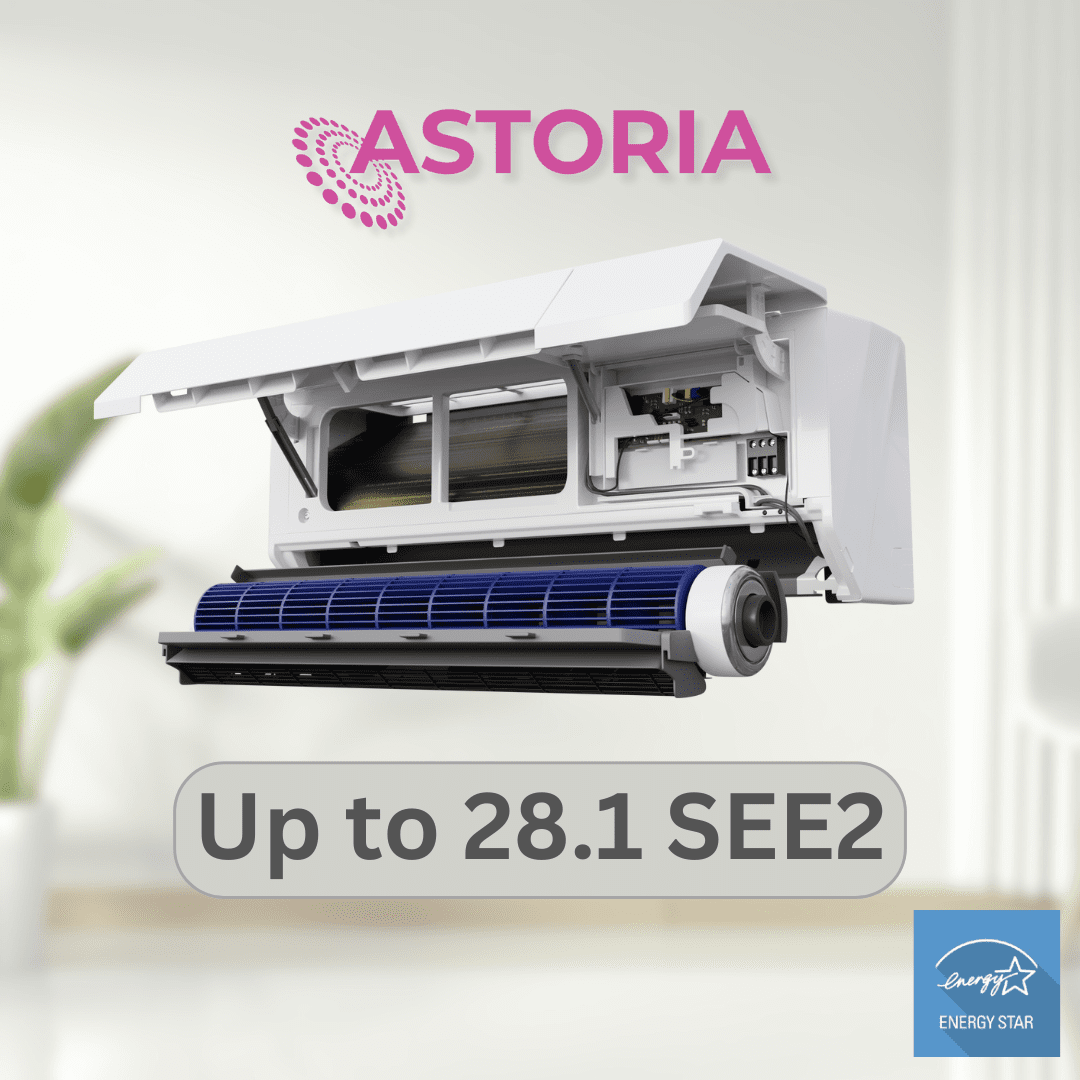

The Cooper&Hunter 30,000 BTU Astoria single-zone mini split heat pump combines powerful heating and cooling with a service-friendly indoor wall mount design. The indoor unit features an easy-to-remove blower wheel, front-access E-Box and PCB, and a built-in kickstand on the front cover panel to help simplify inspection, maintenance, and cleaning.
A larger air inlet and outlet improve airflow distribution, while automatically swinging vertical and horizontal louvers help deliver conditioned air throughout the room. The system may be controlled with the included RG10K remote, the included Smart Kit and C&H mobile app, or an optional compatible wall thermostat.
This specific 30,000 BTU pairing is rated at 20 SEER/SEER2 and uses R410A refrigerant. It operates on 208-230V, single-phase power and supports refrigerant line lengths up to approximately 164 ft.
Highlights
30,000 BTU class Single-zone system R410A refrigerant 20 SEER/SEER2 Smart Kit included RG10K remote included Vertical and horizontal auto-swing Service-friendly indoor unit 208-230V, 1Ph, 60Hz
- Flexible inverter output: cooling capacity modulates from approximately 9,070 to 30,700 BTU/h.
- Powerful heating: heating capacity at 47°F modulates from approximately 8,600 to 34,800 BTU/h.
- Improved airflow: enlarged inlet and outlet design supports up to approximately 843 CFM.
- Four-way air distribution: automatic vertical and horizontal louver movement helps spread conditioned air across the space.
- Convenient service access: removable blower wheel, front E-Box and PCB access, and front-panel kickstand simplify maintenance.
- Multiple control options: included remote, included Smart Kit with app control, and optional wall thermostat compatibility.
Indoor CH-30ASTWM-230VI
Outdoor CH-EL30-230VO
Line Sizes 3/8" liquid • 5/8" gas
Max Line Length 164.04 ft
What’s Included
- Indoor wall-mounted unit: CH-30ASTWM-230VI
- Outdoor heat pump unit: CH-EL30-230VO
- RG10K exclusive handheld remote control
- Smart Kit for C&H app connectivity
- Manufacturer documentation listed below
Installation materials: A refrigerant line set, communication wire, drain tubing, mounting accessories, electrical disconnect, pad, and other installation materials are not included unless an installation-kit option is selected. Available product variants may include No Installation, 16 ft, 25 ft, or 50 ft installation-kit options.
Indoor Specs
| Spec | Details |
|---|---|
| Indoor model | CH-30ASTWM-230VI |
| System configuration | Single-zone wall-mounted mini split heat pump |
| Power supply | 208-230V, 1Ph, 60Hz |
| Communication wiring | 14 AWG x 4 |
| Cooling capacity | 30,000 BTU/h, range 9,070-30,700 BTU/h |
| Cooling input | 2,605 W, range 420-3,130 W |
| Cooling rated current | 11.4 A, range 3-13.9 A |
| EER / EER2 | 11.5 BTU/W |
| SEER / SEER2 | 20 BTU/W |
| Heating capacity at 47°F | 30,000 BTU/h, range 8,600-34,800 BTU/h |
| Heating input at 47°F | 3,380 W, range 580-3,500 W |
| Heating rated current at 47°F | 14.7 A, range 4.07-15.5 A |
| COP | 2.6 W/W |
| HSPF4 / HSPF2-4 | 9.2 |
| HSPF5 / HSPF2-5 | 7.1 |
| Indoor fan motor quantity | 1 |
| Indoor fan motor input | 58 W |
| Indoor fan motor RLA | 0.5 A |
| Indoor airflow, Turbo/High/Medium/Low | 842.94 / 646.47 / 505.29 / 382.35 CFM |
| Indoor noise, High/Medium/Low | 46 / 40.5 / 33 dB(A) |
| Dehumidification | 7.65 L/h |

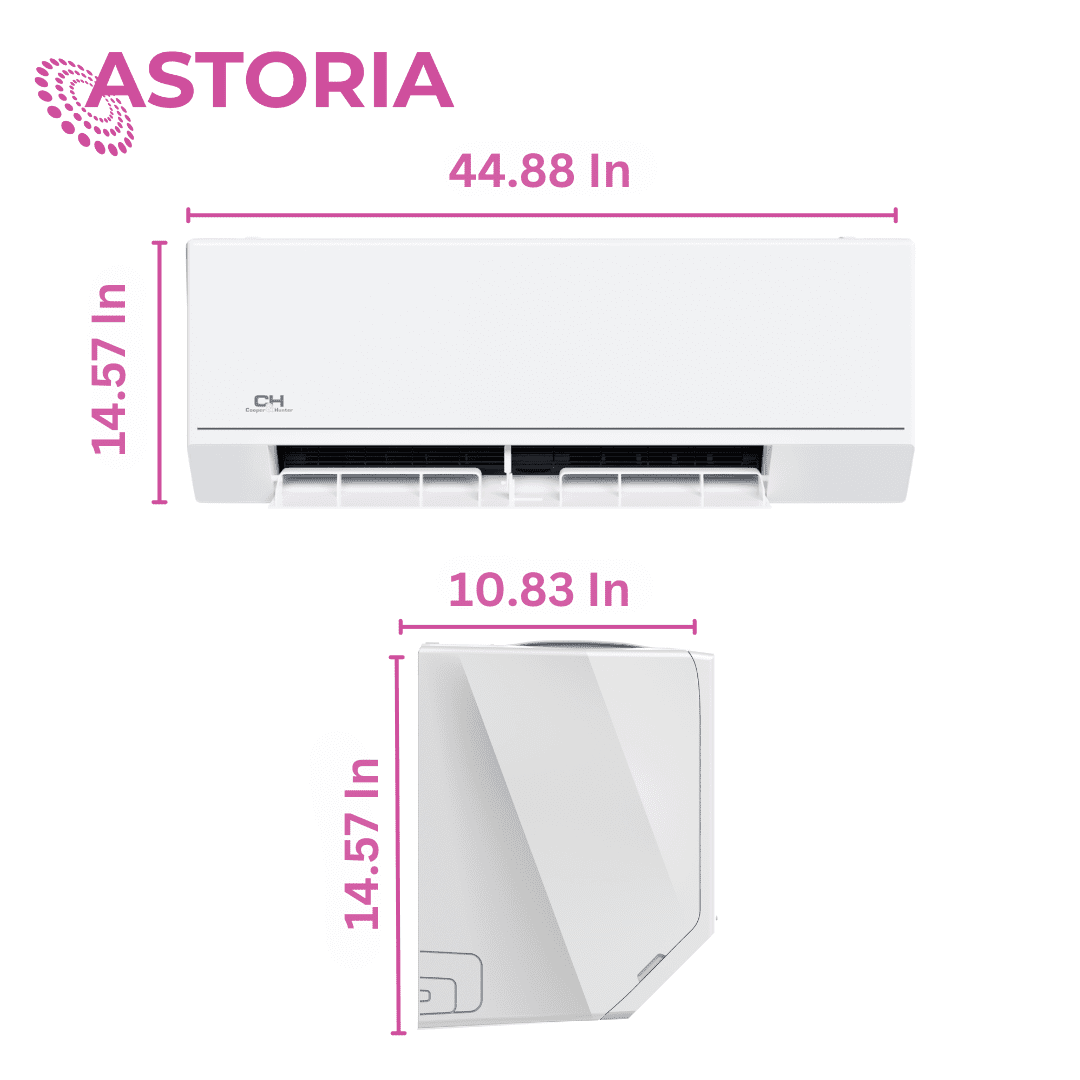

| Unit dimensions, W x D x H | 44.88 x 10.83 x 14.57 in |
| Packing dimensions, W x D x H | 48.43 x 17.91 x 13.98 in |
| Net / Gross weight | 43.65 / 54.89 lb |
| Drain pipe diameter | 5/8" |
| Refrigerant piping, liquid / gas | 3/8" / 5/8" |
| Design pressure | 550 / 340 PSIG |
| Included controller | RG10K exclusive remote control |
| Indoor cooling temperature setting range | 60-90°F |
| Indoor heating temperature setting range | 32-86°F |
Outdoor Specs
| Spec | Details |
|---|---|
| Outdoor model | CH-EL30-230VO |
| Power supply | 208-230V, 1Ph, 60Hz |
| Minimum circuit ampacity | 23 A |
| Maximum fuse / breaker | 30 A |
| Compressor model | KTF250D22UMT |
| Compressor type | Rotary |
| Compressor brand | GMCC |
| Compressor capacity | 27,620 BTU/h |
| Compressor input | 2,200 W |
| Compressor rated current | 15 A |
| Refrigerant oil | VG74, 22.7 oz |
| Outdoor fan motor quantity | 1 |
| Outdoor fan motor input | 150 W |
| Outdoor fan motor RLA | 0.6 A |
| Outdoor fan speeds | 900 / 750 RPM |
| Maximum outdoor airflow | 2,235.29 CFM |
| Maximum outdoor noise level | 61.5 dB(A) |
| Throttle type | Electronic expansion valve plus capillary |

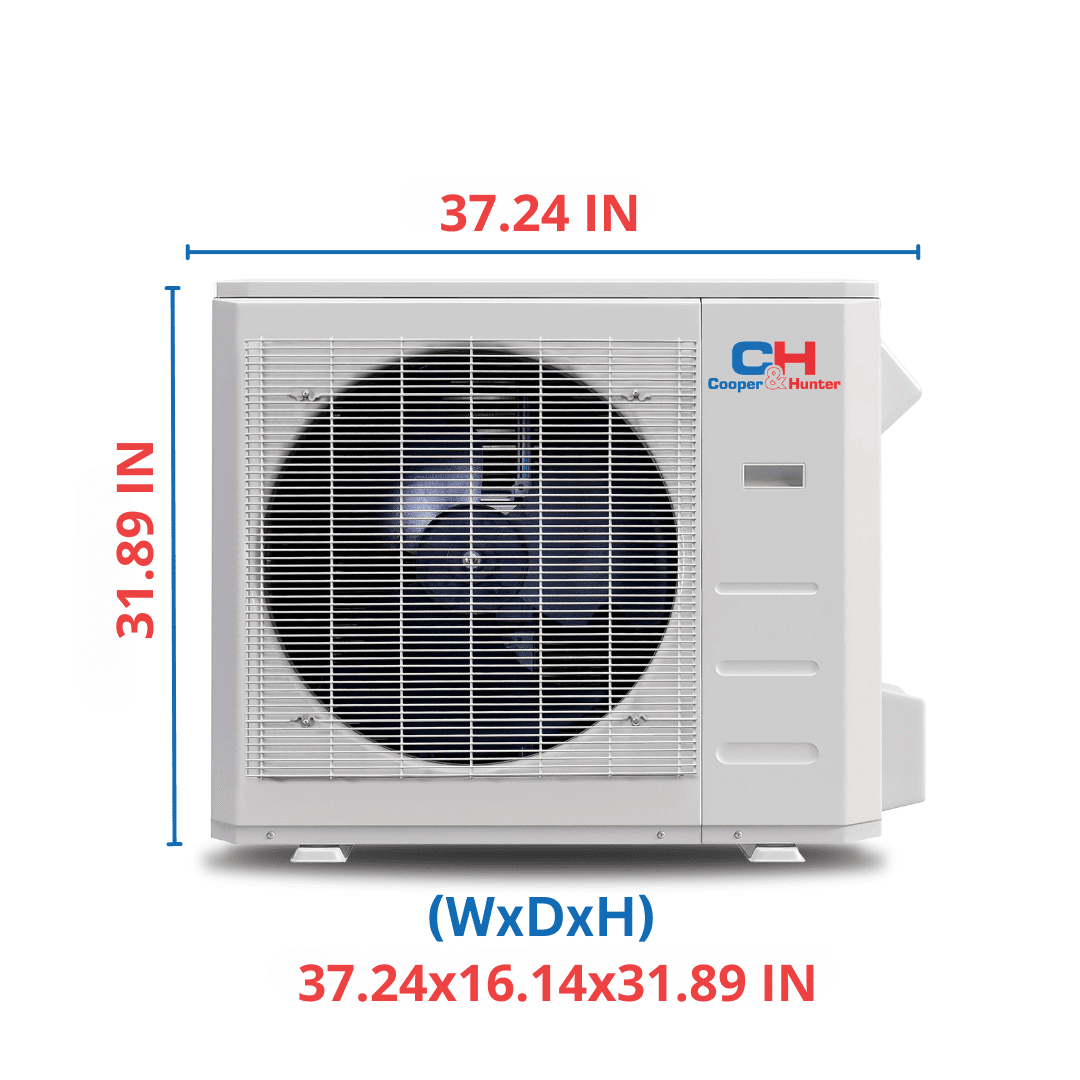

| Unit dimensions, W x D x H | 37.24 x 16.14 x 31.89 in |
| Packing dimensions, W x D x H | 42.91 x 19.69 x 34.84 in |
| Net / Gross weight | 141.76 / 151.90 lb* |
| Refrigerant type | R410A |
| Factory refrigerant precharge | 25 ft |
| Additional charge for 3/8" liquid line | 0.32 oz per additional foot |
| Refrigerant piping, liquid / gas | 3/8" / 5/8" |
| Maximum pipe length | 164.04 ft |
| Maximum elevation difference | 82.02 ft |
| Outdoor cooling ambient range | 5-122°F |
| Outdoor heating ambient range | 5-75°F |
Documents & Downloads
Videos
Astoria product overview
Installation and placement
- Where to Mount a Mini Split Indoor Wall Hung Unit
- How to Wall Mount a Mini Split Outdoor Condenser Unit
- Does a Wall Mounted Mini Split Need a Condensate Trap?
- Full Installation of an Inverter Mini Split Heat Pump With Indoor Ceiling Cassette
Operation, maintenance, and troubleshooting
- Can You Use a Mini Split in Extreme Cold? Heat Pump vs. Propane Cost Comparison
- Mini Split Parts Explained
- Mini Split Failure From Electrical Surges, High Voltage, and Low Voltage
- Checking the Refrigerant Charge on a Running R410A Inverter Mini Split
Mini split education
Important
Professional installation by a licensed HVAC technician is strongly recommended. Confirm electrical requirements, refrigerant line sizes, required line-set length, additional refrigerant requirements, drain routing, maximum elevation difference, and local code requirements before installation.
This system uses R410A refrigerant and must be serviced using tools, procedures, and components approved for R410A systems.
*The supplied specification data labels the outdoor unit net and gross weight field with an incorrect dimensional unit. The values are shown above as pounds because the field is identified as weight. Verify the final values against the system submittal before publishing.
The second supplied submittal filename references a different model format than the listed CH-EL30-230VO outdoor unit. Confirm that document applies to this exact single-zone pairing before using it for permitting or installation.
FAQs
What refrigerant line sizes does this system use?
The system uses a 3/8" liquid line and a 5/8" gas line.
What is the maximum refrigerant line length?
The maximum refrigerant line length is approximately 164.04 ft. Maximum elevation difference is approximately 82.02 ft.
How much refrigerant line is covered by the factory charge?
The outdoor unit is factory precharged for up to 25 ft of refrigerant piping. Longer installations may require an additional refrigerant charge.
Is the Smart Kit included?

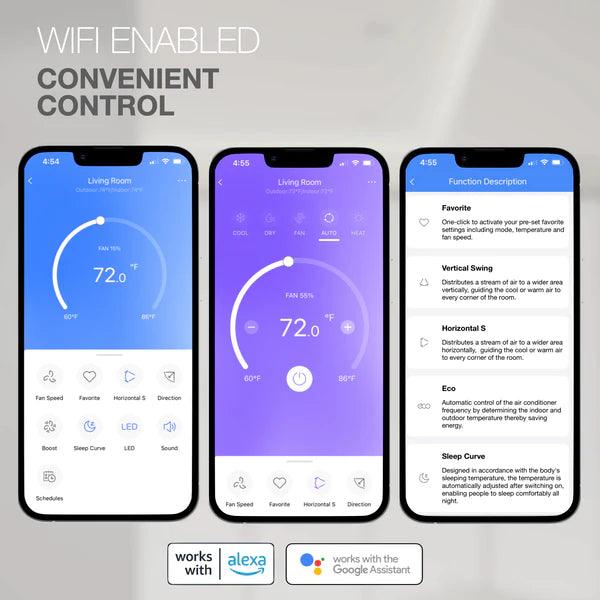

Yes. The Smart Kit is included and allows the system to connect to a compatible smart device through the C&H app.
What controls can be used with the indoor unit?
The system can be controlled with the included RG10K remote, the included Smart Kit and C&H app, or an optional compatible wall thermostat.
What is the outdoor operating temperature range?
The listed outdoor ambient range is 5-122°F in cooling mode and 5-75°F in heating mode.
Does this system include an installation kit?
Installation materials are not included unless an installation-kit product variant is selected. Options may include No Installation, 16 ft, 25 ft, or 50 ft kits.
What electrical circuit does the outdoor unit require?
The outdoor unit requires 208-230V, single-phase, 60Hz power. The listed minimum circuit ampacity is 23 A and the maximum fuse or breaker size is 30 A.
