Cooper&Hunter Slim Duct • R410A • 208–230V
Cooper&Hunter 24,000 BTU Single Zone Slim Duct Ducted Minisplit Heat Pump System R410A 230V
SKU: CH-24MDT-W + CH-ES24-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS
CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview
Cooper&Hunter Light Commercial Slim Duct systems deliver an inconspicuous, ducted comfort solution that can be concealed in attics and ceiling crawl spaces—without the energy loss typical of many central ducted systems. This bundle pairs the CH-24MDT-W slim duct indoor unit with the CH-ES24-230VO outdoor condenser as a single-zone system on 208–230V power.
Slim Duct installation can be highly flexible—duct runs can be directed into separate areas while being collectively controlled by a single thermostat/controller, making it a clean option where wall-mounted heads are not preferred.
Highlights
24,000 BTU class
Single Zone bundle
208–230V, 1Ph, 60Hz
R410A refrigerant
Indoor SEER2: 19.2
Outdoor SEER2: 21.2
EER2: 12–12.5
HSPF2-5: 7.8
Max line: 164.04 ft
ESP range: 0–0.64
AHRI Ref: 207742326
- Hidden, ducted comfort: slim duct design supports discreet installs in attics/ceilings.
- Flexible air distribution: ducting can be routed to multiple areas under one zone control.
- Strong performance range: outdoor ambient cooling down to -13°F and up to 122°F; heating down to -13°F.
- High static capability: indoor ESP range 0–0.64 supports duct design flexibility.
- Control options: RG10K remote plus wired controller compatibility (120X or 120N).
IndoorCH-24MDT-W
OutdoorCH-ES24-230VO
Lines3/8" liquid · 5/8" gas
Max run164.04 ft
Note: The indoor unit spec lists SEER2 19.2 while the paired outdoor unit lists SEER2 21.2. For AHRI-rated performance, use the bundled submittal for CH-ES24-230VO + CH-24MDT-W in Documents & Downloads.
What’s Included
- Indoor slim duct unit: CH-24MDT-W
- Outdoor condenser: CH-ES24-230VO
- Remote control support: RG10K (wired controller compatible: 120X or 120N)
- Manufacturer documentation (see Documents & Downloads)
- Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-24MDT-W |
| System type | Single/Multi-zone unit (configured here as a single-zone bundle) |
| BTU rated | 24,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Dehumidification | 4.18 pnt/day |
| EER2 | 12 |
| SEER2 | 19.2 |
| Refrigerant piping (liq/gas) | 3/8" – 5/8" |
| Minimum circuit ampacity | 3 |
| Max fuse | 15 |
| Indoor noise level (H/M/L) | 44 / 41 / 37 dB(A) |
| Indoor air flow | 775.47 / 693.06 / 434.88 CFM |
| ESP range | 0 – 0.64 |
| Drain pipe diameter | 1" |
| Operating range (Cooling) | 62–90°F |
| Operating range (Heating) | 32–86°F |
| Controller | RG10K-exclusive remote & 120X or 120N wire controller |

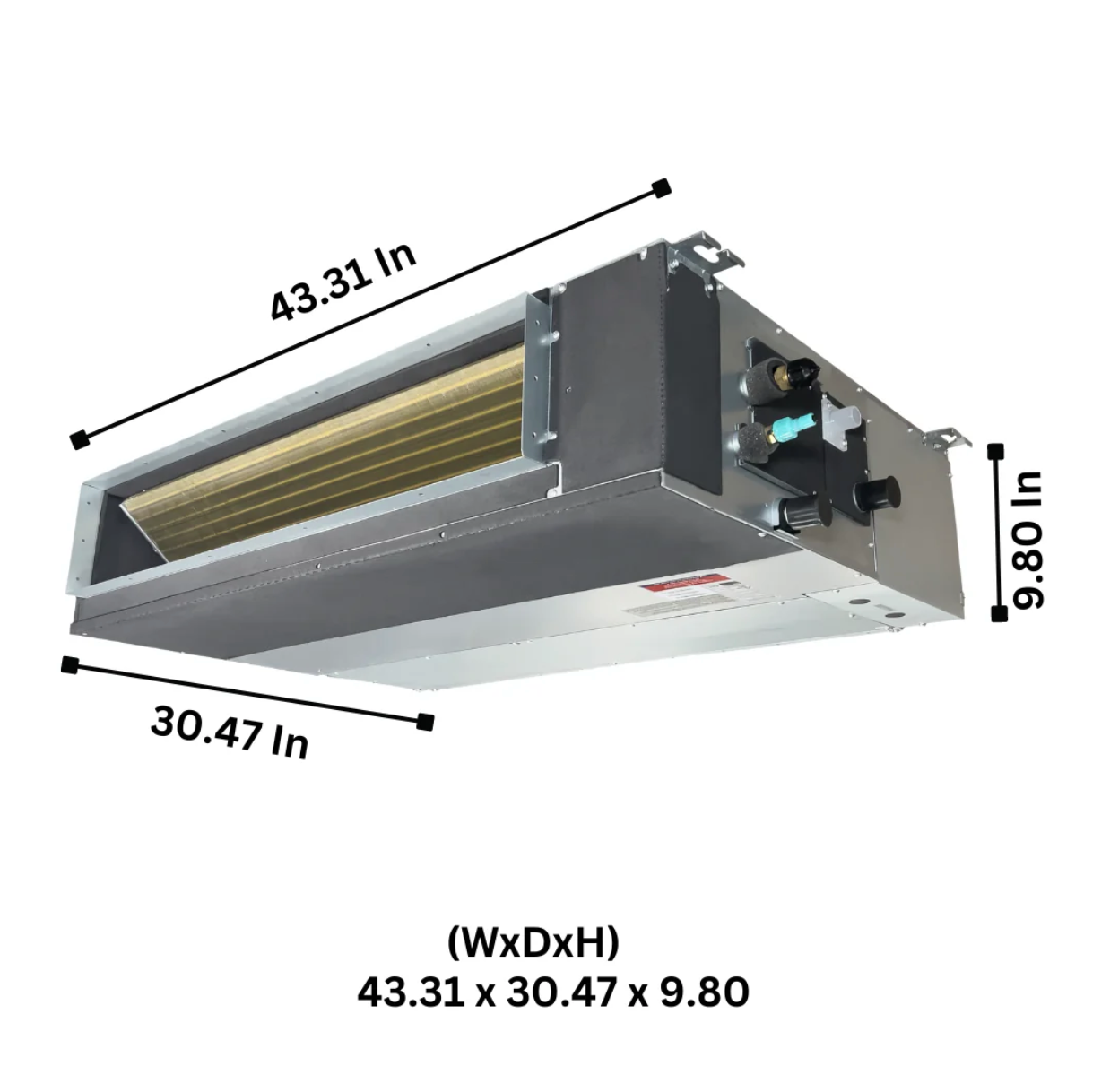

| Unit dimensions (W×H×D) | 43.31 × 30.47 × 9.80 in |
| Net / Gross weight | 90.39 / 105.82 lb |
| Packing dimensions (W×D×H) | 51.38 × 31.69 × 12.40 in |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-ES24-230VO |
| System type | Single-zone unit |
| Refrigerant type | R410A |
| BTU rated | 24,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Refrigerant piping (liq/gas) | 3/8" / 5/8" |
| Max pipe length | 164.04 ft |
| Max height difference (IDU↔ODU) | 82.02 ft |
| Cooling capacity (Min/Max) | 24,000 (7,700–25,500) BTU/h |
| Heating capacity (Min/Max) | 24,000 (11,600–30,900) BTU/h |
| SEER2 | 21.2 |
| EER2 | 12.5 |
| HSPF2-5 | 7.8 |
| HSPF2-4 | 10.3 |
| COP | 3.66 |
| Dehumidification | 6.23 pnt/day |
| Outdoor noise level | 61 dB(A) |
| Outdoor air flow | 2,235.29 CFM |
| Minimum circuit ampacity | 23 |
| Max fuse | 30 |
| Ambient temp (Heating) | -13–75°F |
| Ambient temp (Cooling) | -13–122°F |

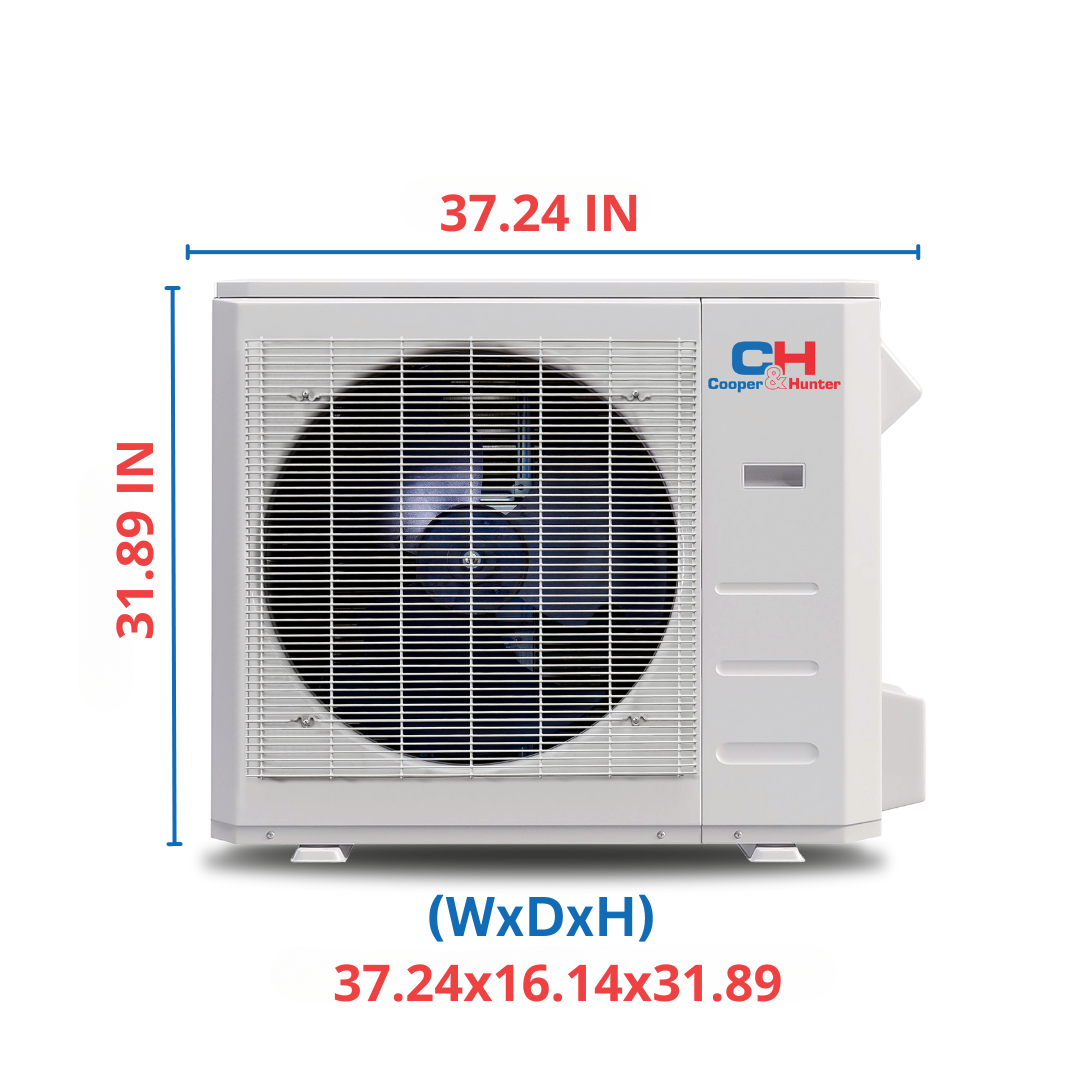

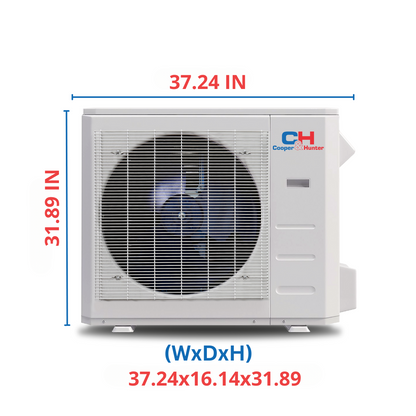

| Unit dimensions (W×H×D) | 37.24 × 16.14 × 31.89 in |
| Net / Gross weight | 124.78 / 134.92 lb |
| Packing dimensions (W×D×H) | 42.91 × 19.69 × 34.84 in |
| Refrigerant precharge | 25 |
| Additional charge (3/8" liquid) | 0.32 |
Documents & Downloads
Videos
Featured video
Mini-split installation videos
Mini-Splits
- Can You Use a Mini Split in EXTREME COLD? Heat Pump vs. Propane Cost Comparison with Thermal Camera
- Where To Mount a Mini Split Indoor Wall Hung Unit
- How To Wall Mount a Mini Split Outdoor Condenser Unit
- Are Mini Split Air Conditioners Worth It? - Top 5 Pros & Cons
- Does a Wall Mounted MINISPLIT Need a CONDENSATE TRAP? Ductless vs Ducted Air Handlers!
- MINI SPLIT Parts Explained! Understand What They Do!
- Mini Split Failure from Electrical Surges, High and Low Voltage! HOW TO SOLVE IT!
- Full Installation of an Inverter Minisplit Heat Pump with Indoor Ceiling Cassette
- Checking the Refrigerant Charge on a Running R-410A Inverter MINI SPLIT Unit
- Mini Split Indoor Unit Types Explained! 5 Types- Applications, Connection Points, Mounting!
Important
Professional installation is recommended. Confirm duct design, static pressure requirements, electrical requirements, line sizes, maximum line length/height limits, and ambient operating limits before installation. Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
FAQs
Is this a single-zone system?
Yes—this listing is a single-zone bundle pairing CH-24MDT-W with CH-ES24-230VO.
Where is the slim duct indoor unit installed?
Slim duct air handlers are typically hidden in attics, soffits, or ceiling crawl spaces, with short duct runs feeding grilles in the occupied space.
What line sizes does this system use?
3/8" liquid and 5/8" gas.
What are the max line length and height difference?
Maximum line length is 164.04 ft and maximum height difference is 82.02 ft.
Are installation kits included?
No. Installation kits are only included if selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
