Cooper&Hunter 24,000 BTU Olivia Single Zone Wall Mount Mini Split Heat Pump System R454B 230V
SKU: CH-R24MOLVWM-230VI + CH-RES24-230VO
Overview
Enhance your home’s climate control with the Cooper&Hunter 24K BTU Olivia wall-mounted mini split heat pump system, built around the new R454B refrigerant for environmentally friendly operation and strong inverter efficiency. Designed for 208–230V applications, Olivia delivers reliable heating and cooling for larger spaces with quiet performance and precise temperature management.
Advanced comfort and convenience features include Auto-Swing horizontal louvers for improved air circulation, Turbo Mode for rapid heating/cooling, and Follow Me comfort control via the remote’s temperature sensing. The included Smart Kit enables seamless app connectivity through the C&H mobile experience. Additional technologies include a 12Hz low compressor speed for quiet efficiency, High-Frequency Racer Technology for fast startup response, an electronic expansion valve for optimized refrigerant management, and an intelligent dusting switch that reverses fan operation to help clear dust, sand, and debris from the coil. Built with high-quality TU1 copper tubes, Olivia is engineered for durability and efficient heat transfer, with protective operation such as 46° Freeze Protection.
Highlights
- Genius Core performance: ultra-low compressor speed (12Hz) for quiet, efficient comfort.
- Fast response comfort: High-Frequency Racer Technology drives rapid temperature control at startup.
- Precision refrigerant management: electronic expansion valve (EEV) optimizes refrigerant flow.
- Cleaner coil operation: intelligent dusting switch helps clear dust, sand, and debris from the coil.
- Comfort controls: Follow Me, Timer On/Off, Sleep Mode, Turbo Mode.
- Control options: Smart Kit with app control, included remote control, wall thermostat optional (sold separately).
What’s Included
- Indoor unit: CH-R24MOLVWM-230VI
- Outdoor unit: CH-RES24-230VO (Single-Zone)
- Remote control (included)
- Smart Kit (included) for app control
- Manufacturer documentation (see Documents & Downloads)
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-R24MOLVWM-230VI |
| Power supply (rated) | 208/230 V, 1 Ø, 60 Hz |
| Rated capacity | 23,000 BTU/h |
| Minimum circuit ampacity (MCA) | 3 |
| Max fuse | 15 |
| Indoor air flow (Turbo/Hi/Med/Lo/Si) | 759.3 / 588.6 / 459.1 / 382.6 / (not listed) |
| Indoor noise (Turbo/Hi/Med/Lo/Si) | 54.5 / 49.5 / 43.5 / 34.5 / 20.5 dB(A) |

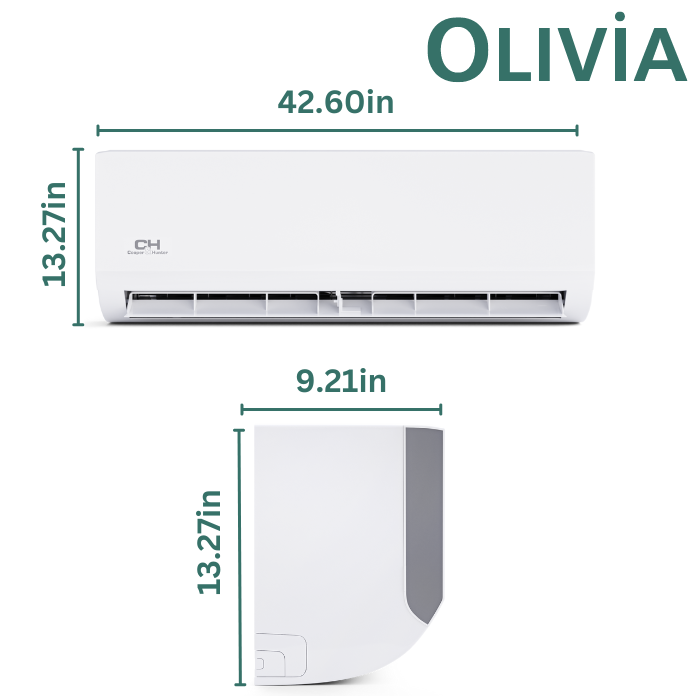

| Dimensions (W×D×H) | 42.60 × 9.21 × 13.27 in |
| Packing (W×D×H) | 45.47 × 12.40 × 16.34 in |
| Net / Gross weight | 30.86 / 40.56 lb |
| Room temperature (Cooling) | 60–90°F |
| Room temperature (Heating) | 32–86°F |
| Refrigerant piping (liq/gas) | 3/8" / 5/8" |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-RES24-230VO |
| System type | Single-zone unit |
| Refrigerant type | R454B |
| BTU rated | 24,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Refrigerant piping (liq/gas) | 3/8" / 5/8" |
| Max pipe length | 164 ft |
| Max height difference (IDU↔ODU) | 82 ft |
| Cooling capacity (Min/Max) | 24,000 (8,500–28,300) BTU/h |
| Heating capacity (Min/Max) | 25,000 (11,800–35,100) BTU/h |
| SEER2 | 19 |
| EER2 | 12.5 |
| HSPF2-5 | 8.5 |
| HSPF2-4 | 11 |
| COP | 3.64 |
| Dehumidification | 4.52 pnt/day |
| Outdoor noise level | 60 dB(A) |
| Outdoor air flow | 2,236.7 CFM |
| Minimum circuit ampacity (MCA) | 24 |
| Max fuse | 25 |
| Ambient temperature (Heating) | −13–75°F |
| Ambient temperature (Cooling) | −13–122°F |

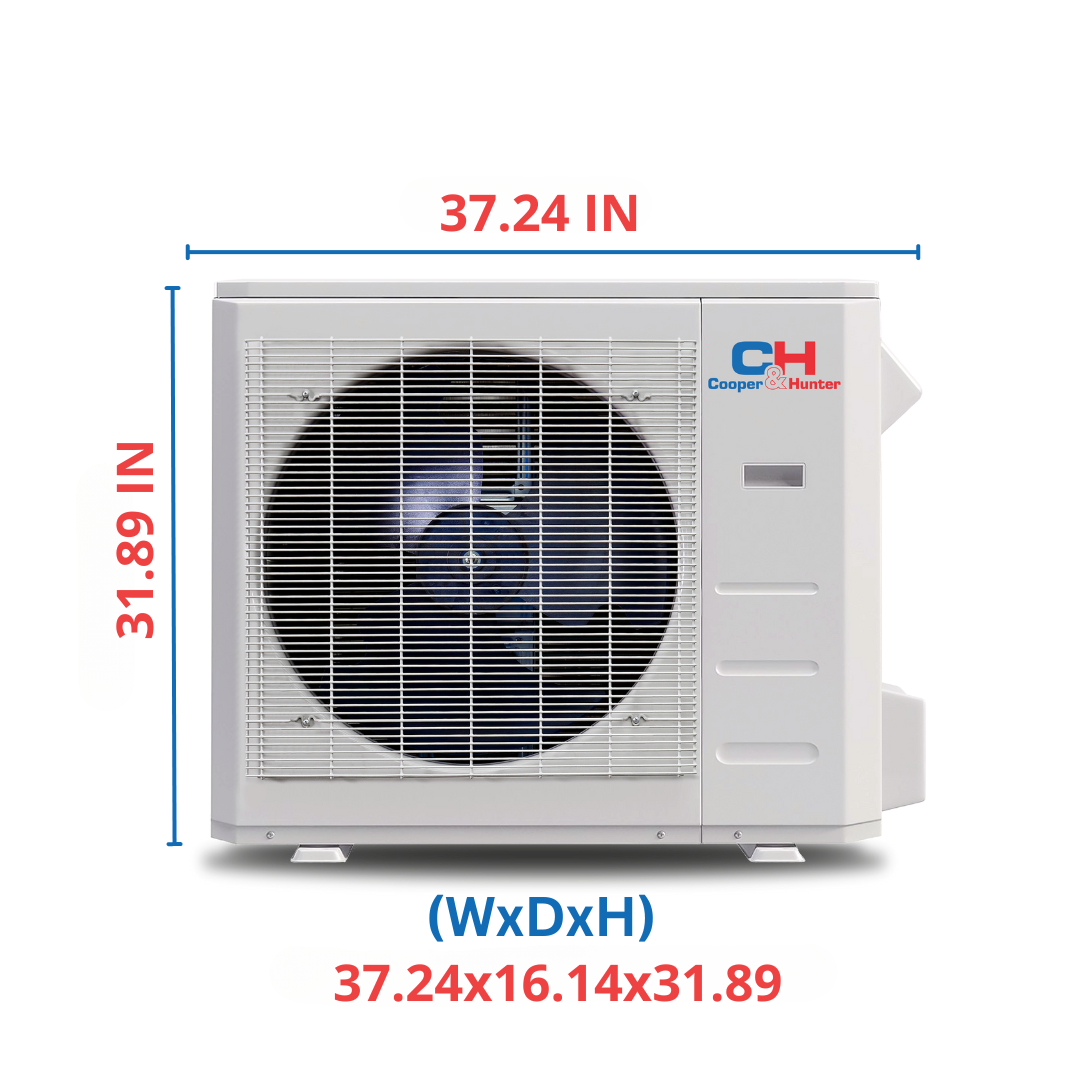

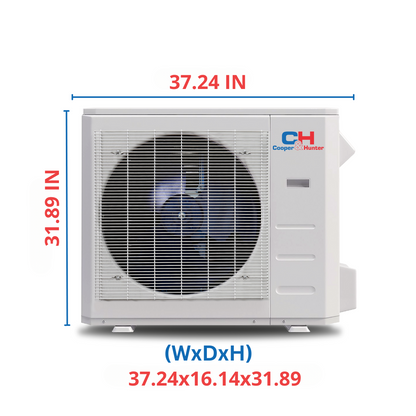

| Unit dimensions (W×H×D) | 37.24 × 16.14 × 31.89 in |
| Net / Gross weight | 122.13 / 132.28 lb |
| Packing dimensions (W×D×H) | 42.91 × 19.68 × 34.84 in |
| Refrigerant precharge | 25 |
| Additional charge (3/8" liquid) | 0.32 |
Documents & Downloads
- Submittal (PDF) — Olivia 24K (Drive) #1
- Submittal (PDF) — Olivia 24K (Drive) #2
- Submittal (PDF) — CH-RES24-230VO + CH-PRO24MASTWM-230VI
- Submittal (PDF) — CH-RES24-230VO + CH-RH24MASTWM-230VI
- Submittal (PDF) — CH-RES24-230VO + CH-RS24MDT-HS
- Submittal (PDF) — CH-RES24-230VO + CH-RSH24MFC
- Submittal (PDF) — CH-RES24-230VO + CH-RH24MCT
- Submittal (PDF) — CH-RES24-230VO + CH-RSH24MCT
- Installation Manual (PDF) — R454B Outdoor Units
- SlimDuct Leaflet (PDF) — R454B
- AHRI Directory Listing — AHRI #207742320
- Manufacturer Page — CH-RES24-230VO
Important
Professional installation is recommended. Confirm electrical requirements, line sizes, maximum line length, and ambient operating limits before installation.
FAQs
What line sizes does this system use?
Is the Smart Kit included?
What is the outdoor heating and cooling ambient range?
What comfort features are included?
What controls are supported?
