Cooper&Hunter Olivia • R410A • Inverter
Cooper&Hunter 24,000 BTU Olivia Single Zone Wall Mount Mini Split Heat Pump System R410A 230V
SKU: CH-24MOLVWM-230VI + CH-ES24-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview
Upgrade comfort in larger spaces with the Cooper&Hunter 24,000 BTU Olivia wall-mounted mini split heat pump system. This bundle is configured as a single-zone system for 208–230V applications, delivering efficient inverter-driven cooling and heating with smooth temperature control.
Olivia includes features like Auto-Swing horizontal louvers for even airflow, Follow Me mode (remote-sensed temperature), plus Sleep and Timer options for daily convenience. 46° Freeze Protection is also included. App control is available when paired with an optional WiFi/Smart Kit (sold separately).
Highlights
Single-zone system 24,000 BTU class R410A refrigerant 208–230V, 1Ph, 60Hz Up to 22.3 SEER2 (indoor) 21.2 SEER2 (outdoor) Auto-swing (horizontal louvers) Follow Me 46° Freeze Protection Smart Kit ready (optional)
- Strong coverage for larger rooms: 24K BTU class capacity with inverter modulation for steady comfort.
- Balanced airflow: auto-swing horizontal louvers help distribute air evenly.
- Convenient control: included remote; app control supported with optional WiFi/Smart Kit (sold separately).
- Cold-weather protection: 46° Freeze Protection for added peace of mind.
IndoorCH-24MOLVWM-230VI
OutdoorCH-ES24-230VO
Lines3/8" liquid · 5/8" gas
Max run164.04 ft
What’s Included
- Indoor unit: CH-24MOLVWM-230VI
- Outdoor unit: CH-ES24-230VO
- Remote control (included)
- Manufacturer documentation (see Documents & Downloads)
- Installation kit is not included unless selected in the Variant Options (No installation, 16ft, 25ft, 50ft).
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-24MOLVWM-230VI |
| System type | Single Zone |
| BTU rated | 24,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| SEER2 | 22.3 |
| EER2 | 13.5 |
| Refrigerant piping (liq/gas) | 3/8" / 5/8" |
| Minimum circuit ampacity | 3 |
| Max fuse | 15 |
| Indoor noise level (H/M/L) | 46.5 / 44 / 35 dB(A) |
| Indoor air flow | 760.59 / 601.18 / 458.82 / 382.35 CFM |
| Dehumidification | 5.14 pnt/day |
| Controller | RG10K-exclusive remote |

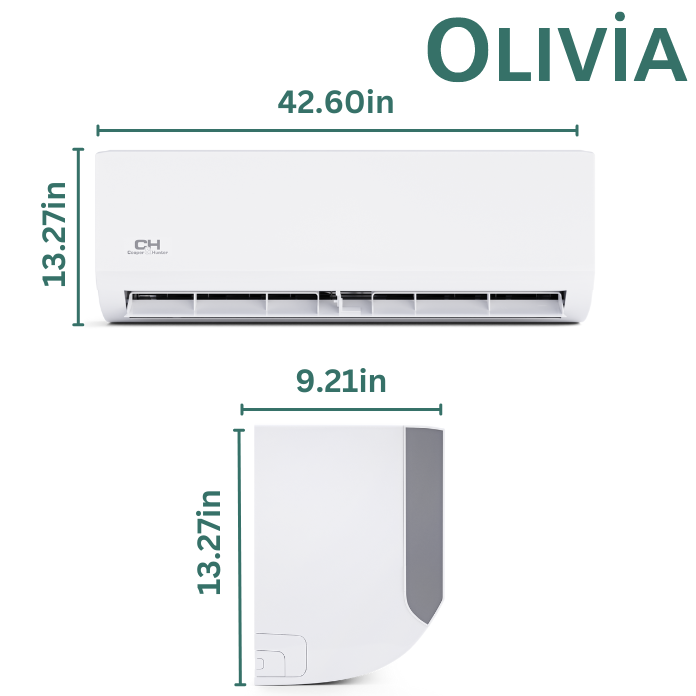

| Unit dimensions (W×H×D) | 42.64 × 9.61 × 13.23 in |
| Net / Gross weight | 29.98 / 38.14 lb |
| Packing dimensions (W×D×H) | 45.47 × 16.34 × 12.40 in |
| Drain pipe diameter | 5/8" |
| Operating range (Cooling) | 60–90°F |
| Operating range (Heating) | 32–86°F |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-ES24-230VO |
| System type | Single Zone |
| Refrigerant type | R410A |
| BTU rated | 24,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Refrigerant piping (liq/gas) | 3/8" / 5/8" |
| Max pipe length | 164.04 ft |
| Max height difference (IDU↔ODU) | 82.02 ft |
| Cooling capacity (Min/Max) | 24,000 (7,700–25,500) BTU/h |
| Heating capacity (Min/Max) | 24,000 (11,600–30,900) BTU/h |
| SEER2 | 21.2 |
| EER2 | 12.5 |
| HSPF2-5 | 7.8 |
| HSPF2-4 | 10.3 |
| COP | 3.66 |
| Outdoor noise level | 61 dB(A) |
| Outdoor air flow | 2,235.29 CFM |
| Dehumidification | 6.23 pnt/day |
| Minimum circuit ampacity | 23 |
| Max fuse | 30 |
| Ambient temp (Heating) | −13–75°F |
| Ambient temp (Cooling) | −13–122°F |
| Unit dimensions (W×H×D) | 37.24 × 16.14 × 31.89 in |
| Net / Gross weight | 124.78 / 134.92 lb |
| Packing dimensions (W×D×H) | 42.91 × 19.69 × 34.84 in |
| Refrigerant precharge | 25 ft |
| Additional charge (3/8" liquid) | 0.32 oz/ft |
Documents & Downloads
- Submittal (PDF) — CH-ES24-230VO + CH-24MOLVWM-230VI
- Submittal (PDF) — CH-24MOLVWM-230VI
- Submittal (PDF) — Hyper pairing option (CH-HPR24-230VO + CH-24MOLVWM-230VI)
- Olivia Leaflet (PDF) — 2024
- Accessories Leaflet (PDF) — 2023
- Installation Manual (PDF)
- Owner’s Manual (PDF)
- Remote Manual (PDF)
- Remote Manual Content (PDF)
- AHRI Directory Listing — AHRI #207742326
Videos
Mini-split installation videos
- How to Install Mini Split Cooper&Hunter
- How to Install Multi Zone Mini Split System (Cooper&Hunter) 2020
- Full Installation of Mini Split Ductless Unit, Step by Step!
How To & Instructional Videos
- Change the Fan Motor - Cooper&Hunter Mini Split Wall Mount
- Top Tips from Cooper&Hunter Mini Split User Manual
- Mini Split WiFi Set Up (Cooper&Hunter)
- Cooper&Hunter New Remote Control (2022)
Products overview
Important
Professional installation is recommended. Confirm electrical requirements, line sizes, maximum line length, and ambient operating limits before installation. Installation kits are not included unless selected in the Variant Options (No installation, 16ft, 25ft, 50ft).
FAQs
Is this system single-zone?
Yes. This bundle is configured as a single-zone system (one indoor unit paired with one outdoor condenser).
What line sizes does this system use?
3/8" liquid and 5/8" gas.
What is the max line length and height difference?
Maximum line length is 164.04 ft and maximum height difference is 82.02 ft.
Can I control it with an app?
App control is available when paired with an optional WiFi/Smart Kit (sold separately). The included remote is provided for standard operation.
What is the outdoor heating and cooling ambient range?
Cooling: −13–122°F. Heating: −13–75°F.
Are installation kits included?
No. Installation kits are not included unless selected in the Variant Options (No installation, 16ft, 25ft, 50ft).
