Cooper&Hunter Mia NY • R410A • Inverter
Cooper&Hunter 24,000 BTU Mia Single Zone Wall Mount Minisplit Heat Pump System R410A 230V
SKU: CH-NY24MIA-SK230VI + CH-NY24MIA-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview
The Cooper&Hunter Mia NY Series is an entry-level wall-mounted mini split designed to deliver dependable cooling and heating with an affordable, straightforward setup. This bundle is configured as a single-zone system, pairing the CH-NY24MIA-SK230VI indoor wall mount with the CH-NY24MIA-230VO outdoor condenser for 208–230V operation.
Built for everyday comfort, Mia NY supports features like Quiet Operation, Sleep Mode, and WiFi compatibility (optional kit), with the outdoor unit featuring an anti-corrosive GoldFin coating.
Highlights
24,000 BTU class Single Zone system 208–230V, 1Ph, 60Hz R410A refrigerant SEER2: 18 EER2: 9 HSPF2-5: 6.6 Max run: 164.04 ft GoldFin coating WiFi compatible (optional) AHRI Ref: 207740528
- High-capacity single-zone comfort: one indoor wall mount paired to one outdoor condenser.
- Efficiency for everyday use: rated 18 SEER2 and 9 EER2 in this configuration.
- Longer installation flexibility: maximum line length up to 164.04 ft with large height separation allowance.
- Comfort modes: Quiet Operation and Sleep Mode supported.
- Optional connectivity: WiFi compatibility supported with an optional kit.

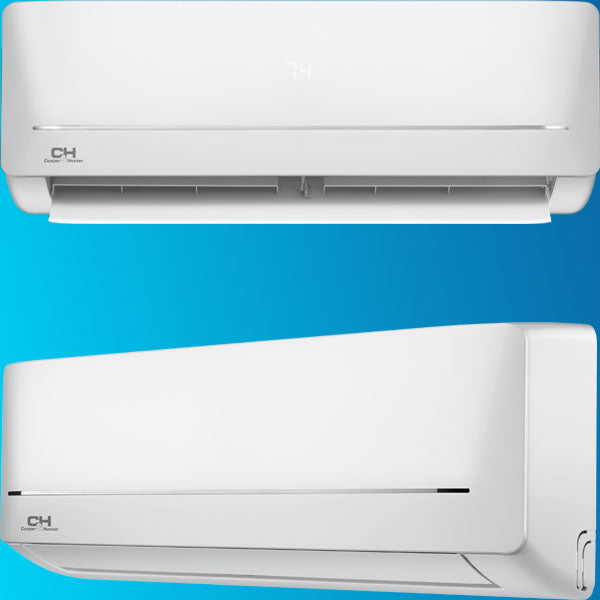

IndoorCH-NY24MIA-SK230VI
OutdoorCH-NY24MIA-230VO
Lines3/8" liquid · 5/8" gas
Max run164.04 ft

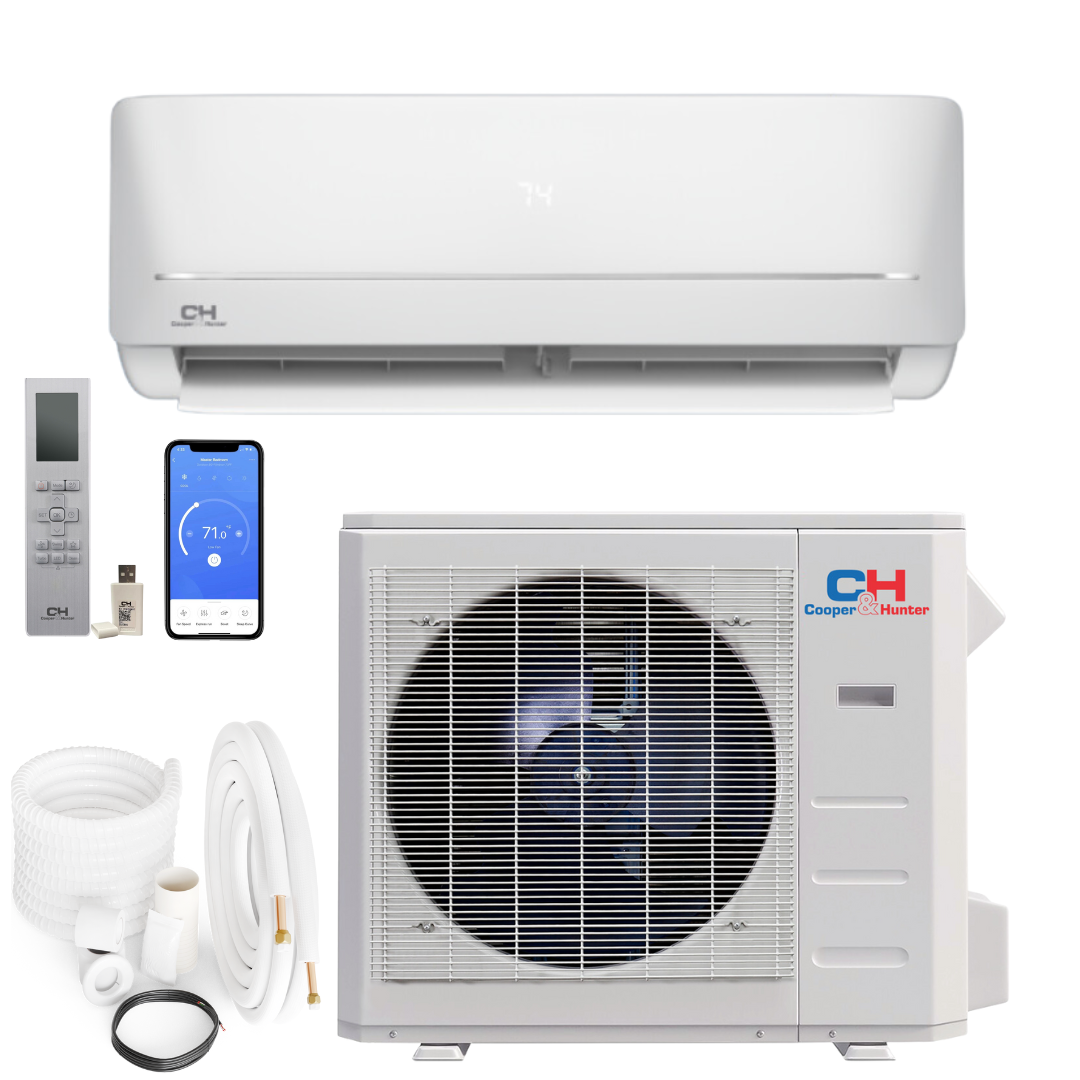

What’s Included
- Indoor unit: CH-NY24MIA-SK230VI (Mia NY wall mount)
- Outdoor unit: CH-NY24MIA-230VO (Single-Zone)
- Remote control (included)
- Manufacturer documentation (see Documents & Downloads)
- Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-NY24MIA-SK230VI |
| System type | Single Zone |
| Refrigerant type | R410A |
| BTU rated | 24,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| SEER2 | 18 |
| EER2 | 9 |
| Refrigerant piping (liq/gas) | 3/8" / 5/8" |
| Minimum circuit ampacity | 3 |
| Max fuse | 15 |
| Indoor noise level (H/M/L) | 45.5 / 39.5 / 35 dB(A) |
| Indoor air flow | 705.88 / 588.24 / 450.00 / 352.94 CFM |
| Dehumidification | 6.28 pnt/day |
| Unit dimensions (W×H×D) | 42.52 × 8.90 × 13.19 in |
| Net / Gross weight | 29.98 / 38.58 lb |
| Packing dimensions (W×D×H) | 45.47 × 16.34 × 12.60 in |
| Drain pipe diameter | 5/8" |
| Operating range (Cooling) | 62–90°F |
| Operating range (Heating) | 32–86°F |
| Controller | RG10K-exclusive remote |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-NY24MIA-230VO |
| System type | Single Zone |
| Refrigerant type | R410A |
| BTU rated | 24,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Refrigerant piping (liq/gas) | 3/8" / 5/8" |
| Max pipe length | 164.04 ft |
| Max height difference (IDU↔ODU) | 82.02 ft |
| Cooling capacity (Min/Max) | 24,000 (6,704–25,300) BTU/h |
| Heating capacity (Min/Max) | 24,000 (6,900–28,100) BTU/h |
| SEER2 | 18 |
| EER2 | 9 |
| HSPF2-5 | 6.6 |
| HSPF2-4 | 8.6 |
| COP | 3.3 |
| Dehumidification | 6.28 pnt/day |
| Outdoor noise level | 60 dB(A) |
| Outdoor air flow | 1,764.71 CFM |
| Minimum circuit ampacity | 19 |
| Max fuse | 30 |
| Ambient temp (Heating) | 5–86°F |
| Ambient temp (Cooling) | 5–122°F |
| Unit dimensions (W×H×D) | 35.04 × 13.46 × 26.50 in |
| Net / Gross weight | 97.88 / 104.50 lb |
| Packing dimensions (W×D×H) | 39.17 × 15.67 × 29.13 in |
| Refrigerant precharge | 25 |
| Additional charge (3/8" liquid) | 0.32 |
Documents & Downloads
Videos
Featured video
Mini-split installation videos
- How to Install Mini Split Cooper&Hunter
- Cooper&Hunter Outdoor Wall Mounting Bracket
- Full Installation of Mini Split Ductless Unit, Step by Step!
How To & Instructional Videos
Products overview
- Mini Split Indoor Unit Types Explained
- HVAC Installation Kit: 99.9% Copper Line Sets (Cooper&Hunter)
Mini-Splits
- Where To Mount a Mini Split Indoor Wall Hung Unit
- How To Wall Mount a Mini Split Outdoor Condenser Unit
- Are Mini Split Air Conditioners Worth It? - Top 5 Pros & Cons
- Does a Wall Mounted MINISPLIT Need a CONDENSATE TRAP? Ductless vs Ducted Air Handlers!
- MINI SPLIT Parts Explained! Understand What They Do!
- Checking the Refrigerant Charge on a Running R-410A Inverter MINI SPLIT Unit
- Mini Split Indoor Unit Types Explained! 5 Types- Applications, Connection Points, Mounting!
- MIA Series
Important
Professional installation is recommended. Confirm electrical requirements, line sizes, maximum line length, and ambient operating limits before installation. Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
FAQs
Is this a single-zone system?
Yes—this bundle is configured as a single-zone system: CH-NY24MIA-SK230VI + CH-NY24MIA-230VO.
What line sizes does this system use?
3/8" liquid and 5/8" gas.
What is the max line length and height difference?
Maximum line length is 164.04 ft and maximum height difference is 82.02 ft.
What are the outdoor heating and cooling ambient ranges?
Cooling: 5–122°F. Heating: 5–86°F.
Are installation kits included?
No. Installation kits are only included if selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
