Cooper&Hunter 24,000 BTU Hyper High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R454B 230V

SKU: CH-RS24MAHU + CH-RHP24-230VO

AC Type

Air Handler

Refrigerant Type

R454B

Brand

Cooper&Hunter

Outdoor Unit

24000 BTU VO (2.0 TON)

Indoor Unit

24000 BTU (2.0 TON)

Voltage

208-230V

Looking For

Ducted

Cooling Area (sq.ft.)

1000-1500

Series

Hyper

SEER2 Rating

18.7

Airflow Direction

Multi-Positional

Line Set Length No installation 16FT 25FT 50FT

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$3,456.00

Shipping calculated at checkout.

View full details

Multi-Position Air Handler + Hyper Outdoor • R454B • 208–230V

Cooper&Hunter 24,000 BTU Hyper High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R454B 230V

Overview

24K multi-position air handler paired with a Hyper outdoor condenser for efficient heating and cooling. Flexible indoor installation (horizontal or vertical) plus inverter-driven operation support consistent comfort.

Highlights

Capacity: 24,000 BTU Refrigerant: R454B System SEER2: 18.7 Indoor EER2: 12 ESP Range: 0–0.8 Line Set: 3/8" × 5/8" Max Pipe / Lift: 164 ft / 82 ft Heating Ambient: -22°F to 75°F Cooling Ambient: -22°F to 122°F AHRI: 207742320

System Search

CH-RS24MAHU + CH-RHP24-230VO

Voltage

208–230V (1Ph, 60Hz)

Voltage Range

187–253V

Outdoor MCA / Max Fuse

24.9A / 25A

Indoor MCA / Max Fuse

4A / 15A

Drain Size

3/4"

Multi-position indoor install (horizontal or vertical)
Intelligent airflow with multi-speed fan motor (auto/manual static adjustment)
Anti-cold air function and fast cool/heat support
Refrigerant leak detection and wired controller support
Hyper heating ambient range support down to -22°F

What’s Included

Indoor unit: CH-RS24MAHU
Outdoor unit: CH-RHP24-230VO
Remote control and wall thermostat
Wired controller support
Smart kit connectivity support
Optional auxiliary heater support (purchased separately)

Indoor Specs (CH-RS24MAHU)

Spec	Value
Refrigerant Type	R454B
System Type	Single Zone
BTU Rated	24,000
Power Source	208–230V, 1Ph, 60Hz
Voltage Range	187–253V
Dehumidification	4.8 pints/day
Filter Dimensions (W×D)	Field supply (unit without filter 16×20)
Controller	Wire controller + remote controller available
Refrigerant Piping (Liquid/Gas)	3/8" / 5/8"
EER2	12
SEER2	18.7
Minimum Circuit Ampacity	4A
Max Fuse	15A
Indoor Noise Level (H/M/L)	43.5 / 40 / 25.5
Indoor Air Flow	824.0 / 759.3 / 694.5 / 629.8
ESP Range	0–0.8
Drainage Water Pipe Diameter	3/4"
Operation Range – Heating	32–86°F
Operation Range – Cooling	60–90°F
Unit Dimensions (W×H×D)	17.52 × 21.02 × 45 in
Packing Dimensions (W×D×H)	20.87 × 26.57 × 48.62 in
Unit Net / Gross Weight	104.28 / 125.88 lb

Outdoor Specs (CH-RHP24-230VO)

Spec	Value
Refrigerant Type	R454B
BTU Rated	24,000
Power Source	208–230V, 1Ph, 60Hz
Voltage Range	187–253V
Dehumidification	5.71 pints/day
Max Pipe Length	164 ft
Max Height Difference (Indoor↔Outdoor)	82 ft
Refrigerant Piping (Liquid/Gas)	3/8" / 5/8"
HSPF2-5 / HSPF2-4	9.8 / 13.5
Cooling Capacity (Min/Max)	24,000 (12,600–27,900) BTU/h
Heating Capacity (Min/Max)	29,000 (11,800–29,700) BTU/h
COP	3.42
Ambient Temperature – Heating	-22 to 75°F
Ambient Temperature – Cooling	-22 to 122°F
Refrigerant Precharge	25
Outdoor Noise Level	61.5
Outdoor Air Flow	2,235.3
Minimum Circuit Ampacity	24.9A
Max Fuse	25A
Additional Refrigerant Charge (3/8 liquid line)	0.32

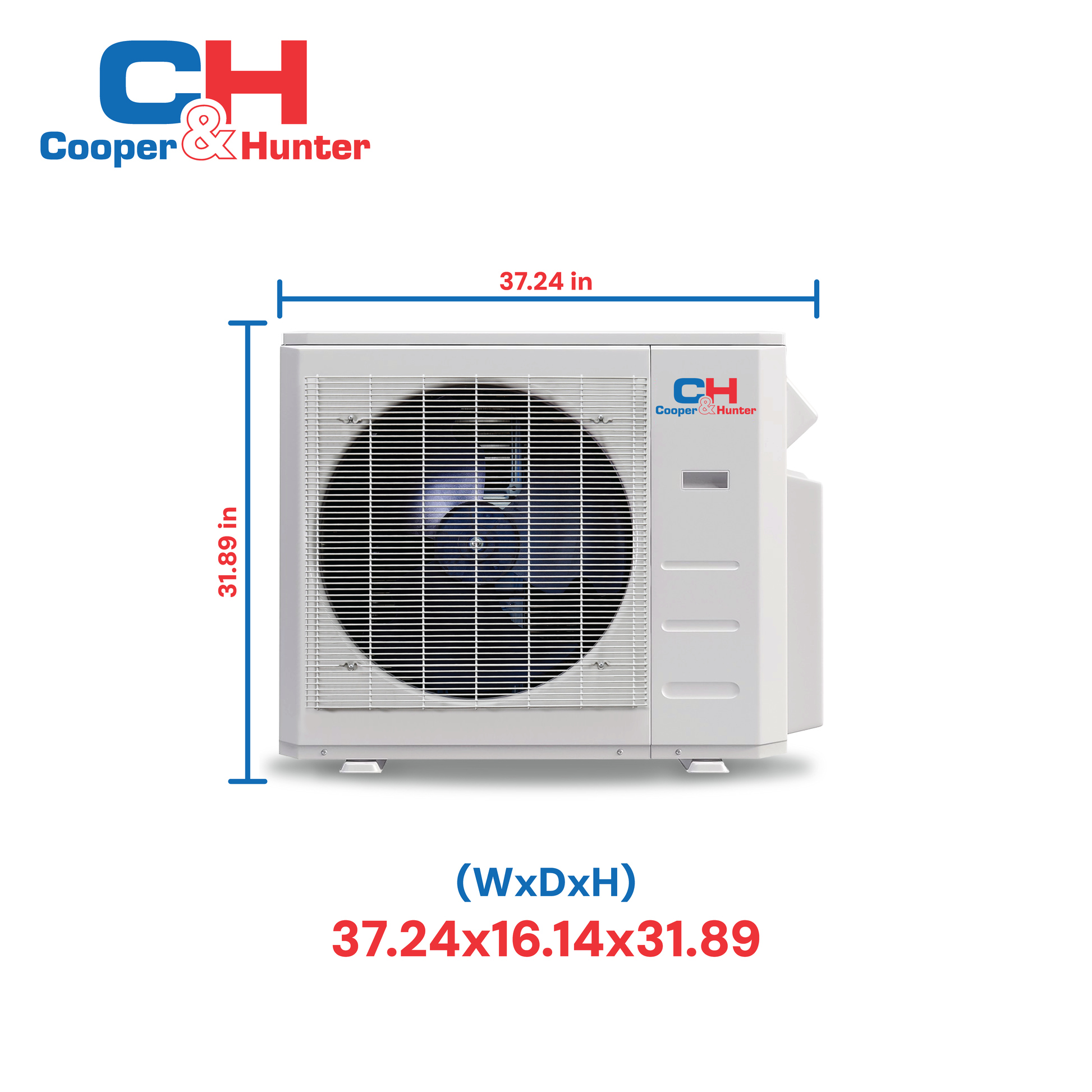

Unit Dimensions (W×H×D)	37.24 × 16.14 × 31.89 in
Packing Dimensions (W×D×H)	42.91 × 19.68 × 34.84 in
Unit Net / Gross Weight	130.29 / 141.31 lb
AHRI	207742320
