Cooper&Hunter 24,000 BTU High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R454B 230V

SKU: CH-RS24MAHU + CH-RES24-230VO

System highlights
AC Type
Air Handler
Refrigerant Type
R454B
Brand
Cooper&Hunter
Outdoor Unit
24000 BTU VO (2.0 TON)
Indoor Unit
24000 BTU (2.0 TON)
Voltage
208-230V
Looking For
Ducted
Cooling Area (sq.ft.)
1000-1500
SEER2 Rating
19.7
Airflow Direction
Multi-Positional
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$2,863.00
Shipping calculated at checkout.
View full details

Multi-Position Air Handler + Outdoor Unit • R454B • 208–230V

Cooper&Hunter 24,000 BTU High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R454B 230V

Overview

24K multi-position air handler paired with a regular single-zone outdoor condenser for efficient heating and cooling. Flexible indoor installation plus inverter-driven operation support consistent comfort.

Highlights

Capacity: 24,000 BTU Refrigerant: R454B System SEER2: 19.7 Outdoor SEER2: 19 Outdoor EER2: 12.5 ESP Range: 0–0.8 Line Set: 3/8" × 5/8" Max Pipe / Lift: 164 ft / 82 ft Heating Ambient: -13°F to 75°F Cooling Ambient: -13°F to 122°F AHRI: 207742320

System Search

CH-RS24MAHU + CH-RES24-230VO

Voltage

208–230V (1Ph, 60Hz)

Voltage Range

187–253V

Outdoor MCA / Max Fuse

24A / 25A

Indoor MCA / Max Fuse

4A / 15A

Drain Size

3/4"

  • Multi-position indoor install (horizontal or vertical)
  • Inverter-driven operation supports steady temperature control
  • Refrigerant leak detection and wired controller support

What’s Included

  • Indoor unit: CH-RS24MAHU
  • Outdoor unit: CH-RES24-230VO
  • Remote control and wall thermostat
  • Wired controller support
  • Smart kit connectivity support
  • Optional auxiliary heater support (purchased separately)

Indoor Specs (CH-RS24MAHU)

Spec Value
Refrigerant Type R454B
System Type Single Zone
BTU Rated 24,000
Power Source 208–230V, 1Ph, 60Hz
Voltage Range 187–253V
Dehumidification 4.8 pints/day
Filter Dimensions (W×D) Field supply (unit without filter 16×20)
Controller Wire controller + remote controller available
Refrigerant Piping (Liquid/Gas) 3/8" / 5/8"
EER2 12
SEER2 18.7
Minimum Circuit Ampacity 4A
Max Fuse 15A
Indoor Noise Level (H/M/L) 43.5 / 40 / 25.5
Indoor Air Flow 824.0 / 759.3 / 694.5 / 629.8
ESP Range 0–0.8
Drainage Water Pipe Diameter 3/4"
Operation Range – Heating 32–86°F
Operation Range – Cooling 60–90°F
Unit Dimensions (W×H×D) 17.52 × 21.02 × 45 in
Packing Dimensions (W×D×H) 20.87 × 26.57 × 48.62 in
Unit Net / Gross Weight 104.28 / 125.88 lb

Outdoor Specs (CH-RES24-230VO)

Spec Value
Refrigerant Type R454B
System Type Single-zone unit
BTU Rated 24,000
Power Source 208–230V, 1Ph, 60Hz
Voltage Range 187–253V
Dehumidification 4.52 pints/day
Max Pipe Length 164 ft
Max Height Difference (Indoor↔Outdoor) 82 ft
Refrigerant Piping (Liquid/Gas) 3/8" / 5/8"
HSPF2-5 / HSPF2-4 8.5 / 11
EER2 12.5
SEER2 19
Cooling Capacity (Min/Max) 24,000 (8,500–28,300) BTU/h
Heating Capacity (Min/Max) 25,000 (11,800–35,100) BTU/h
COP 3.64
Ambient Temperature – Heating -13 to 75°F
Ambient Temperature – Cooling -13 to 122°F
Refrigerant Precharge 25
Outdoor Noise Level 60
Outdoor Air Flow 2,236.7
Minimum Circuit Ampacity 24A
Max Fuse 25A
Additional Refrigerant Charge (3/8 liquid line) 0.32

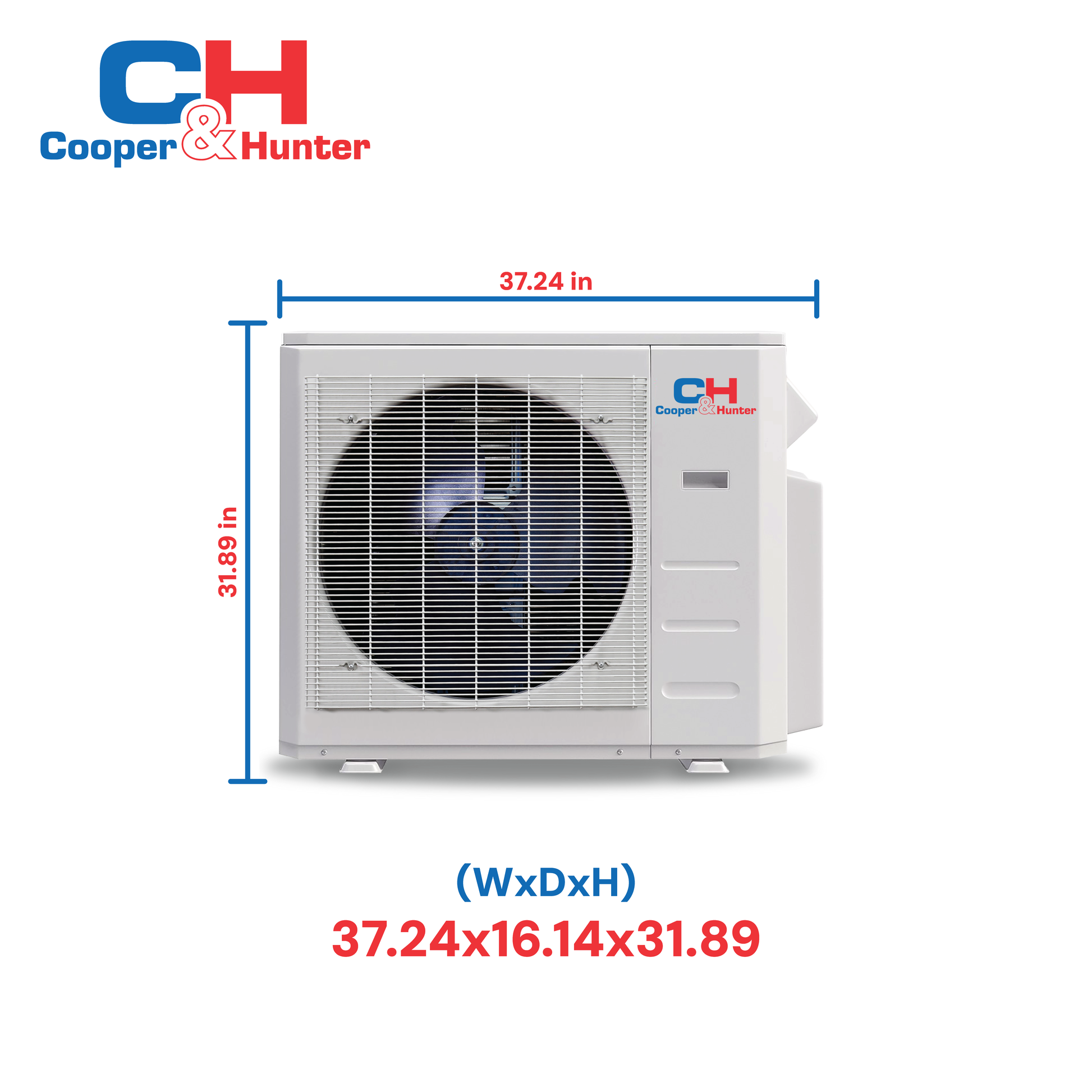

Unit Dimensions (W×H×D) 37.24 × 16.14 × 31.89 in
Packing Dimensions (W×D×H) 42.91 × 19.68 × 34.84 in
Unit Net / Gross Weight 122.13 / 132.28 lb
AHRI 207742320

Documents & Downloads

Important

  • Line set: 3/8" liquid and 5/8" suction (gas).
  • Max piping: 164 ft total length and 82 ft vertical separation.
  • Outdoor electrical: MCA 24A, max fuse 25A.
  • Indoor electrical: MCA 4A, max fuse 15A.
  • Field-supplied filter: unit without filter is sized for 16×20.
  • Support: hvacsupplies.com/pages/contact • (800) 543-8933

FAQs

What’s the difference between Hyper and Regular outdoor units?

Hyper supports heating operation down to -22°F ambient; Regular supports down to -13°F.

What line set size does this system use?

3/8" liquid line and 5/8" suction (gas) line.

What is the maximum piping length and vertical separation?

164 ft maximum piping length and 82 ft maximum height difference.

What are the outdoor capacity ranges?

Regular cooling: 24,000 (8,500–28,300) BTU/h. Regular heating: 25,000 (11,800–35,100) BTU/h.

What electrical does it use?

208–230V, 1Ph, 60Hz. Voltage range: 187–253V. Outdoor MCA 24A (max fuse 25A). Indoor MCA 4A (max fuse 15A).
