COOPER & HUNTER — Mini Floor Console
Cooper&Hunter 2-Zone Ductless Mini Split AC & Heat Pump 55000 BTU (18K+18K), Floor Console Units, 230V - R410A
The Cooper & Hunter Mini Floor Console features an elegant, compact design and is available in 12K and 16K BTU/h capacities. It’s ideal for rooms with low ceilings and attics, and can be installed floor-standing or mounted low on the wall. This multi-zone system pairs a 55000 BTU outdoor unit with CH-55MES-230VO + 2X CH-16MMC-230VI mini floor console indoor units for comfort across 2 zones.
Dual airflow outlets with larger discharge dimensions help increase air volume for steady cooling and heating. In colder climates, dual discharge locations help deliver heated air at ground level—where it naturally rises to warm the room. Mini Floor Consoles can be paired with Regular or Hyper Heat outdoor units (as applicable) and can be part of a multi-zone configuration.
2 Zone(s)
55000 BTU Outdoor
SEER2 21.3
Refrigerant: R410A
Outdoor SKU CH-55MES-230VO
Indoor sizes: 12K/16K
Floor or Low-Wall Mount
Dual Airflow Outlets
Key features
Placement flexibility
- Floor-standing or low-wall installation
- Excellent for attics and low-ceiling rooms
- Compact indoor design (model dependent)
Comfort performance
- Dual airflow outlets to improve air volume and distribution
- Heated air discharge at ground level helps warm the space naturally (ideal for colder climates)
- Steady cooling and heating with larger outlet dimensions
System flexibility
- Multi-zone compatible (one indoor per zone)
- Pairs with Regular or Hyper Heat outdoor units (as applicable)
At-a-glance
Zoning
2 zones
2 zones
Indoor type
Mini floor console
Mini floor console
Indoor sizes
12K / 16K
12K / 16K
SEER2
21.3
21.3
Refrigerant
R410A
R410A
Outdoor BTU
55000
55000
Outdoor SKU
CH-55MES-230VO
CH-55MES-230VO
Install
Floor or low-wall
Floor or low-wall
Use the spec tables below for exact performance and electrical details for your selected combination.
Refrigerant information
- Refrigerant type: R410A
- R410A note: R410A is a high-pressure refrigerant used in many ductless systems. Service tools, gauges, and recovery equipment must be rated for R410A pressures.
- Charging: Follow the installation manual for the required charge method and any additional charge per foot beyond the factory pre-charge.
- Installation best practice: Keep the refrigeration circuit sealed and dry to reduce moisture exposure during installation/service.
Installation & electrical
- Indoor line sizes (varies by head): 1/4" - 1/2''
- Refrigerant: R410A
- Factory pre-charge: up to 125
- Additional refrigerant charge (1/4 liquid line): 0.16
- Additional refrigerant charge (3/8 liquid line): 0.32
- Minimum circuit ampacity: 40
- Max fuse / breaker: 60
Use the installation manual to confirm charge units and when additional charge is required (based on line length and piping configuration).
What’s included

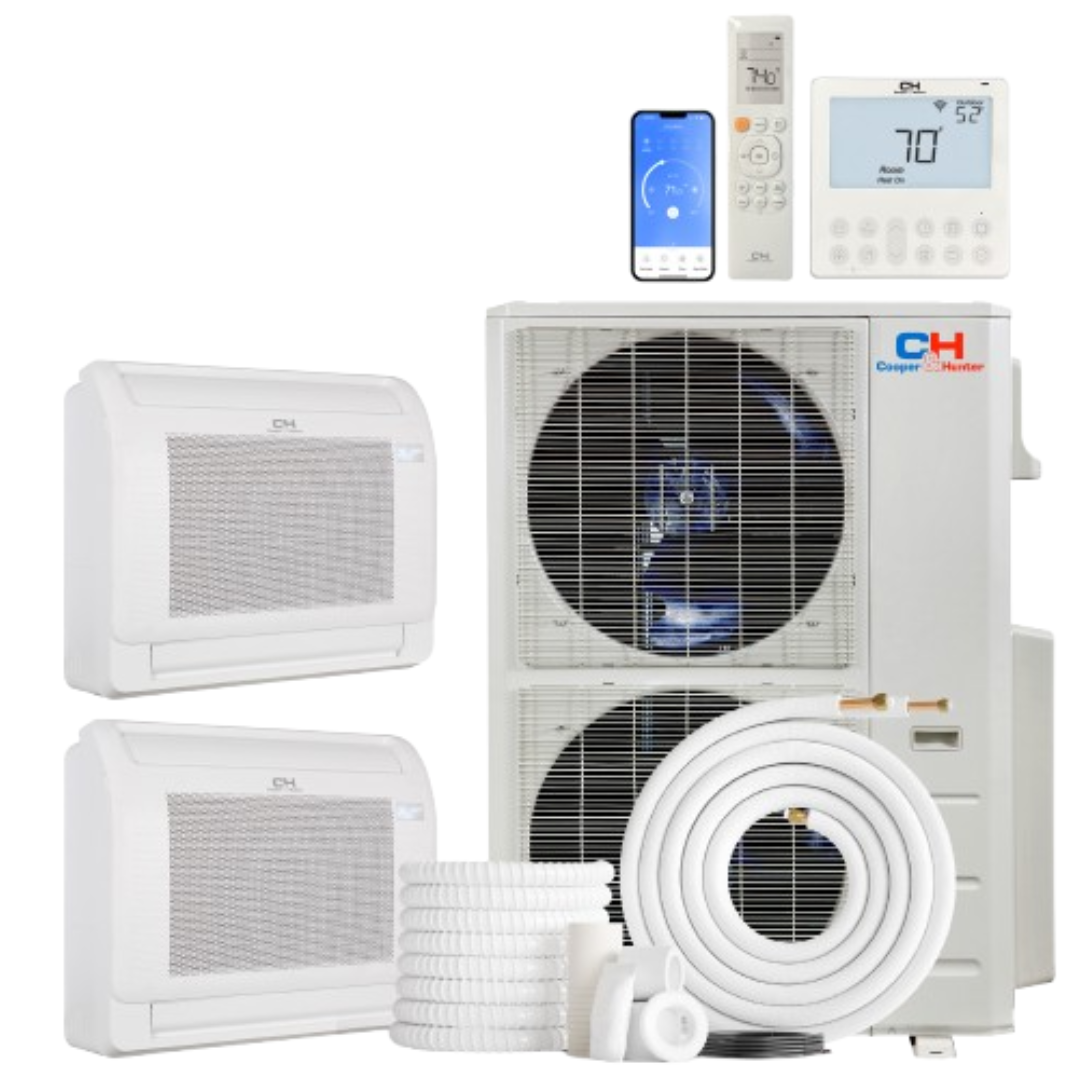

Cooper & Hunter Mini Floor Console Multi-Zone System

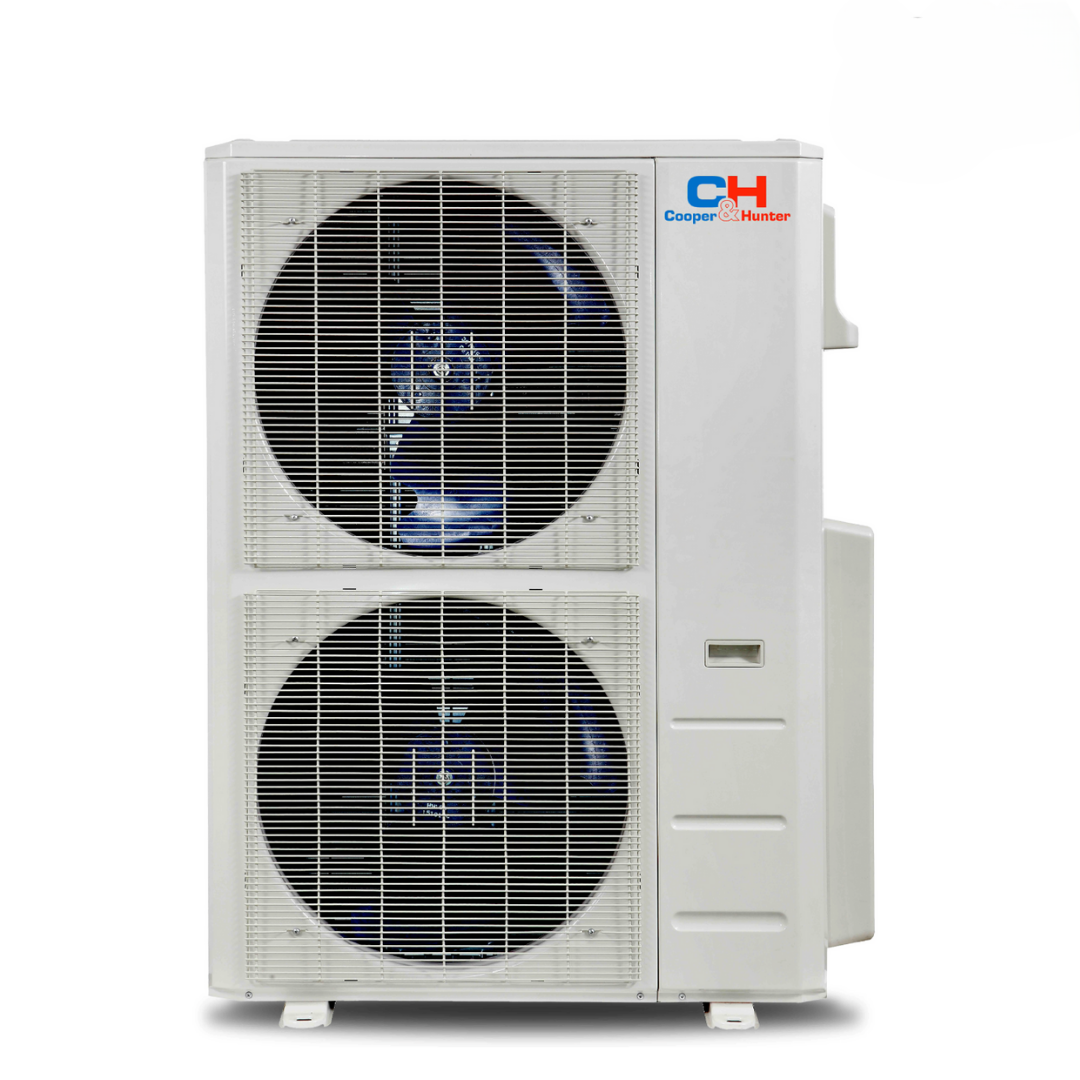

Outdoor Unit: 55000 BTU (1 pc) — Model: CH-55MES-230VO
Indoor Units (Mini Floor Console):

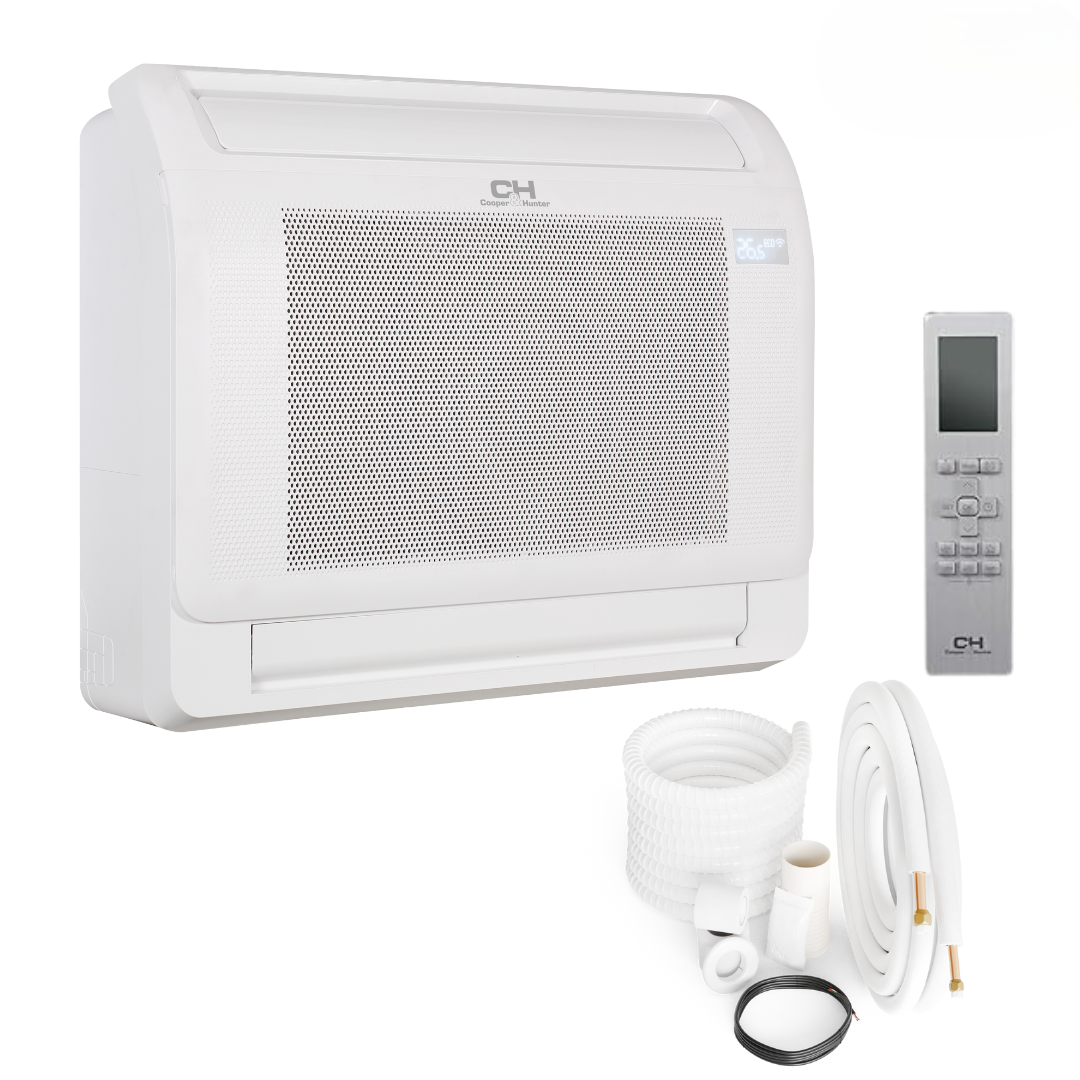

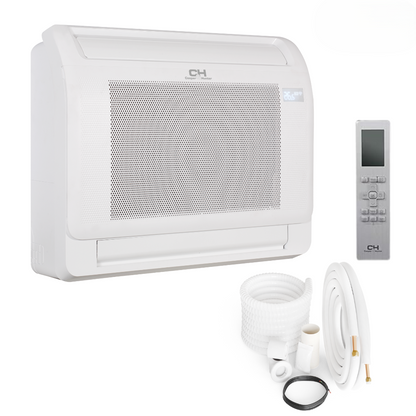

- 16,000 BTU (x2) — Model: CH-16MMC-230VI

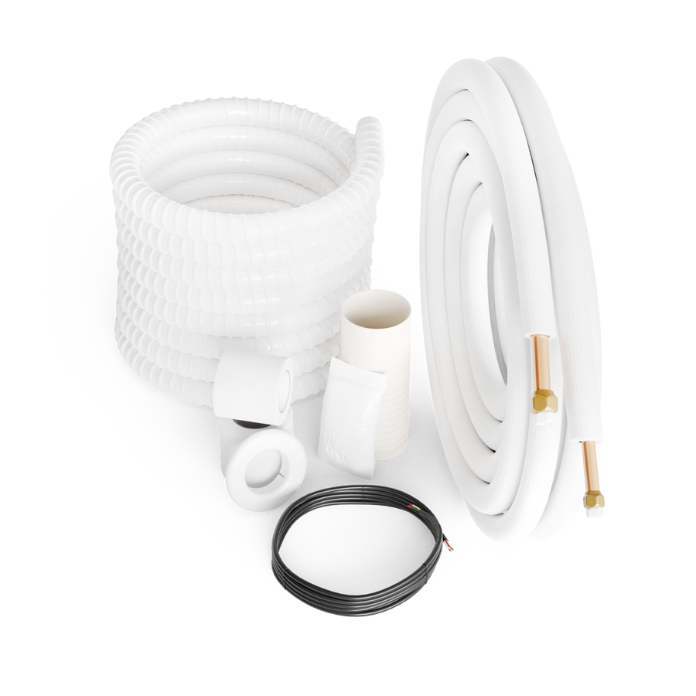

- Installation Kits options (No Installation / 16 ft / 25 ft / 50 ft)
- (INSTALLATION KIT SIZE MUST BE SELECTED, TO INCLUDE)

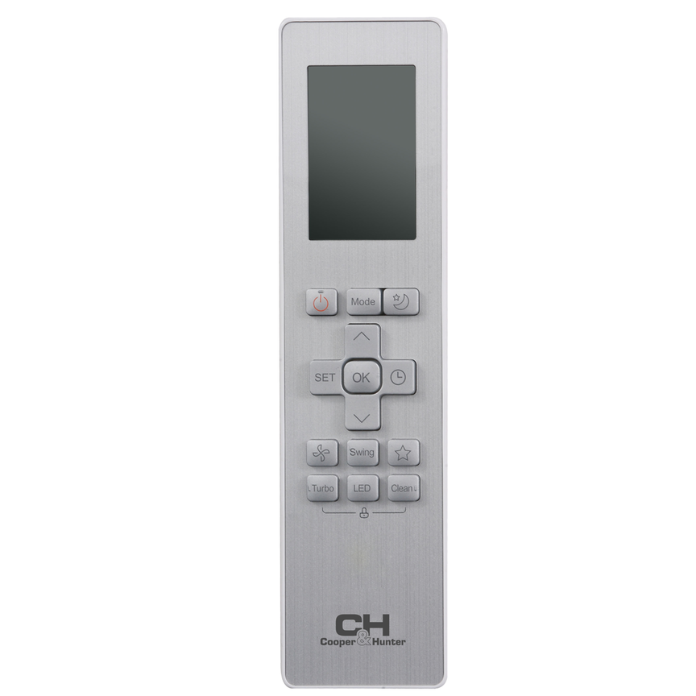

- Wireless Remote Controls (2 remotes)
- Installation Manual
- User's Manual
- Manufacturer Warranty
Complete technical specifications — Indoor
Indoor Unit Specifications — CH-16MMC-230VI
| System type | Single/Multi-zone unit |
|---|---|
| BTU Rated | 16,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 1.20 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 34.06x11.02x28.31 |
| Controller | RG10K-exclusive remote&wifi kit |
| Refrigerant piping Liquid/Gas side (inch) | 1/4" - 1/2'' |
| EER2 | 12.5 |
| SEER2 | 22.4 |
| Unit Net/Gross weight | 32.85/41.45 |
| Unit dimensions (W*H*D) | 31.26x7.87x24.45 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 45/43.5/30.5 |
| Indoor Air Flow | 500.00/441.18/382.35/323.53 |
| Drainage water pipe diameter | 5/8" |
Manuals
- https://media.cooperandhunter.us/2790/CH-16MMC-230VI-CH-ES18-230VO.pdf
- https://media.cooperandhunter.us/2791/CH-16MMC-230VI-CH-HPR18-230VO.pdf
- https://media.cooperandhunter.us/2794/Remote-controller-manual.pdf
- https://media.cooperandhunter.us/3829/Installation-manual-MMC.pdf
- https://media.cooperandhunter.us/3754/Mini-Floor-Console-Leaflet-2024.pdf
- https://media.cooperandhunter.us/3762/Floor-Ceiling-Leaflet-2024.pdf
Submittals
- https://media.cooperandhunter.us/3705/CH-16MMC-230VI.pdf
- https://media.cooperandhunter.us/3708/CH-16MMC-230VI-CH-ES18-230VO.pdf
- https://media.cooperandhunter.us/3709/CH-16MMC-230VI-CH-HPR18-230VO.pdf
Documents
Complete technical specifications — Outdoor
Outdoor Unit Specifications — CH-55MES-230VO
| Refrigerant type | R410A |
|---|---|
| System type | Multi-zone unit |
| BTU Rated | 55,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 12.72 |
| Max. pipe length (ft) | 262 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 43.11x19.49x58.27 |
| Refrigerant piping Liquid/Gas side (inch) | 5x1/4" - 3x3/8"+2x1/2" |
| HSPF2-5 | 6.8 |
| HSPF2-4 | 9.1 |
| EER2 | 10.5 |
| Cooling capacity (Min/Max) (BTU/h) | 55,000(19,000~57,300) |
| SEER2 | 21.3 |
| Unit Net/Gross weight | 224.21/257.28 |
| Unit dimensions (W*H*D) | 37.48x16.34x52.48 |
| Refrigerant precharge | up to 125 |
| Outdoor Noise Level | 62 |
| Outdoor Air Flow | 4,500 |
| Minimum circuit ampacity | 40 |
| Max.fuse | 60 |
| Max height difference between Indoor and Outdoor unit | 49.21 |
| Heating capacity (Min/Max) (Btu/h) | 55,000(12,500~60,000) |
| COP | 3.2 |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | 5~122 |
| Additional Refrigerant Charge 3/8 liquid line | 0.32 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Manuals
- https://media.cooperandhunter.us/3759/Accessories-Leaflet-2023.pdf
- https://media.cooperandhunter.us/1126/QUICK-START-GUIDE.pdf
- https://media.cooperandhunter.us/4433/Installation-manual.pdf
Submittals
- https://media.cooperandhunter.us/3168/CH-55MES-230VO-%28Ducted%29.pdf
- https://media.cooperandhunter.us/3169/CH-55MES-230VO-%28Non-ducted%29.pdf
Documents
Warranty information
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
- 1-Year Remote Control Warranty
Note: Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.
Summary
Expand
The Cooper & Hunter Mini Floor Console is a compact indoor option for low-ceiling rooms and attics, offering floor or low-wall installation and dual airflow outlets for steady comfort. This multi-zone system pairs a 55000 BTU outdoor unit with CH-55MES-230VO + 2X CH-16MMC-230VI indoor units across 2 zones and supports pairing with Regular or Hyper Heat outdoor units (as applicable).
