Cooper&Hunter 18,000 BTU High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R454B 230V
Overview
18K multi-position air handler paired with a regular single-zone outdoor condenser for efficient heating and cooling. Horizontal/vertical indoor installation, inverter-driven operation, and smart control support flexible, comfortable performance.
Highlights
Capacity: 18,000 BTU Refrigerant: R454B System SEER2: 18.5 Outdoor EER2: 12.5 ESP Range: 0–0.8 Line Set: 1/4" × 1/2" Heating Ambient: -13°F to 75°F Cooling Ambient: -13°F to 122°F AHRI: 207742320
System Search
Voltage
208–230V (1Ph, 60Hz)
Voltage Range
187–253V
Max Line / Lift
98.4 ft / 65.6 ft
Outdoor MCA / Max Fuse
18A / 20A
Drain Size
3/4"
- Multi-position indoor install (horizontal or vertical)
- Intelligent air flow with three-speed fan motor (auto/manual static adjustment)
- Anti-cold air function supports more comfortable heating startups
- Fast cool/heat mode support
- Refrigerant leak detection and wired controller support
What’s Included

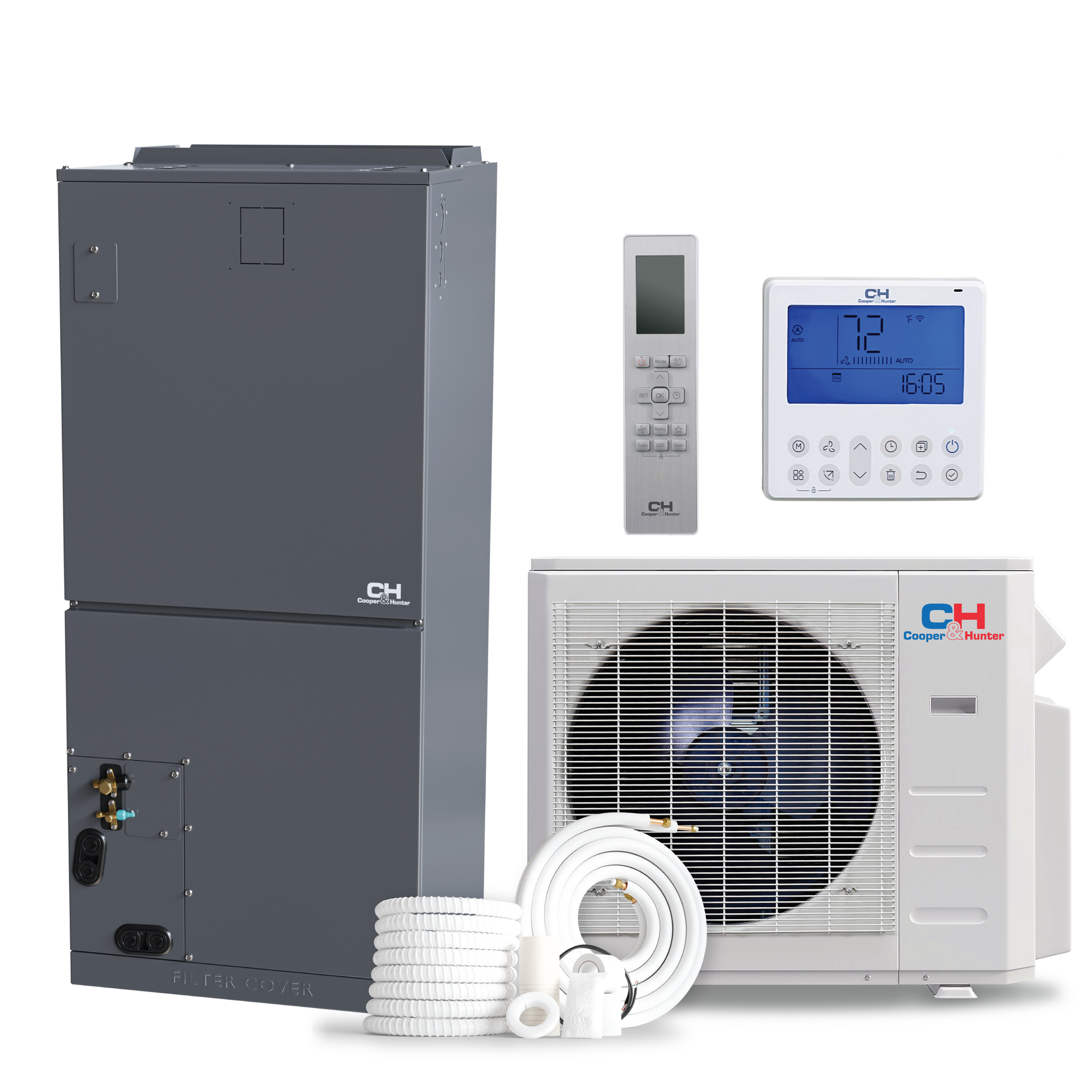

- Indoor unit: CH-RS18MAHU
- Outdoor unit: CH-RES18-230VO
- Remote control and wall thermostat
- Wired controller support
- Smart kit connectivity support
- Optional auxiliary heater support (purchased separately)
Indoor Specs (CH-RS18MAHU)
| Spec | Value |
|---|---|
| Refrigerant Type | R454B |
| System Type | Single Zone |
| BTU Rated | 18,000 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253V |
| Dehumidification | 3.57 pints/day |
| Filter Dimensions (W×D) | Field supply (unit without filter 16×20) |
| Controller | Wire controller + remote controller available |
| Refrigerant Piping (Liquid/Gas) | 1/4" / 1/2" |
| EER2 | 12 |
| SEER2 | 18 |
| Minimum Circuit Ampacity | 3.5A |
| Max Fuse | 15A |
| Indoor Noise Level (H/M/L) | 42.5 / 37.5 / 30 |
| Indoor Air Flow | 618.0 / 576.8 / 529.7 / 488.5 |
| ESP Range | 0–0.8 |
| Drainage Water Pipe Diameter | 3/4" |
| Operation Range – Heating | 32–86°F |
| Operation Range – Cooling | 60–90°F |
| Unit Dimensions (W×H×D) | 17.52 × 21.02 × 45 in |
| Packing Dimensions (W×D×H) | 20.87 × 26.57 × 48.62 in |
| Unit Net / Gross Weight | 104.72 / 125.66 lb |
Outdoor Specs (CH-RES18-230VO)
| Spec | Value |
|---|---|
| Refrigerant Type | R454B |
| System Type | Single-zone unit |
| BTU Rated | 18,000 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253V |
| Dehumidification | 3.09 pints/day |
| Max Pipe Length | 98.4 ft |
| Max Height Difference (Indoor↔Outdoor) | 65.6 ft |
| Refrigerant Piping (Liquid/Gas) | 1/4" / 1/2" |
| HSPF2-5 / HSPF2-4 | 8.2 / 10.5 |
| EER2 | 12.5 |
| SEER2 | 20 |
| Cooling Capacity (Min/Max) | 17,000 (7,000–19,000) BTU/h |
| Heating Capacity (Min/Max) | 20,000 (5,500–22,000) BTU/h |
| COP | 3.47 |
| Ambient Temperature – Heating | -13 to 75°F |
| Ambient Temperature – Cooling | -13 to 122°F |
| Refrigerant Precharge | 25 |
| Outdoor Noise Level | 59 |
| Outdoor Air Flow | 1,765.8 |
| Minimum Circuit Ampacity | 18A |
| Max Fuse | 20A |
| Additional Refrigerant Charge (1/4 liquid line) | 0.16 |
| Unit Dimensions (W×H×D) | 35.04 × 13.46 × 26.50 in |
| Packing Dimensions (W×D×H) | 39.17 × 15.67 × 29.13 in |
| Unit Net / Gross Weight | 92.59 / 100.31 lb |
| AHRI | 207742320 |
Documents & Downloads
- Submittal (Hyper Pairing): CH-RHP18-230VO + CH-RS18MAHU
- Submittal (Regular Pairing): CH-RES18-230VO + CH-RS18MAHU
- Indoor Manuals
- 120N Wire Controller — Owner’s Manual
- NR Heater — Installation Manual
- RS AHU — Installation Manual
- RS AHU — Owner Manual
- AHU Leaflet — R454B (2025)
- Outdoor Manual
- Installation Manual — R454B Outdoor Units
- SlimDuct Leaflet — R454B
- Video: Cooper&Hunter Multi-Position Air Handler with R454B Refrigerant
Important
- Line set: 1/4" liquid and 1/2" suction (gas).
- Max piping: 98.4 ft total length and 65.6 ft vertical separation.
- Outdoor electrical: MCA 18A, max fuse 20A.
- Indoor electrical: MCA 3.5A, max fuse 15A.
- Field-supplied filter: unit without filter is sized for 16×20.
