Product Summary

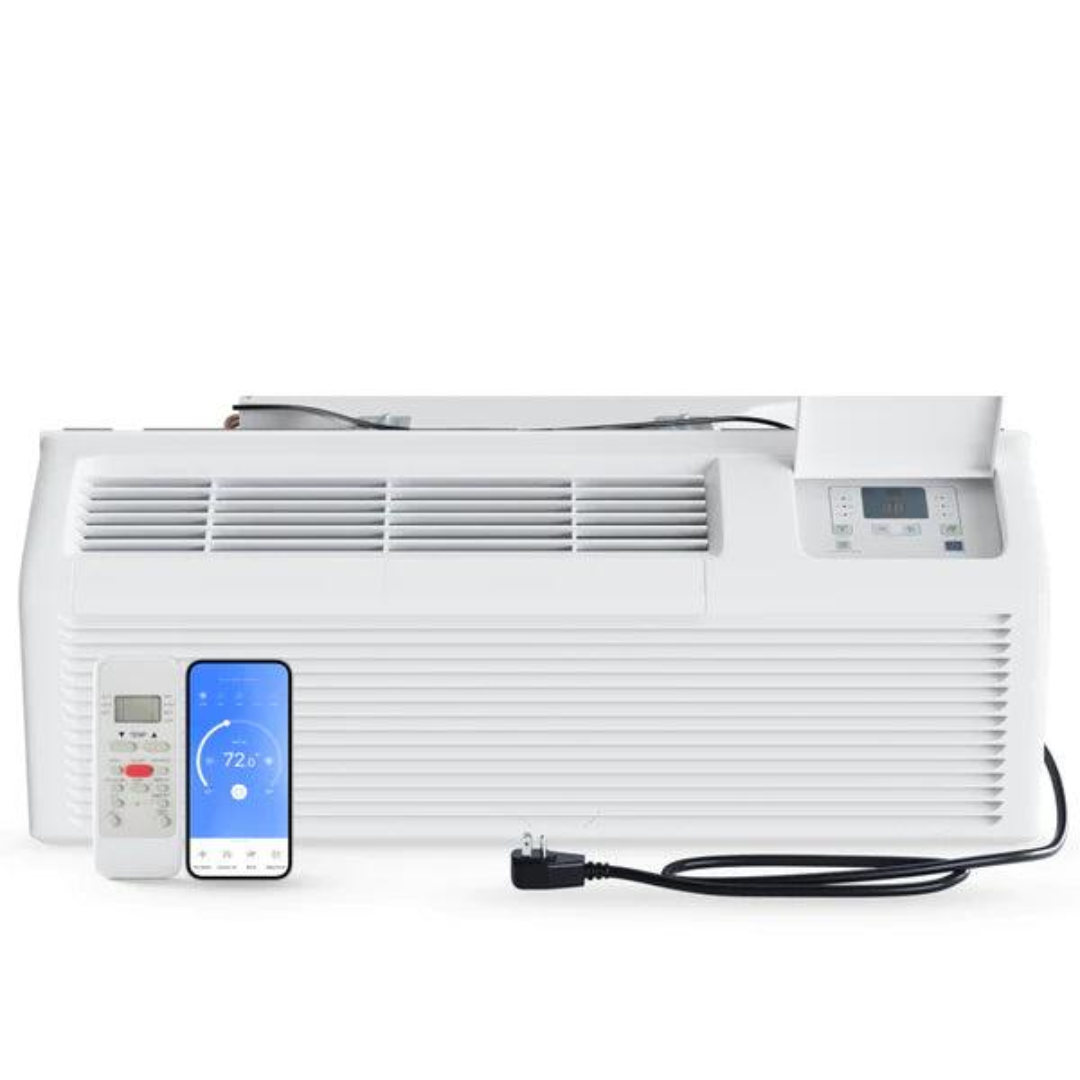

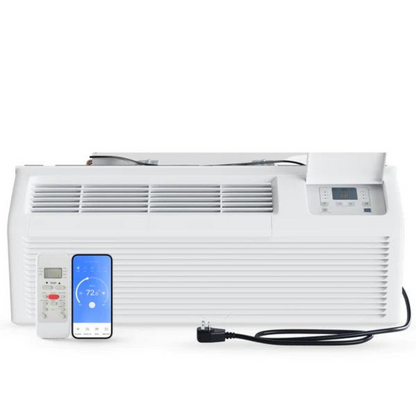

The Cooper & Hunter 12,000 BTU Packaged Terminal Air Conditioner (PTAC) with Heat Pump is a powerful, energy-efficient heating and cooling solution designed for hotels, apartments, offices, and commercial spaces. Engineered for through-the-wall AC installation, this PTAC unit with heat pump ensures consistent temperature control for year-round comfort while maximizing energy savings.
Equipped with Smart Technology, this Wi-Fi-enabled PTAC system allows you to adjust settings remotely via your smartphone, ensuring optimal climate control from anywhere. The included remote control provides easy access to temperature, fan speed, and mode adjustments.
Key Features
- 12,000 BTU cooling capacity – Ideal for rooms up to 550 sq. ft.
- Energy-efficient heat pump – Provides cost-effective heating and cooling
- Wi-Fi Smart Control – Adjust settings remotely via smartphone
- Quiet PTAC AC Operation – Ideal for hotels, apartments, and offices
- Auto Restart & Sleep Mode – Ensures seamless operation and energy savings
- Easy Installation – Comes with a 230V power cord for quick setup
- Humidity Control & Dehumidifier Mode – Maintains a comfortable indoor environment
This high-performance Commercial PTAC unit is the perfect commercial-grade HVAC solution, offering reliable climate control, quiet operation, and smart features to enhance comfort and efficiency. Whether you’re installing a new PTAC HVAC system or replacing an existing unit, this PTAC unit delivers unmatched performance and convenience.
Note: Grille and installation sleeve are sold separately and can be selected in this listing by clicking the dropdown bar. Additional charges apply.

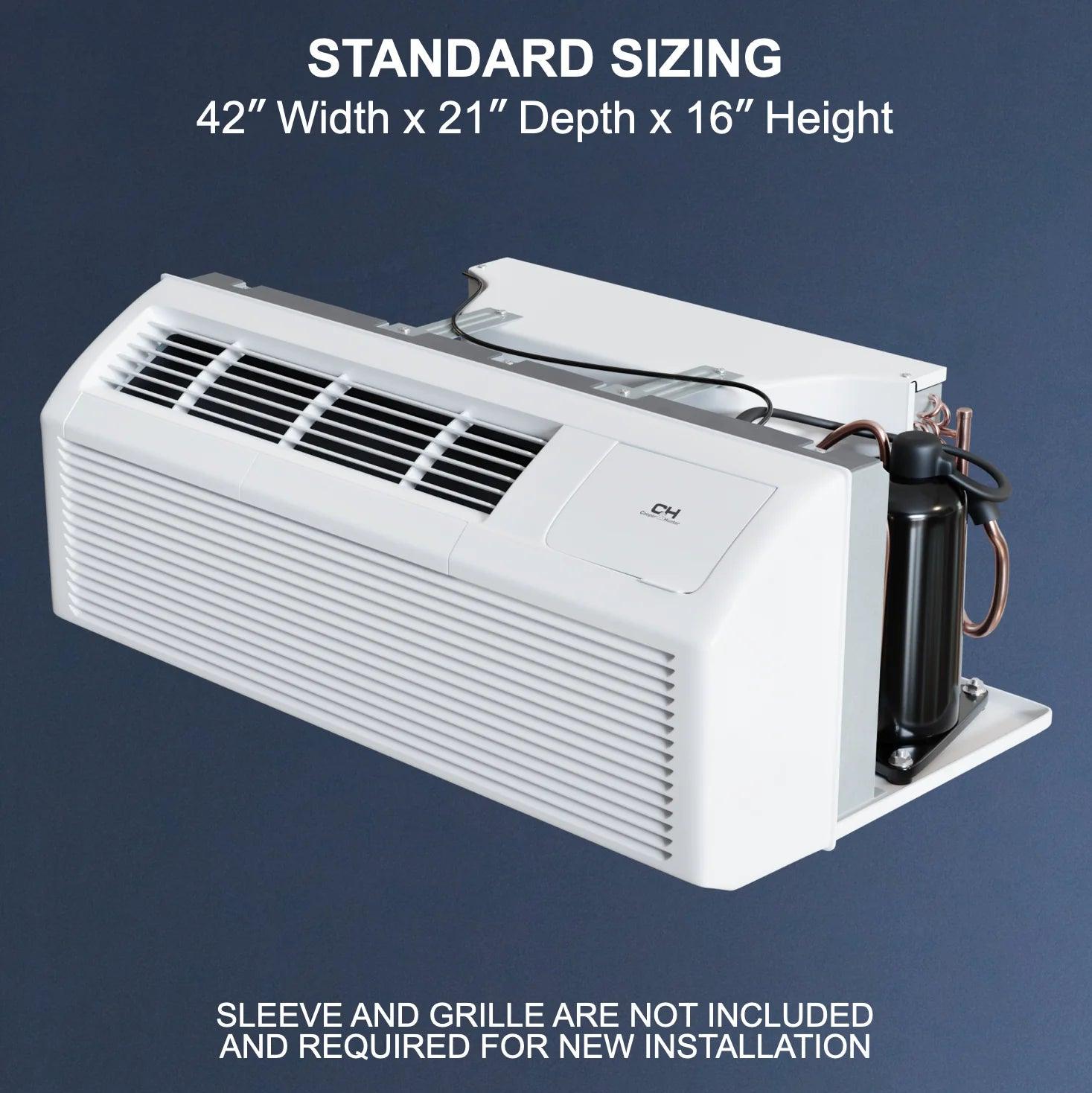

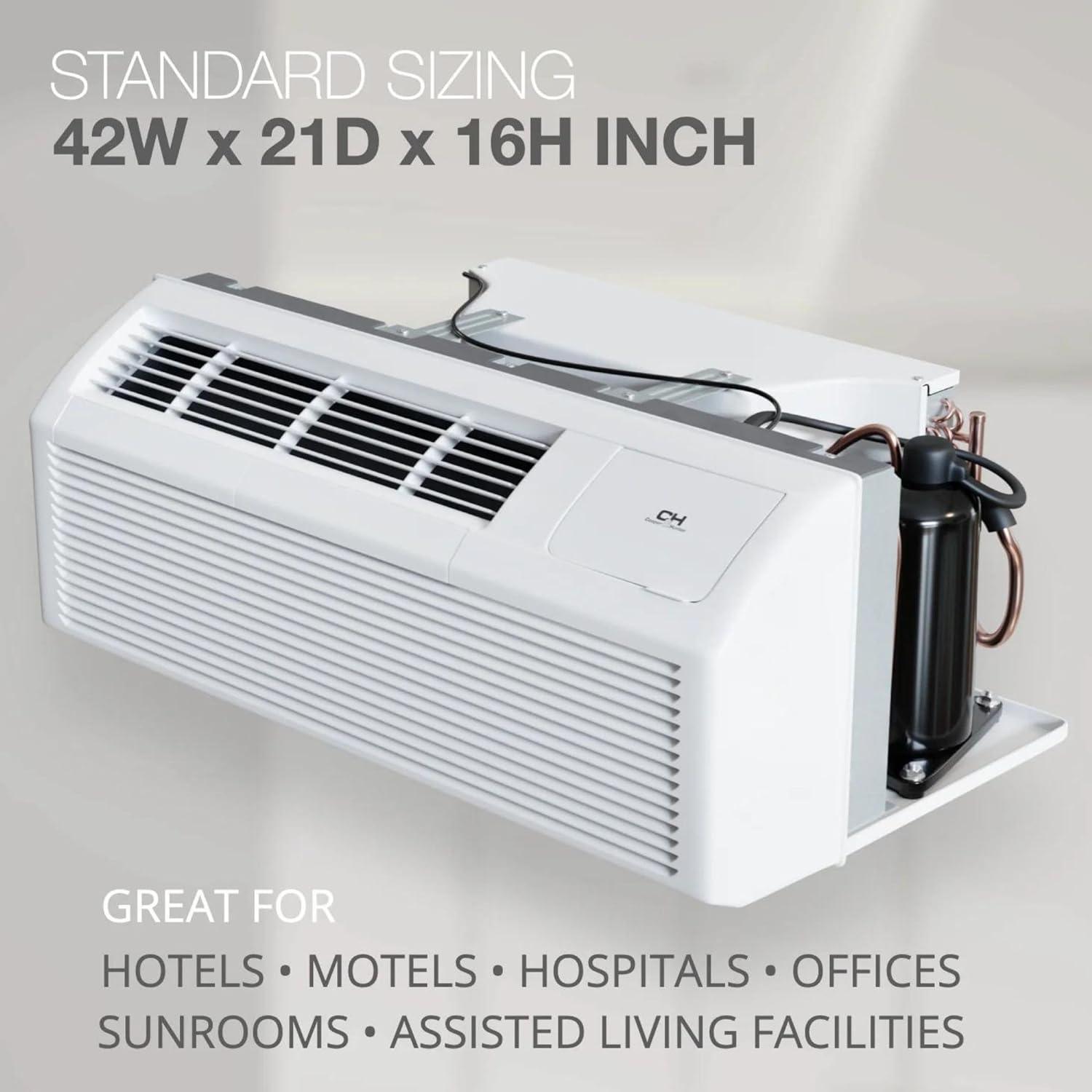

Standard sizing – 42” width x 21” depth x 16” height, designed to easily replace older PTAC units while using existing wall sleeves and grilles. The unit comes with a 7-year limited warranty on the compressor and a 5-year limited warranty on parts.

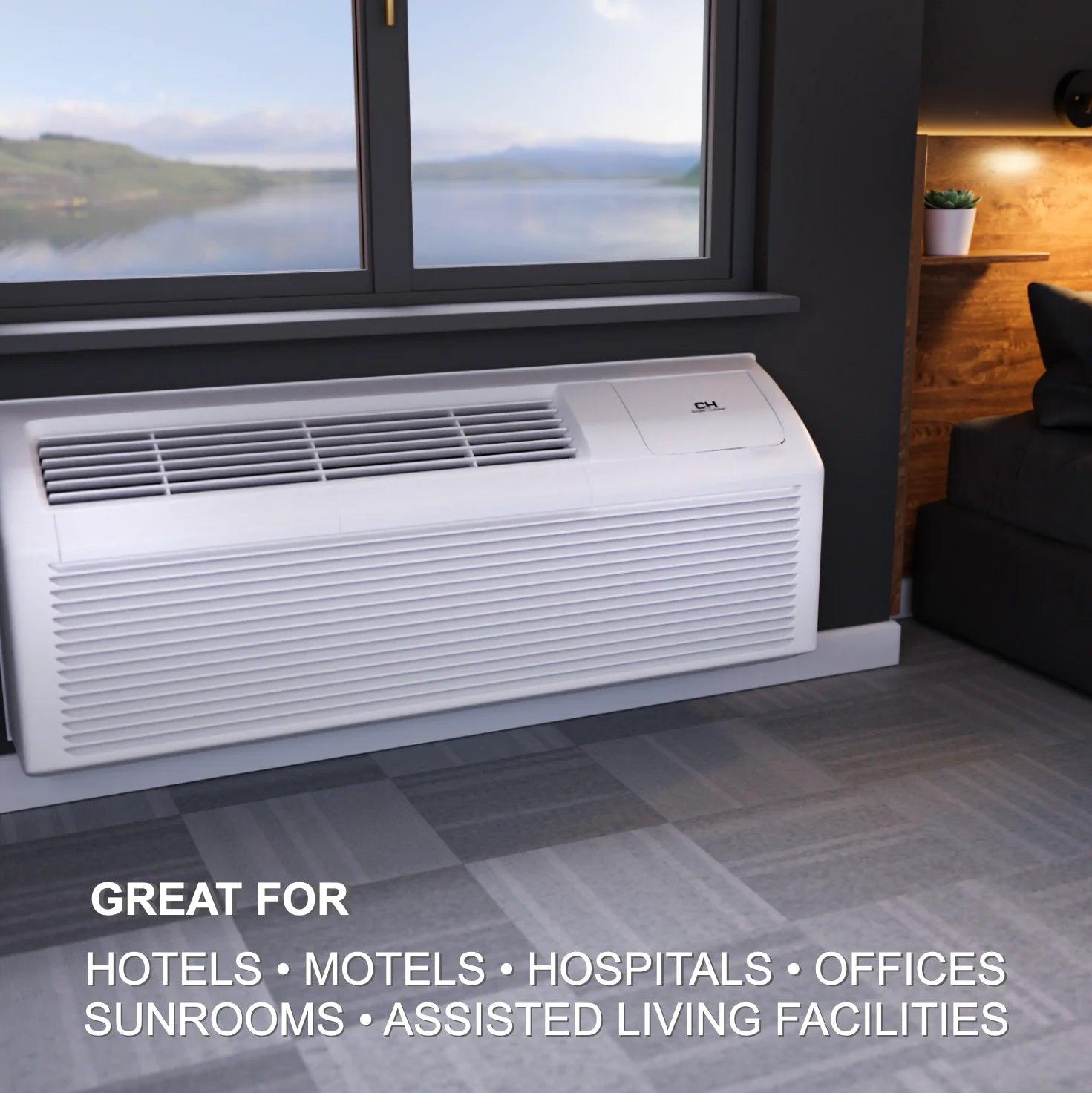

Packaged Terminal Air Conditioners are commonly installed in window walls and masonry walls in hotels, housing facilities, hospitals, and sunrooms. These units utilize heat pumps and back-up heat strips for fast, efficient cooling and heating, ensuring accurate climate control. Fresh Air Ventilation allows for clean air circulation, while GoldFin Anti-Corrosive coating enhances the unit's durability.
Cooper & Hunter PTACs are compatible with standard-sized wall sleeves, making replacements easy. Control options include a PTAC control display, remote control, or third-party wired/wireless thermostats. Heat Pump models and Heat Strip models are available in a range of capacities and are ideal for both warmer and cooler climates. High Efficiency PTACs are also available with up to 11.6 EER for maximum energy savings in 9K, 12K and 15K Btu/h capacities.
What's Included
- Smart PTAC Packaged Terminal Air Conditioner (12,000 BTU 230V Through The Wall Air Conditioner with Smart Connect Capabilities. Heating and Cooling)
- Optional Sleeve MUST BE SELECTED ABOVE.
- Wireless Remote Control
- Installation Manual
- User’s Manual
- Manufacturer Warranty (7 Years on the Compressor, 5 Years on the Parts.)
Warranty and Features
- Wi-Fi Enabled
- Flexibility. Perfect for Residential, Hotels, and Commercial use.
- Remote Control Included
- Limited 7 Year Compressor and 5 Year Parts Warranty
- Premium Tech Support
Technical Specifications — CH-PTW-12HPGF
| Model Number | CH-PTW-12HPGF |
|---|---|
| Power Source | 208/230V, 1Ph, 60Hz |
| Cooling Capacity (Min/Max) | 12,000 / 11,800 BTU/h |
| Heating HP Capacity | 10,800 / 10,500 BTU/h |
| Heating HS Capacity | 10,900 / 8,900 BTU/h |
| EER | 10.5 |
| COP | 3.2 |
| Refrigerant Type | R32 |
| Rated Current Cooling | 4.18 / 3.85 A |
| Electrical Heater Current | 15.3 / 13.7 A |
| Recommended Circuit Breaker | 20 A |

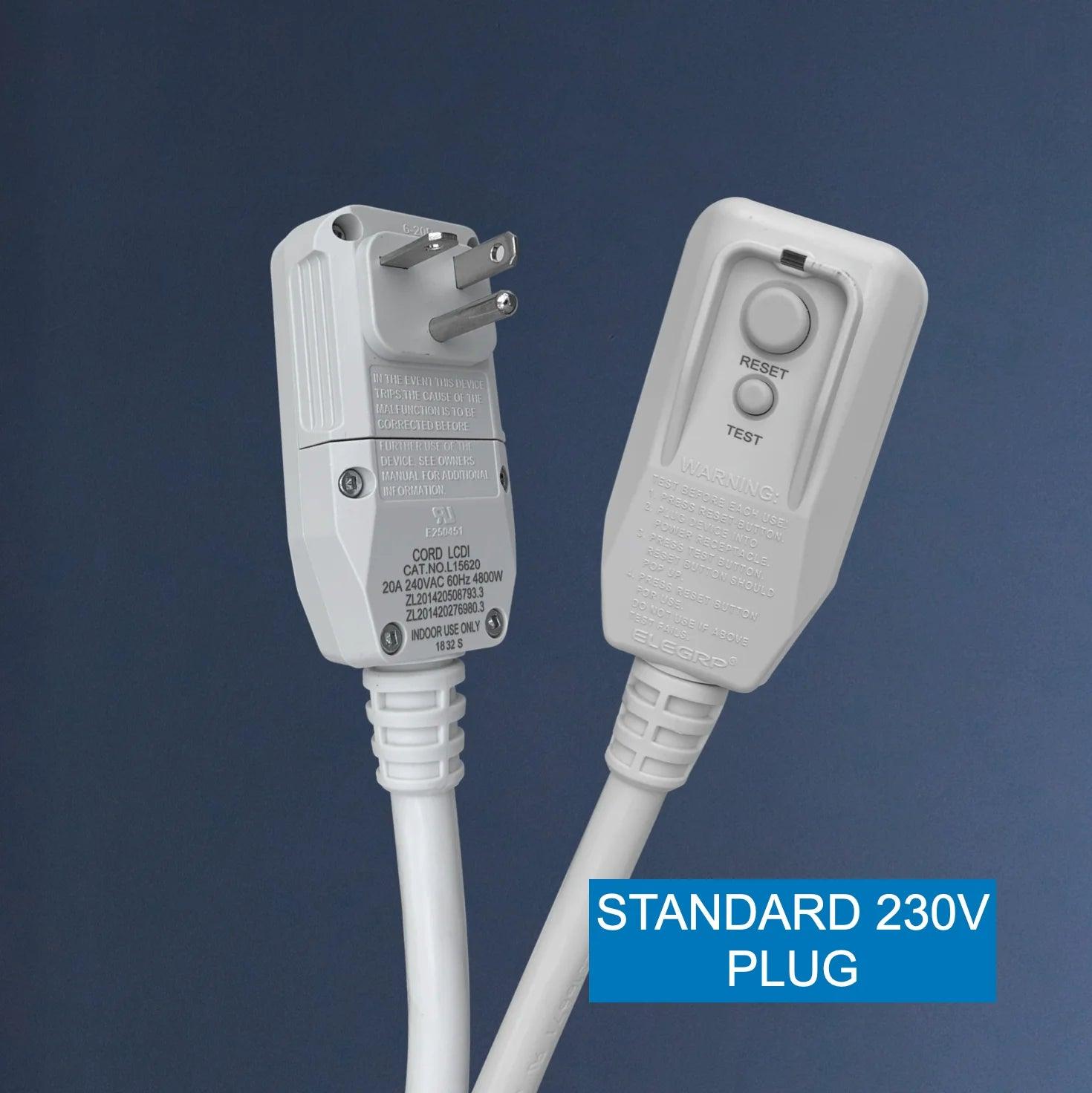

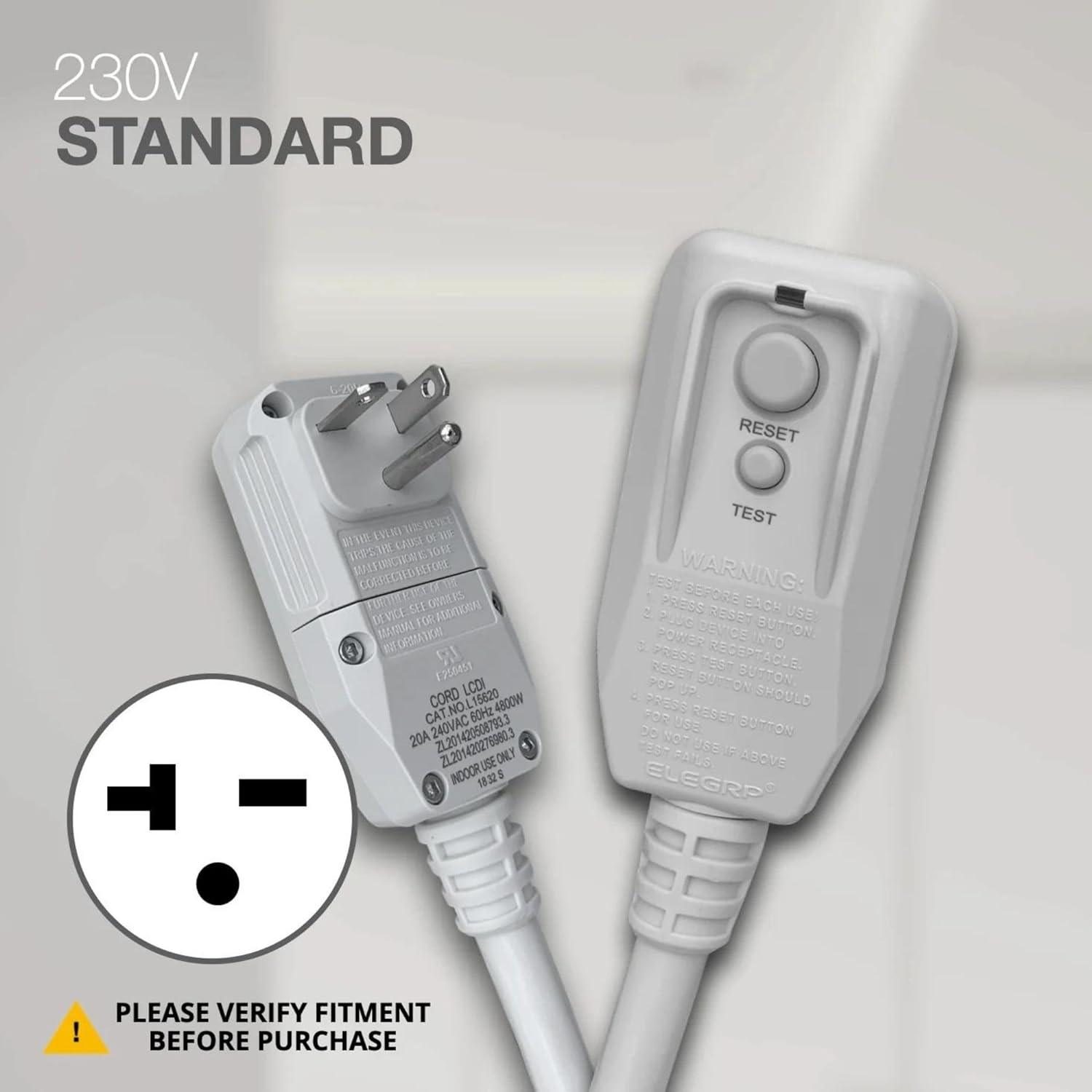

| Plug Type | LCDI (6-20P) |
| Indoor Airflow (Hi/Lo) | 438 / 344 CFM |
| Indoor Noise Level (Hi/Lo) | 52 / 51.5 dB |
| Outdoor Noise Level | 67 dB |
| Fresh Air Ventilation | 62 / 60 / 56 CFM |
| Dehumidification Value | 2.9 pnt/day |

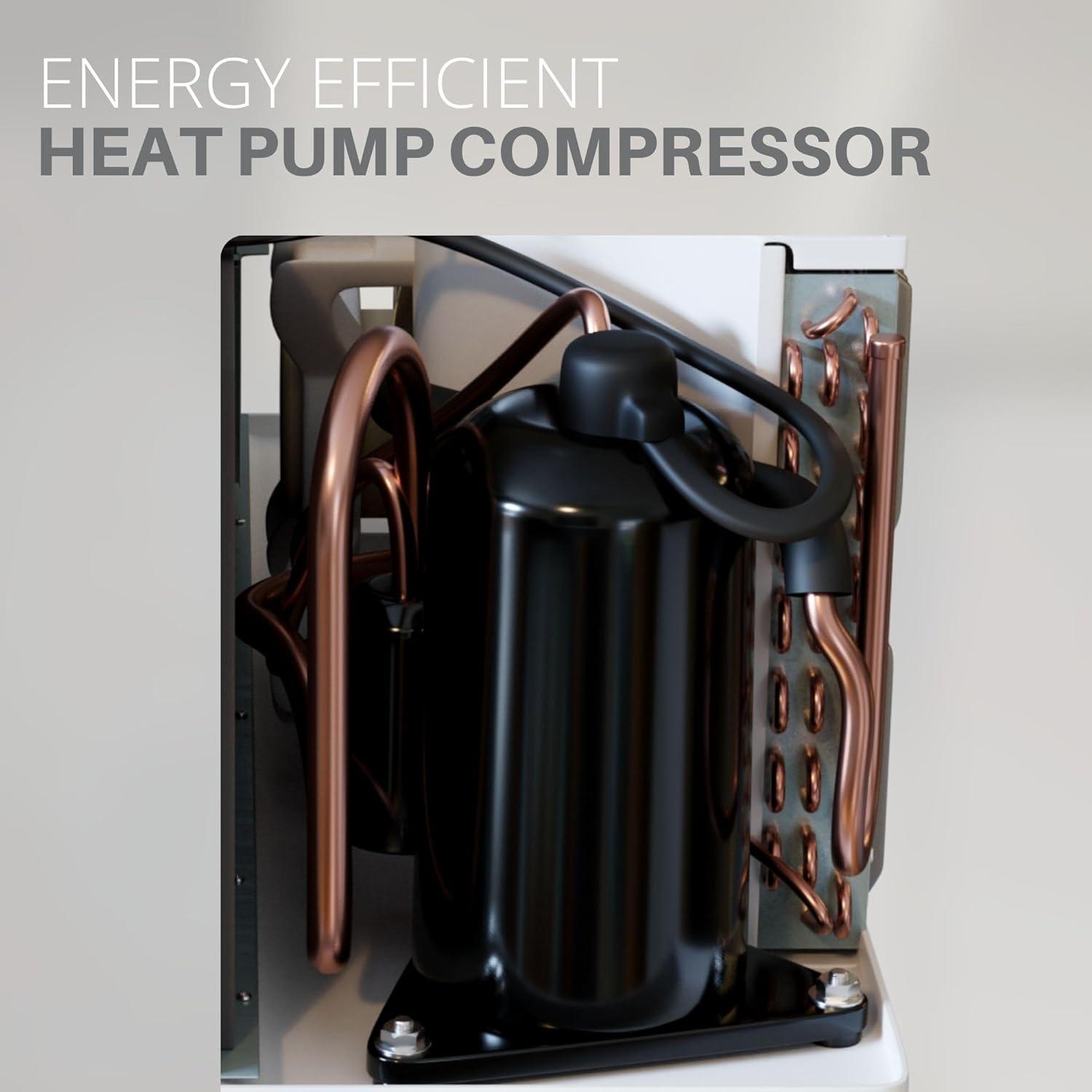

| Compressor Type | ROTARY |

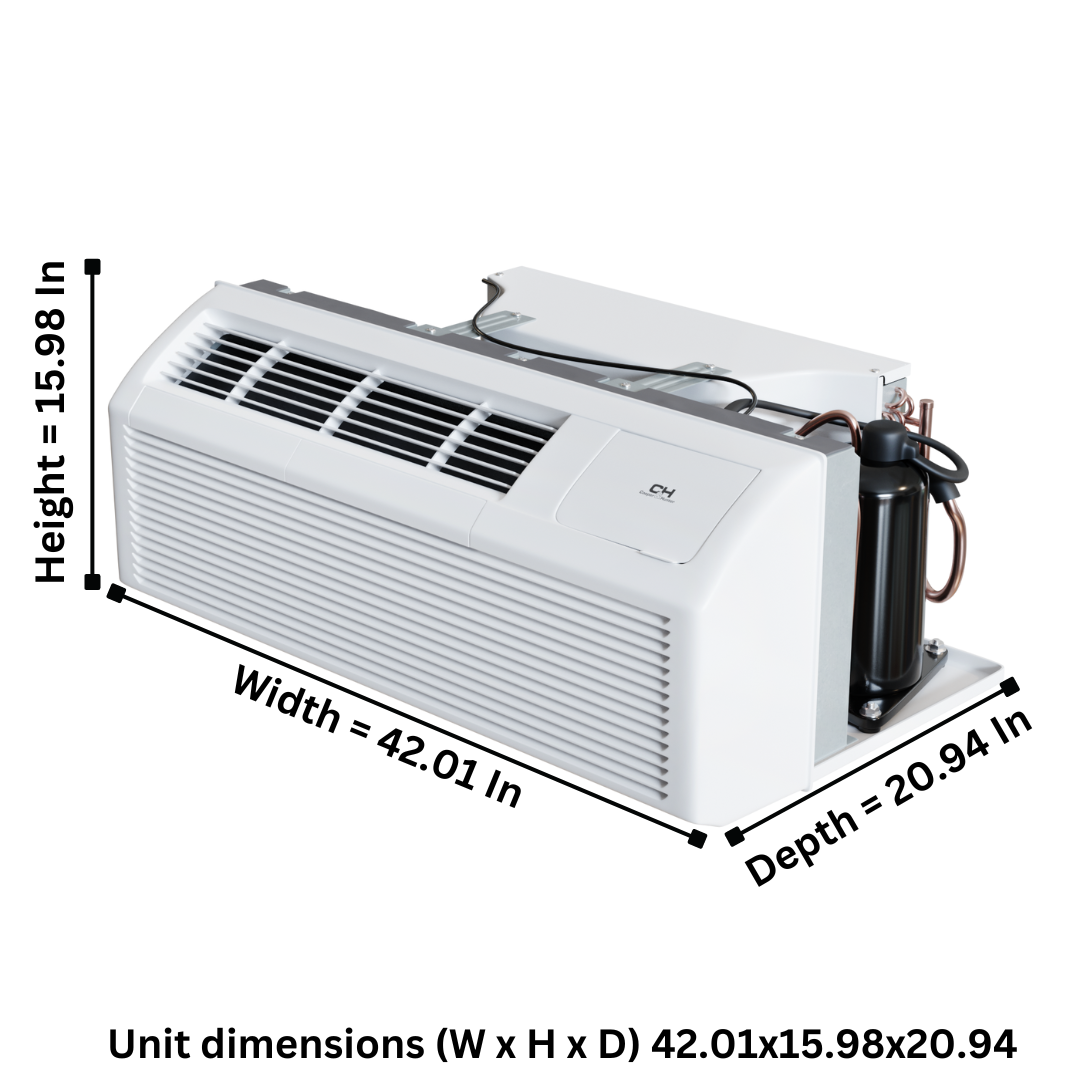

| Unit Dimensions (W x H x D) | 42.01" x 20.94" x 15.98" |
| Packing Dimensions (W x D x H) | 44.49" x 24.61" x 19.29" |
| Unit Net / Gross Weight | 110.23 lb / 119.05 lb |
| Waterproof Class | IP20 |
| Warranty | 7 Years Compressor, 5 Years Parts |
