Cooper&Hunter

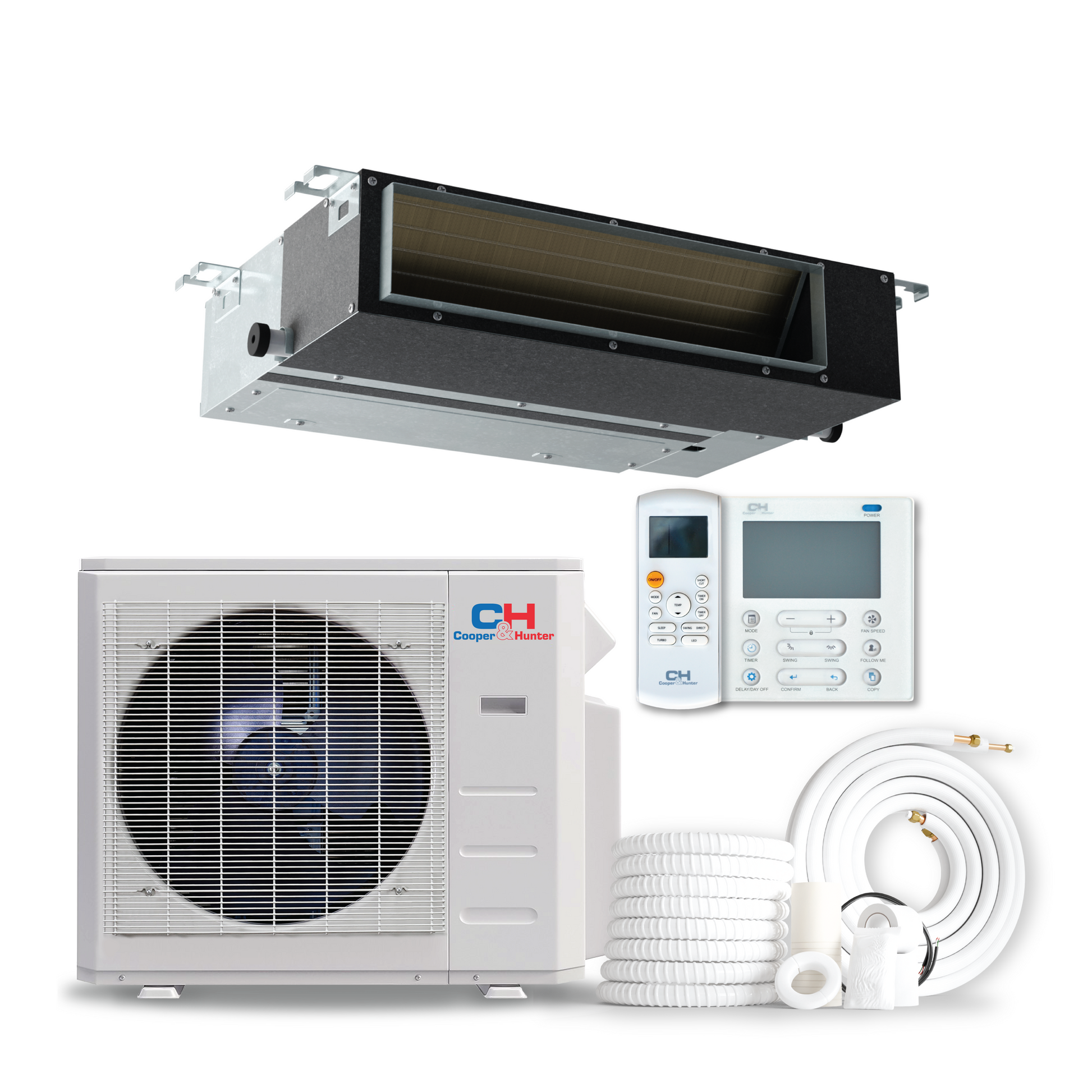

Cooper&Hunter 12,000 BTU Single Zone Slim Duct Ducted Minisplit Heat Pump System R454B 230V

SKU: CH-RS06-12MDT- MS + CH-RES12-230VO

System highlights
AC Type
Slim Duct
Refrigerant Type
R454B
Brand
Cooper&Hunter
Outdoor Unit
12000 BTU VO (1.0 TON)
Indoor Unit
12000 BTU (1.0 TON)
Voltage
208-230V
Looking For
Slim Duct
Cooling Area (sq.ft.)
400-550
SEER2 Rating
19.0
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$1,591.00
Shipping calculated at checkout.
View full details

Multiple-Capacity Medium Static Slim Duct + Regular Outdoor • R454B • 208–230V

Cooper&Hunter 12,000 BTU Single Zone Slim Duct Ducted Minisplit Heat Pump System R454B 230V

Overview

Multiple-capacity slim duct indoor unit paired with a 9K Regular outdoor condenser. Regular outdoor unit heating ambient down to -13°F.

Highlights

Selectable Capacity: 6K / 9K / 12K ESP Range: 0–0.4 R454B Refrigerant Heating Ambient (Up to -13°F) Line Set: 1/4" × 3/8" AHRI: 207742317

System Search

CH-RS06-12MDT-MS + CH-RES09-230VO

Outdoor SEER2 / EER2

19.5 / 12.8

Outdoor Noise

54 dB

Outdoor MCA / Max Fuse

12A / 15A

Max Line / Lift

82 ft / 49.2 ft

Outdoor Air Flow

1,236.1

Indoor Specs (CH-RS06-12MDT-MS)

Spec Value
Refrigerant Type R454B
System Type Single Zone
Filter Dimensions (W×D) 23.3 × 7.24 in
BTU Rated 12,000 (selectable capacity model)
Power Source 208–230V, 1Ph, 60Hz
Dehumidification 2.66 pints/day
Voltage Range 187–253V
Packing Dimensions (W×D×H) 33.86 × 21.26 × 11.22 in
Controller (listed) Wire controller + remote controller available
Refrigerant Piping (Liquid/Gas) 1/4" / 3/8"
EER2 12
SEER2 20
Unit Net / Gross Weight 39.46 / 46.74 lb
Unit Dimensions (W×H×D) 27.56 × 19.92 × 7.87 in
Operation Range – Heating 32–86°F
Operation Range – Cooling 60–90°F
Minimum Circuit Ampacity 3A
Max Fuse 15A
Indoor Noise Level (H/M/L) 36 / 34.5 / 32.5 dB(A)
Indoor Air Flow 400.2 / 323.7 / 264.9 / 176.6
ESP Range 0–0.4
Drainage Water Pipe Diameter 1"

Outdoor Specs (CH-RES09-230VO)

Spec Value
Refrigerant Type R454B
System Type Single-zone unit
BTU Rated 9,000
Power Source 208–230V, 1Ph, 60Hz
Dehumidification 1.44 pints/day
Max Pipe Length 82 ft
Voltage Range 187–253V
Packing Dimensions (WxDxH) 34.92 × 13.27 × 24.02 in
Refrigerant Piping (Liquid/Gas) 1/4" / 3/8"
HSPF2-5 / HSPF2-4 8.8 / 11
EER2 / SEER2 12.8 / 19.5
Cooling Capacity (Min/Max) 9,000 (3,100–11,900) BTU/h
Heating Capacity (Min/Max) 10,000 (3,600–14,000) BTU/h
Unit Net / Gross Weight 62.17 / 67.68 lb

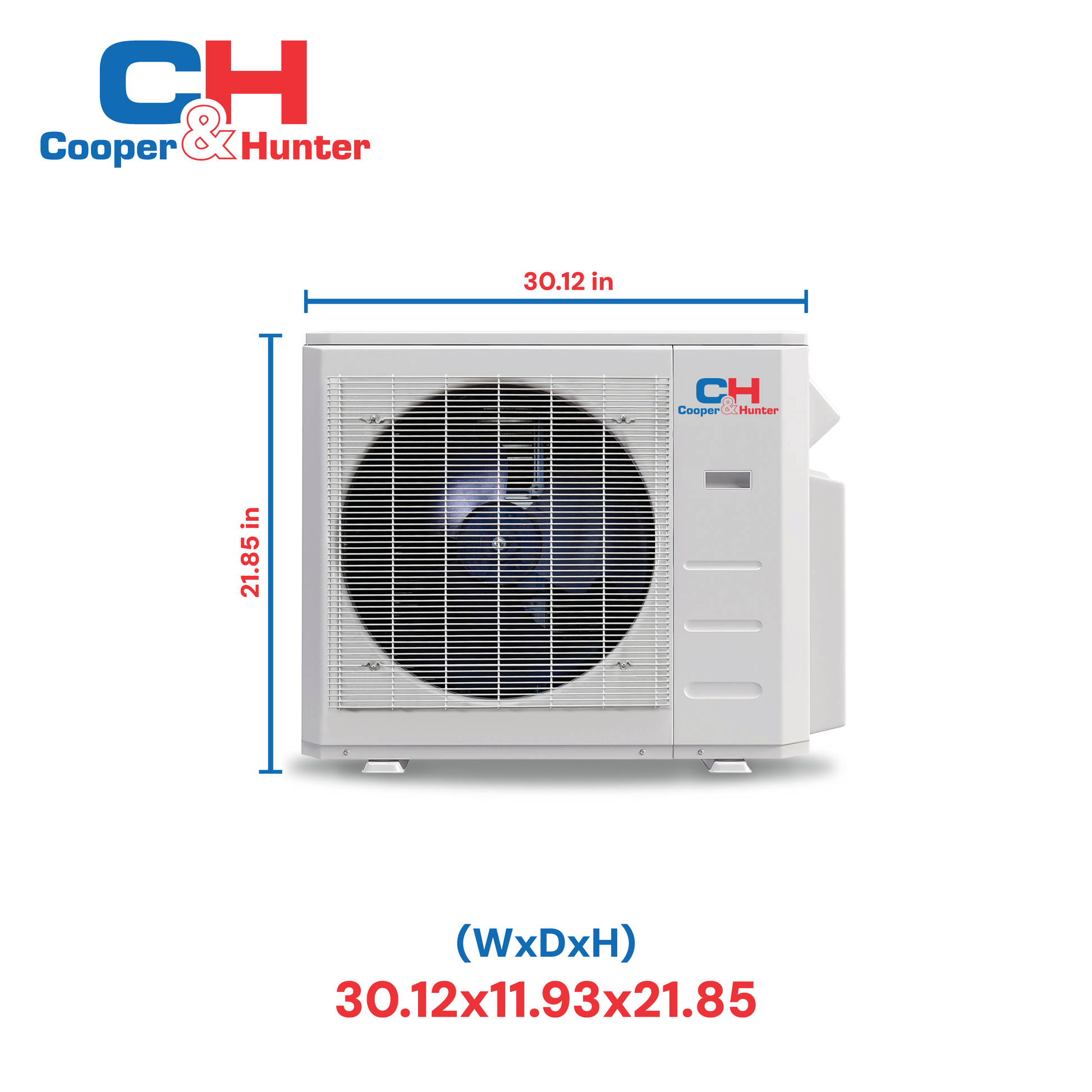

Unit Dimensions (W×H×D) 30.12 × 11.93 × 21.85 in
Refrigerant Precharge 25
Outdoor Noise Level 54 dB
Outdoor Air Flow 1,236.1
Minimum Circuit Ampacity 12A
Max Fuse 15A
Max Height Difference (Indoor↔Outdoor) 49.2 ft
COP 3.66
Ambient Temperature – Heating -13 to 75°F
Ambient Temperature – Cooling -13 to 122°F
Additional Refrigerant Charge (1/4 liquid line) 0.16
AHRI 207742317

Documents & Downloads

FAQs

How cold can the Regular outdoor unit heat?

The outdoor unit lists a heating ambient range down to -13°F.

What are the listed efficiency ratings for the system?

SEER2 19.0 and EER2 12.8.

What are the outdoor capacity ranges?

Cooling: 9,000 (3,100–11,900) BTU/h. Heating: 10,000 (3,600–14,000) BTU/h.

What line set size is required?

1/4" liquid and 3/8" suction (gas).

What are the maximum piping limits?

Max pipe length is 82 ft and max height difference is 49.2 ft

Does the indoor unit support static pressure control?

Yes—the indoor unit ESP range 0–0.4.

What controllers are supported?

Wire controller + remote controller available.

What is the AHRI number?

AHRI is 207742317.
