Cooper&Hunter Olivia • R454B • Single Zone
Cooper&Hunter 12,000 BTU Olivia Single Zone Wall Mount Mini Split Heat Pump System R454B 230V
SKU: CH-R12MOLVWM-230VI + CH-RES12-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview
Enhance your home's climate control with the Cooper&Hunter 12K BTU Olivia wall-mounted mini split utilizing the new R454B refrigerant. Designed for efficient heating and cooling in 230V single-zone applications, it combines inverter performance with comfort features and smart connectivity.
Auto-swing horizontal louvers help reduce hot/cold spots, while inverter technology adjusts output to match demand for steady comfort and energy savings. Control options include Smart Kit app control, an included remote, and optional wall thermostat compatibility (sold separately).
Highlights
12,000 BTU class R454B refrigerant Up to 23.1 SEER2 208–230V, 1Ph, 60Hz Smart Kit (App control) Auto-swing (horizontal louvers) TU1 copper tubes Regular (Non-Hyper) Outdoor
- Genius Core low-speed operation: ultra-low compressor speed (12Hz) for quiet, efficient comfort.
- 46°F freeze protection: added protection for cold conditions.
- High-Frequency Racer Technology: rapid ramp to maximum speed on startup for quick comfort.
- Electronic expansion valve: optimizes refrigerant flow management.
- Intelligent dusting switch: reverses the fan to help clear dust, sand, and debris from the coil.
- Comfort automation: Follow Me, Timer On/Off, Sleep Mode, Eco Mode (Single-Zone only), Self-Clean (Single-Zone only), and Turbo Mode.
IndoorCH-R12MOLVWM-230VI
OutdoorCH-RES12-230VO
Lines1/4" liquid · 3/8" gas
Max run82 ft
What’s Included
- Indoor unit: CH-R12MOLVWM-230VI
- Outdoor unit: CH-RES12-230VO
- Remote control
- Smart Kit (app connectivity)
- Manufacturer documentation (see Downloads)
Indoor Specs
| Spec | Details |
|---|---|
| Indoor Model | CH-R12MOLVWM-230VI |
| Power Supply (Rated) | 208/230 V, 1 Ø, 60 Hz |
| Rated Capacity | 12,000 Btu/h |
| Minimum Circuit Ampacity (MCA) | 3 |
| Max. fuse (A) | 15 |
| Indoor Air Flow (Turbo/Hi/Med/Lo/Si) (CFM) | 382.6 / 294.3 / 194.2 / 153.0 / — |
| Indoor Noise Level (Turbo/Hi/Med/Lo/Si) dB(A) | N/A / 42 / 35.5 / 22.5 / 20 |

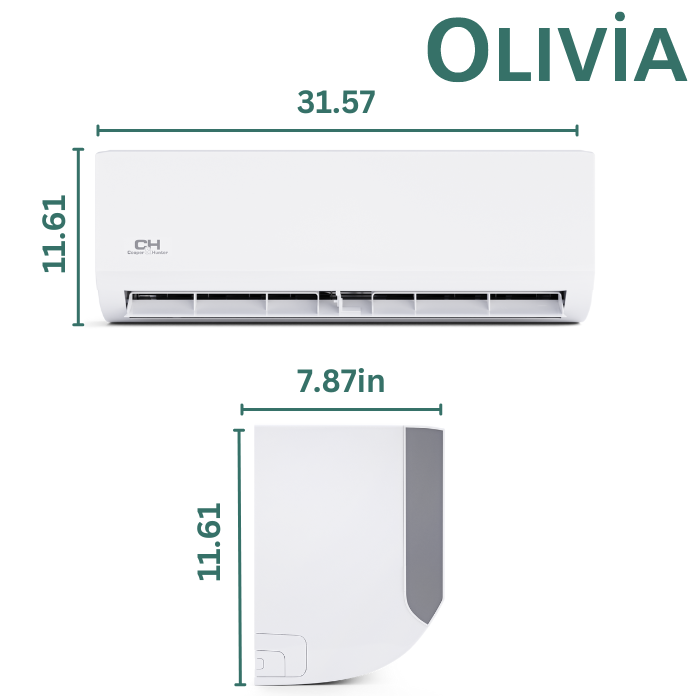

| Dimension (W×D×H) (in) | 31.57 × 7.87 × 11.61 |
| Packing (W×D×H) (in) | 31.57 × 7.87 × 11.61 |
| Net/Gross Weight (lb) | 18.96 / 24.25 |
| Room Temperature (Cooling) (°F) | 60–90 |
| Room Temperature (Heating) (°F) | 32–86 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4" / 3/8" |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-RES12-230VO |
| System type | Single-zone unit |
| Refrigerant type | R454B |
| BTU Rated | 12,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Voltage range (V) | 187-253 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4" / 3/8" |
| Max. pipe length (ft) | 82 |
| Max height difference between Indoor and Outdoor unit | 49.2 |
| Cooling capacity (Min/Max) (BTU/h) | 11,500 (3,100~13,000) |
| Heating capacity (Min/Max) (Btu/h) | 12,000 (3,700~15,600) |
| SEER2 | 19 |
| EER2 | 11.7 |
| HSPF2-5 | 8 |
| HSPF2-4 | 10.2 |
| COP | 3.42 |
| Dehumidification value (pnt/day) | 2.09 |
| Outdoor Noise Level | 55.5 |
| Outdoor Air Flow | 1,236.1 |
| Minimum circuit ampacity | 12 |
| Max.fuse | 15 |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | -13 ~ 122 |

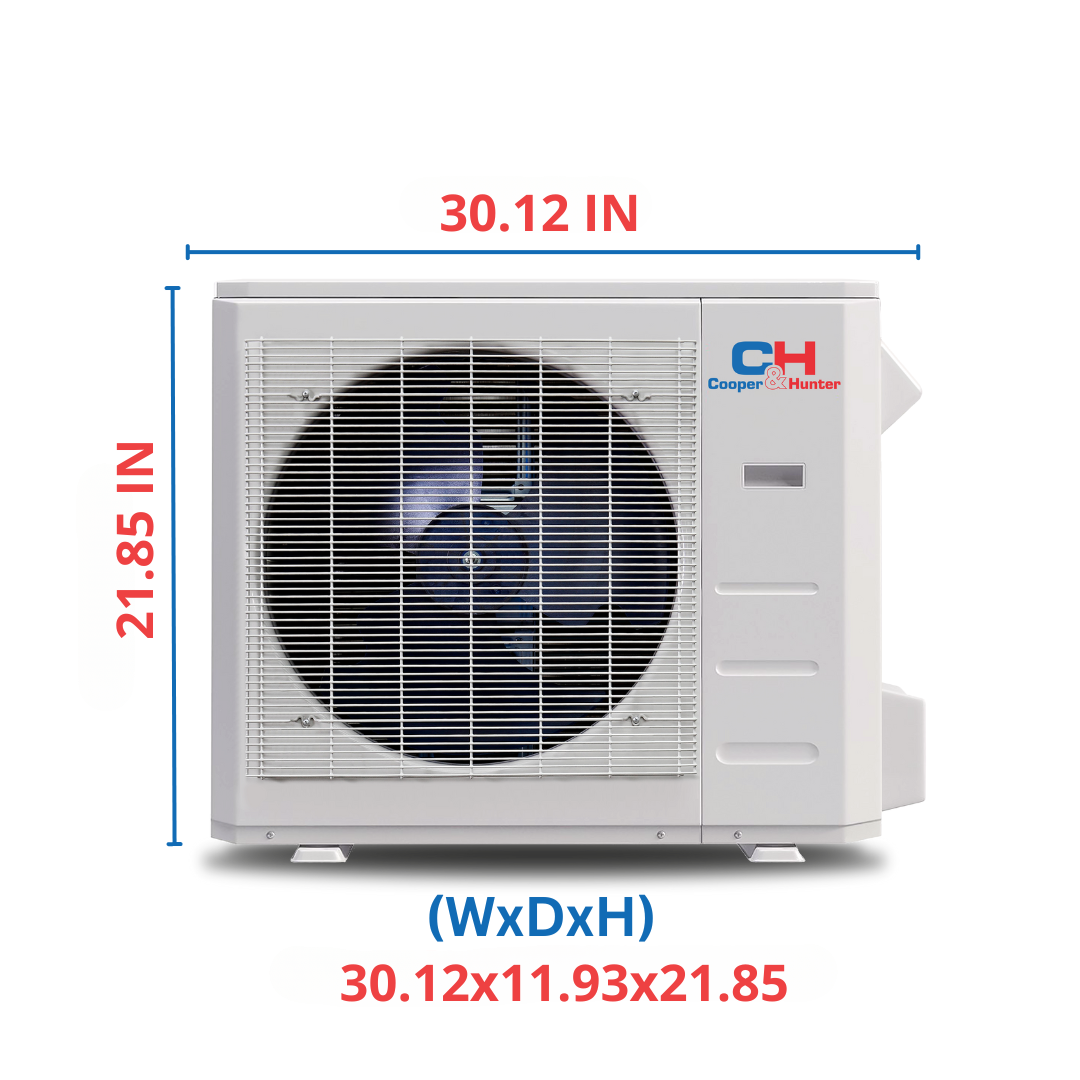

| Unit dimensions (W*H*D) | 30.12 x 11.93 x 21.85 |
| Unit Net/Gross weight | 62.17/67.68 |
| Packing dimensions (WxDxH) | 34.92 x 13.27 x 24.02 |
| Refrigerant precharge | 25 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Documents & Downloads
- Submittal (PDF): CH-R12MOLVWM-230VI (Link 1)
- Submittal (PDF): CH-R12MOLVWM-230VI (Link 2)
- Submittal (PDF): CH-RES12-230VO + CH-PRO12MASTWM-230VI
- Submittal (PDF): CH-RES12-230VO + CH-RH12MASTWM-230VI
- Submittal (PDF): CH-RES12-230VO + CH-RS06-12MDT--MS
- Submittal (PDF): CH-RES12-230VO + CH-RSH12MCT
- Submittal (PDF): CH-RES12-230VO + CH-RH12MCT
- Installation Manual (PDF): R454B Outdoor Units
- Leaflet (PDF): SlimDuct — R454B
- Manufacturer Page: CH-RES12-230VO
- AHRI Directory Listing: 207742320
Important
Professional installation is recommended. Confirm electrical requirements, line sizes, maximum line length, and ambient operating limits before installation.
FAQs
Is this a Hyper Heat system?
No—this is the Regular (non-Hyper) outdoor unit.
What line sizes does this system use?
1/4" liquid and 3/8" gas.
What is the maximum line set length?
Up to 82 ft (maximum pipe length).
Does it include smart control?
Smart Kit is listed as included, and a remote is included.
What is the rated outdoor operating range?
Heating: -13°F to 75°F. Cooling: -13°F to 122°F.
