Cooper&Hunter 12,000 BTU Olivia Midnight Single Zone Wall Mount Mini Split Heat Pump System R454B 230V
SKU: CH-RB12MOLVWM-230VI + CH-RES12-230VO
Overview

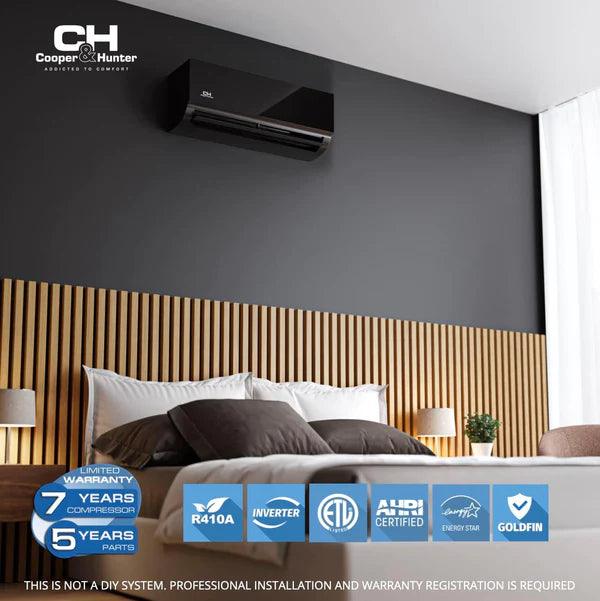

Transform your home’s climate control with the Cooper&Hunter 12K BTU Olivia Midnight wall-mounted mini split system, featuring the new R454B refrigerant and an elegant black indoor unit for a modern, premium look. Designed for 208–230V installations, Olivia Midnight combines advanced comfort features with efficient performance (up to 23.1 SEER2).
Comfort and convenience features include Auto-Swing horizontal louvers for improved air circulation, Turbo Mode for rapid heating/cooling, Follow Me sensing from the remote, Timer On/Off and Sleep Mode, plus 46° Freeze Protection. Advanced technology includes 12Hz ultra-low compressor speed for quiet efficiency, High-Frequency Racer Technology for fast startup response, an electronic expansion valve for optimized refrigerant flow management, and an intelligent dusting switch that reverses the fan to help clear dust, sand, and debris from the coil. Built with TU1 copper tubes for durability and efficient heat transfer.
The Regular single-zone outdoor unit uses inverter control to closely match heating/cooling demand while helping reduce energy use.
Highlights
- Even air distribution: Auto-Swing louvers help reduce hot/cold spots.
- Fast comfort: Turbo Mode and rapid startup response for quick temperature changes.
- Personalized control: Follow Me adjusts temperature based on remote sensor location.
- Smart control ready: Smart Kit enables app connectivity and remote control.
- Control options: Remote included; wall thermostat optional (sold separately).
What’s Included

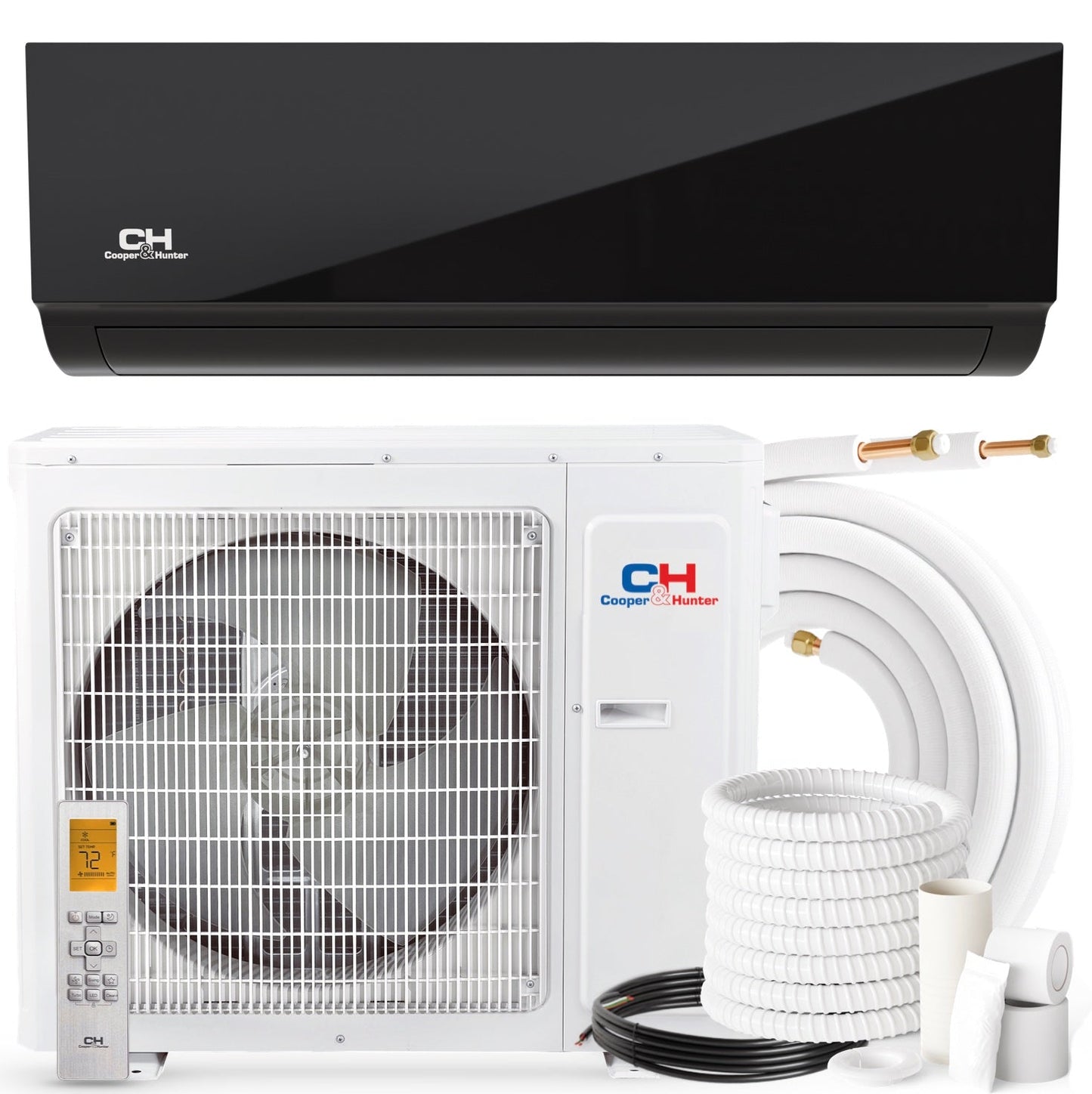

- Indoor unit: CH-RB12MOLVWM-230VI (Olivia Midnight Black)
- Outdoor unit: CH-RES12-230VO (Regular)
- Remote control (included)

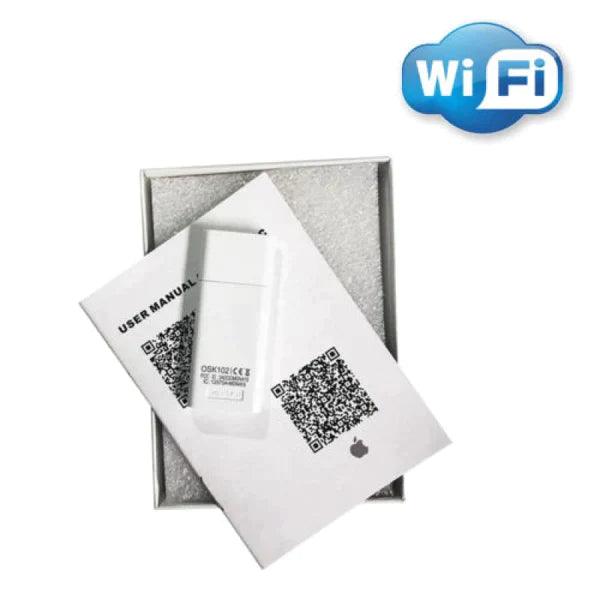

- Smart Kit for app control
- Manufacturer documentation (see Documents & Downloads)
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-RB12MOLVWM-230VI |
| Refrigerant type | R454B |
| System type | Single/Multi-zone unit |
| Power source | 208–230V, 1Ph, 60Hz |
| BTU rated | 12,000 |
| SEER2 | 23.1 |
| EER2 | 13 |
| Dehumidification | 2.83 pnt/day |
| Voltage range | 187–253 V |
| Controller | RG10K-exclusive remote |
| Refrigerant piping (liq/gas) | 1/4" / 3/8" |
| Minimum circuit ampacity | 3 |
| Max fuse | 15 |
| Indoor noise level (H/M/L) | 42 / 36 / 25 |
| Indoor air flow | 341.18 / 291.18 / 194.12 / 152.94 |
| Unit dimensions (W×H×D) | 31.57 × 7.87 × 11.61 |
| Packing dimensions (W×D×H) | 34.45 × 11.22 × 14.96 |
| Net / Gross weight | 18.74 / 24.25 |
| Operating range (Cooling) | 60–90 |
| Operating range (Heating) | 32–86 |
| Drainage water pipe diameter | 5/8" |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-RES12-230VO |
| System type | Single-zone unit |
| Refrigerant type | R454B |
| BTU rated | 12,000 |
| Power source | 208–230V, 1Ph, 60Hz |
| Voltage range | 187–253 V |
| Refrigerant piping (liq/gas) | 1/4" / 3/8" |
| Max pipe length | 82 ft |
| Max height difference (IDU↔ODU) | 49.2 |
| Cooling capacity (Min/Max) | 11,500 (3,100~13,000) |
| Heating capacity (Min/Max) | 12,000 (3,700~15,600) |
| SEER2 | 19 |
| EER2 | 11.7 |
| HSPF2-5 | 8 |
| HSPF2-4 | 10.2 |
| COP | 3.42 |
| Dehumidification | 2.09 pnt/day |
| Outdoor noise level | 55.5 |
| Outdoor air flow | 1,236.1 |
| Minimum circuit ampacity | 12 |
| Max fuse | 15 |
| Ambient temp (Heating) | −13~75 |
| Ambient temp (Cooling) | −13~122 |
| Unit dimensions (W×H×D) | 30.12 × 11.93 × 21.85 |
| Net / Gross weight | 62.17 / 67.68 |
| Packing dimensions (W×D×H) | 34.92 × 13.27 × 24.02 |
| Refrigerant precharge | 25 |
| Additional charge (1/4" liquid) | 0.16 |
Documents & Downloads
- Submittal (PDF) — CH-RES12-230VO + CH-RB12MOLVWM-230VI
- Submittal (PDF) — CH-RHP12-230VO + CH-RB12MOLVWM-230VI
- Submittal (PDF) — CH-RB12MOLVWM-230VI
- Submittal (PDF) — CH-RES12-230VO + CH-PRO12MASTWM-230VI
- Submittal (PDF) — CH-RES12-230VO + CH-RH12MASTWM-230VI
- Submittal (PDF) — CH-RES12-230VO + CH-RS06-12MDT-MS
- Submittal (PDF) — CH-RES12-230VO + CH-RSH12MCT
- Submittal (PDF) — CH-RES12-230VO + CH-RH12MCT
- Installation Manual (PDF) — R454B Outdoor Units
- SlimDuct Leaflet (PDF) — R454B
- AHRI Directory
- Manufacturer Page — CH-RES12-230VO
Important
Professional installation is recommended. Verify electrical requirements, line sizes, maximum line length, and ambient operating limits before installation.
FAQs
What voltage does this system require?
What line sizes does this system use?
What is the max line length and height difference?
What are the outdoor ambient operating ranges?
What control options are supported?
